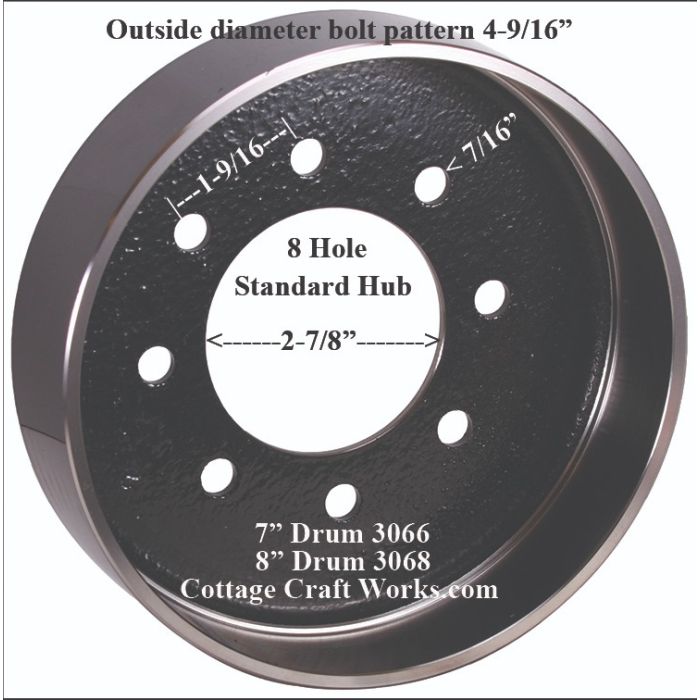

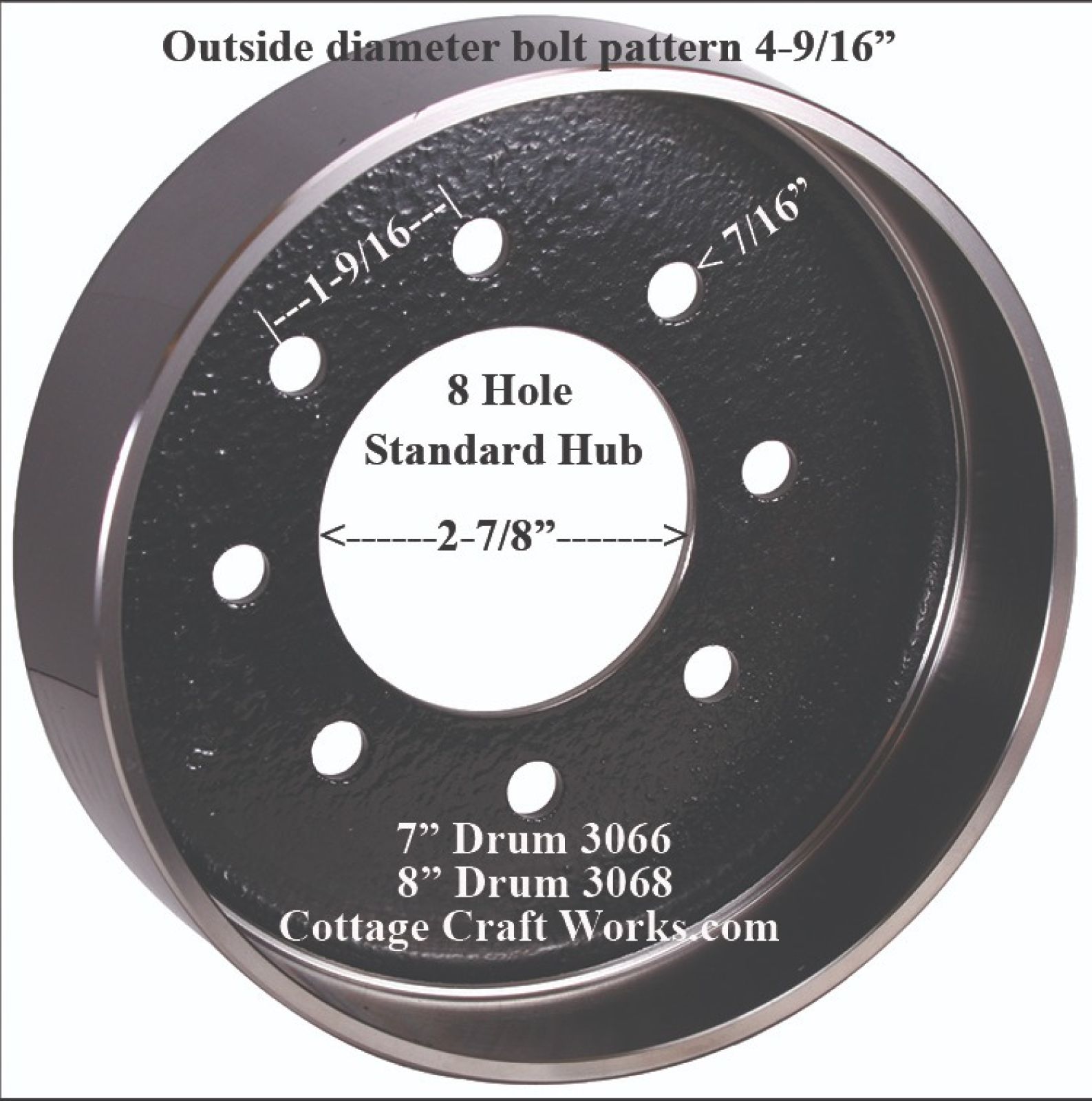

Horse Drawn Vehicle Brake Drum
Brake drums for Indiana, Ohio, and PA Amish style buggies-carriages in 7” or 8”. Options for wheel bolt hole spacing include a universal option that allows bolts to be used between the spokes with an installation ring for the backside. A blank drum is also available to drill older style bolt spacing.
We also have brake shoes, brake assembly parts, complete brake assemblies as well as complete brake systems for horse-drawn vehicles, carriages, buggies, carts, and wagons. CLICK HERE for more information.
Read more below >
Description / Horse Drawn Vehicle Brake Drum
Priced a la carte, using the drop-down boxes. Select the hub(s) needed and the prices will be incrementally added for each hub selected. To deselect hit select again.
The actual brake drum O.D. for the 7” is 7-7-16” x 2” wide and the O.D. for the 8” is 8-7/16” x 2-5/16” wide.
Universal drums 3061 and 3062 are to be used with a 3063 installation ring for through-the-spoke bolts (Not Included) on aluminum and wood spoke wheels with a wheel hub max of 2-7/8” O.D.
Universal hub 3064 and 3065 for old-style PA hubs has a max hub diameter of 3-1/4” and will need to be held/clamped on the wheel hub and then bolt holes drilled where needed.
3064-WH is a 7" brake drum with a center hub bore that measures 3-1/4" for the old-style PA. It already has the 8 holes drilled for mounting.
For the Brake instructions manual click here
