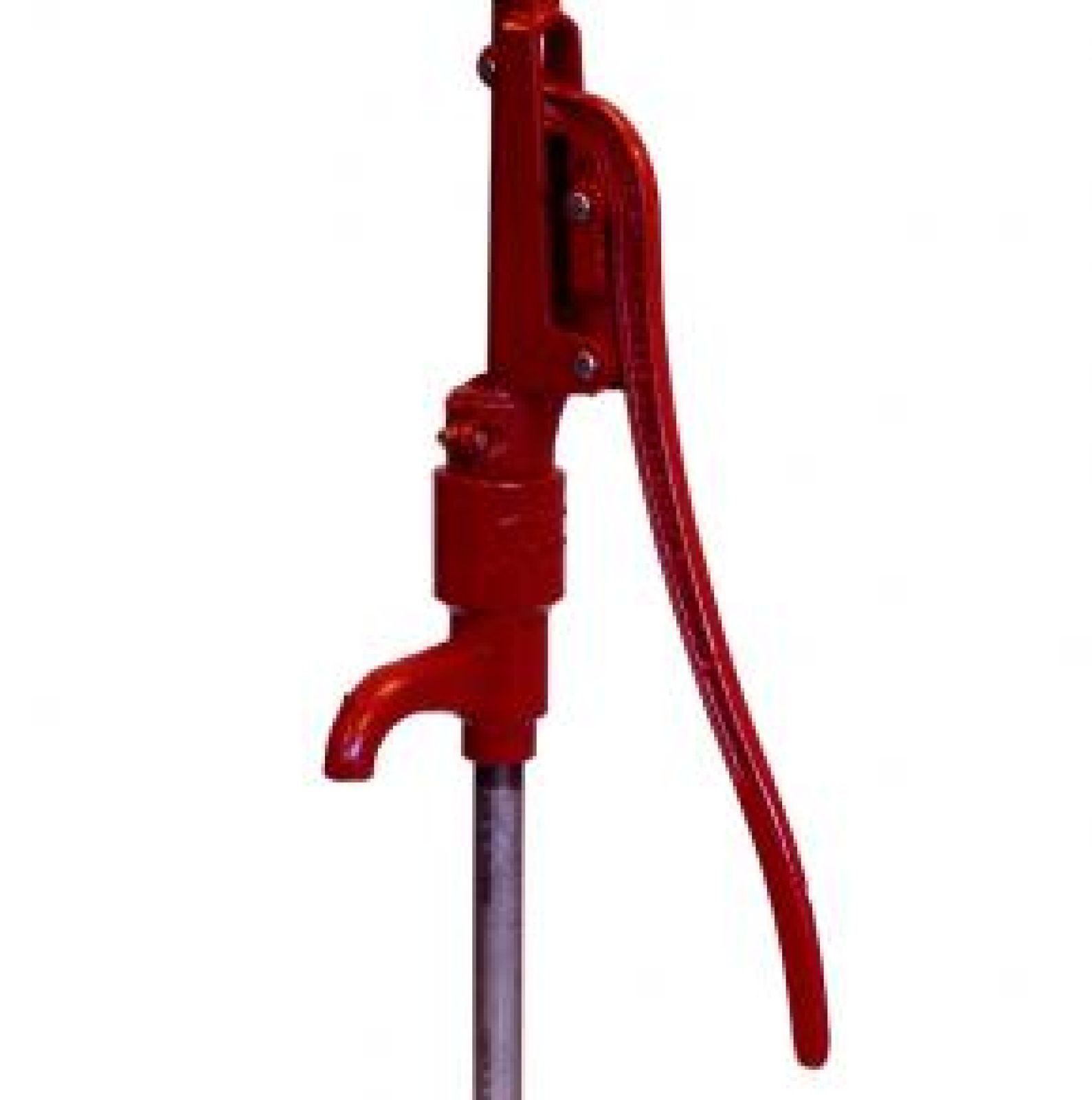

Heller Aller Windmill Head Pump Model 192-A

Large capacity hand or windmill well water pump. Our price begins with the platform base model and includes the pump head and brass cylinder.

USA Heller Aller has been the standard of water pumps since 1886. Model 192-A provides a very serviceable, well-constructed, large capacity, and easily operated pump.

Designed for a capacity of 15’ to 20’ wells but may be used in deeper wells up to 100' by lowering the cylinder into the water. A foot valve is recommended for deeper installations.

Read more below >

Due to the backlog of castings and parts and the high demand for a USA-made pump, these pumps also have a large backlog. They are taking up to 90+ days to ship. If you want one, we recommend that you go ahead order and get inline. As the few castings that do come in go back out to fill the backorders. No matter which dealer you try to purchase them from it will all end up at this small shop in Indiana that makes them. Our system does charge credit cards at the time of the order. Sorry, we don't have any other options for the pumps.

SKU 192-A

Customizable Options:

Description / Heller Aller Windmill Head Pump Model 192-A

You may select a base for either a 4” or 6” casing or a flat platform base.

The pump comes with a head, brass cylinder, pipe, and rod. Enough to drop the cylinder down below a 4' frost line. PVC pipe tail then can be added to drop below static water level.  Assembly will be required.

The cylinder is 2-1/2” X 10” brass, stroke is 6”. The cylinder has a 1-1/4 pipe thread.

Pump Rod is made of high-quality Stainless steel.

Adjustable to a 4" or 6" stroke.

The pump is Anti-Freezing at a 4’ set length

Price begins with a platform base model and incrementally increases as the 4" or 6" cap base sizes are selected.

Upgrade to an offset well cap; available only for a 6" casing. Allows a hand pump to be added to an existing well with an electric submersible well pump. The offset cap holds the hand pump cylinder to the side of the other pump and wiring.

Select Windmill Pump Connector if needed as an added option.

Need Parts for this pump? E-mail us the parts you need. There will be a $5 drop ship fee plus shipping for pump parts.

Please Note. These pumps are in very high demand. The small factory that builds them struggles at times in keeping enough parts coming in from a local foundry to immediately fill all current orders. At times, they may have a 2-6-week delay before new parts arrive.
