Mascot, Agri-Fab 21 Inch Reel Mower Parts

In stock
SKU
MAS21PT
$0.00

Complete replacement parts for 21” Mascot & Agri-Fab 45-00252 Silent Cut Reel Push Mower.

We sell the Mascot Reel Mowers and support our customers with these replacement parts should they need them for aging models or mowers that have been damaged. Agri-Fab originally made the Mascot mowers so many of those parts cross over.

Read more about available parts and shipping below the drop-down boxes >

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on the "Please Select" again.

Mascot, Agri-Fab 21" Reel Mower Parts
Mascot, Agri-Fab 21" Reel Mower Parts Mascot Wheel and Gear Parts

Details

Parts ship from an Amish shop without faxes or computers. Orders are still processed in an old-fashioned way and shipped directly from the shop in Indiana. Please allow up to 14 days for your order to arrive. We will not have electronic tracking to automatically update your order status from processing to ship. Orders are shipped USPS. Manual tracking numbers are kept at the shop should we ever need to trace a package.



Parts referenced for Right or Left is the perspective of standing behind the mower as if you are pushing it.

The quantity listed below is how many it takes on the mower. Unless noted specifically on the drop-down boxes each item is per each. For example; if you need two 46471 handle grips you will need to order two by either adding one to the cart and returning or adding 2 in the quantity at the Add to Cart Box and then adding to the cart before returning and adding more parts if needed.

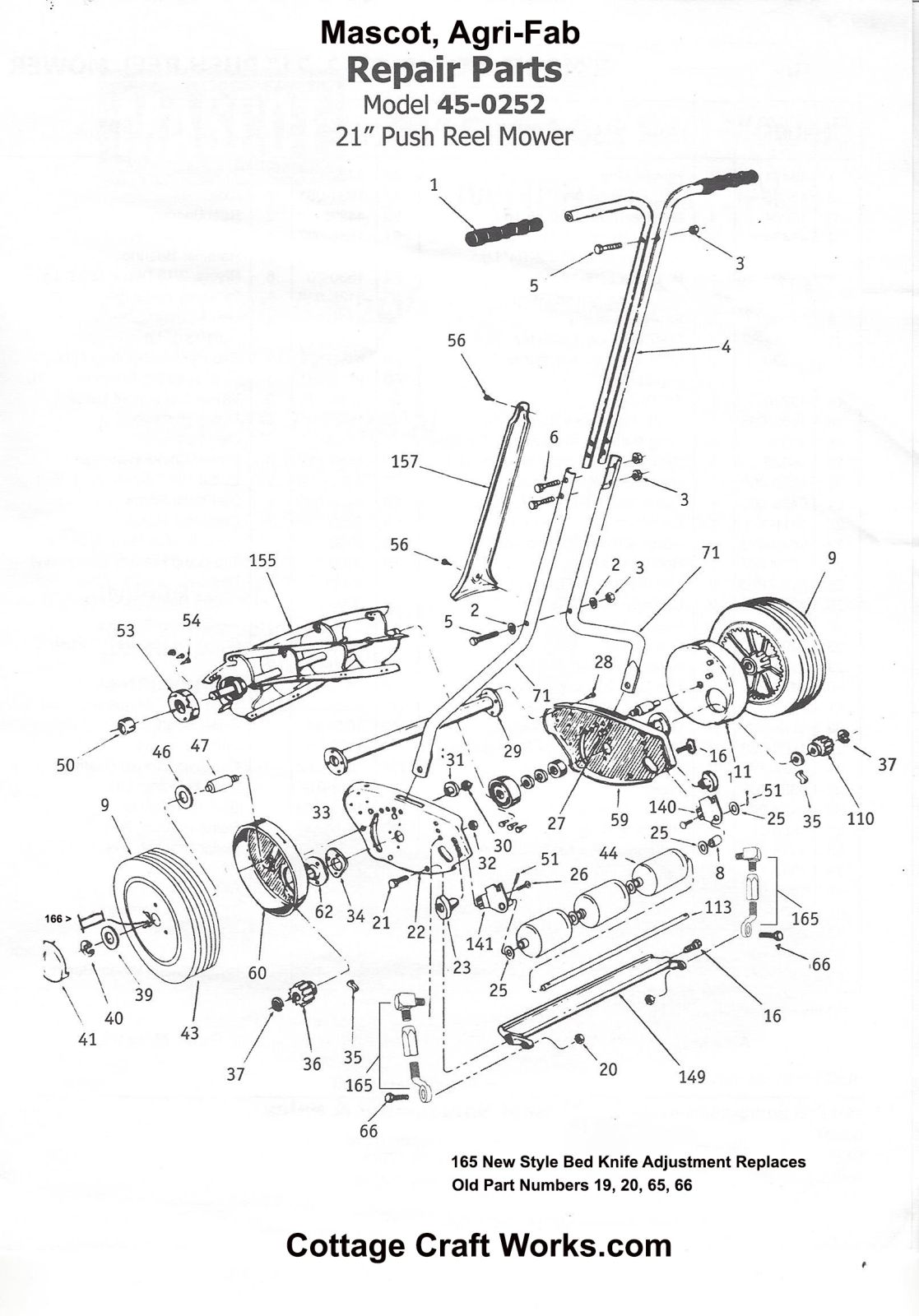

Mascot & Agri-Fab Model 45-00252 21” Push and Gang Reel Mower Parts:

Ref #
Part #
Qty
Description
1
46471
2
Handle Grip
2
43086
2
Lock Washer, 5/16" *
3
43064
4
Nut, Hex lock 5/16-18 Thread *
4
46434
2
Upper Handle for  21"
5
43224
2
 Bolt, Hex 5-16"-18 x 2-1/4" Lg *
6
44292
1
Bolt, Hex 5/16"-18 x 2-1/2" Lg *
8
1697-005

OutRigger for Gang
9
1108-95
2
Wheel Assembly
11
2118-082
1
Gear Housing Assembly, R.H.
13
46330
2
Trunnion, Adj Screw (Old Style)
14
43716
1
21" Roller
16
1509-086
1
Screw, Cutter Bar (L.H. Thread)
18
46331
2
Screw, Adjust.- (old-style long bolt)
19
46329
2
Trunnion, for adjustment screw (old-style replaced by 165 adjustment assembly)
20
0052-000
4
Nut, Hex 3/8-24 thd. Locknut (old-style replaced by 165 adjustment assembly)
21
0445-000
1
Cutter Bar Screw (R.H. Thd)
22
3111-131
1
End Plate Assembly - L.H.
23
1643-023
2
Roller Adjustment Knob & Bolt
24
1609-707
1
Roller Bracket, L.H.
25
R19171616
5
Flat Washer, 17/32" x 1" *
26
43079
2
Carriage Bolts 5/16"-18 x 1" * (metric)
27
0010-000
2
Handle Trunion
28
44060
8
Pop Rivet
29
1112-15
1
Spacer Tube Assembly
30
44738
2
Nut, Hex Lock 5/16"-24 Thd. (wheel adj. lever)
31
1657-019
2
Bushing, Wheel  (wheel adjustment)
32
1118-013
2
Gear Housing - R.H.
33
1509-038
2
Hex Screw, #10-32 x 3/8" Lg. (wheel adjustment) *
34
1624-138
2
Retainer
35
0323-000
2
Pawl
36
0428-000
1
Pinion Gear, L.H.
37
1650-21
2
Retainer Ring
38
1548-7
1
Roll Pin, 1/8" x 13/64" Lg.
39
1540-118
2
Flat Washer, 3/8" ID x 1-1/4" OD
40
1650-001
2
Retaining Ring
41
2674-032
2
Hub Cap
43
2619-025
1
Tire Only- Standard  (This is only the rubber part and will need to be pressed on the wheel) Plastic Wheel Only will have bushing and gear ring.
44
1658-012
3
Roller- Each Section
45
1129-181
2
End Plate, R.H. (21" gang only)
46
44008
2
Inside Wheel Washer
47
1631-051
2
Axle
50
44232
2
Reel Bearing
51
1548-007
1
Roll Pin, 1/8" x 13/64" Lg. (cotter pin) *
53
1629-028
2
Retainer Bearing
54
1530-20
6
Rivet, 3/16 Dia x 13/32" Lg.
55
3135-036
1
21" Reel Assembly
56
44818
2
Handle Screw, Hex Hd #10 x 1" Lg.
59
3111-130
1
End Plate Assembly - R.H. (push mower)
60
2118-081
1
Gear Housing Assembly- L.H.
61
1155-047
2
Wheel Adjustment Lever
62
1629-041
2
Pinion Housing
63
1652-052
4
Plastic Wheel Bearings
65
0451-000
2
Cutter Bar Adjustment Eye Bolt (old-style replaced by 165 adjustment assembly)
66
0453-000
2
Bed Knife Screw (old-style replaced by 165 adjustment assembly)
69
2830

Tube Tongue No J Hook (gang)
70
3600

Top Gang Bracket (gang)
71
25-21
2
Handle Brace 21" Push
75
3000
4
2-Step Bushings for Gang Bracket
80
2840
1
Complete Handle 21" Push
81
2619-034
2
Tire Only
110
0425-000
1
Pinion Gear, R.H.
111
2820

Solid Shaft Tongue w/J hook (gang)
113
1632-84
1
Roller Shaft
114
1129-180

End Plate, L.H.
120
1652-052

Old style bonze wheel bearing used on metal wheel mowers <2011
131
1118-014

Gear Housing, L.H.
134
1629-009

Bearing Retainer
140
2132-045
1
Roller Bracket, R.H.
141
2132-044
1
Roller Bracket, L.H.
146
1108-095
2
Wheel & Tire
149
3134-024

Cutter Bar
135
2135-048

21" Reel
157
3622-58
1
Handle Panel
165
2011-2
2
New Style Cutter Bar Adjustment (replaces old parts 19, 20, 65, 66) Order <2011 old or new style.
166
2011-4
2
 Bronze Metal Wheel Bearing (new style wheel bushings used on 2011> metal wheel mowers)

46802
1
Owners Manual ($12 flat rate shipping with only manual select, otherwise ships with parts)

* Denotes Standard Parts Available Locally

A $12 flat-rate shipping and handling base rate will process with each order regardless of the cost to ship the smallest part(s) sold in the US. Parts have very little markup, especially on just a small item. The flat rate helps defray our handling and processing is the same for a bolt or a larger order.

This should cover most mower parts that will fit in flat rate USPS boxes. Should you need larger parts or multiple parts, additional shipping costs may be required.

International customers, please email us with the parts that you need, and we will calculate the shipping cost and send you a PayPal invoice in US Dollars. Duties and taxes will still be due to your country upon delivery.

If you will be ordering multiple or large parts, please checkout using the PayPal option. We will be able to send you a PayPal invoice for any additional shipping if needed.

Otherwise, we are not able to upcharge shipping to a credit card order and will need to call you. We will not know the shipping cost until the Amish shop can verify the order and the cost to ship large parts or large orders.

Parts ship directly from an Amish-owned business without computers, please expect some orders to take up to two weeks to ship. Most parts are stocked but some may need to be made.
