Mascot, Agri-Fab 18 Inch Reel Mower Replacement Parts

Complete replacement parts for 18” Mascot & Agri-Fab 45-01931 Silent Cut Reel Push Mowers.

Read more about available parts and shipping below the drop-down boxes >

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on the "Please Select" again.

SKU MAS18PT

Customizable Options:

  $0.00

Description / Mascot, Agri-Fab 18 Inch Reel Mower Replacement Parts

Parts ship from an Amish shop without faxes or computers. Orders are still processed in an old-fashioned way and shipped directly from the shop in Indiana. Please allow up to 14 days for your order to arrive. We will not have electronic tracking to automatically update your order status from processing to ship. Orders are shipped USPS. Manual tracking numbers are kept at the shop should we ever need to trace a package.

We sell the Mascot Reel Mowers and support our customers with these replacement parts should they need them for aging models or mowers that have been damaged. Originally Agri-Fab made these mowers for Mascot so many of the parts cross over to old Agri-Fab 18" models.

Parts referenced for Right or Left is the perspective of standing behind the mower as if you are pushing it.

The quantity listed below is how many it takes on the mower. Unless noted specifically on the drop-down boxes each item is per each. For example; if you need two 46471 handle grips you will need to order two by either adding one to the cart and returning or adding 2 in the quantity at the Add to Cart Box and then adding to cart before returning and adding more parts if needed.

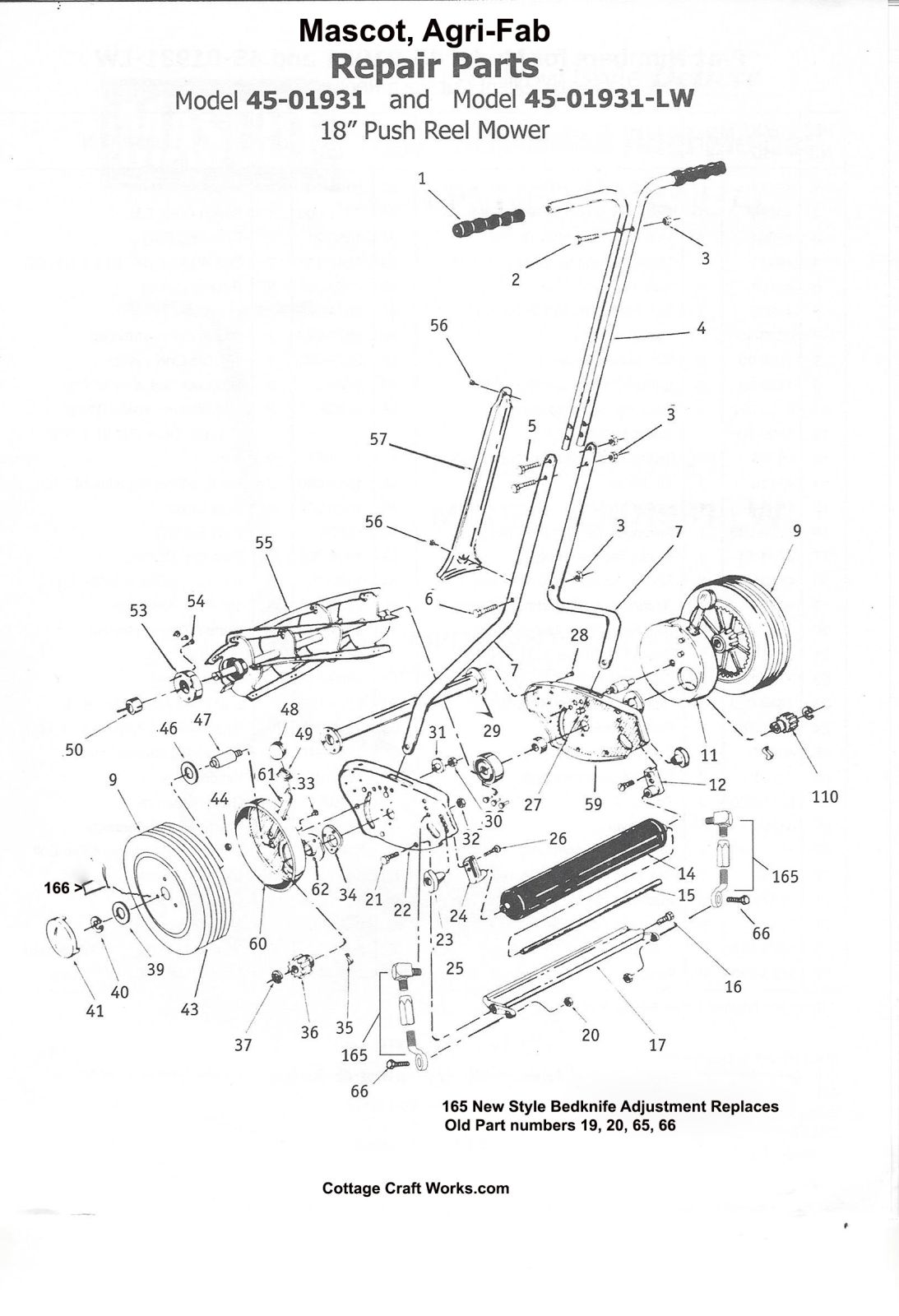

Mascot & Agri-Fab Models 45-01931 and Model 45-01931-LW:


Ref #
Part #
Qty Required
Description
1
46471
2
Handle Grip
2
43084
1
Bolt, Hex 5/16-18 x 1-3/4" Long *
3
43064
4
Nut, Hex lock 5/16-18 Thread *
4
46434
2
Upper Handle for 18" & 21"
5
43224
2
Bolt, Hex 5-16"-18 x 2-1/4" Lg *
6
44292
1
Bolt, Hex 5/16"-18 x 2-1/2" Lg *
7
3603-43
2
Handle Brace
9
1108-80
2
Wheel & Tire Assembly - 9"
9
1108-95
2
Wheel & Tire Assembly -10"
11
1609-708
1
Wheel Housing Assembly, R.H.
12
2132-044
1
Roller Bracket, R.H. (Order with or without hooks for grass catcher)
14
43716-000
1
18" Roller
15
1632-144
1
Roller Shaft
16
1509-086
1
Screw, Cutter Bar (L.H. Thread)
17
2134-14
1
Cutter Bar 18"
18
46331
2
Screw, Adjust.- (old-style long bolt)
19
46329
2
Trunnion, for the adjustment screw
20
0052-000
8
Nut, Hex 3/8-24 thd. Locknut (replaced with #165)
21
0445-000
1
Cutter Bar Screw (R.H. Thd)
22
3111-131
1
End Plate Assembly - L.H.
23
1643-023
2
Roller Adjustment Knob & Bolt
24
1609-707
1
Roller Bracket, L.H. (Order with or without hooks for grass catcher)
25
43081
2
Flat Washer, 5/16" Std. *
26
43682
2
Roller Adjustment Bolt * (metric)
27
0010-000
2
Handle Trunion
28
44060
8
Pop Rivet
29
1112-029
1
Spacer Tube Assembly
30
44738
2
Nut, Hex Lock 5/16"-24 Thd. (wheel adjustment bolt)
31
1657-019
2
Bushing, Wheel (wheel adjustment bolt bushing)
32
1038
2
Hex Lock Nut, 3/8-24 Thd. * (metric)
33
1509-038
2
Hex Screw, #10-32 x 3/8" Lg. (wheel adjustment) *
34
1624-138
2
Retainer
35
0323-000
2
Pawl
36
0428-000
1
Pinion Gear, L.H.
37
1650-21
2
Retainer Ring
39
1540-118
2
Flat Washer, 3/8" ID x 1-1/4" OD
40
1650-001
2
Retaining Ring
41
2674-032
2
Hub Cap
43
2619-025
1
9" Tire Only- Standard (This is only the rubber part and will need to be pressed on the wheel)
43
2619-030
1
10" Tire Only-Large (This is only the rubber part and will need to be pressed on the wheel) Plastic Wheel Only will have bushing and gear ring.
44
1534-8
2
Hex Lock Nut, #10-32 Thd. (Metric) *
46
44008
2
Flat Washer, Inside Wheel 1-1/8 x.78 x.025"
47
1631-51
2
Axle
48
1643-060
2
Knob, Wheel Adjustment
49
1622-050
2
Dust Cover
50
44232
2
Reel Bearing
53
1629-028
2
Retainer Bearing
54
1530-20
6
Rivet, 3/16 Dia x 13/32" Lg.
55
2135-046
1
18" Reel
56
44818
2
Handle Screw, Hex Hd #12 x 1" Lg.
57
3622-54
1
Handle Panel
59
3111-130
1
End Plate Assembly - R.H.
60
1118-014
1
Gear Housing Assembly- L.H.
61
1155-047
2
Wheel Adjustment Lever
62
1629-041
2
Pinon Housing
63
1652-052
4
Plastic Wheel Bearings (used for a very short time only on plastic wheels <2011)
65
0451-000
2
Cutter Bar Adjustment Eye Bolt (replaced with #165)
66
0453-000
2
Long Rear Screw Bed Knife (replaced with #165)
68
2850
1
Complete Handle
110
0425-000
1
Pinion Gear, R.H.
165
2011-2
2
Cutter Bar Adjustment (new style replaces old parts 19, 20, 65, 66) order old <2011 or new style
166
2011-4
2
Bronze Wheel Bearing (new style 2011>) Use #120 1652-052 (old-style bronze wheel bearing <2011)

46802
1
Owners Manual ($12 flat rate shipping with only manual select, otherwise ships with parts)
Ref #
Part #
Qty
Description


* Denotes Standard Parts Available Locally

A $12 flat-rate shipping and handling base rate will process with each order regardless of the cost to ship the smallest part(s) sold in the US. Parts have very little markup, especially on just a small item. The flat-rate helps defray our handling and processing is the same for a bolt or a larger order.

This should cover most mower parts that will fit in flat rate USPS boxes. Should you need larger parts or multiple parts, additional shipping costs may be required.

International customers, please email us with the parts that you need, and we will calculate the shipping cost and send you a PayPal invoice in US Dollars. Duties and taxes will still be due to your country upon delivery.

If you will be ordering multiple or large parts, please checkout using the PayPal option. We will be able to send you a PayPal invoice for any additional shipping if needed.

Otherwise, we are not able to upcharge shipping to a credit card order and will need to call you. We will not know the shipping cost until the Amish shop can verify the order and the cost to ship large parts or large orders.

Parts ship directly from an Amish owned business without computers, please expect some orders to take up to two weeks to ship. Most parts are stocked but some may need to be made.

Click Here to view all of our complete reel mower offerings. We carry Clipper, Silver Pro, and Mascot push and gang reel mowers.
