Heller Aller PHB Brass Cylinder Pitcher Water Pump

Our Best-Selling Brass Cylinder Water Pump!

Still made and depended on for freshwater sources from around the world just as they were in the 1800s

Made in the USA American Heritage hand-operated sealed pressure pitcher force pump may be used at a sink or to pump water up into a holding tank. Pumps about one gallon of water for each 14 stroke ratio. Lift up handle to completely drain in freezing weather.

Heller Aller has been the standard of water pumps since 1886. The easy-to-operate Model PHB is still the best pitcher pump ever made.

Read more below >

Due to the backlog of castings and parts and the high demand for a USA-made pump, these pumps also have a large backlog. They are taking up to 90+ days to ship. If you want one, we recommend that you go ahead order and get inline. As the few castings that do come in go back out to fill the backorders. No matter which dealer you try to purchase them from it will all end up at this small shop in Indiana that makes them. Our system does charge credit cards at the time of the order. Sorry, we don't have any other options for the pumps.



Customizable Options:

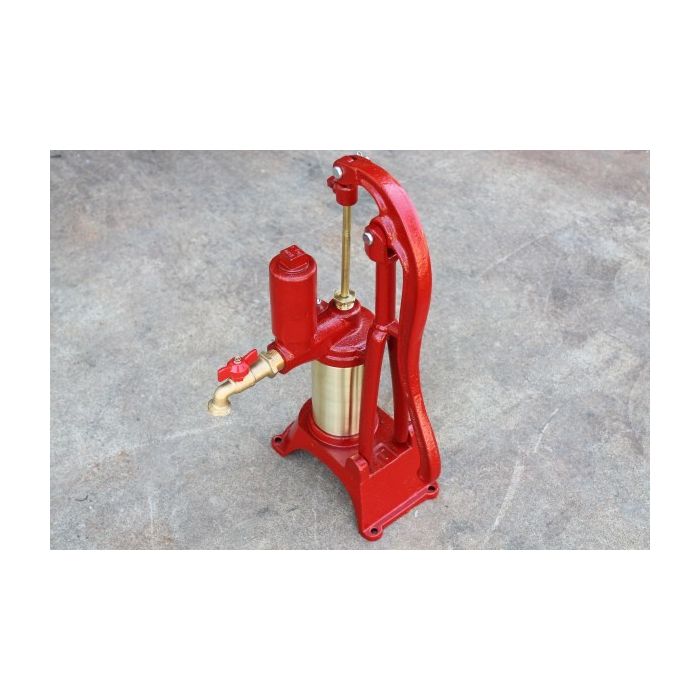

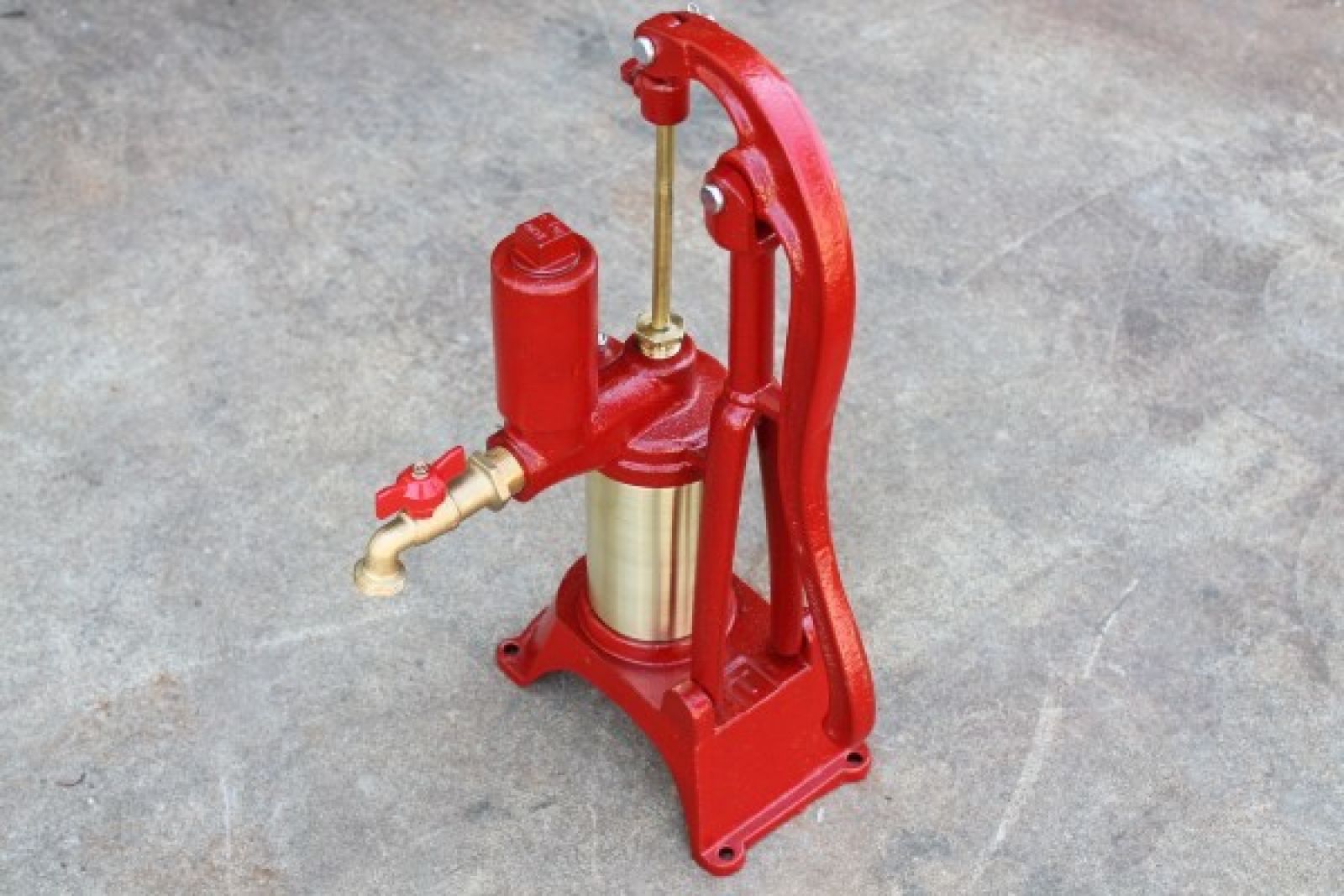

Description / Heller Aller PHB Brass Cylinder Pitcher Water Pump

The pump is designed to operate in shallow wells and cisterns up to 20’ deep. Pumps approx. 1 GPM at 14 strokes.

This is a double-acting pump, the water chamber above the faucet allows additional piping to be added to pump water to a second-floor holding tank for gravity feed water back down to the faucet and to other locations in the home. (Piping and hoses attached above the pump will not drain back when the handle is lifted in freezing weather and will need to be protected)

USA-quality Amish-manufactured pumps offer many quality features:

•Built-in air chamber
•Steady water flow

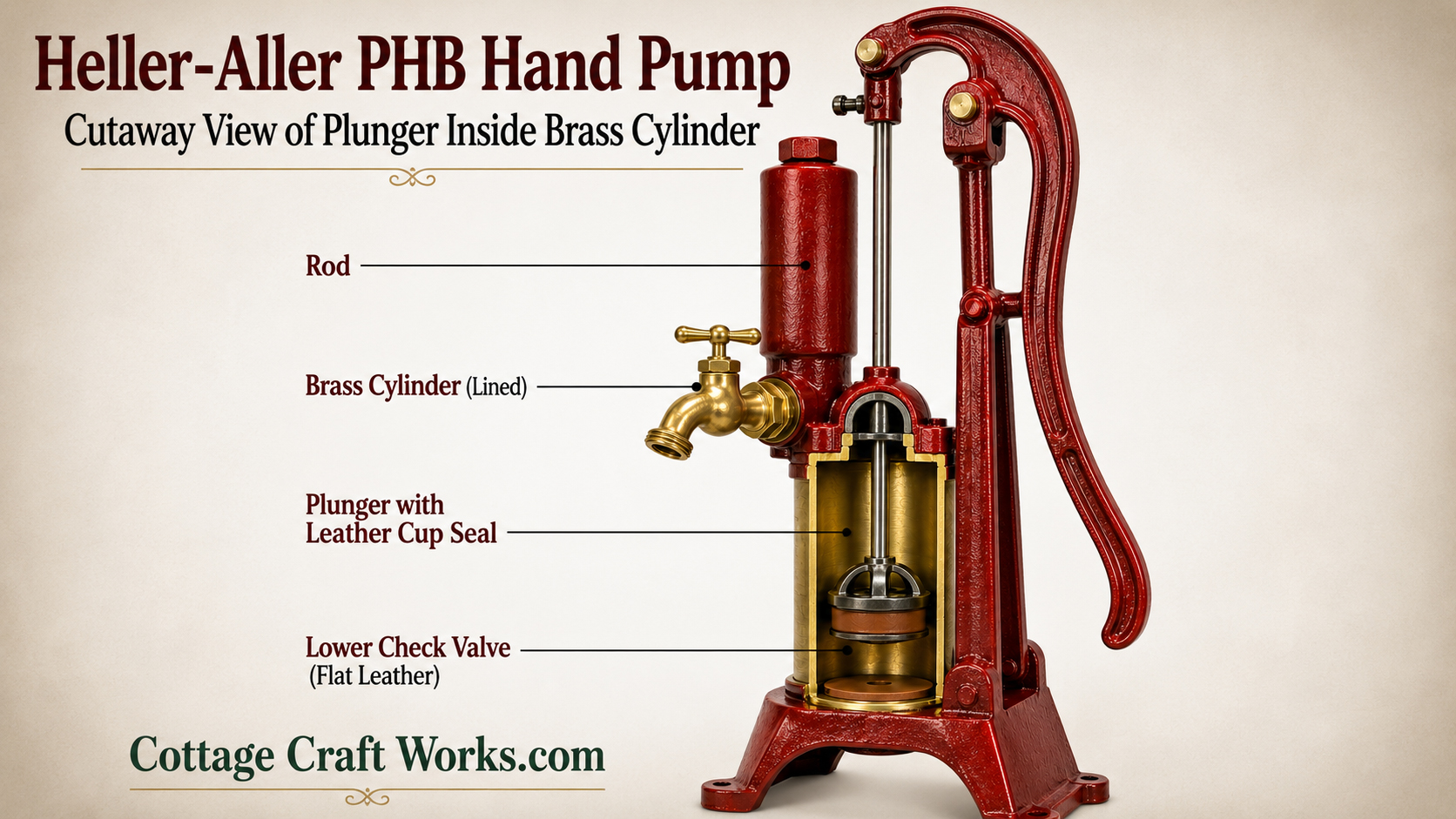

•Solid brass plunger, rod, packing nut & hose bib
•Seamless brass cylinder
•Casting painted red
The end is tapped for a 1-1/4” drop pipe. The top is changeable to use right or left of a sink.
The base measures 5-1/4" x 9".
Use the drop-down box to purchase an additional leather replacement kit. Kit includes the LV 275 leather, CL 300 leather, the 708-leather gasket, and B-23 packing nut rod washers.
Need other parts for this pump? Click Here for the complete parts listing.
Please Note: The PHB pump is in very high demand. The small factory that builds them struggles at times to keep enough parts coming in from a local foundry to immediately fill all current orders. At times, they may have a 2-6-week delay before new parts arrive.
