Heller Aller Brass Cylinder Fig T Water Pump Parts

In stock
SKU
Figt-102
$0.00

Factory replacement parts to fit Heller Aller Fig. T Brass Cylinder Hand Pitcher Pump.

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To deselect click on the "Please Select" again.

See more details below past the drop-down boxes > Pump Rod and Plungers are out of stock.

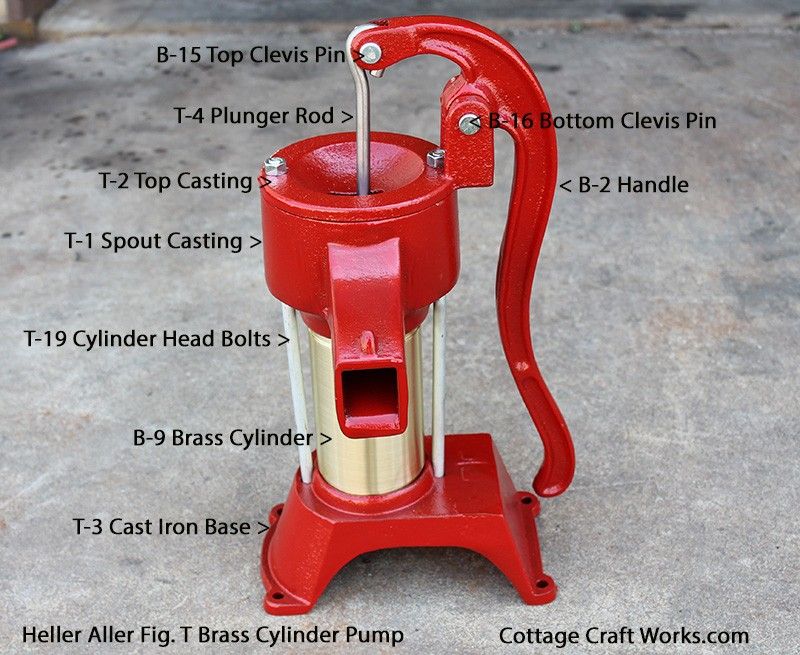

Heller Aller Brass Cylinder Fig T Water Pump Parts

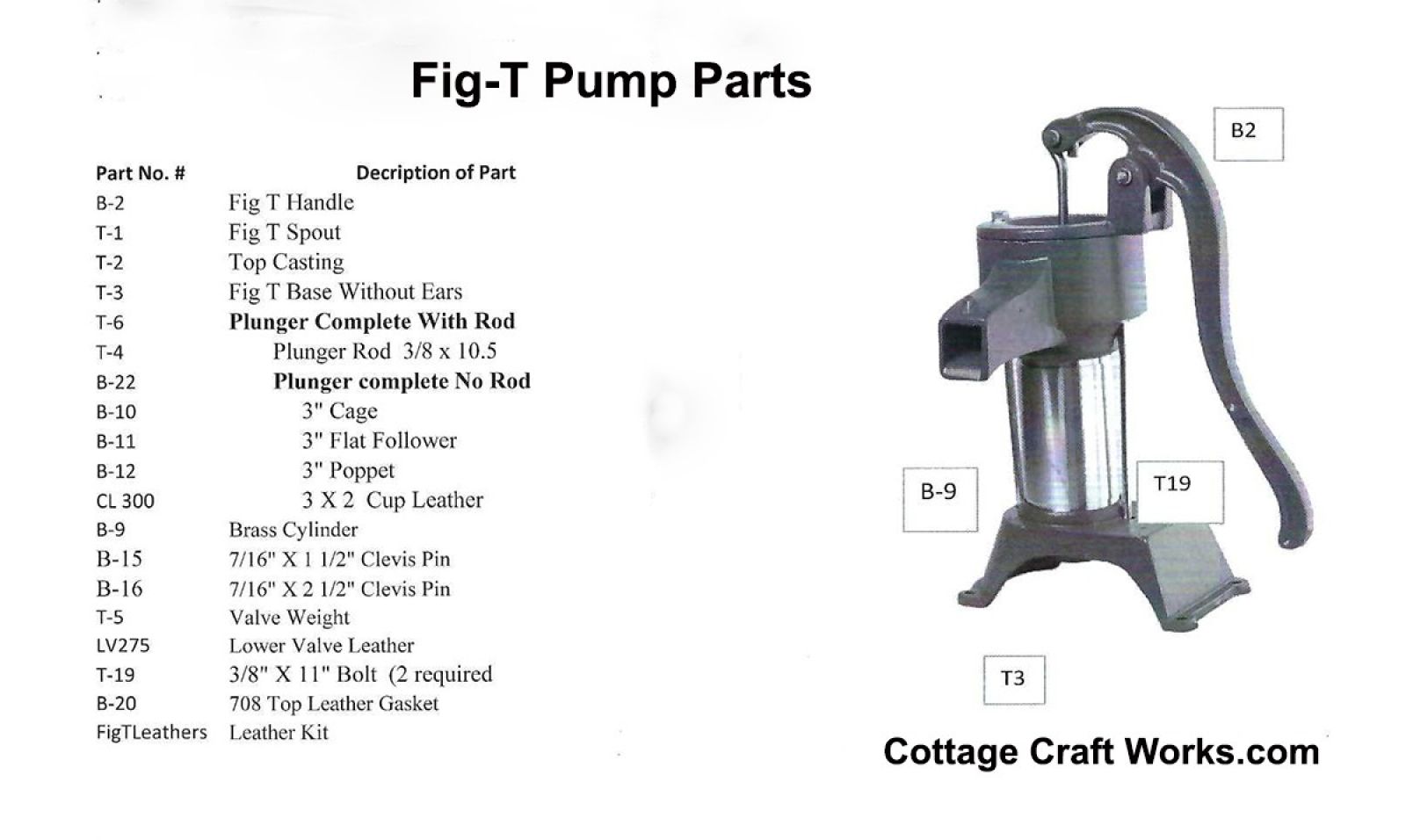

Heller Aller Brass Cylinder Fig T Water Pump Parts Heller Aller Brass Cylinder Fig T Pump Casting Parts Heller Aller Brass Cylinder Fig T Pitcher Pump CCW-03 Fig T Pump Leather Replacement Kit Heller Aller Brass Cylinder Fig T Pump Plunger Heller Aller Brass Cylinder Fig T Pump Valve Weight Heller Aller Brass Cylinder Fig T Pump Cage, Poppet, Follower

Details

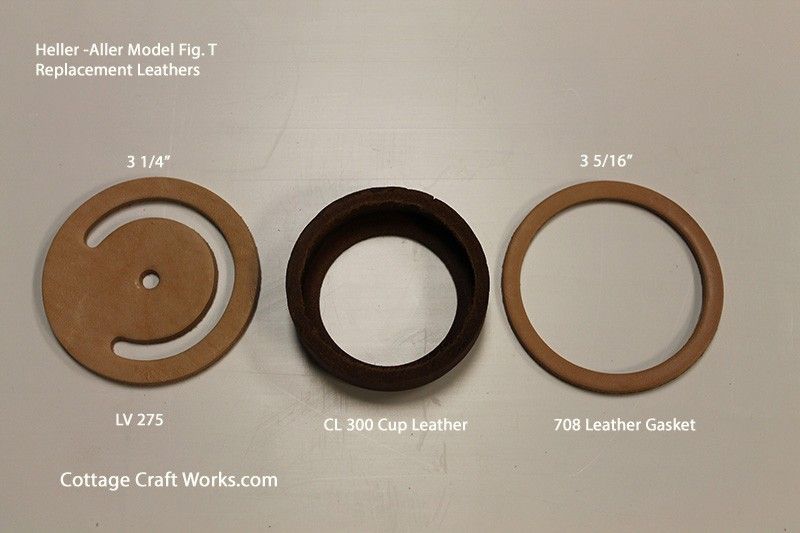

CCW-03 Pump Leather Kit includes the LV 275 leather, CL 300 leather, and the 708 leather gasket.

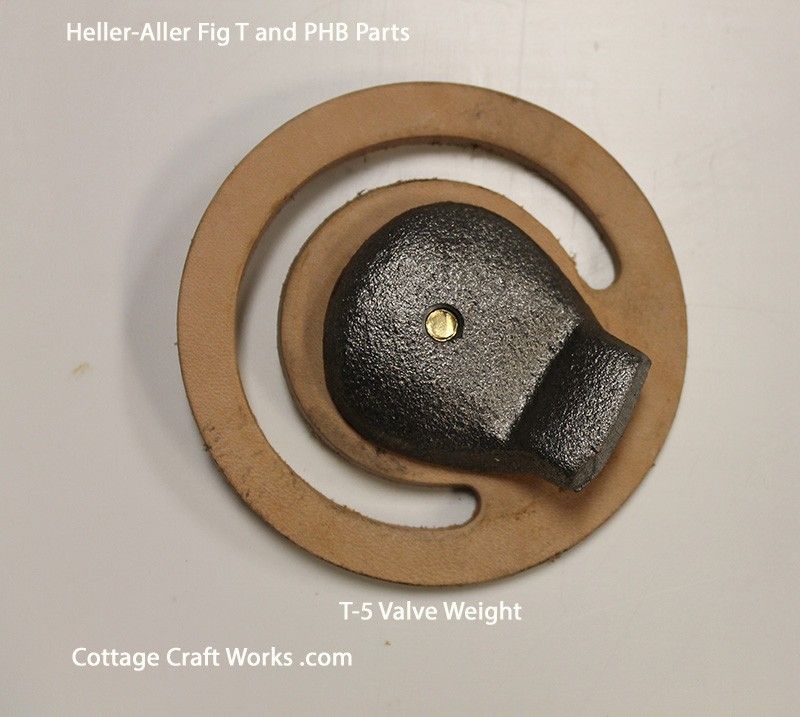

T-5 Valve weight is pictured with leather for visual placement. The weight will not come with the leather.

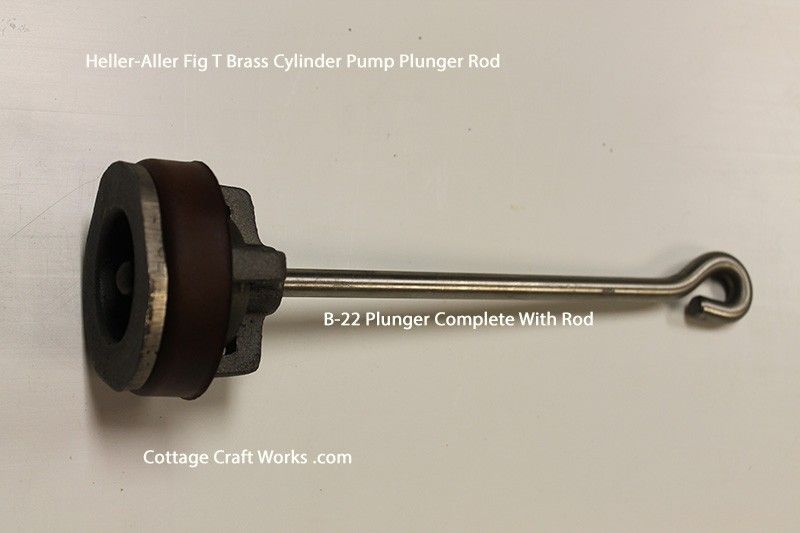

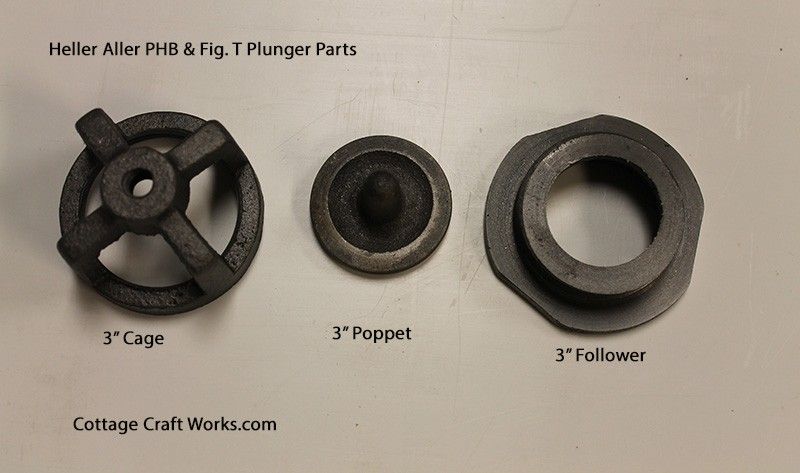

Complete plunger with rod T-6 comes with 3" Cage, Follower, Poppet, CL 300 Cup Leather and Rod. Since the plunger comes with the CL 300 Cup Leather you may also order the plunger with the LV 275 and the 708 leather gasket to completely rebuild the pump without ordering another leather kit. Use the drop-down box for the complete plunger.

To assemble the cup leather the follower will need to be unscrewed from the cage assembly. Turn the unit upside down and secure the cage in a vise being careful to not tighten enough to crack the cage. Use a large wrench on the flat sides of the follower.

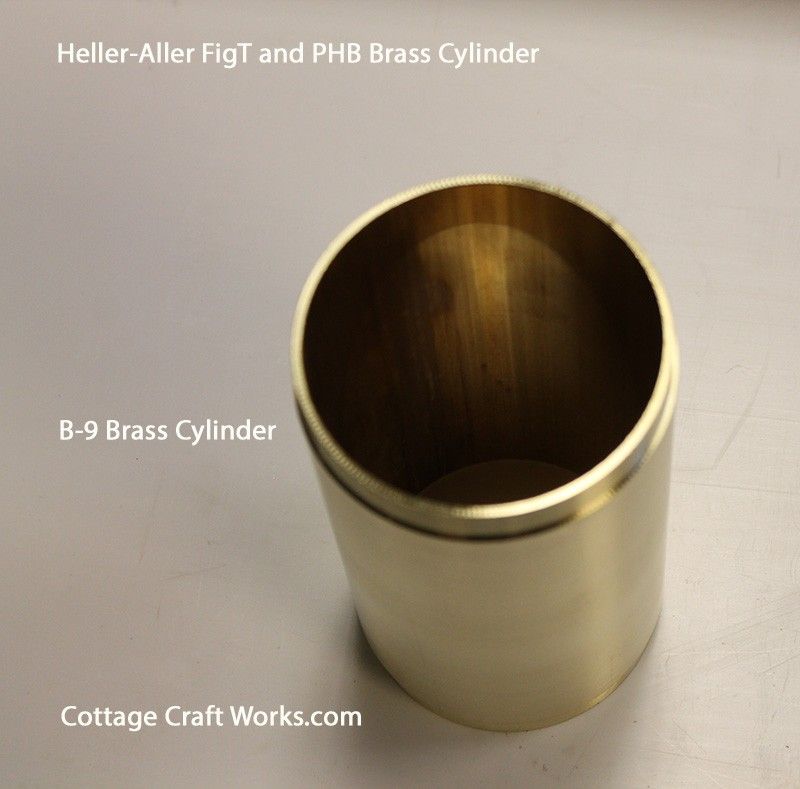

The plunger rod is 3/8" to fit a 3" I.D.  x 6" T cylinder. There is another no-name brass cylinder pump that may have been made by Heller Aller as a plain label pump for a company like Sears or Wards or copied from them. The parts do seem to interchange except for the rod is a different size and the top casting may need to be machined to fit the 3/8" rod. We do not guarantee the parts will fit.

Flat rate shipping and handling of $12 applies regardless of how many small parts are ordered. Additional shipping will likely be required for larger part orders. We will let you know if additional shipping will be needed. If you checkout using PayPal, we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

Please note: Pump parts are subject to a 25% restocking fee. Returns are very time-consuming to restock and often must be repainted. We would rather not get into shipping pump parts like shoes to see if they will fit.

To purchase the complete Heller Aller Fig. T pump Click Here.
