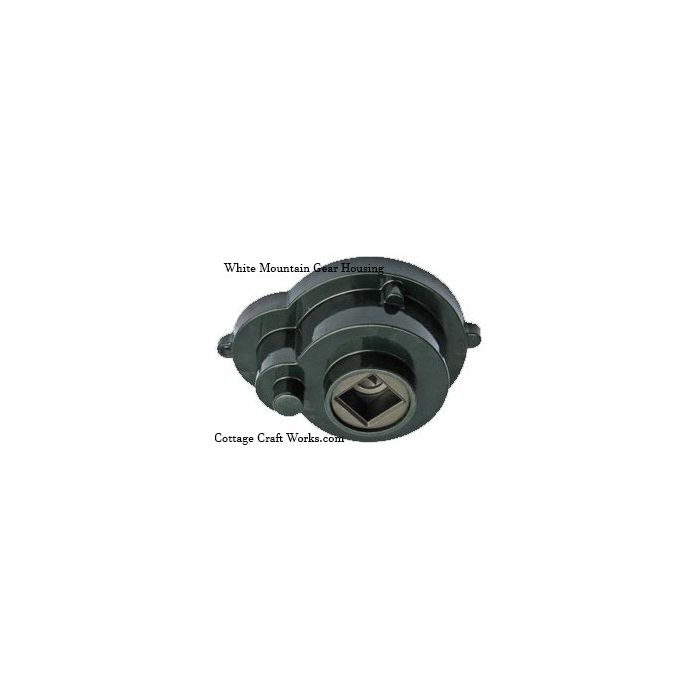

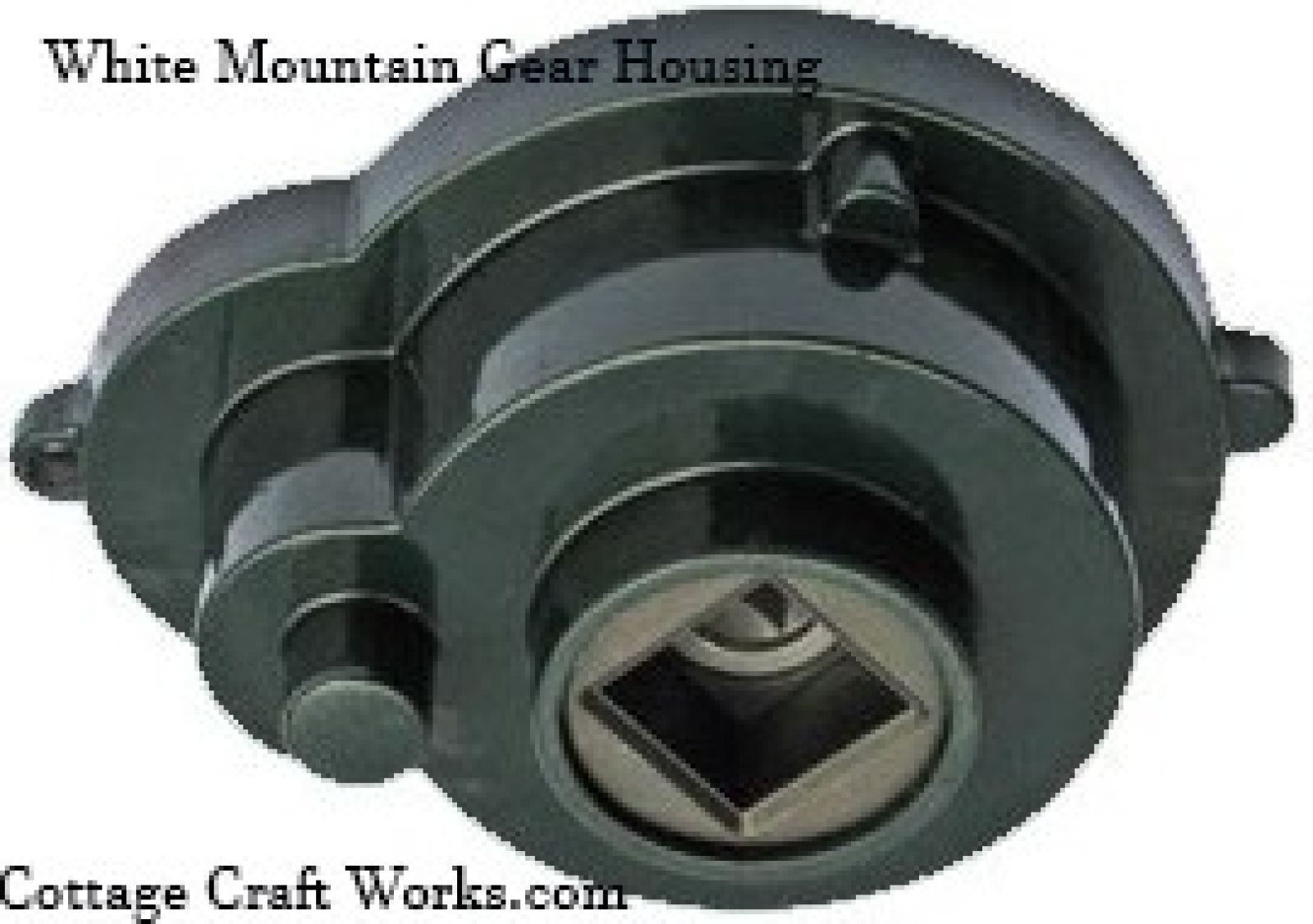

White Mountain Freezer Gear Housing

Includes a hub drive gear that fits over the can lid and a brass bushing for the pinion rod gear. It does not include the intermediate gear with the pinion rod. Click Here to order the pinion rod gear if needed.

Also, does not include the motor main gear, which is built into the motor frame bridge. Click here to see the frame bridge.

These parts are take-offs from new Oakware electric freezer heads made to fit White Mountain freezers. The Amish shop disassembles a percentage of complete heads to provide replacement parts for White Mountain. They will likely still have grease on the gear, which is a special, thick grease that you will want to keep and use in your assembly. They are not used.

We receive many requests just for the electric freezer replacement gears, which are not available as a set.

Suppose you do need a complete gear set. By the time you purchase the gear housing and the pinion gear, the motor is probably not that far from failing. Save time and money in the long run by buying a new, improved freezer head with a new motor. It will replace the old cream color and newer green color freezer heads with an 11-5/8" length from the tub ear to the tub latch. Click Here to view this option.

Note: White Mountain has used relatively standard parts since the 70s, including later cream- and new green-colored motors. Some early model tubs and frame bridges were slightly wider and used a small-dasher drive. These parts may not be interchangeable with those from earlier models. This gearbox hub has a 1" can drive and a 7/16" dasher drive to fit over the newer 7/8" can lid and 7/16" dasher stem. The older White Mountain Freezers used a 3/8" dasher stem that may still work with this gear housing with some play, but it may not fit the older motors. White Mountain used a variation on some of the newer models between 7/16" and 3/8", so the dasher stem may not be exactly 7/16". To verify, use a 7/16" open box wrench end and check the fit on the dasher square stud at the bottom of your freezer can. If the 7/16" fits snuggly, you have a newer style freezer; if a 3/8" open-end wrench fits snuggly, you have an older freezer, and this housing may not fit your motor.

A $12 flat-rate shipping and handling fee will apply to all small ice cream freezer parts sold in the US. The shopping cart will combine shipping for multiple items.

Please get in touch with us for shipping rates to Canada.
