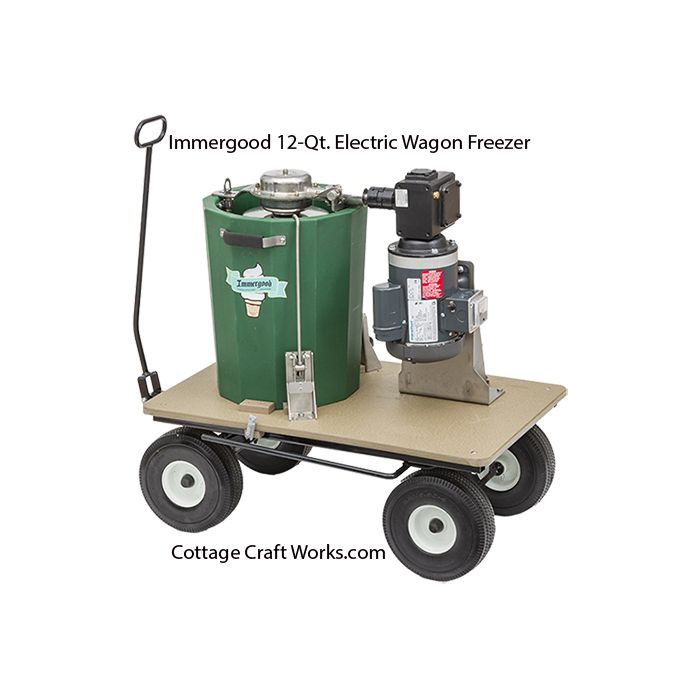

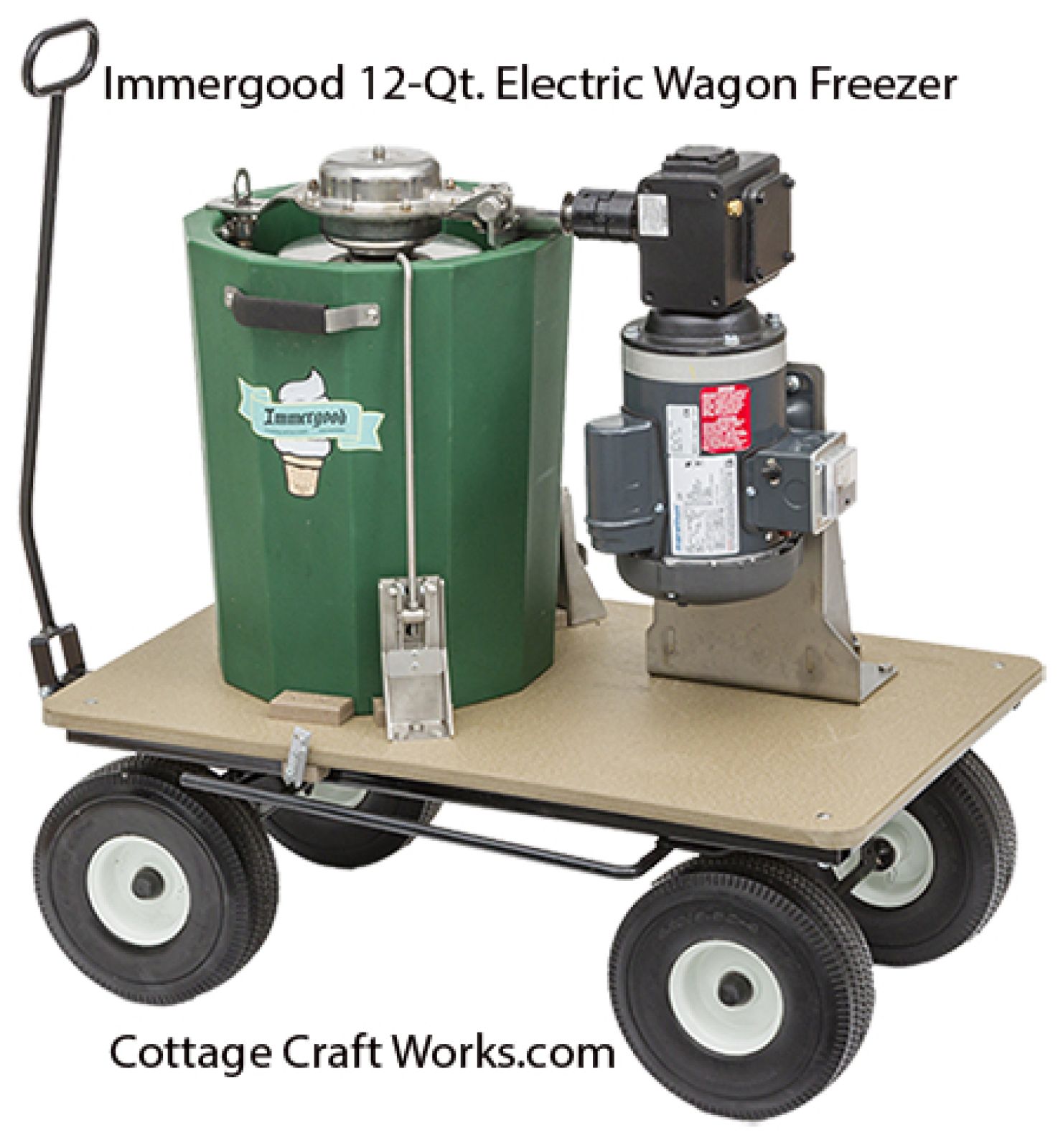

Immergood 12-qt Electric Wagon Mounted Freezer

Features our Immergood Big Boy 12-qt freezer mounted with an electric motor and gearbox on an easy-pull poly wagon ready to take to festivals and church events.

The Immergood Big Boy is a USA-made heavy-duty 12-qt, 3-gallon triple-action ice cream freezer. All stainless metal parts are fitted to the traditional Immergood leak-free insulated poly tub.

Does not include shipping. Read more below >

SKU 1310

Customizable Options:

Description / Immergood 12-qt Electric Wagon Mounted Freezer

Immergood 12-qt freezer components:

Stainless steel gears and bearings in a heavy-duty gear frame are made for sideward stress on the shaft and gear frame.

Quick-release tub latch.

The hinged gear frame allows the pulley shaft to remain hooked up.

Wide polished stainless can measures 8” x 15-1/4” for easy dipping.

Stainless Steel Can Lid

A stainless steel dasher provides triple action.

Leak-free poly Tub equipped with stainless steel hardware measures 18” x 18” x 22”

Overall freezer dimensions 18” x 18” x 22” Weight 38 lbs. Overall Wagon with freezer and motor measures 42” L x 23” W x 37” H and weighs 172 lbs.

The unique drive system uses no belts or pulleys for pinch points around crowds and curious little fingers.  Stainless steel hold-downs allow quick removal to dump out water/brine and slide back in place to start a new batch.

¾ HP electric motor equipped with a heavy-duty gear reduction gearbox to bring the RPMs down to the correct cranking speed.

The angle gearbox comes with oil in the unit. It is an industrial-grade unit and will not likely need new oil unless it leaks or the unit is used on a daily basis. It uses 18 oz. of 80W90 gear oil or Mobil SHC 634 Oil

The Onboard Amp meter is equipped to let you know when the ice cream is completed.

Poly bed wagon will not rot and is ideal for a constant wet environment.  Equipped with easy-rolling pneumatic tires and a parking brake.

Stainless steel brackets, clamps, and hardware.

The freezer will need to be sent truck freight and is priced F.O.B.  Select a shipping quote request above.
