Heller Aller 21P Cast Iron Water Pump Replacement Parts

In stock

Factory replacement parts to fit Heller Aller Iron Hand Pitcher Pump 21P and 2iP.

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To deselect click on the "Please Select" again.

See more details below past the drop-down boxes > Pump Rod and Plungers are out of stock.

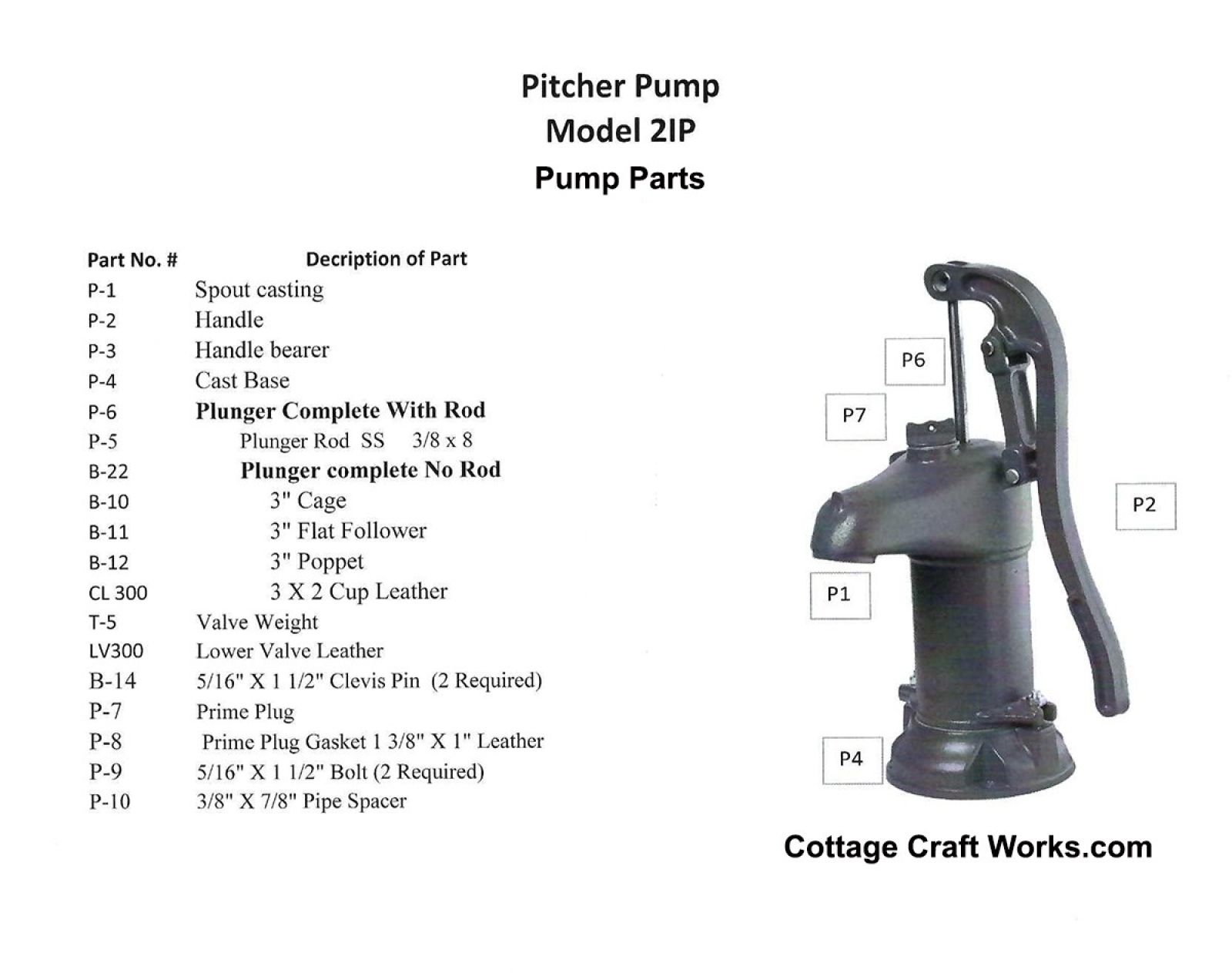

Heller Aller 21P Iron Hand Pitcher Pump Parts
Heller Aller 21P Iron Hand Pitcher Pump Cast Parts Heller Aller 21P Iron Hand Pitcher Pump Leather Kit Heller Aller 21P Iron Hand Pitcher Pump Plunger Parts Heller Aller 21P Iron Hand Pitcher Pump Complete Plunger Heller Aller 21P Iron Hand Pitcher Pump Parts


CCW-04 Pump Leather Kit includes the LV 300 leather, CL 300  leather, and the P-8 Prime Plug Gasket.

T-5 Valve weight is pictured with leather for visual placement. The weight will not come with the leather.

Complete plunger with rod P-6 comes with 3" Cage, Follower, Poppet, CL 300 Cup Leather, and Rod. Since the plunger comes with the CL 300 Cup Leather you may also order the plunger with the LV 300, P-8 Prime Plug gasket to completely rebuild the pump without ordering another leather kit. Use the drop-down box for the complete plunger.

To assemble the cup leather, the follower will need to be unscrewed from the cage assembly. Turn the unit upside down and secure the cage in a vise being careful to not tighten enough to crack the cage. Use a large wrench on the flat sides of the follower.

It would be data-prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on shipping some of the smaller parts. We do charge a minimum $19.95 flat base rate on all items regardless of the size. This is to cover the cost of a $10 drop-ship fee, to process, pack, and actual shipping charges.

Additional shipping will likely be required for larger part orders. We will let you know if additional shipping will be needed. If you checkout using PayPal, we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

Please note: Pump parts are subject to a 25% restocking fee. Returns are very time-consuming to restock and often must be repainted. There were many pumps made by other companies that look very similar to the Heller-Aller well lift pumps and unless it is stamped on the pump the replacement parts will not likely fit. We would rather not get into shipping pump parts like shoes to see if they will fit.

To purchase the complete Heller Aller 2IP Economy Iron pump Click Here.
