Aftermarket replacement parts for New Holland vintage square baler plunge & bale parts models for 67-68-69-271-270-276-277-278-282-283-311-315-316-320-321-326-371-565-568-569-570-575

Parts are being manufactured by an Amish company. For years the New Holland brand has been the favorite of the Amish communities.

Priced a la carte, review parts by page number below, then using the page number drop-down boxes, select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on "Please Select" again.

Additional Shipping may be required for orders costing more than the $14.50 base rate.

Read more about available parts and shipping below the drop-down boxes >

SKU FEPBP

Customizable Options:

  $0.00

Description / NH Vintage Square Baler Plunger-Bale Parts

New Holland® is a Registered Trademark of CNH Industrial America LLC which does not manufacture or endorse these parts.

Since parts ship directly from an Amish-owned business without computers you should expect shipping to normally take 1-2 weeks to ship. However, those parts listed with * (Not Stocked) may take 3-6 weeks as they are not routinely stocked at our Amish distributor and will need to be shipped from a larger distribution shop.

(Not Stocked) items will not be available to purchase in the drop-down boxes. Drop us an email with the parts needed and your zip code for pricing.

It would be data-prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum of $14.50 flat base rate on all items regardless of the size. This is to cover the cost of processing, packing, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal, we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

With the part numbers, we have listed below the models that reportedly fit. The listings in brackets go into detail showing the model, the original manual illustration number, and the part # referenced number. We do not guarantee that parts will fit all models listed since these are from listings provided to us. You should always verify the original parts manual for your model. A 25% restocking fee will apply to returned parts.

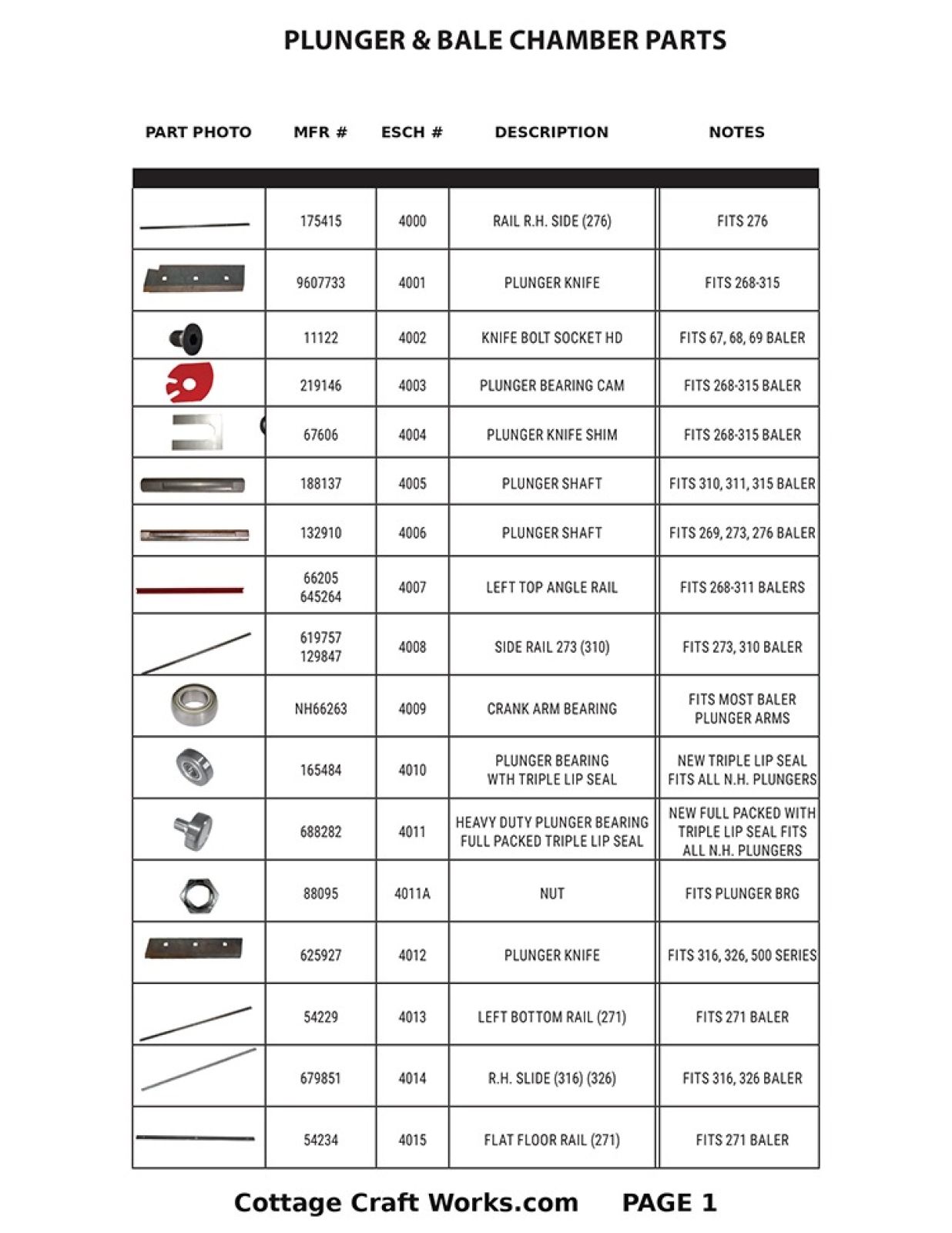

Page 1

*175415 4000 Rail R.H. Side 276 (Not Stocked Special Order)

9607733 4001 Plunger Knife  (268-03-#4)  (273-05-#4) (276-03-#22) (278-06-#9) (310-19-#2) (311-25-#2) (315-21-#9)

11122 4002 Knife Bolt Socket 67-68-69

21946 4003 Plunger Bearing Cam 268-315  (268-03-16) (270- 06-#27) (273-05-#16) (276-03-#25)

67606 4004 Plunger knife shim 268-315 (270-6-?) (68- 82-#37)  (273-05-?) (275- 03-#9)  (276-03-#21) (311-25-#3)(310-19-#3) (315-21-#10) (316-19-#10)

188137 4005 Plunger Pin Shaft 310-311-315  (311-25-#8)(315- 21-#7)  (278-06-#7) (310-19-#8) (311-25-#8) (315-21-#7)

132910 4006 Plunger Shaft 269-273-276   (275-1-#24) (276-03-#39)

*66205 645264 4007 Side Rail 273, 310 (Not Stocked Special Order)

*619757 129827 4008 Left Top Angle Rail 268-310 (Not Stocked Special Order)

66263 4009 Crank Arm Bearing (fits most baler plungers) (270- 02-#17) (268-01-#17) (273-03-#17) (276-03-#36) (275- 1-#17) (310-12-#15) (311-17-#4)

165484 4010 Plunger Bearing (New Triple Lip Seal)  (268-03-#10) (273- 05-#10)(275- 03-#10) (276-03-#15) (310-19-#11) (311-25-#11) (315-21-?) )316-19-#4)

688282 4011 Plunger Bearing  (268-03-#5)  (273-05-#33) (276-03-#17) (278-06-#2) (310-19-#9) (311-25-#9) (315-21-?) (316-19-#2)

625927 4012 Plunger Knife 316-326-500 series

*54229 4013 Left Bottom Rail 271 (Not Stocked Special Order)

*679851 4014 R.H. Slide 316, 326 (Not Stocked Special Order)

*54234 4015 Flat Floor Rail 271 (Not Stocked Special Order)

Page 2

                4032 Chamber Wear Plate RH 273, 275, 276 RH Side

                4033 Chamber Wear Plate 311

                4034 Chamber Wear Plate LH Fits Most Baler LH Side

86642329  771478 4035 Dog Pin 268-269-273-276 200 Series LH Plunger Dog

28383 4035A Short Dog Pin fits 200 series LH plunger dog (268-03-21A) (273- 01-?)  (275-03-21A) (276- 03-#45)

164892 4036A Dog Spring 273-275-276 left dog (273-01-#26) (268- 03-#20A) (275- 03-#20A) (276- 03-#44)

32124/86505745 4040 Dog Spring 310-311-315-316 (311-3-#3) (316-03-#5) (310-03-#3)  (315-03-#5) (273-01-#28) (270-06-#01) (268-03-#22) (275-03-#22) (276-03-#13) (278-03-#4) (315-03-#5) )316-03-#5)

32124/86626431 4041 Hay Wedge fits most balers (311-3-#3) (316-03-#5) (310-03-#3) (268- 03-#22) (273- 01-#28) (315-03-#5)

63242 4042 Plunger Shaft 270-271  (270- 02-#23)

37954 4043 Plunger Side Block 67-68-69 (67-17-#11)  (268-06-#48)

86640785 4044 Plunger Latch Spring 565-310-311 (311- 26-#25) (316-20-#28)

576220 4046 Plunger Latch Pin 310-575  (273-11-#18)  (276-12-#30-#1) (310-20-#24) (311-26-#24) (315-22-#27) (316-20-#27)

139736 4054 5/8” x 1-1/4” Bearing Bolts fit small bearing on the plunger. (310-19-#12) (268-03-#11A) (273-05-#11) (275-03-#34) (276-03-#26) (311-25-#12) (315-21-#5-#2) (316-19-#5)

34574 4055 Bushing Plunger fits most 200 Series (270-02-#22) (268- 01-#23) (273-05-#21) (215-01-#23) (276-03-#28)

*219906 4057 Plunger Slide 277 RH Side (Not Stocked Special Order)

Page 3

*600104 54532 4016 Flat Floor Rail 268,269,272,273,275,276,310,311,315 (Not Stocked Special Order)

*679852 4017 Flat Floor Rail 316,326 (Not Stocked Special Order)

*59629 4018 Right Slide Rail 271 (Not Stocked Special Order)

*54228 4019 Left Top Angle Rail 270, 271 (Not Stocked Special Order)

*289949 4020 Front Angle Rail (Threaded) 268, 269, 272, 273, 275, 276, 310, 311 (Not Stocked Special Order)

133186 4021 Stud Assembly fits most balers (273-05-#12) (275-03-#12A) (276-03-#16) (278-06-#8) (315-21-#8) (316-19-#8)

*66204 4022 Left Bottom Rail 273,276,310 (Not Stocked Special Order)

579612 4023 Plunger Latch Pin 268,269,272,273,275,276 (273-11-#18) (268-04-#18) (273-04-#18) (276-12-#30) (278-13-#25) (315-01-#12) (316-01-#12)

*289947 4024 Front Angle Rail 268,269,272,273,275,276,310,311 (Not Stocked Special Order)

59692 4025 Side Rail Shim (Not Stocked Special Order)

*636945 4026 Right Side Rail 311 (Not Stocked Special Order)

*848541 4027 RH Side Rail 500 Series (Not Stocked Special Order)

714862 4028 Plunger Latch Dog 310-311-315-316-500 series (316-03-#11) (315-03-#12) (311-03-#10) (310- 03-#10) (315-03-#14) (316-03-#11)

131803 4029 Plunger Latch Clevis 368 through (311-26-#19) (268-4-#27) (275-04-#10) (276-12-#26) (310-20-#19) (315-22-#22) (316-20-#22)

              *4030 Wear Plate RH 311 (Not Stocked Special Order)

              *4031 Chamber Wear Plate Center 273, 275, 276 (Not Stocked Special Order)

Page 4

685959 4091 Plunger Pin 316-326 (Serial Number Specific)

573132 4092 Crank Assembly Bale Tension (310- 25-#01)

254330 4093 Plunger Latch Cable 310-311 (311-26-#13) (310-20-#13)

227826 4094 Plunger Latch Cable 315-316-620-326 (316-20-#19) (315-22-#19) (316-20-#19)

848535 4095 Pin

*59624 4096 Plunger Shield 270, 271 (Not Stocked Special Order)

*9615571 4098 Plunger Slide LH Bottom 565, 570, 575 (Not Stocked Special Order)

*848539 4099 Plunge Slide RH 565, 570, 575 (Not Stocked Special Order)

848532 4101 Spherical Bushing 565-570-575

65753 4102 Dog Spring 270-271 (270-06-#5)

46537 4104 Ball Bearing-plunger arm (278- 04-#16) (315-12-#16) (316-10-#16)

573132 4105 Nut Weld Assembly (10-25-#1)

*12786 4107 Stationary Knife 77, S77 (Not Stocked Special Order)

*12744 4108 Slicing Knife 77, S77 (Not Stocked Special Order)

*165656 4115 Rail RH Bottom 277 (Not Stocked Special Order)

*66207-636946 4117 RH Top 273, 310, 311 Plunger (Not Stocked Special Order)

Page 5

59628 4058 Seal-Plunger Arm (311-25-#7) (270-02-#22A) (268- 01-#23A) (273-05-#22) (275-01-#23A) (276-03-#29) (278-06-#14) (310-19-#7) (311-25-#7) (315-21-#14) (316-19-#14)

280320 4059 Kinfe Bolt fits most plunger knives (311-25-#2) (268-03-#5) (273-05-#5) (310-19-W#2) (315-21-W#9) (316-19-W#9)

*165662 4060 LH Heavy Rail 277, 77 (Not Stocked Special Order)

*181023 4062 Plunger Sheild 276 (Not Stocked Special Order)

52804 4063 Plunger Knife 65

52987 4064 Small Plunger Knife 65 (270-18-#9)

39888 4067 Guide (68-79-#15)

648168 4068 Large Bottom Rail (311-25-#16)

*199316 4070 LH Rail 316-326 Late 315 (Not Stocked Special Order)

*706640 4071 Plunger Shield 311, 310 Plunger (Not Stocked Special Order)

648463 4073 Plunger Shield 311-310 (311-25-#4) (310-19-#4) (311-25-#4)

187453 4077 Plunger Bushing 310

126213 4079 Plunger Shield 273 ) (268- 03-#2-#5)  (273-05-#2)

46030 4083 Full Knife Shim

*848540 4086 Top LH Angle Rail 575 500 Series (Not Stocked Special Order)

9603849 4090 Plunger Pin 316-326 Serial Number Specific (316-19-#7)

Page 6

*370012 4150 Retaining Ring 500 Series (Not Stocked Special Order)

              *4154 Bracket Dog Holder (weld-on) 3 and 5 Series (Not Stocked Special Order)

56513 4160 Set Screw (270-06-#7) (268-03-#11) (275-03-#11)

*617888 4162 Right-Hand Side Rail 315 (Not Stocked Special Order)

*606235 4163 RH Floor Rail 320 (Not Stocked Special Order)

*175414 4164 Top Slide RH 276 (Not Stocked Special Order)

*283638 4165 Shim RH Bottom Floor Fits Most Balers (Not Stocked Special Order)

*175414 4166 RH Top Rear 273, 310, 211, & More (Not Stocked Special Order)

*38481 4176 Rail RH Bottom 67, 68, 69 (Not Stocked Special Order)

*48880 4177 Slide RH Bottom 67, 68, 69 (Not Stocked Special Order)

*54302 4181 Stop 65 (Not Stocked Special Order)

*48863 4183 Angle Rail 67, 68, 69 (Not Stocked Special Order)

*286604 4185 Angle Rail Top RH Corner 315, 316, 326 (Not Stocked Special Order)

*187699 4186 Angle Rail R Top Front 315, 316, 326 (Not Stocked Special Order)

*284619 4187 Angle Rail Front R Side 315, 316, 326 (Not Stocked Special Order)

Page 7

*59630 4118 Rail Top RH Side 271 (Not Stocked Special Order)

*54232 4119 Rail Top RH Front 270, 271 (Not Stocked Special Order)

*86640964 848534 4120 Rail RH Lower Angle 565, 570, 575 (Not Stocked Special Order)

*284621 4121 Rail Top RH 316 (Not Stocked Special Order)

45570 4125 Bearing Housing fits most NH balers (270-02-#16) (268-01-#16) (273- 03-#16) (275- 01-#16) (276-03-#35) (310-12-#14) (311-17-#13)

284620 4126 Bearing Nut (310-19-#13) (311- 25-#13) (315-21-#6) (316-19-#6)

848533 4127 Shim 500 series plunger blocks

29870 4128 Bushing 270 (270-02-#25)

167165 4133 Dog fits most 200 series balers (273-01-#19) (276-03-#40) (278- 03-#8) (310- 03-#6) (311-03-#6)

*38480 4134 Shear Bar 67, 68, 69 (Not Stocked Special Order)

*48841 4135 Knife (Plunger) 67, 68, 69 (Not Stocked Special Order)

*286947 4139 Cushion Face fits most square balers (Not Stocked Special Order)

*52982 4140 Slide RH Bottom (Not Stocked Special Order)

*633791 4145 Face Extension (Plunger) fits most NH balers (Not Stocked Special Order)

*686877 4148 Shim, .03 316, 326, & 5 Series (Not Stocked Special Order)

39980 4149 Guide (Latch Ejector) (270-26-#14) (268-04-#19) (273-11-#19) (275-04-#19)  (276-12-#19)
