NH Vintage Square Baler Pickup Parts

New Holland® is a Registered Trademark of CNH Industrial America LLC which does not manufacture or endorse these parts.

Since parts ship directly from an Amish-owned business without computers you should expect shipping to normally take 1-2 weeks to ship. However, those parts listed with * (Not Stocked) may take 3-6 weeks as they are not routinely stocked at our Amish distributor and will need to be shipped from a larger distribution shop.

(Not Stocked) items will not be available to purchase in the drop-down boxes. Drop us an email with the parts needed and your zip code for pricing.

It would be data-prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum of $14.50 flat base rate on all items regardless of the size. This is to cover the cost of processing, packing, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal, we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

With the part numbers, we have listed below the models that reportedly fit. The listings in brackets go into detail showing the model, the original manual illustration number, and the part # referenced number. We do not guarantee that parts will fit all models listed since these are from listings provided to us. You should always verify the original parts manual for your model. A 25% restocking fee will apply to returned parts.

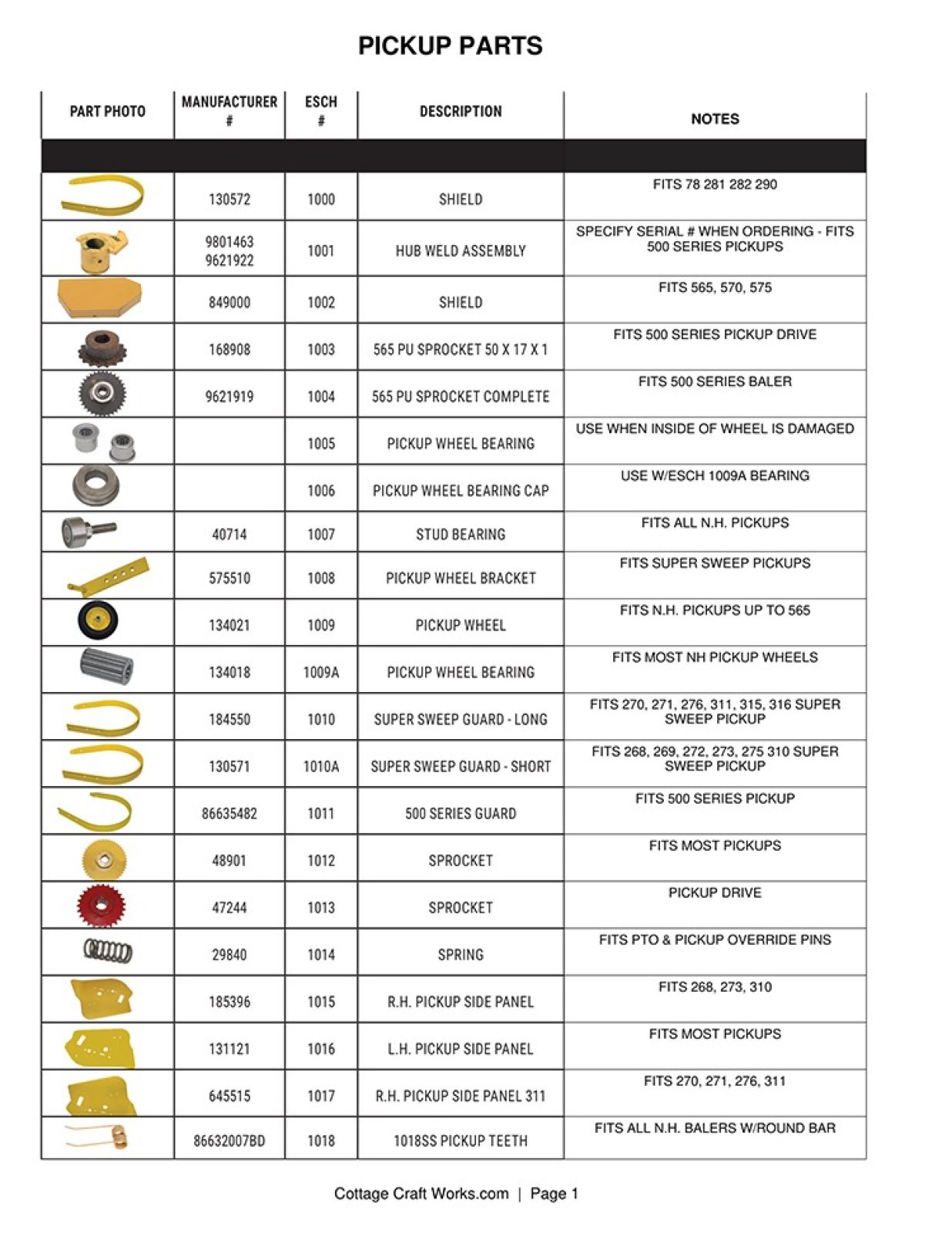

Page 1

*185396 1015 RH Pickup Side Panel 268, 273, 310 (Not Stocked Special Order)

*131121 1016 LH Pickup Side Panel fits most pickups (Not Stocked Special Order)

*645515 1017 RH Pickup Side Panel 311 (Not Stocked Special Order)

86632007BD BRT1001 1018SS Pickup Teeth fits all NH Balers with round bar

78853 BRT 1002 Pickup Tine 500 Series with angle bar

127566 BRT1003 St. Pickup Teeth fits standard sweep pickup

86640797 1020 Pick Up Lift Pin 268-575

28285 1021 Wind Guard Spring (68- 27-#4) (270- 09-#4) (268-16-#4) (273-07-#4) (275-15-#4) (276-17-#31) (310-15-#4) (311-20-#4) (315-15-#19) (316-15-#5)

131928 1029 Override Sprocket (273-06-#63) (275-16-#63) (310-14-#24)  (311-19-#24)

44310 1030 Pickup & Pump Drive Sprocket (270-36-#5) (276-23-#5) (278-29-#5)

848607 1033 Pick Up Drive Belt 575

184551 1034 Wide Pick-Up Guard 276-311-315-316 (311-19-#53) (316-14-#22) (276-18-#34) (278-19-#23) (315-14-#22) (315-14-#22)

*9841704 1035 Bracket 500 Series (Not Stocked Special Order)

*636611 1036 Strap Pickup 311 (Not Stocked Special Order)

*12027 1037 Pickup Tine 77 (Not Stocked Special Order)

184388 1038 Support Weld Assy.  (311-19-#39) (273-06-#72) (275-16-#77) (276-18-#31) (278-19-#32) (310-14-#38) (315-14-#30) (316-14-#30)

Page 2

184385 1039 Reinforcement Plate

61343184385 1040 Bracket Weld Assembly

66232 1043 Pick Up Belt (268- 01-#30)

677808 1044 Self-Tapping Screw (Most Pick Ups) (311-19-#2) (270-10-W#20) (275-16-W#51) (276-17-W#25) (278-19-W#22) (310-14-W#52) (311-19-W#53) (315-14-W#21) (316-14-W#47)

87346 280857 1044A Self-Tapping Screw replaces 67780 when threads become stripped out

130943 1045 Wide Pickup Sheild 273

66227 1047 Sheild (Standard Pickup)

*80786 1048 Half Moon Key 141 (Not Stocked Special Order)

574844 1050 Bearing with Collar fits 1” pickup drive (270- 10-#45) (268- 15-#7) (273- 06-?) (275-16-#7) (276- 17-#33) (278-19-#37) (310-14-#7) (311- 19-#7) (315-14-#35) (316-14-#35)

45882 1052 Bearing with Collar fits 1-1/8” Center Shaft (270-10-#17) (273-06-#7) (310-14-#33) (311-19-#34) (315-14-#10)

43056 1058 Flange (68-29-#8) (268-15-#10) (273-06-#10) (275-16-#10) (276-17-#34) (278-19-#38) (310-14-#6) (311-19-#6) (315-14-#36) (316-14-#10)

84320118 1059 Flange 1052, 1066

*84361 1060 Key, 14114 fits most pickup heads (Not Stocked Special Order)

130891 1065 Pickup teeth bolts & nuts (268-17-#46) (273-06-#46) (275-16-#46) (276-18-#20) (278-19-#28) (310-14-#49) (311-19-#51) (315-14-#24) (316-14-#27)

27767 1073 Bushing (273- 06-#64)  (275-16-#64)  (310-14-#25) (311-19-#25)

        1081 Bushing fits all standard pickup

Page 3

*130572 1000 Sheild 78, 281, 282, 290 (Not Stocked Special Order)

98614631 9621922 1001 Hub Wheel Assembly Serial Number Specific 500 Series

     *1002 Sheild 565, 570, 575 (Not Stocked Special Order)

       1003 Pickup Sprocket 50 x 17 x 1 (500 Series)

       1004 Pickup Sprocket Complete (500 Series)

       1005 2-Piece Pick Up Wheel Bearing (use when inside wheel is damaged)

       1006 Pick Up Wheel Bearing Cap

40714 1007 Stud Bearing (68-30-#36) (270-10-#33) (268-15-#35) (273- 06-#35) (275-16-#35) (276-17-#6) (278-19-#21) (310-14-#43) (315-14-#20) (316-14-#20)

*575510 1008 Pickup Wheel Bracket fits super sweep pickups (Not Stocked Special Order)

134021 1009 Pick Up Wheel

134018 1009A Pickup Wheel Bearing fits NH pickups up to 565

184550 1010 Super Sweep Guard-Long (276-18-#33) (278-19-#22) (311-19-#53) (315-14-#21) (316-14-#21)

130571 1010A Super Sweep Guard-Short (268-17-#50) (273-06-#50) (275-16-#50)

86635482 1011 500 Series Guard

48901 1012 Sprocket (68-63-#4) (270-10-#26) (268-15-#19) (273-06-#19) (275-16-#19) (276-17-#17) (278-19-#14) )310-14-#29) (311-19-#30) (315-05-#19) (316-14-#13)

47244 1013 Sprocket (68-29-#4) (270-10-#44) (268-17-#12) (273-06-#12) (275-16-#12) (276-17-#36) (310-14-#2) (311-19-#2) (315-05-#9) (316-14-#41)

Page 4

848563 1082 Pick Up Guard 500 Series

*40662 1083 Clip fits all baler pickups (Not Stocked Special Order)

56718 1093 Shield fits most pickups

         *1099 Ford Baler, fits Ford Balers (Not Stocked Special Order)

185562 1106 Cam (278-19-#4) (315-14-#4)

*84885 1108 Sheave 565 (Not Stocked Special Order)

*848608 1109 Sheave 570, 575 (Not Stocked Special Order)

*86603208 1117 Wheel & Tire (Not Stocked Special Order)
