NH Vintage Square Baler Chain Feeder Parts

New Holland® is a Registered Trademark of CNH Industrial America LLC which does not manufacture or endorse these parts.

Since parts ship directly from an Amish-owned business without computers you should expect shipping to normally take 1-2 weeks to ship. However, those parts listed with * (Not Stocked) may take 3-6 weeks as they are not routinely stocked at our Amish distributor and will need to be shipped from a larger distribution shop.

(Not Stocked) items will not be available to purchase in the drop-down boxes. Drop us an email with the parts needed and your zip code for pricing.

It would be data-prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum of $14.50 flat base rate on all items regardless of the size. This is to cover the cost of processing, packing, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal, we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

With the part numbers, we have listed below the models that reportedly fit. The listings in brackets go into detail showing the model, the original manual illustration number, and the part # referenced number. We do not guarantee that parts will fit all models listed since these are from listings provided to us. You should always verify the original parts manual for your model. A 25% restocking fee will apply to returned parts.

Chain-Style Feeder Parts

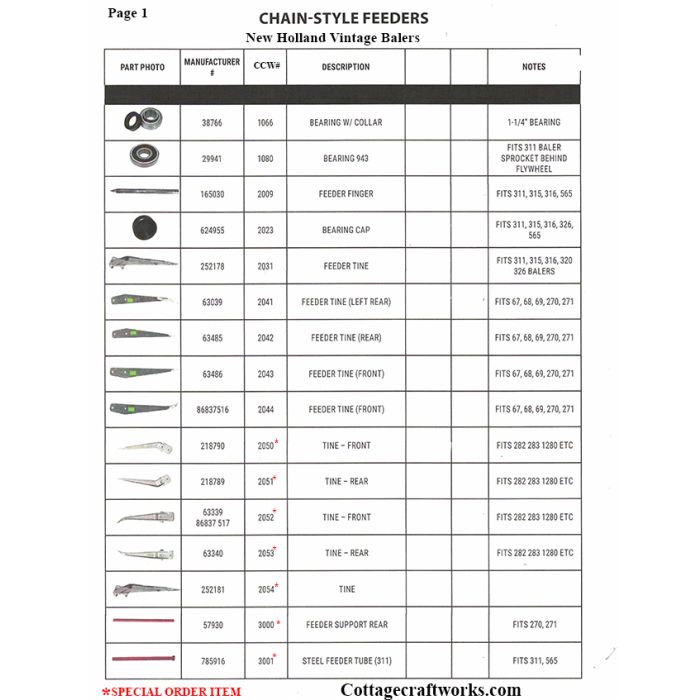

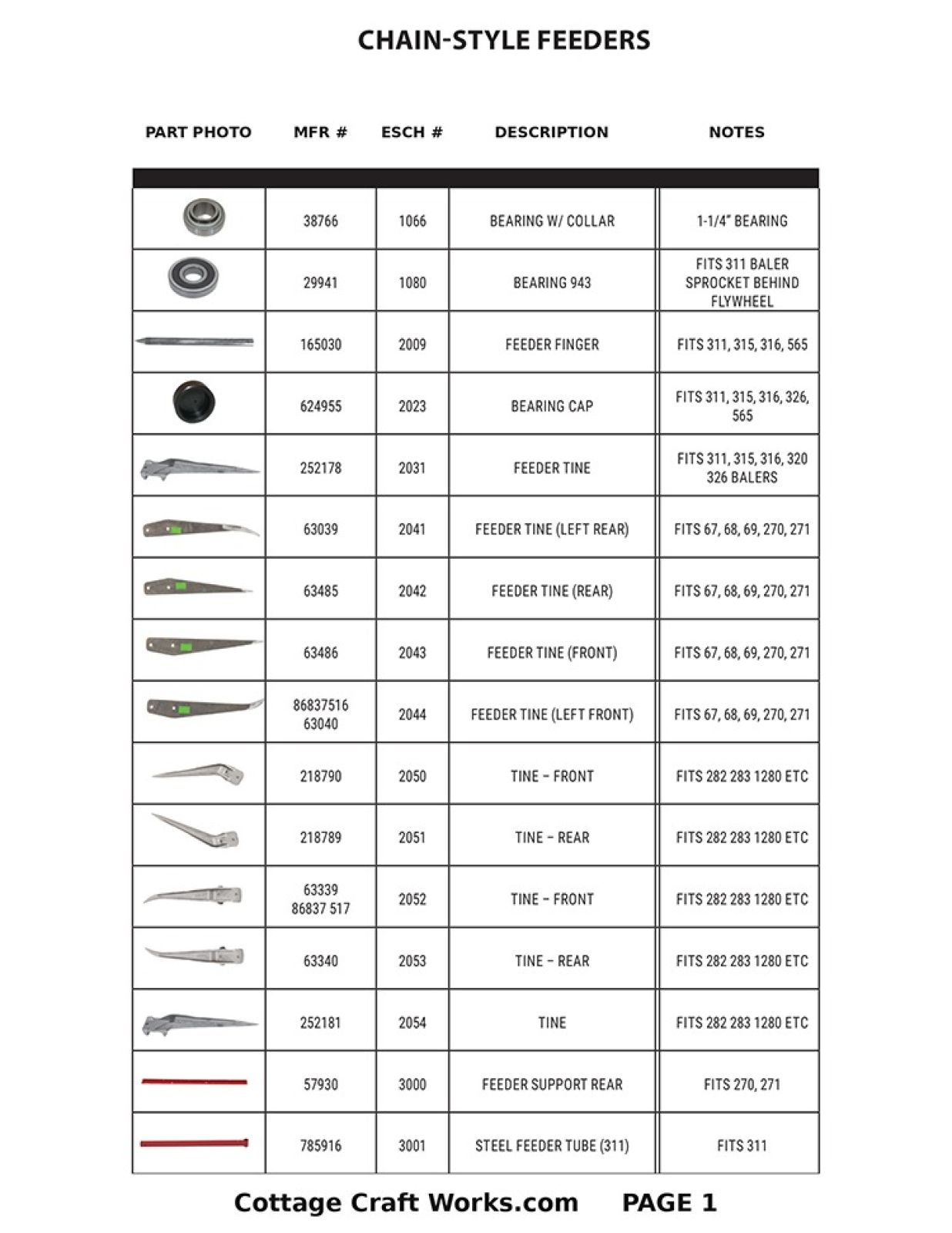

Page 1

38766 1066 Bearing Collar 1-1/4” Bearing (68- 11-#7) (270- 4-#7) (276-14-#4)

29941 1080 Bearing 943 fits 311-315-316-320 (311-22-#4)

252178 2031 Feeder Tine fits 311-315-316-320 (316-18-#20) (315-18-#20) (278- 16-#21) (311-24-#15) (315-18-#20) (316-18-#20)

63039 2041 Feeder Tine LH Rear fits 67-68-69-270-271 (270- 13-#12A)

63485 2042 Feeder Tine Rear fits 67-68-69-270-271 (270-13-#13A)

86837516 2044 Feeder Tine Front fits 67-68-69-270-271

*218790 2050 Tine-Front 282,283,1280, etc. (Not Stocked Special Order)

*218789 2051 Tine-Rear 282,283,1280, etc. (Not Stocked Special Order)

*63339 86837 517 2052 Tine-Front 282,283,1280, etc. (Not Stocked Special Order)

*63340 2053 Tine-Rear 282, 283, 1280, etc. (Not Stocked Special Order)

*252181 2054 Tine (Not Stocked Special Order)

*57930 3000 Feeder Support Rear 270, 271 (Not Stocked Special Order)

*785916 3001 Steel Feeder Tube 311, 565 (Not Stocked Special Order)

Page 2

41617 3017 Bearing mount fits 67-277 chain feeders  (68-45-#26) (270- 13-#26) (276-13-#7) (278-16-#15) (315-18-#10) (316-18-#10)

80769113 3018 Bearing mount fits 300 series and 565 feeders (316-18-#28)  (315-18-#28) (316-18-#28)

44654 3019 Spacer fits all chain feeders   (68-45-#3A)  (270-13-#3A) (315-18-#15)

38436 3020 Nylon Block fits 67-277 chain feeders (276-13-#24) (278-16-#12) (315-18-#8) (316-18-#8)

38690 3021 Nylon Block fits 67-277 chain feeders (276- 13-#19) (278-16-#7) (315-18-#4) (316-18-#4)

199232 3022 Finger mount fits 276-565 chain feeders (276-13-#27) (311-24-#7)  (315-18-#18) (316-18-#18)

*785922 3023 326 Finger Bar 315,326 (Not Stocked Special Order)

*785919 3024 316 Steel Finger Bar 316 (Not Stocked Special Order)

*264129 3025 315 Aluminum Finger Bar 315 (Not Stocked Special Order)

86548846 3026 3/4” Shaft Collar fits 300 and 565 series (316-18-#24)  (315- 18-#24) (316-18-#24)

84065 3026A Set Screw fits 300 and 565 series.

44284 3027 5/8” Shaft Collar fits 67-277 chain feeders (67-45-#33) (270-13-#33) (276-13-#16)

80389 3027A Set Screw fits 67-277 chain feeders  (67-45-?)

37326 3028 Needle Bearing fits 67-68-69-270-271  (270-13-#54) (68-46-#54) (270-13-#54)

            3029 Spring Tooth Spacer fits 67-68-69-270-271

            3029A Spring Tooth Spacer fits 276

Page 3

41615 3002 Aluminum Feeder Tube fits 67-68-69-270-271-276  (270-13-#11) (276-13-#6)

264118 3003 Feeder Shaft fits 311-315-316-326-565

41635 3004 Feeder Shaft fits 276-277  (276-13-#9)

44281 3005 Feeder Shaft fits 67-68-69-270-271 (270-13-#27)  (68-45-#27)

122238 3006 Plug fits 276  (278-16-#14) (315-18-#9) (316-18-#19)

         3007 Steel Tine Bar fits 315-316

176201 3008 Angle Mount 276 (Not Stocked Special Order)

120212 3009 Bolt (960)  (Not Stocked Special Order)

165624 3010 Chain Block fits 270-271-276-277-315 (315-17-#25)  (270-13-#58) (275-25-#16) (276- 13-#48) (315-17-#25)

646318 3011 Chain Block fits 311  (311-23-#24)

86629527 3012 Spring fits all chain feeder RH tine

24280 3013 Clip fits all chain feeder RH tine

41622 3014 Pivot stop fits 67-277 chain feeders  (67-23-#45  (68-45-#23) (270- 13-#23)  (276-13-#10)

87696 3014A Set Screw fits 67-277 chain feeders  (67-44-#25)  (270-13-#25)

711133 3015 Pivot Stop fits 300 series and 565 feeders

65391 3016 Bearing fits 310-311-315-316-565 feeders

Page 4

*176240 3043 Feeder Gear Box Shaft 276 (Not Stocked Special Order)

*249059 3044 Feeder Gear Box Shaft 320 (Not Stocked Special Order)

800381 3045 Feeder Connector Kit fits 315-316-320-326, more (316-17-#25) (278-16-#48) (315-17-#12) (316-17-#12)

225649 3046 Shaft Connector fits 315-316-320-326, more (315-18-#17)  (278-16-#6) (315-18-#17) (316-18-#17)

               3047 311 Feeder Bearing Stud fits 311-315-316-565, more

625823 3048 Support fits 276-311 (311-23-#21) (315-17-#21) (316-17-#21)

264295 3049 Brace fits 311-315-316 (311-23-#22) (315-17-#22) (316-17-#22)

692880 3050 Hay Guard 311 (Not Stocked Special Order)

624898 3051 Tine Bar Clamp (276-13-#14) (311-24-#13) (315-18-#29) (316-18-#29)

*849191 3052 Hay Guard 565 (Not Stocked Special Order)

37857 3054 Gear Box Shaft Seal fits 371-276 (276-15-#13)

84327 3055 Woodruff Key ¼” x 2-1/8” fits 270-276 gearbox shaft (270-04-#3)

3056 320 Steel Feeder Bar 320 (Not Stocked Special Order)

54144 3057 271 Idler Pin fits 67-271 chain feeder (270-13-#55)

46623 3058 Bolt Clip fits all chain feeders   (68-45-#14) (270- 13-#14) (311-24-#16) (315-18-#21) (316-18-#21)

288053 3059 Roller Holder (278-16-#22)

Page 5

*218074 3030 320 Aluminum Finger Bar 320 (Not Stocked Special Order)

58260 3031 Bearing fits feeder sprocket (270 13-#67) (311-23-#7) (315-17-#7) (316- 17-#7)

44680 3032 Bearing fits finger bar LH end  (270-13-#3)  (68-45-#3) (276-13-#450) (278-16-#4) (311-24-#20) (315-9-#13) (316-08-#13)

122240 3033 Pilot fits 67-277 chain feeders (276-13-#18)  (315-18-#3) (316-18-#3)

47223 3035 Small Connector fits 271-568-569  (68-46-#41) (270-13-#41-#2)

44536 3036 Large Connector fits 276-311-315-316-565 (276-13-#41)

87240 3036A Slotted Nut fits all chain feeders  (276-13-#47) (278-16-?) (315-18-?) (316-18-?)

184140-182625 3037 Hay Guard 276 (Not Stocked Special Order)

626037 3038 311 Complete feeder bearing fits 311-315-316-326-565  (311-24-#9) (315-18-#25)  (311-24-#9) (316-18-#25)

             3038A Bearing Assy. (no rubber cap required)

              3041 Feeder Bearing Stud fis 278-320

626035 3042 Feeder Bearing Assy. Fits 278-280-282-283-320

  *3042A Bearing & Stud Assembly Optional no rubber cap required. (Not Stocked Special Order)

Page 6

*215745 3077 Chain requires 2 per baler 315,320 (Not Stocked Special Order)

*637008 3078 Chain requires 2 per baler 311, 565 (Not Stocked Special Order)

38120 3079 Chain fits 68-69-270-271-276 (270-13-#43) (68-46-#43) (68-46-#43) (276-13-#40)

163065 3082 Sleeve fits 68-69-270-271-276  (276-13-#23) (315-18-#7) (316-18-#7)

66807 3083 Seal fits 315-316-321 Gear Box (315- 20-#5) (316-13-#5)

223796 3084 Bearing fits 565-570-575

*38692 3085 Cushion 270,271,276 (Not Stocked Special Order)

*195648 3086 Shaft 320 Feeder (Serial Number Needed) (Not Stocked Special Order)

44280 3087 Fits 270-271-276-277 Baler Bearing Feeder   (270-13-#32) (68-45-#32) (276-13-#17)

*322360 3088 Bearing 570, 575 (Not Stocked Special Order)

*252819 3089 Feeder Support Rear 315 (Not Stocked Special Order)

*216462 3090 276 Tine Stop 276,271,68-69 fits all chain feeder balers (Not Stocked Special Order)

781585 3091 Tine fits all chain feeders 276 and older requires spacer(311- 24-#14) (315-18-#22)  (316-18-#20)

*86620026 3092 Flange 500 Series (Not Stocked Special Order)

*38438 3094 Brace 270, 271 (Not Stocked Special Order)

*41445 3095 Brace 270, 271 (Not Stocked Special Order)

Page 7

               3060 Feeder Shaft (new style) (Eliminate rubber caps on 300 series)

46199 3061 Special Washer (270-13-#57)

*184190 3062 Support 67-277 Chain Feeders (Not Stocked Special Order)

511265 3036 Idler Sprocket

25121 3064 Retaining Ring (270-13-#49)  (68-46-#49) (270-13-#49) (276-13-#31) (311-23-#4) (315-17-#4) (316-17-#4)

43077 3065 Feeder Connector (270- 13-#41)

*688849 3067 Hay Guard 316 (Not Stocked Special Order)

63607/137938 3068 Spacer (270-13-#30) (276-13-#15)

643361/40937 3069 Retaining Ring fits 270-271-276-311-565  (311-23-#13)

188954 3070 Retaining Ring fits 315-316  (315-17-#14)(316- 17-#14)

*86505553 3070 Retaining Ring315,316 Federer Chain Connector Pin (Not Stocked Special Order)

*86641589 3072 Teardrop Rotor 570, 575 (Not Stocked Special Order)

             *3073 Teardrop 570, 575 (Not Stocked Special Order)

*38423 3074 Front Feeder Track 68, 69, 276,270, 271,276 (Not Stocked Special Order)

*38424 3075 Track Rear 68,69,270,271,276 (Not Stocked Special Order)

*218651 3076 Feeder Chain requires 2 per bailer 316, 326 (Not Stocked Special Order)

Page 8

*289801 3096 Shaft 320 (Not Stocked Special Order)

*195650 3097 Shaft 320 (Not Stocked Special Order)

*268546 3100 Support (Not Stocked Special Order)

*288135 3101 Guard Weld Assy. 315 (Not Stocked Special Order)

*3103 Hay Guard 326 (Not Stocked Special Order)

*4720 Shaft (Knotter) Feeder Gearbox 67, 68, 69, 279, 271 (Not Stocked Special Order)

*679106 3109 Feeder Floor Exit 316, 326 (Not Stocked Special Order)

*46047 7002 Shear Pin 570, 575 (Not Stocked Special Order)
