NH Vintage Hay Baler Frame Parts
Aftermarket replacement parts for New Holland vintage New Holland Hay Baler frames. Baler- Amish Conversion Motor Mounts-Spindles-Hitches-Bale Chutes-Wheel Bearings
Parts are being manufactured by an Amish company. For years, the New Holland brand has been the favorite of the Amish communities.
Priced a la carte, review parts by page number below, then using the page number drop-down boxes, select the parts needed and the prices will incrementally add for each part(s) selected. To select multiple items in the same drop-down, select one to add to the cart, then select continue shopping to add more items. To deselect, click on "Please Select" again.
Additional Shipping may be required for orders exceeding the $14.50 base rate.
Read more about available parts and shipping below the drop-down boxes >
Description / NH Vintage Hay Baler Frame Parts
New Holland® is a Registered Trademark of CNH Industrial America LLC, which does not manufacture or endorse these parts.
Since parts ship directly from an Amish-owned business without computers, you should expect shipping to normally take 1-2 weeks.
It would be data-prohibitive to list each individual part with shipping. Therefore, shipping & handling are based on an average purchase of a few parts. We charge a minimum flat base rate of $14.50 for all items, regardless of size. This covers the cost of processing, packing, drop-ship, and actual shipping charges.
Additional shipping charges may apply to larger orders. We will let you know if additional shipping is required. If you pay by PayPal, we can send you an invoice if needed. Otherwise, we will also need credit card information, as our system does not store it with the order.
Below are the part numbers and the models that reportedly fit. We do not guarantee that parts will fit all listed models, as these are sourced from listings provided to us. You should always verify the original parts manual for your model. A 25% restocking fee will apply to returned parts.
Note: Parts described for motors are for Amish conversions to run balers with gas-powered motors instead of a tractor PTO. Likewise, hitching equipment is for horse-drawn use.

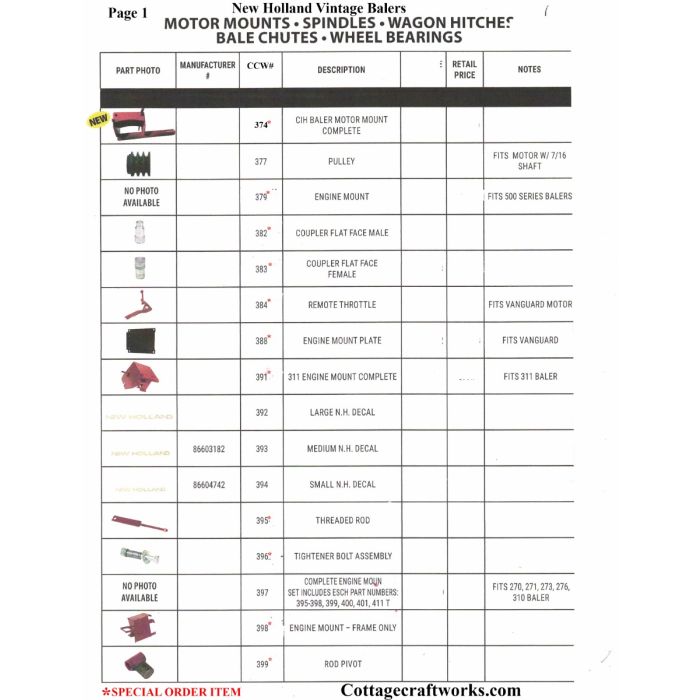

Page 1
374 CIH Baler Motor Mount Complete
377 Pulley fits motor w/7/16 shaft
379 Engine Mount 500 Series
382 Coupler Flat Face Male
383 Coupler Flat Face Female
384 Remote Throttle Vanguard
388 Engine Mount Plate Vanguard
391 311 Engine Mount Complete 311
86604033 392 Large New Holland Decal
86603182 393 Medium New Holland Decal
86604742 394 Small New Holland Decal
395 Thread Rod
396 Tightener Bolt Assembly
397 Complete Engine Mount Set with Part #s 395-398, 399, 400, 401, 411 T fits 270, 271, 273, 276, 310 balers
398 Engine Mount-Frame Only
39p Rod Pivot
Page 2
400 Tightener Lever
401 Tightener Pulley Bracket
402 Belt Guard
403 Upper Guard Bracket
404 Lower Belt Guard Bracket
405 Round Rod Bracket Belt Guide
406 Post Top Bracket
407 Throttle Control Rod
409 Robin Throttle Control Lever
410 8-Gal Gas Tank W/Cap
411 Tightener Pulley
412 Hitch Pipe 48”
413 Hitch Pipe 32”
414 Bale Chute 48” fits 14” x 18” balers
415 Bale Chute Short 36” fits 14” x 18” balers
Page 3
416 Short Bale Chute Chain
417 Long Bale Chute Chain
178523 419 4-Bolt Spindle 268, 565
00888 422 6 Lug Replacement Spindle Heavier Spindle use with #1075 Hub 270, 271
86611330 424 Jack Pin all balers
86611329 425 Spring all balers
43189 426 Spindle Weld Assembly LH 270, 271
852118 427 Spindle Weld Assembly LH 273 to 565
785011 428 Spindle LH (Uses Nut for 575) 326, 575
429 Chain Bracket Pins
38216 429X Wagon Hitch Receiver 67 to 311
320771 430 Nut 565, 570, 575 8.27
849231 431 Pipe Weld Assembly 500 Series
849242 432 Support Weld Assembly 500 Series
9620103 433 Hitch Pipe 500 Series
Page 4
434 Bale Chute Kit Complete
435 Chain Kit Bale Chute
436 Spindle 4 Lug Heavy Duty
44539 437 Brace Wagon Hitch
678804 438 Wagon Hitch Receiver 315, 316
86630363 439 Tongue Assembly
677047 441 Wagon Hitch Assembly 276 to 311
132955 442 Hitch Weld Assembly 273, 275, 310, 311
54542 443 Blet Tightener Lock 500 Series
849052 444 Hitch Weld Assembly
86608973 445 Bale Counter Fits All NH Balers
9604340 448 Hitch 500 Series
9604394 450 Chute Bracket 500 Series
36723 1053 Race Fits All 4-Lug Outer Bearings
36724 1054 Bearing Fits All 4-Lug Outer Bearings
36724 1054A Bearing Race Fits All 4-Lug Outer Bearings
Page 5
36725 1055 Race Inner Race 4-Lug Wheels
36726 1056 Bearing Inner Bearing 4-Lug Wheels
36726 1056A Bearing W/Race 4-Lug Hubs
36727 1063 Seal 4-Lug Hubs
69349 1071 Bearing Fits Farmbilt 6-Lug Hubs
69310 1071A Race Fits Farmbilt 6-Lug Hubs
1074 Seal 888 Fits Farmbilt 6-Lug Hubs
888 1075 Hub Fits Farmbilt 6-Lug Hubs
36737 1076 Bearing 653 Fits Most Baler LH Wheel Inner Bearings
116210 1076A Race 761 Fits Most NH Baler 6-Hub Wheels
1077 Baler Torsion Axle RH With Hub
1078 Blaer Torsion Axle LH
100412 1079 Grease Seal 251 Fits Most Balers LH Wheel
249130 1084 Hub Cap 4-Lug Fits Most 4-Lug Wheels
249127 1085 Hub Cap 6-Lug Fits Most Balers
574809 1094 Bearing 500 Series RH Wheel Outer Bearing
Page 6
574810 1095 Race
36057 1096 Bearing 500 Series LH Wheel
72062 1097 Race Fits NH 500 Series LH Wheel
888 1098 Hub Cap Fits Farmbilt 6-Lug
48977 1100 Bearing Fits Most Balers LH Wheel Outer Bearing
48976 1101 Race
36735 1102 Bearing 270, 271 LH Wheel Outer Bearing
36738 1103 Bearing Cup
