NH 900 Harvester Parts

Aftermarket replacement parts for New Holland 900 Forage Harvester

New Parts are being manufactured by an Amish company located in PA. For years the New Holland brand has been the favorite of the PA Amish communities.

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on the "Please Select" again.

Additional Shipping may be required.

Read more about available parts and shipping below the drop-down boxes >

SKU NH900

Customizable Options:

  $0.00

Description / NH 900 Harvester Parts

New Holland® is a Registered Trademark of CNH Industrial America LLC which does not manufacture or endorse these parts.

It would be data-prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum of $14.50 flat base rate on all items regardless of the size. This is to cover the cost of processing, packing, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders including truck freight. We will let you know if additional shipping will be needed. If you checkout using PayPal, we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

Prices are subject to change without notice.

Please select one part per page.  Add it to the cart and then return for more parts on the same page.

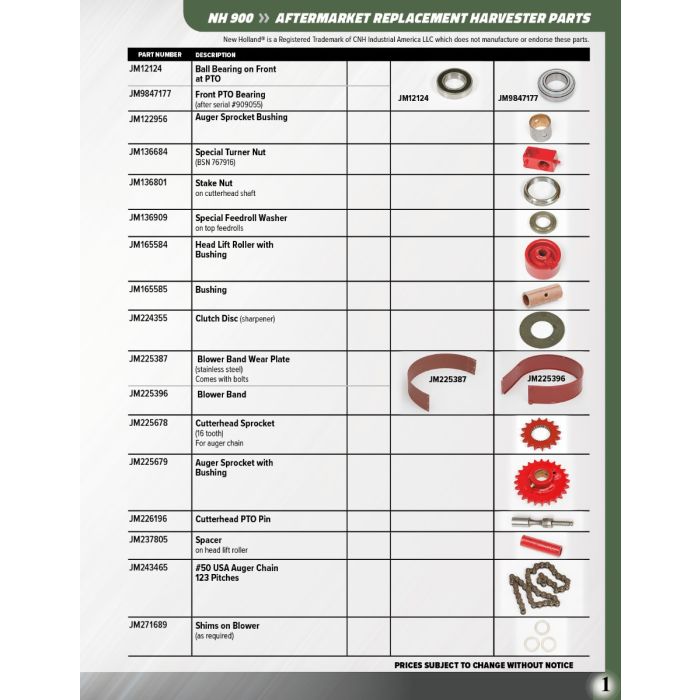

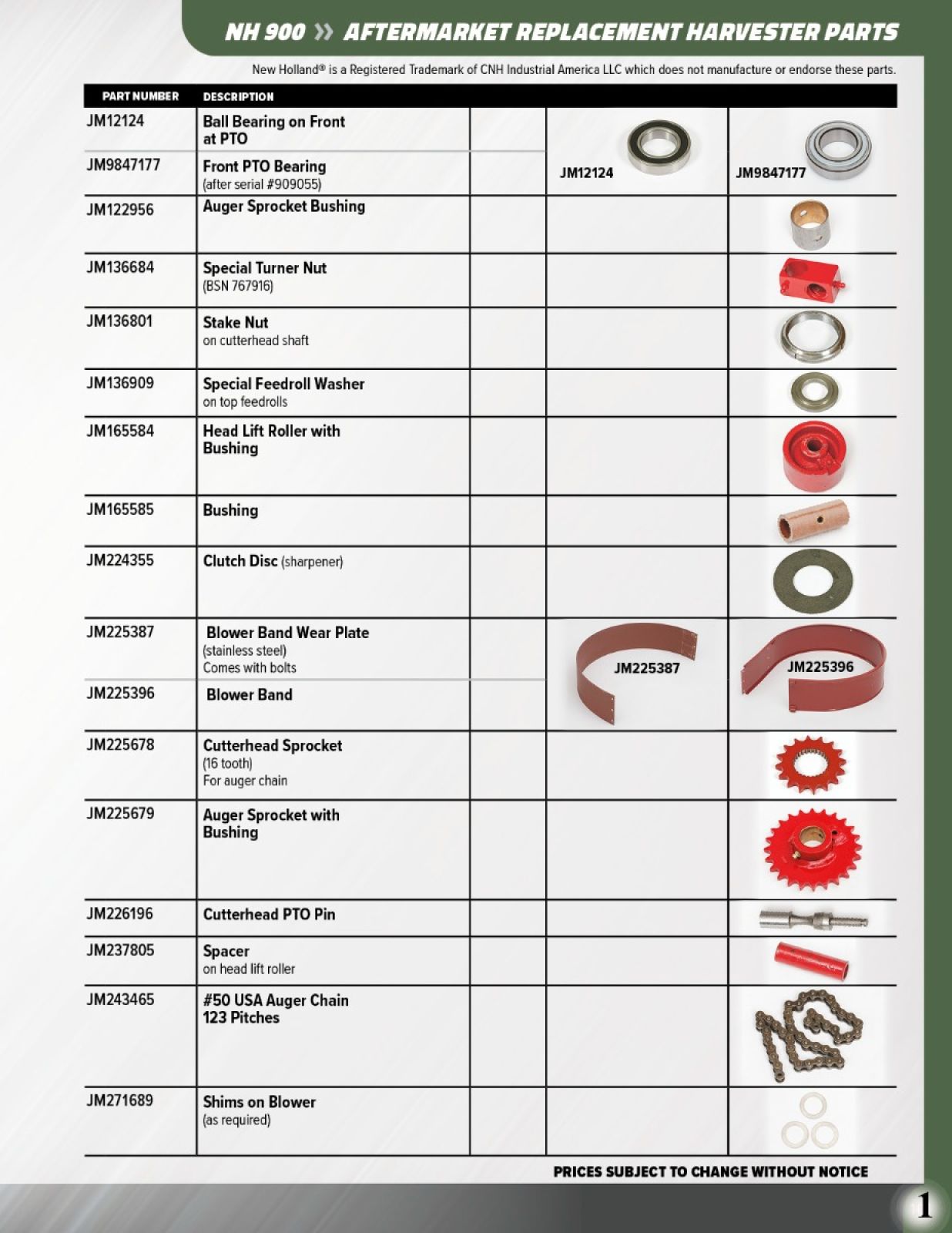

Page 1

JM12124 Ball Bearing on Front at PTO

JM9847177 Front PTO Bearing (after serial #909055)

JM122956 Auger Sprocket Bushing

JM136684 Special Turner Nut (BSN 767916)

JM136801 Stake Nut on cutterhead shaft

JM136909 Special Feedroll Washer on top feedrolls

JM165584 Head Lift Roller with Bushing

JM165585 Bushing

JM224355 Clutch Disc (sharpener)

JM225387 900 Blower Band Wear Plate (stainless steel) Comes with bolts

JM225678 Cutterhead Sprocket (16 tooth) For auger chain

JM225679 Auger Sprocket with Bushing

JM226196 Cutterhead PTO Pin

JM237805 Spacer on head lift roller

JM243465 #50 USA Auger Chain 123 Pitches

JM271689 Shims on Blower (as required)

Page 2

JM27696 Washer in Cutterhead Shear Pin Yoke

JM27767 Sharpener Spline Bushing

JM280656 Fan Paddle Bolt, nut, lock washer

JM280700 Set of 6 Fan Paddle Bolts, nuts, lock washers.

JM280732 900 Knife Bolt ⅝ x 1½ Gr. 8 FT

JM285072 5/16 Hardened Washer For blower slip disc

JM37185 Snap Ring (used on front PTO yoke)

JM40974 Snap Ring in Cutterhead Shear Pin Yoke

JM43090015 900 Operator's Manual

JM45440 Snap Ring on Blower

JM46520 Shear Pin (Pkg of 10)

JM528526 Bushing in Cutterhead Shear Pin Yoke

JM56704 Bushing For 900 tongue pin (Subs to #84605014)

JM600486 Sharpener Rail

JM600488 Sharpener Handle

JM601109 900 Side Plate Bushing

Page 3

JM614082 Cap on 900 Angle Gearbox

JM614084 Front Angle Gearbox Cover Subs to #86636033

JM615546 USA60 Chain (48 pitches) (for upper feedroll)

JM619208 Front Bearing Housing (same as 892)

JM632649 Angle Gearbox Rebuilt (email for price)

JM633389 12-19 Tooth Length of Cut Sprocket

JM633395 38 Tooth Top Drive Metal-Alert Sprocket

JM636324 900 Cutter Head

JM636475 900 Knife Block (New)

JM636475 900 Knife Block (Used)

JM636777 Auger Trough Wear Liner on Cutterhead End

JM636777A Long Auger Trough 88-1/4"

JM636777A Short Auger Trough 77-3/4"

Page 4

JM637464 900 Auger Sheet Against Blower

JM637465 Front Auger Sheet

JM637895 Knob for 900 Shields O.E.M

JM639108 Head Drive Sprocket

JM639338 Upper Rear Feedroll For 900 and FP230 Always order for each end 1 pc. JM136909 step washer (Page 1)

JM639349 900 Smooth Roll Always order 2 pc. JM38766 bearing insert (see below*)

*JM38766 Bearing Insert - FYH SA206-20FP9 or FP7

JM639766 Bracket on 900 Drive Line

JM639787 Front PTO Support

JM640220 Short 900 PTO Shaft For short tongue

JM640291 Screw for 900 PTO Yoke

JM641630 Non-Metal-Alert Bottom Front Feedroll

Page 5

JM641777 900 Feedroll Arm with Bushing Included

JM642360 Support with 3 Holes at Feedroll Side Plate

JM642366 Sharpener Cover

JM642371 Smooth Roll Scraper

JM676997 900 Knife

JM677563 900 Female Plug - Harvester End

JM762836 900 Male Plug - Control Box End

JM676900 Cutter Head Bottom 900

JM686583 Lock Out Plate

JM678615 Friction Spacer On 900 blower

JM678617 Friction Disc On 900 blower

JM678619 Spring Washer on Blower

JM678621 Outer Blower Slip Disc Plate

JM678626 Input Angle Gearbox Shaft (bearings & seals available) For 900 Only

Page 6

JM678912 Rear Blower Sheet (used before Serial # 78114)

JM682360 Feedroll Power Switch

JM682361 Feedroll Rocker Switch

JM688963 Smooth Roll Sprocket

JM690222 Sharpener Spline Stub

JM690225 Sharpener Spline Only

JM690226 Cutterhead Shaft with Shear Pin Plate

JM697394 Stake Nut on Blower

JM697395 Sleeve 900 Blower

JM697396 Cover on 900 Blower

JM697397 Star Plate on Blower Fan

JM705279 Bearing Collar on Cutterhead (special plastic)

JM714504 Sprocket Yoke on Rear Feedroll

Page 7

JM715357 900 Feedroll Pad

JM 762790 Spline Hub (on 900 blower at rear)

JM768235 Stone Holder

JM768236 Stone Holder Cap (for 900 and 790 only)

JM771820 Short Auger Lid Baffle They are the same on long and short auger

JM791531 Auger Lid Hinges

JM796353 Yoke and Tube to Cutterhead Yoke

JM803348 Hinge on Cover

JM851697 790-900 Clamp Washer

JM851709 Shear Bar Adjuster Rod (after serial # 751185) Also fits FP230-240

JM853616 Sharpener Carrier with Bushings with Roller

JM9803718 Cam Bearing For on Bottom of Carrier

JM854381 Gooseneck Turner Nut (ASN 767917)

Page 8

JM859106 Cutterhead Sprocket (19 tooth standard)

JM86511977 5 ⁄16 x ¾ Oval Head Bolt w/ flange Nut (for wear plate) Takes 6 bolts per wear plate

JM86514713 Spline Coupler In front of gearbox

JM86514714 Spline Shaft In front of angle gearbox

JM86517158 Bracket on Cutterhead PTO

JM86517279 Transition with Tube on Top (Specify) BSN 781114

JM86521513 Square Coupler

JM86528652 900 Knife Bolt Washer

JM86598202 Transition with Flat Top Also used on 230-240

JM86620027 1½ Bearing Flanges (4 pieces for short tongue for on long PTO shaft)

JM86620779 Steel Spout Deflector

JM86622143 Steel Spout Deflector Spring

JM86622174 Steel Spout Deflector Bracket

Page 9

JM86635517 Spindle for Wheel

JM86635853 J – Bolt (for on blower band)

JM86635877 26-30 Tooth Length of Cut Sprocket

JM86613003A 28-32 Tooth Length of Cut Sprocket

JM86635888 RH Bearing Support with Races #JM36723T takes 2pc. JM36726T and 2 pc. JM48198 bearings (see below*)

JM86635889 LH Bearing Support with Races #JM36723T takes 4pc. JM48198 bearings (see below*)

*JM36724T Timken Bearing (LM11949)

*JM48198 Timken Bearing with Seal (LM67000LA-902A1) Used on 890, 892, 900, FP230, FP240 upper feedroll arms

JM36724T Timken Bearing (LM11949)

JM86635892 LH Crop Guide with Bolts

JM86635893 RH Crop Guide with bolts

JM86635908 Feedroll Spring Nut

JM86635909 (Used) spring with new insert

JM86635911 Smooth Roll Bearing Housing Only

JM8663591 SA206FP9 Insert Only

JM9000 Hydraulic Tongue Swing Kit

JM595512 Swing Kit Cylinder

JM9609162 Cylinder Kit Bracket Only

JM86636511 Wing Nut

Page 10

JM86636978 Front Blower Plate

JM86641950 900 Knife Baffle

JM88635 Slotted Nut On Shear Bar Adj. Rod For 790-900-FP230-FP240

JM88864 5 ⁄16 x 2" Gr. 8 CT Bolt (for on blower) Pk. of 9

JM9065 Support Pole Complete

JM9601646 Paddle Arm

JM9609440 Bushing on Feedroll Baffle BSN 875828

JM9609478 900 Auger Lid – 84" (Short) Comes with Hinges (Old Style) Used BSN 767916

JM9609485 Auger for 900 Short auger for 76" BSN 781114

JM9806283 Auger for 900 Long auger for 81" ASN 781115

JM9610638 Cupped Fan Paddle for 900 (Set of 3)

JM9611168 Shear Bar (ASN 751185, with holes)

Page 11

JM9617273 Shear Bar Adjuster Rod (BSN 751184)

JM9614489 Long Auger Lid Baffle They are the same on long and short auger

JM9614491 Rear Blower Sheet (ASN 781115)

JM9616873 Cone Washer on Shear Bar Adjuster

JM9616875 Cone Washer on Shear Bar Adjuster

JM9617027 900 Auger Lid – 88" Long, w/Hinges (New Style) Used ASN 767917

JM9617281 900 Shear Bar Adjuster Insert BSN 751184 Use JM9623519 ASN 751185

JM9617519 Shear Bar (BSN 751184, no holes)

JM9618047 Yoke and Gear Also fits 890-892 Takes JM200-2600 Cross & Bearing Kit (below*)

*JM200-2600 High-Quality Cross & Bearing Kit 718, 782, 790, 890, 892, 900 Choppers

JM9619871 Sharpener Stone Comes packaged with 4 O-rings

JM9623846 Spline Shaft for Head Drive

JM9820509 Friction Washer On Shear Bar Adj. Rod For 900-FP230-FP240

Page 12

JM9827836 Kicker Bracket on Sharpener

JM9842620 LH Side Plate

JM9843091 RH Side Plate

JM9842999 Long 900 PTO Shaft (for long tongue)

JM642361 Bottom Roll Bearing Holder

JM854233 Chain Beside Gearbox

Page 12 900 Angle Gear Box

JM3780 NH174127 Bearing

JM3220 NH174125 Race

JM47239 NH612675 Seal

JM25577 NH51164 See #14 Page 13

JM25520 NH13958 Race

JM473231 NH137547 Seal

JM416664 NH767618 Seal

JM104911 NH287066 Race

JM104948 NH199954 Bearing

Page 12, 900 Reversing Gear Box

JM352541 NH181991 Seal

JMLM104911 NH287066 Race

JMLM104949 NH287902 Bearing

JML474278 NH136771 Seal

JMLM29749 NH1996 Bearing

JMLM29710 NH1995 Race

JMNTA2031 NH633285 Thr. Bearing

JM410163 NH701519 Seal

JMLM67010 NH36723 Race

JMLM67048 NH36726 Bearing

JM44643 NH132710 Bearing

JM44610 NH132709 Race

JM472439 NH612675 Seal

Page 13

NH 900 Harvester Main Drive Gear Box

#9 JMT3780

#10 JM3720

#14 JM25577

#15 JM25520OT

#25 JM2877066

#26 JM199954

#23 JM86536196

#18 JM47231
