New Idea No. 17 Spreader Upper Cylinder Parts

Upper Cylinder replacement parts for vintage New Idea No. 17 Manure Spreaders. Spreader replacement parts are still manufactured in the USA by the Amish who are still maintaining and using this vintage farm equipment on working farms.

High wear available replacement parts include cylinder heads, bars, teeth, bearing plates, bearings, shields, and sprockets.

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on the "Please Select" again.

Read more below >

SKU EZNI17UCP

Customizable Options:

PayPal Express in-context is not implemented yet. Please switch in-context.

Description / New Idea No. 17 Spreader Upper Cylinder Parts

It would be data prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum $14.50 flat base rate on all items regardless of the size. This is to cover the cost to process, pack, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

Since parts ship directly from an Amish-owned business without computers, please expect some orders to take up to two weeks for the order to reach the Amish shop, have shipping verified, additional shipping collected, before it will ship.

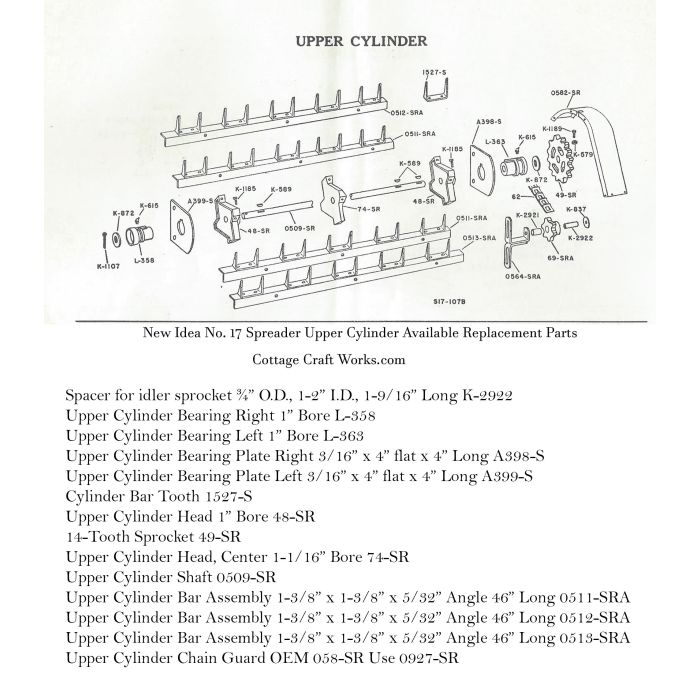

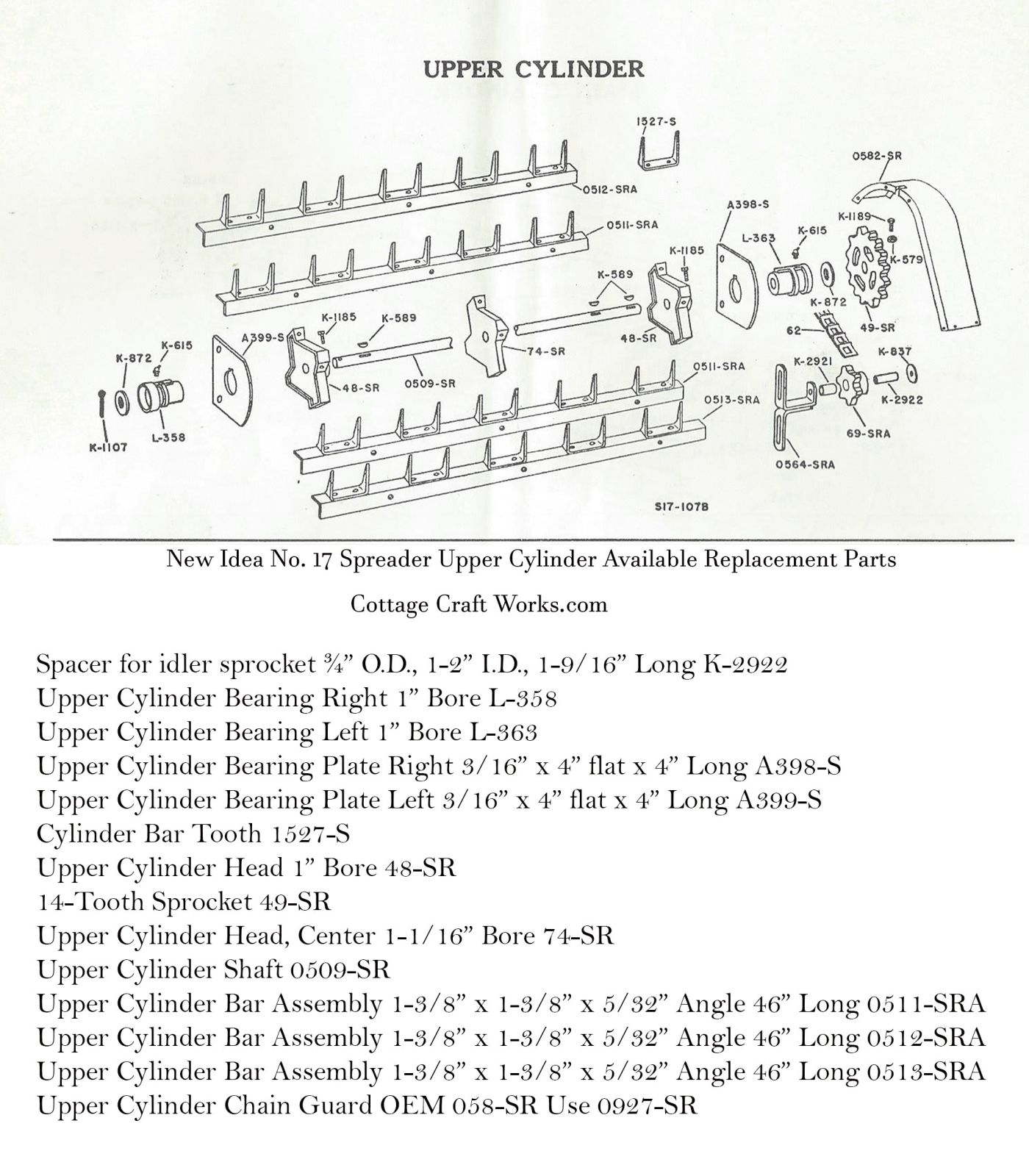

Available New Idea No.17 Spreader Upper Cylinder Parts based on original part numbers.

Spacer for idler sprocket ¾” O.D., 1-2” I.D., 1-9/16” Long K-2922

Upper Cylinder Bearing Right 1” Bore L-358

Upper Cylinder Bearing Left 1” Bore L-363

Upper Cylinder Bearing Plate Right 3/16” x 4” flat x 4” Long A398-S

Upper Cylinder Bearing Plate Left 3/16” x 4” flat x 4” Long A399-S

Cylinder Bar Tooth 1527-S

Upper Cylinder Head 1” Bore 48-SR

14-Tooth Sprocket 49-SR

Upper Cylinder Head, Center 1-1/16” Bore 74-SR

Upper Cylinder Shaft 0509-SR

Upper Cylinder Bar Assembly 1-3/8” x 1-3/8” x 5/32” Angle 46” Long 0511-SRA

Upper Cylinder Bar Assembly 1-3/8” x 1-3/8” x 5/32” Angle 46” Long 0512-SRA

Upper Cylinder Bar Assembly 1-3/8” x 1-3/8” x 5/32” Angle 46” Long 0513-SRA

Upper Cylinder Chain Guard OEM 058-SR Use 0927-SR

New Idea manure spreaders have been the standard manure spreader in Amish communities for generations and the Amish have continued to rebuild these old-time favorites. All parts are brand new USA Amish made since 1970.

Cottage Craft Works provides these hard-to-find replacement parts for those who want to restore and display or use these vintage farm machine implements of yesteryear. We carry many other replacement parts for the New Idea ground-driven spreaders for models, 8, 10, 10A, 12, 14, 17, 18, and 206.

Click Here to see all of our New Idea No. 17 Manure Spreader Parts.
