New Idea No. 17 Main Cylinder Parts

In stock

Main cylinder replacement parts for vintage New Idea No. 17 Manure Spreaders. Spreader replacement parts manufactured by an Amish-owned company for those still maintaining and working with this vintage farm equipment.

High wear available replacement parts include cylinder heads, bars, teeth, bearing plates, bearings, shields, and sprockets.

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on the "Please Select" again.

Read more below >

 New Idea No. 17 Main Cylinder Replacement Parts
 New Idea No. 17 Main Cylinder Replacement Parts  New Idea No. 17 Replacement Parts


It would be data prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum $14.50 flat base rate on all items regardless of the size. This is to cover the cost to process, pack, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

Since parts ship directly from an Amish owned business without computers, please expect some orders to take up to two weeks for the order to reach the Amish shop, have shipping verified, additional shipping collected, before it will ship.

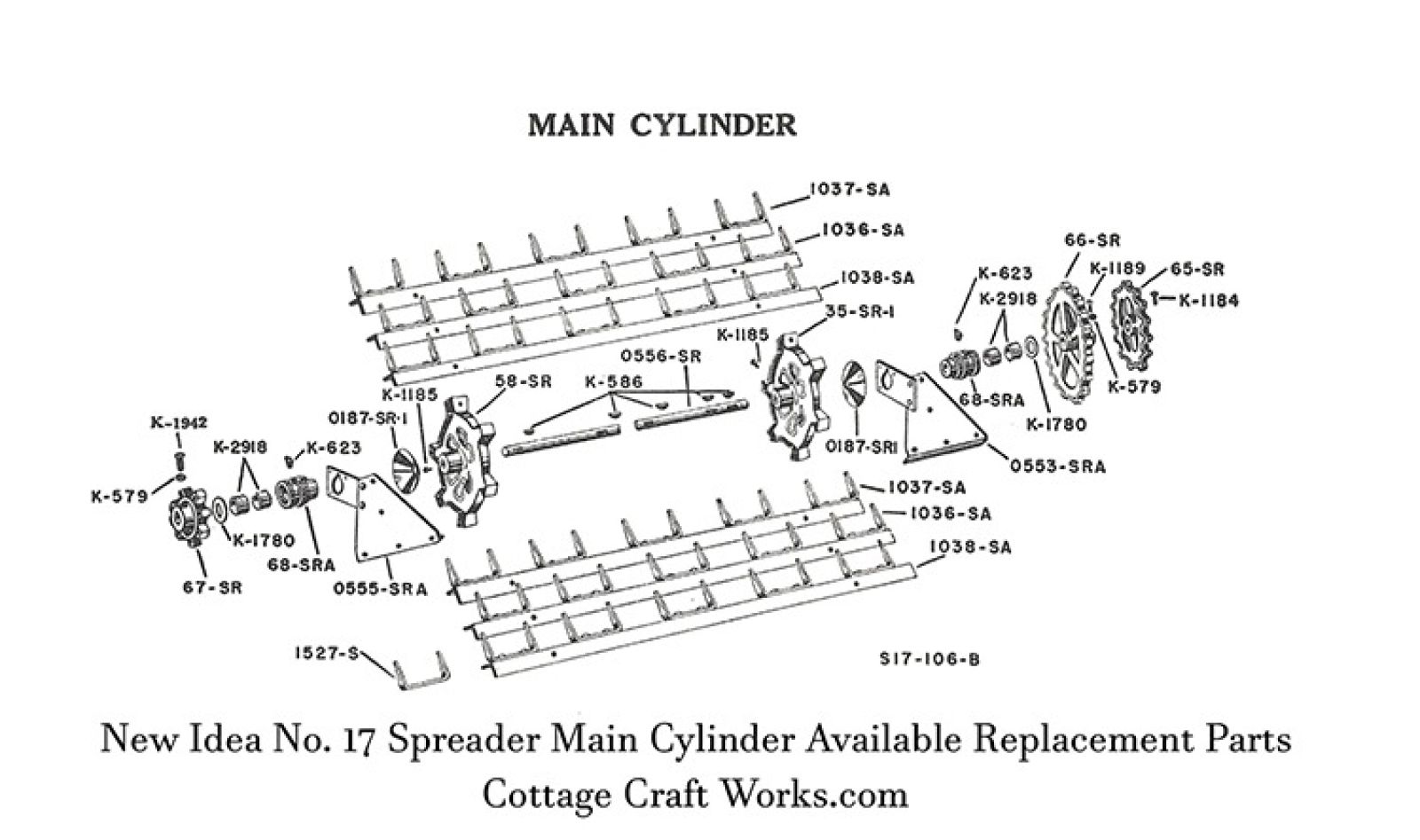

Available New Idea No.17 Spreader Main Cylinder Parts based on original part numbers.

Woodruff Key N0.19 3/16” x 1-1/4” K-586

Fiber Bushing 1-7/16” O.D. x 1-17/64” I.D. x 1-1/4” Long K-2918

Lower Cylinder Bar & Teeth 1-3/8” x 1-3/8” x 5/32” angle 38-5/8” Long 1036-SA

Lower Cylinder Bar & Teeth 1-3/8” x 1-3/8” x 5/32” angle 38-5/8” Long 1037-SA

Lower Cylinder Bar & Teeth 1-3/8” x 1-3/8” x 5/32” angle 38-5/8” Long 1038-SA

Cylinder Bar Tooth 1527-S

Cylinder Head Right 1-1/4” Bore 35-SR-1

Cylinder Head Left 1-1/4” Bore 58-SR

15-Tooth Sprocket 65-SR

20-Tooth Sprocket 66-SR

8-Tooth Sprocket 67-SR

Bearing Assembly with bushings 68-SRA

Anti-Wrap Shield 0187-SR-1

Bearing Plate Assembly Right 0553-SRA

Bearing Plate Assembly Left 0555-SRA

Main Cylinder Shaft 1-1/4” x 51-1/2” Long 0556-SR

New Idea manure spreaders have been the standard manure spreader in Amish communities for generations and the Amish have continued to rebuild these old-time favorites. All parts are brand new USA Amish made since 1970.

Cottage Craft Works provides these hard to find replacement parts for those who want to restore and display or use these vintage farm machine implements of yesteryear. We carry many other replacement parts for the New Idea ground-driven spreaders for models, 8, 10, 10A, 12, 14, 17, 18, and 206.
