New Idea No. 12 Spreader Upper Cylinder Parts
Upper Cylinder parts for vintage New Idea No. 12 Manure Spreaders. Available parts include a 6-tooth sprocket tightener for either #52 or #62 chain, upper cylinder bars, and cylinder tooth.
Priced a la carte, using the drop-down boxes. Select the parts needed, and the prices will incrementally add for each part selected. To select multiple items in the same drop-down, add one to the cart, then select continue shopping to add more. To deselect, click on the "Please Select" again.
Additional Shipping may be required.
Read more below >
Description / New Idea No. 12 Spreader Upper Cylinder Parts
It would be data-prohibitive to list each part with shipping. Therefore, shipping & handling are based on an average purchase of a few parts. We charge a minimum $14.50 flat base rate for all items, regardless of size. This covers processing, packing, drop-ship, and shipping charges.
Additional shipping charges may apply to larger orders. We will send you an invoice if extra shipping is needed.
Since parts ship directly from an Amish-owned business without computers, please expect some orders to take up to two weeks to ship, with shipping verified and any additional shipping collected before they ship.

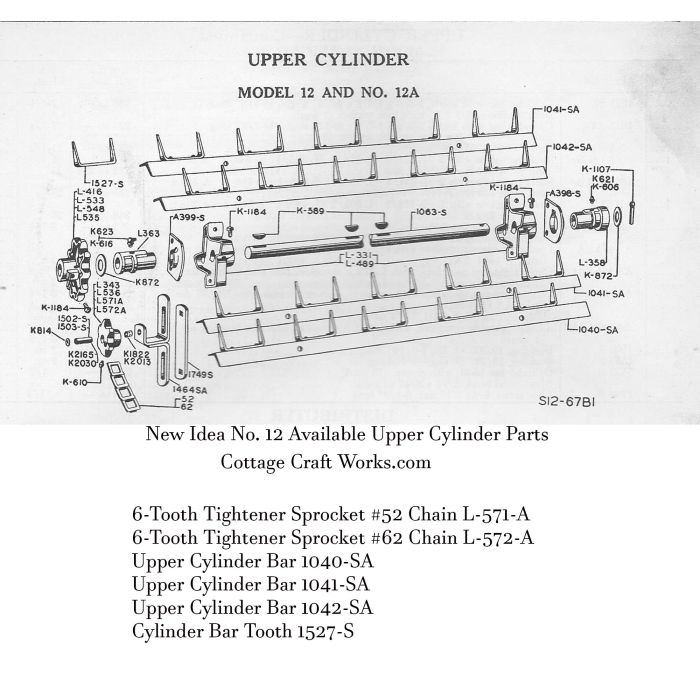

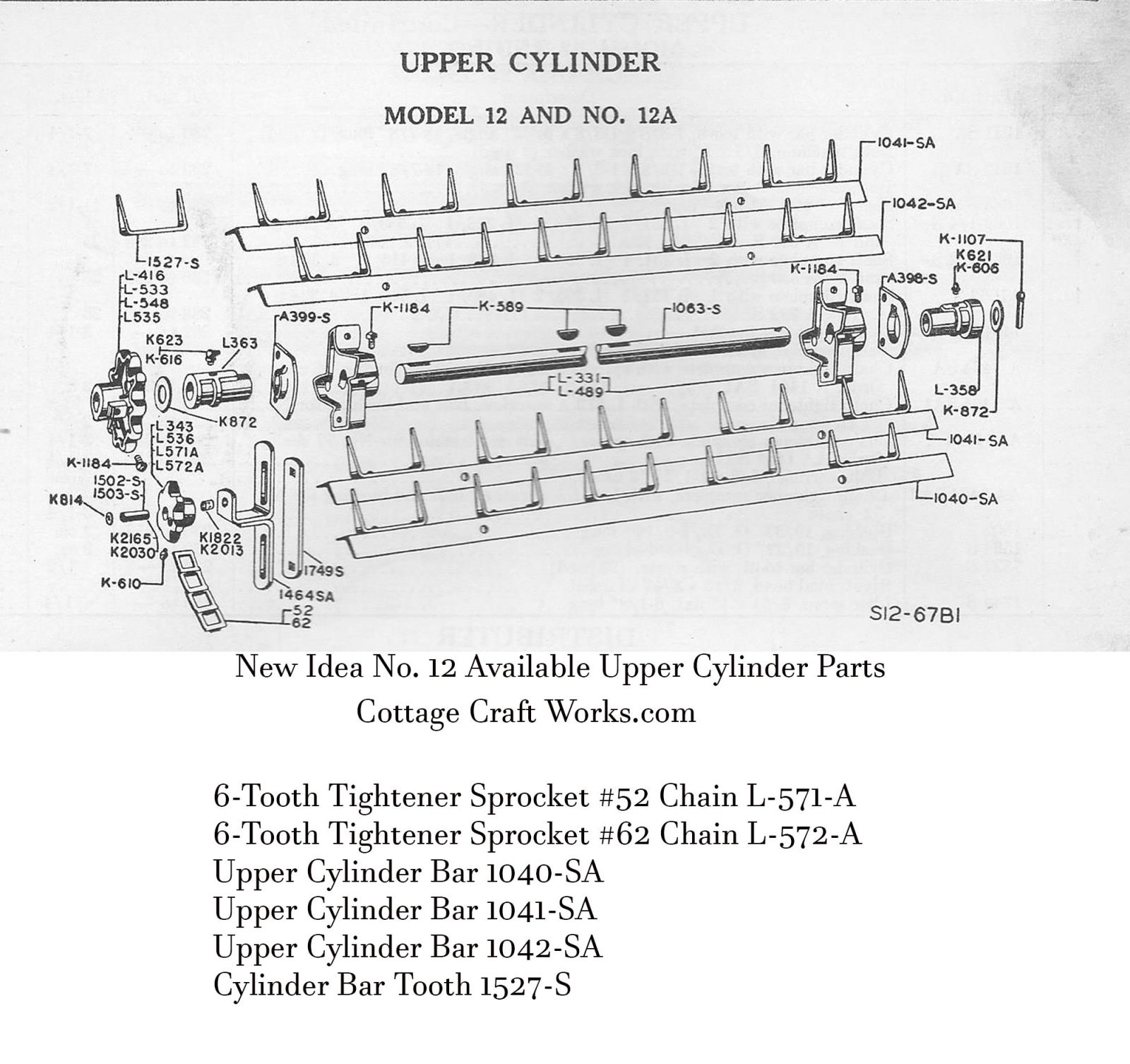

Available New Idea No.12 spreader upper cylinder parts based on original part numbers
#62 Chain 40 Links
A398-S Bearing Plate RH
A399-S Bearing Plate LH
A1464SA Complete Assembly (includes the bracket, sprocket, bushing & bolt)
K589 Key 3/16 x 1”
K621- M800 Grease Fitting
K623-M802 Grease Fitting
K814 Washer 1” O.D. X 7/16 I.D., 16 gauge
K872 Washer 1-3/4” O.D. x 1-1/32 I.D., 16 gauge
K1107 Spring Cotter 5/16” dia. x 1-1/4” Long
K1184 Set Screw ½” x ¾”
L358- NI3018 Bearing RH 1” Bore
L363-NI3019 Bearing LH 1” Bore
L489 Cylinder Head
L548 Sprocket
L-571-A 6-Tooth Tightener Sprocket #52 Chain
L572-A 6-Tooth Tightener Sprocket #62 Chain (Most Common)
1040-SA Upper Cylinder Bar
1041-SA Upper Cylinder Bar
1042-SA Upper Cylinder Bar
1063-S-NI9004 Cylinder Shaft
1527-S- NI3009 Cylinder Tooth (No Bolts or Rivets)
1464SA-NI3025 Bracket
New Idea manure spreaders have been the standard manure spreader in Amish communities for generations, and the Amish have continued to rebuild these old-time favorites. All parts are brand new, USA Amish-made since 1970.
Cottage Craft Works provides hard-to-find replacement parts for those restoring, displaying, or using vintage farm implements. We carry a wide range of replacement parts for New Idea ground-driven spreaders, including models 8, 10, 10A, 12, 14, 17, 18, and 206.
