New Idea No. 12 Spreader Main Cylinder Parts
Main cylinder parts for vintage New Idea No. 12 Manure Spreaders. Available parts include complete bearings, lower cylinder bars, tooth, main cylinder shaft, and 8-tooth sprocket.
Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to cart, and then select continue shopping to add more parts. To deselect click on the "Please Select" again.
Additional Shipping may be required.
Read more below >
Description / New Idea No. 12 Spreader Main Cylinder Parts
It would be data-prohibitive to list each part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum $14.50 flat base rate on all items regardless of the size. This is to cover the cost to process, pack, drop-ship, and actual shipping charges.
Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.
Since parts ship directly from an Amish-owned business without computers, please expect some orders to take up to two weeks to reach the Amish shop, have shipping verified, and additional shipping collected, before they will ship.

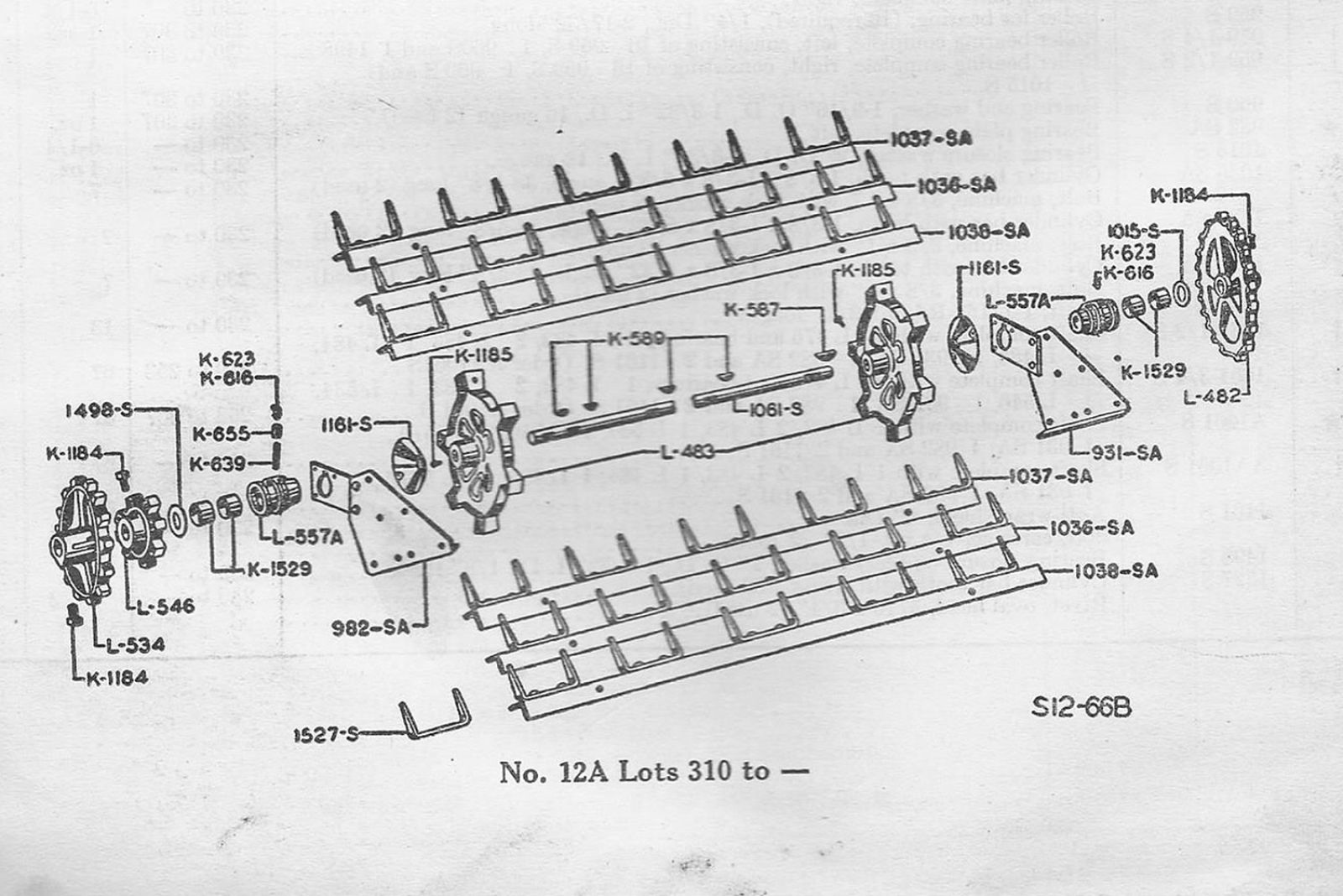

Available New Idea No.12 spreader main cylinder parts based on original part numbers
*Denotes Special Order Item that may take 3-4 weeks.
Page 1
982 SA-NI9016 Bearing Plate Complete, Left
Bolt, carriage bastard head 3/8” x 1-1/2”
Bolt, machine 3/8” x 7/8” w/lock washer
*1036 SA Cylinder Bar w/teeth 1-3/8” x 1-3/8” x 5/32” Angle 38-5/8” L (special order)
*1037 SA Cylinder Bar w/teeth 1-3/8” x 1-3/8” x 5/32” Angle 38-5/8” L (special order)
* 1038 SA Cylinder Bar w/teeth 1-3/8” x 1-3/8” x 5/32” Angle 38-5/8” L (special order)
1061 S-NI9005 Shaft 1-1/16” x 51-3/4” L uses K587 and K589 Keys
1161 S-NI3006 Anti-Wrap Shields 6” Dia.
1527 S-NI3009 Cylinder Bar Tooth w/rivets (5/16” x ¾”)
Page 2
K 579-NI3017 Jam Nut ½” Hexagon
K 587-NI3015 No. 26 Woodruff Key 3/16” x 1-3/4” L
K 589-NI3014 No.13 Woodruff Key 3/16” x 1” L
K 623-M802 Grease Fitting 1/8” pipe thread 67-1/2 degree elbow
K 1185 Set Screw ½” dia. x ¾” L
Page 3
*K 1529 Bronze Steel Backed Bushing 1-1/6” I.D. x 1-1/4” L
L 482-NI3004 20 Tooth Sprocket, 1-1/16” Bore
L 483-1-NI3000 Cylinder Head 1-1/16” Bore, right. Uses K589 Key
L 534-NI9013 15 Tooth Sprocket drives upper cylinder uses K589 Key
*L 546 8 Tooth Sprocket 1-1/6” Bore uses K589 Key
*L 557 A Cylinder Bearing Assembly w/K1529 bushing
*L 573 Main Cylinder Head, Left uses K589 Key
931 SA-NI9015 Bearing Complete
Bolt, carriage bastard head 3/8 x 1-1/2”
Bolt, machine 3/8” x 7/8” w/lock washer
*Denotes Special Order Item that may take 3-4 weeks.
New Idea manure spreaders have been the standard manure spreader in Amish communities for generations and the Amish have continued to rebuild these old-time favorites. All parts are brand new USA Amish made since 1970.
Cottage Craft Works provides these hard-to-find replacement parts for those who want to restore and display or use these vintage farm machine implements of yesteryear. We carry many other replacement parts for the New Idea ground-driven spreaders for models, 8, 10, 10A, 12, 14, 17, 18, and 206.
Click Here to see all the replacement parts for vintage New Idea No. 12 Manure Spreaders.
