New Idea No. 12 Spreader Feed Conveyor Parts
Feed shaft and conveyor parts for vintage New Idea No. 12 Manure Spreaders. Available parts include a 5-tooth idler sprocket, angle feed bearing plate, conveyor tightener arms with studs, extension spring, and feed shaft.
Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on the "Please Select" again.
Additional Shipping may be required.
Read more below >
Description / New Idea No. 12 Spreader Feed Conveyor Parts
It would be data prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum of $14.50 flat base rate on all items regardless of size. This is to cover the cost of processing, packing, drop-ship, and actual shipping charges.
Additional shipping may be required for larger orders. We will bill you for additional shipping will be needed.
Since parts ship directly from an Amish-owned business without computers, please expect some orders to take up to two weeks for the order to reach the Amish shop, have shipping verified, additional shipping collected, before it ships.
Cottage Craft Works provides these hard-to-find replacement parts for those who want to restore and display or use these vintage farm machine implements of yesteryear. We carry many other replacement parts for the New Idea ground-driven spreaders for models, 8, 10, 10A, 12, 14, 17, 18, and 206.
Click Here to see all the replacement parts for vintage New Idea No. 12 Manure Spreaders.

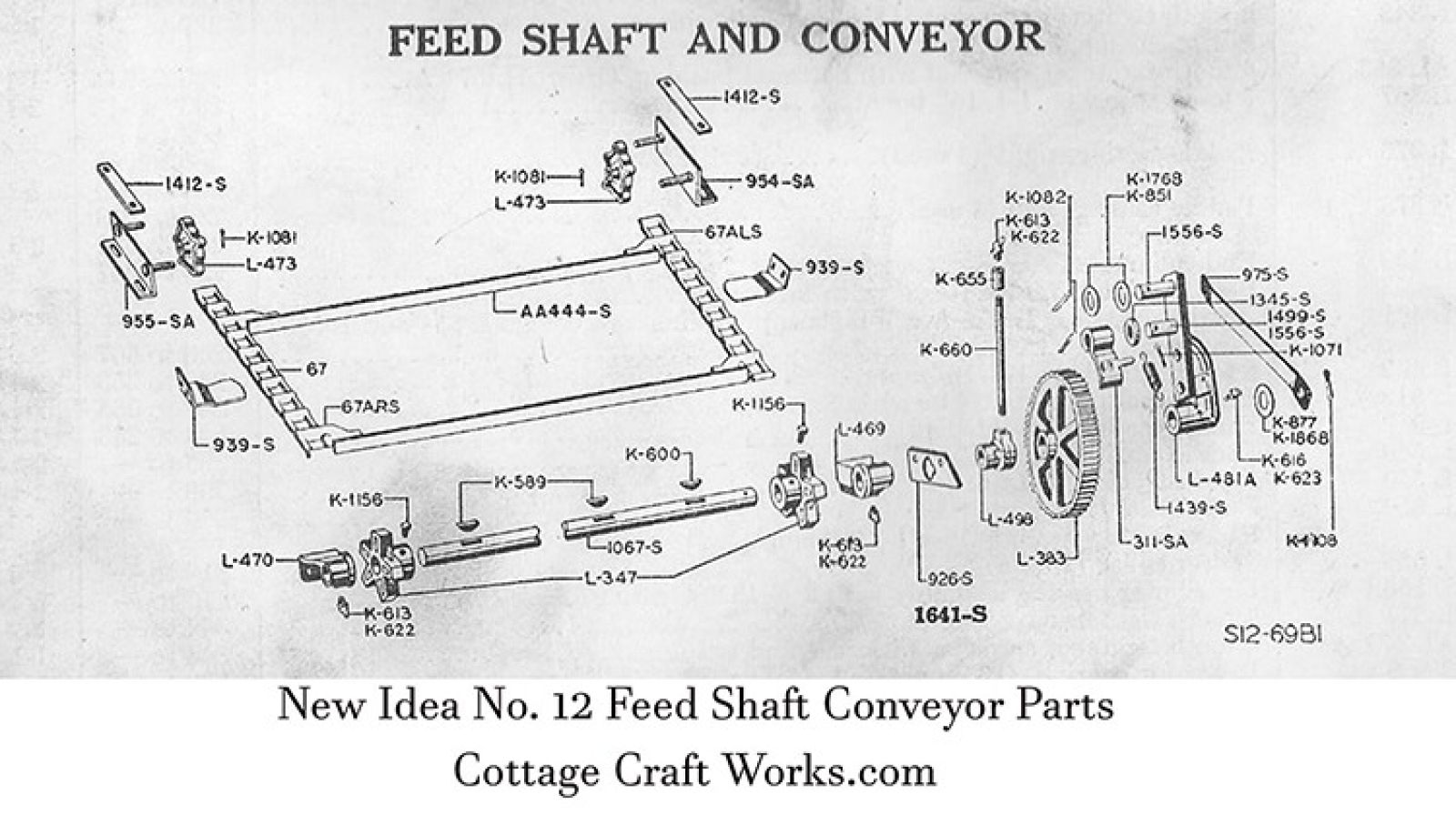

Available New Idea No. 12 Feed Shaft and Conveyor parts based on original part numbers
Note: email us for the parts noted below with (Check Availability) not listed in the drop-down boxes with a price. The parts listed in the drop-down boxes as (Special Order) may take 3-4 weeks to ship.
67 Plain Steel Link
67 ARS Steel Attachment Link Left, flat head rivet
67 ALS Steel Attachment Link Right, flat head rivet
K 589, NI3014, No.13 Woodruff Key 3/16” thick, 1” long
K 600, No.20 Woodruff Key 7/32” thick, 1-1/4” long
K 622 Grease Fitting 1/8” pipe thread 30 degree (Special Order)
K 623, M802, Grease Fitting 1/8” pipe thread, 67-1/2 degree
K 655 Pipe Coupling 1/8” pipe thread (Special Order)
K 660 Pipe Nipple 1/8” pipe thread, 8” long (Check Availability)
K 1071 Spring Cotter 1/8” dia., ¾” long
K 1081 Spring Cotter 3/16” dia., 1” long
K 1082 Spring Cotter 3/16” dia., 1-1/4” long
K1108 Spring Cotter 5/16” dia., 1-1/2” long
K 1156 Set Screw 3/8” dia., 5/8 long low head
K 1786 Washer 1-1/2” O.D., 29/32” I.D. 3/32” thick
K 1868 Washer 1-3/4” O.D., 1-3/32” I.D. 5/64” thick
L 347, NI5008 5-tooth feed sprocket 1-1/16” bore
L 383, NI5009 Ratchet Wheel, 1-1/16” bore
L 469, NI5010 Feed Bearing Right 1-1/16” bore, with bolt, nut, lock washer
L 470, NI504 Feed Bearing Left 1-1/16” bore, with bolt, nut, lock washer
L 473, NI9018, 5-Tooth Idler Sprocket
L 481A Feed Arm Complete with pawl and spring (Special Order)
L 498, NI5012 Angle Feed Bearing 1-1/16” bore
311 SA, NI5015 Feed Pawl ¼” x 1-1/4” flat 5-3/4” long
AA 444 S, NW7100, Conveyor Bar with attachment links 1-3/8 x 1-5/32”, 36-1/4” Long
939 S, NI906, Conveyor Slide Complete 1/8” x 3” flat, 3-11/16” long with bolt, lock washer
954 SA Conveyor Tightener with stud, Right 2-1/2” x 1-1/2” x 3/16” angle 9” long (Special Order)
955 SA Conveyor Tightener with stud, Left 2-1/2” x 1-1/2” x 3/16” angle 9” long (Special Order)
975 S Feed Shaft Brace ¼” x 1-1/2” flat, 22-1/2” long (Check Availability)
1067, NI9002 Shaft 1-1/16” x 47”, uses K589 and K600 Keys, not included.
1412 S Clamp Strap for Idler 3/16” x 1” flat, 8” long (Check Availability)
1439 S Extension Spring 5/8” O.D., 7/16” long, 20 coils (Special Order)
1556 S Stud for feeder arm tube and pawl 7/8” dia., 2-3/4” long (Special Order)
1585 S Feed Pawl Spacer 1-1/4” O.D., 7/16” thick (Special Order)
1625 SA, NW7000, Conveyor with 67 steel chain and AA444 S bar, 176ea 67 plain links, 16 ea., 67 ARS links and 16ea., 67 ALS links; 8 bars each followed by 5 plain links, and 8 bars followed by 6 plain links. Will for sure require additional shipping.
1641 S Angle bearing plate 3/16” x 3” flat, 5-1/8” long (Special Order)
