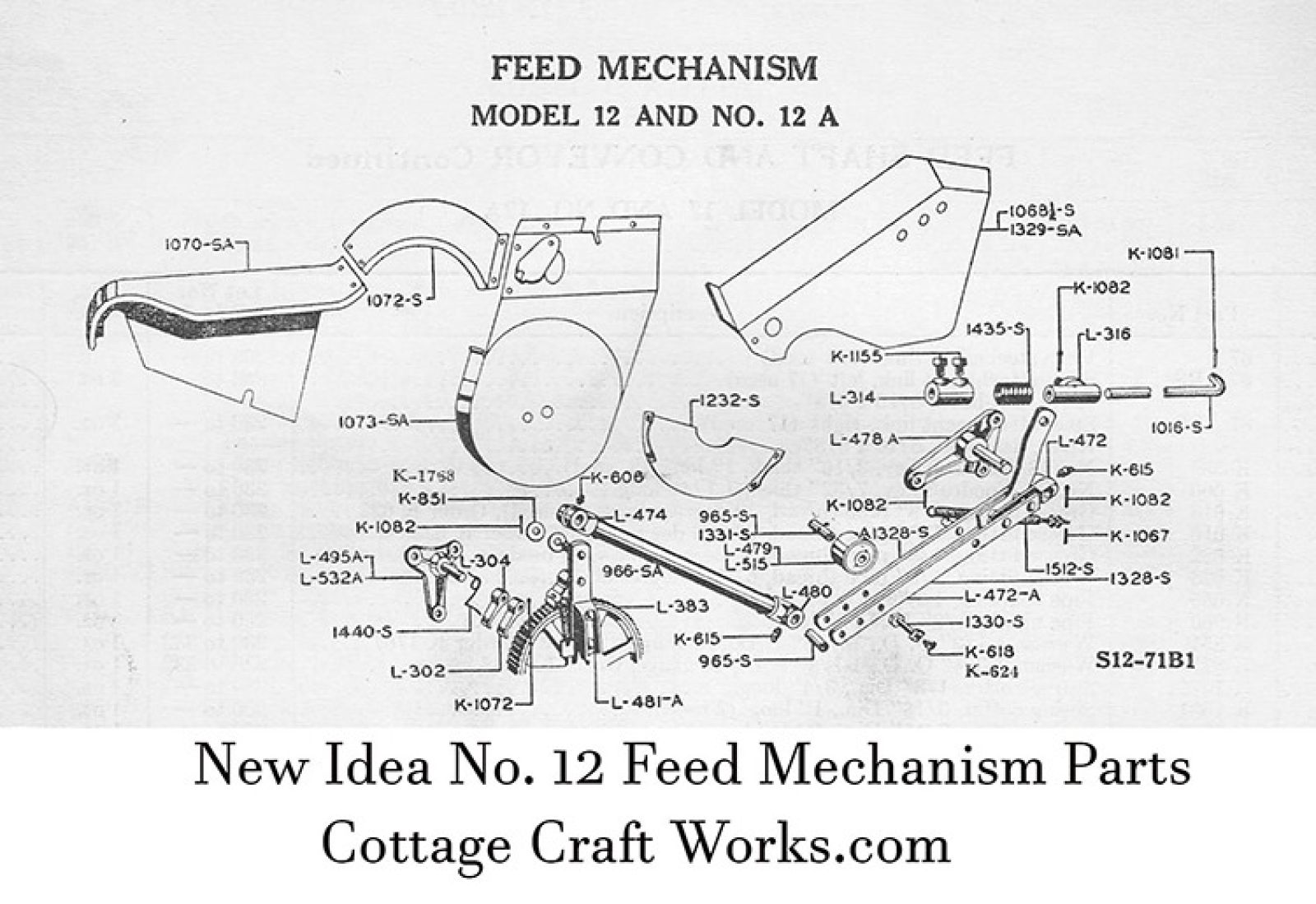

New Idea No. 12 Feed Mechanism Parts
Feed mechanism parts for vintage New Idea No. 12 Manure Spreaders. Available parts, feed arm bearing L-472, feed arm roller L-515, distributor chain shield 1070-SA, distributor ratchet wheel shield 1073-SA, inner ratchet wheel shield 1232-SA, auxiliary feed arm shield 1331-S, comp. spring 1435-S, torsion spring 1440-S, and ext. spring with bolt.
Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on the "Please Select" again.
Additional Shipping may be required.
Read more below >
Description / New Idea No. 12 Feed Mechanism Parts
It would be data prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum of $14.50 flat base rate on all items regardless of size. This is to cover the cost of processing, packing, drop-ship, and actual shipping charges.
Additional shipping may be required for larger orders. We will bill you for additional shipping will be needed.
Since parts ship directly from an Amish-owned business without computers, please expect some orders to take up to two weeks for the order to reach the Amish shop, have shipping verified, additional shipping collected, before it ships.
Cottage Craft Works provides these hard-to-find replacement parts for those who want to restore and display or use these vintage farm machine implements of yesteryear. We carry many other replacement parts for the New Idea ground-driven spreaders for models, 8, 10, 10A, 12, 14, 17, 18, and 206.
Click Here to see all the replacement parts for vintage New Idea No. 12 Manure Spreaders.
Available New Idea No. 12 Feed Mechanism parts based on original part numbers
Note: email us for the parts noted below with (Check Availability) not listed in the drop-down boxes with a price. The parts listed in the drop-down boxes as (Special Order) may take 3-4 weeks to ship.
L 515, NI9021 Roller and Feed Arm
L 532A Retention Pawl with Support Pin (Check Availability)
965 S Bushing 1/8” (.870) O.D. 1-15/16” long (Check Availability)
966 SA Feed Mechanism Connecting Tubes (Check Availability)
1016 S Feed Rod 9/16”, 92-3/4” long (Check Availability)
1070 SA, NI9076, Distributer Chain Shield, with bolt and washer
1072 S Sheild, connection distributer, ratchet wheel shields, 14” w/bolts (Check Availability)
1073 SA, NI9024, Ratchet Wheel Shield, w/bolts
1232 S, NS724, Inner Ratchet Wheel Shield, w/bolts
1328, Feed Hanger Arm ¼” x 1-3/4” flat 16-1/2” long (Check Availability)
A1328 S Feed Hanger Arm ¼” x 1-3/4” flat 16-1/2” Long w/stud (Check Availability)
329 SA, NI9025, Auxiliary Feed Arm Shield, w/bolt
1330 S Feed Roller Bolt 5/8” x 2-7/8” long (Check Availability)
1331 S, NI9023, Bushing for Feed Roller 1” (.997) O.D., 1-15/16” long
1435 S, NI9063, Compression Spring 1.307 O.D., 5-1/2” long, 5 coils
1440 S, NI9063, Torsion Spring
1512 S Extension Spring with Bolt, 7/8” O.D. 5-1/2” long overall
K 600 No.20 Woodruff Key 7/32” thick, 1-1/4” long
K 615, M081, Grease Fitting 1/8” pipe 45-degree elbow
K 621, M800, Grease Fitting 1/8” pipe straight
K 624 Grease Fitting 1/8” pipe 90-degree (Special Order)
K 1067 Spring Cotter 3/32” dia. 1” long
K 1072 Spring Cotter 1/8” dia. 1” long
K1082 Spring Cotter 3/16” dia. 1-1/4” long
K1081 Spring Cotter 3/16” dia. 1” long
K 1155 Set Screw 3/8” dia. 5/8” long
K 1768 Washer 1-1/2” O.D., 29/32” I.D., 1/16” thick
L 302, NI5001, Retention Pawl, short
L 304, NI5002, Retention Pawl, long
L 314, NI5030, Double Set Collar
L 316, NI5031, Slide Collar
L 383, NI5009, Ratchet Wheel, 1-1/16” bore, uses K 600 key
L 472, NI9026, Auxiliary Feed Arm Bearing w/Rivets
L 474 Upper insert for feed arm tube w/Rivets (Check Availability)
L 478A Auxiliary Feed Arm Post w/Pin, bolts (Special Order)
L 480 Lower Insert for Feed Arm Tube, w/rivet (Check Availability)
L 481A Feed Arm Complete w/Pawl & Spring
