New Idea 326-327 Husking Unit Parts

Aftermarket New Idea 326-327 sheller unit parts are being remanufactured by the Amish to maintain New Idea vintage corn harvesting equipment within the Amish communities for harvesting.

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on "Please Select" again.

Additional shipping may be required for large items or large orders.

Read more about available parts and shipping below the drop-down boxes >

SKU NI326-327HU

Customizable Options:

  $0.00

Description / New Idea 326-327 Husking Unit Parts

It would be data-prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum $19.95 flat base rate on all items regardless of the size. This is to cover the cost of processing, packing, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

Prices are subject to change without notice.

Since parts ship directly from an Amish-owned business without computers, please expect some orders to take up to two weeks for the order to reach the Amish shop, have shipping verified, and additional shipping collected, before they will ship.

326 Available Parts

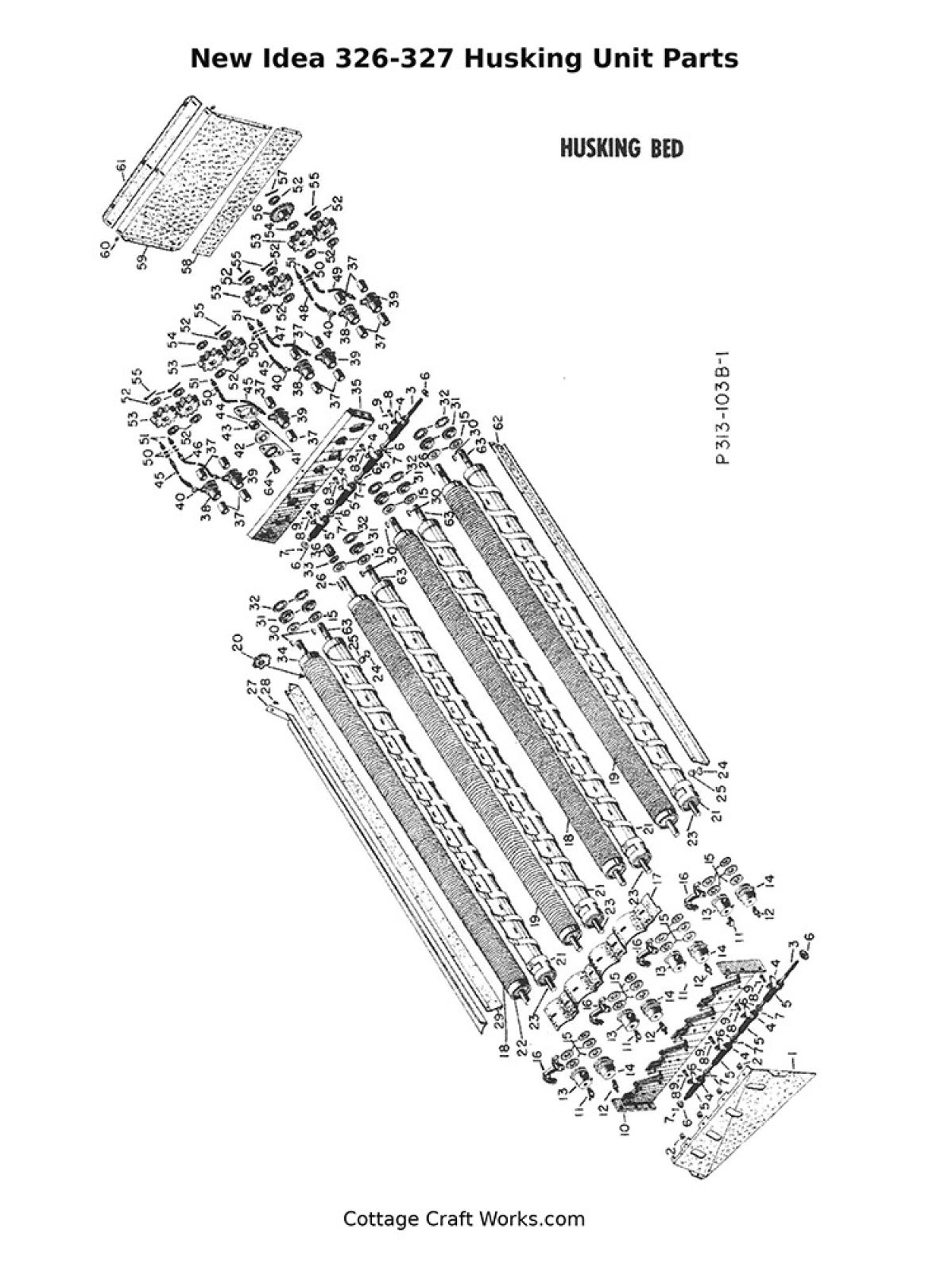

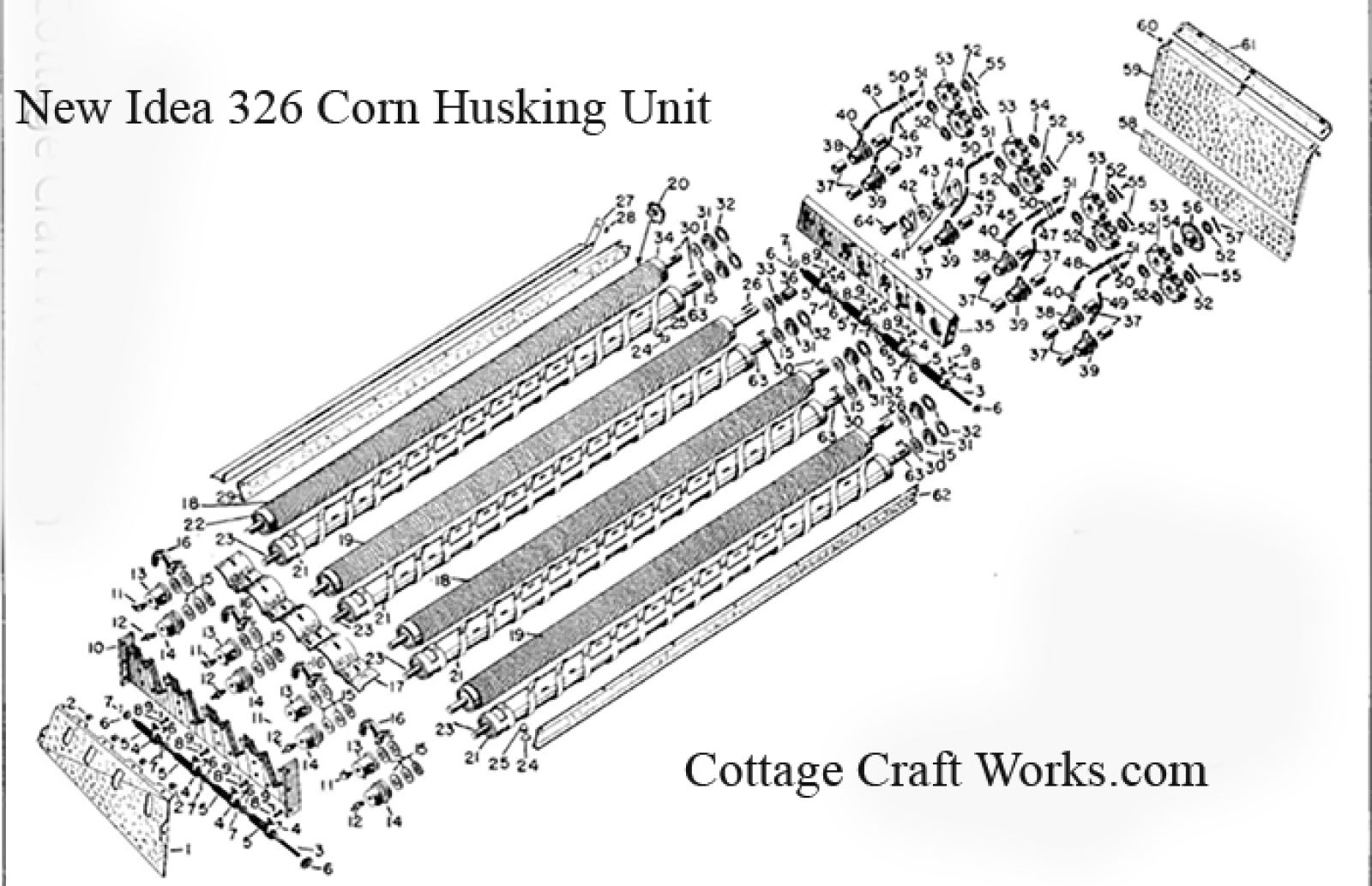

326 Husking Bed

#13 E54 Stationary lower husking roll bearing

#14 300870 Sliding lower husking roll bearing

#18 304611 Rubber husking roll assembly used on both first and third from front (Sold as one roll, select quanity of 2 if you need both)

#19 304615 Rubber husking roll assembly used on second and fourth from front (Sold as one roll, select quantity of 2 if you need both)

#24 1891P Husking peg, wing type (Sold in Package of 10)  Takes 25 per roller.

#25 W261 Wood plug, 19/32" x 2-3/16" (Sold in Package of 10)

#38 300877 Husking roll bearing and bushing, replaces 300878

#39 302635 Husking roll bearing and 2-k-2852 bushing, replaces 302634

#41 K4668 Bearing flangette

#42 K2752 Bearing ball, 1" I.D.

326 Corn Saver

#11 302578 9 tooth sprocket, 1" bore for 55 plain link (Special)

#11 303622 6 tooth sprocket, 1" bore for #55 plain link

#56 302581 Corn saver conveyor chain complete

#56 302585 Flight w/ attachment link $14.00          29       11

326 FAN AND JACK SHAFT DRIVE

#3 K4668 Bearing housing

#4 K2752 Bearing ball assembly, 1" bore

#8 K3582 Idler roller assembly

#11 302732 V-belt, HB section effective length, 50-11/64" long

#24 302733 V - belt, HB section, effective length, 52-1/ 2" long for fan

326 EAR FORWARDERS

#5 K3214 Bearing, fiber, 1" O.D., x 57/64" I.D., x 1-1/2" long

#6 300921 Bearing assembly with fiber bearing, replaces 300922

#11 305267 Finger wheel assembly, 15"

#12 305266 Finger wheel assembly, 13"

#13 305265 Finger wheel assembly, 11"

326 HUSKING BED DRIVE

#6 K2752 Bearing ball assembly, 1" bore, 2-1/8" O.D.

326 WAGON ELEVATOR DRIVE

#9 E-395 Ratchet Plate

#11 K4668 Bearing housing flangette

#14 K2752 Bearing ball, 2-1/8" O.D., 1" I.D.

#22 65-PM Sliding clutch - 1" bore keywayed

#25 302742 9 tooth sprocket with 1 - 010131 bushing for 1-1/ 4" extended pitch chain, replaces 302741

#32 K3582 Idler roller assembly 33/64" bore

#38 150-PM Pawl, 11/32" pin hole

#41 K3131 Spring extension, 5/8" O.D. x 3-7/8" long, 46 coils

327 Available Parts (Not all the available part pictures are shown)

326-327 Wagon Elevator

#1 302704 15-tooth sprocket, 1" bore for RC - 2050 chain

#6 K2753 Bearing

#8 300664 6-tooth sprocket for No. 62 chain 1" bore keyway

#9 302702 Wagon elevator boot

#10 300662 Lower bearing housing

#11 302703 Wagon elevator lower shaft, 1" dia., 15-231 32" long

#20 300688 Wagon elevator chain assembly

#20 300995 Flight assembly with attachment link

#29 02057PMA Throwout Lever Assembly

#34 300668 Hood assembly, right-hand

#41 303881 6 tooth idler sprocket, for No. 62 chain

#42 K-3300 Ball Bearing 7/8" ID

#45 300674 Hood bracket assembly

#46 10544 Spring extension – 5/64 wire – 55 coils – 6” long

#47 300677 Corn deflector assembly

327 FAN AND JACK SHAFT DRIVE

 #27 302732 V-belt, HB section effective length, 50-11/64" long

 #37 302733 V-belt, HB section, effective length, 52-1/ 2" long

327 WAGON ELEVATOR DRIVE

#10 302737 Aux Drive Shaft

#25 302742 9 tooth sprocket

327 HUSKING ROLLS

 #7 711825 Lug assembly

 #8 303780 Lug assembly

327 EAR FORWARDERS

  #8 305266 Finger wheel assembly, 13"

327 CORN SAVER

#9 E-395 Ratchet Plate

#33 711757 Corn saver conveyor chain complete

 #33 711758 Flight with an attachment link
