New Idea 324, 325 Picker RH long Gathering Chain Drive
Aftermarket New Idea 324 & 325 vintage double row corn picker right-hand long gathering chain parts. Parts are being remanufactured by the Amish to maintain these vintage corn pickers within the Amish communities for harvesting.
Priced a la carte, using the drop-down boxes. Select the parts needed, and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect, click on "Please Select" again.
Additional shipping may be required for large items or large orders.
Read more about available parts and shipping below the drop-down boxes >
Description / New Idea 324, 325 Picker RH long Gathering Chain Drive
It would be data-prohibitive to list each part with shipping. Therefore, shipping & handling are based on an average purchase of a few parts. We do charge a minimum $19.95 flat base rate on all items regardless of size. This covers the cost of processing, packing, drop-ship, and actual shipping charges.
Additional shipping may be required for larger orders. We will send you an invoice if extra shipping is needed.
Note: For husking parts and ear forwarders on the 324 and 325 Corn Picker, Click Here for the 326-327 Husking Unit Parts. Many assume they have a 324-325 unit, which was only the gathering unit. The 326-327 husking unit was then added.
Prices are subject to change without notice.
Since parts ship directly from an Amish-owned business without computers, please expect some orders to take up to two weeks for the order to reach the Amish shop, have shipping verified, additional shipping collected, before it will ship.

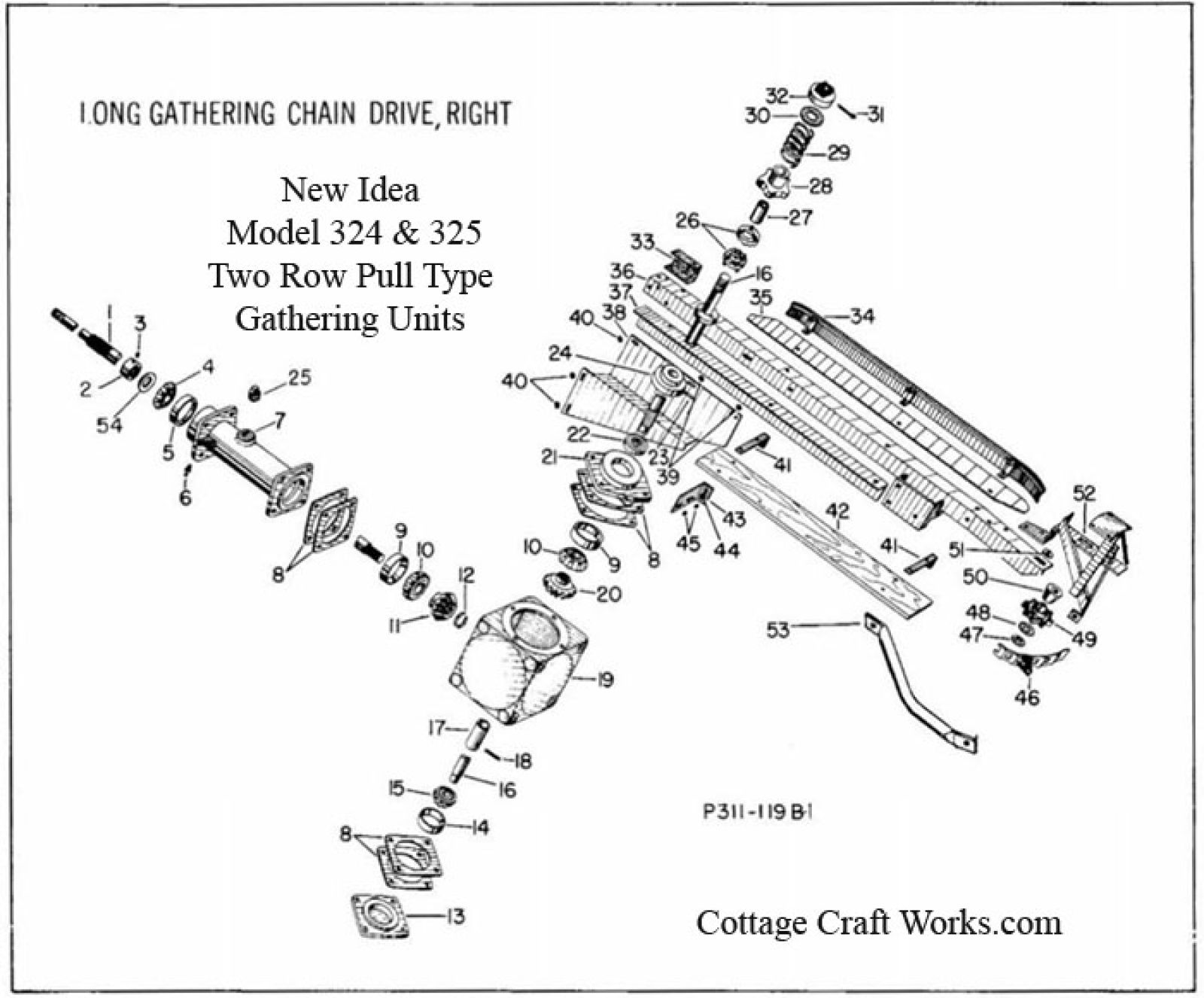

Available Parts
#1 302238 Ratchet Shaft 1-1/4" dia. x 19-5/32" L
#4 K 3549 Bearing Cone 1-1/4” Bore
#5 K 3548 Bearing Cup 2-21/64” dia.
#11 303686 Beveled Gear 14 Tooth Splined
#14 K 3839 Bearing Cup 1-25/32 O.D.
#15 K3840 Bearing Cone ¾” Bore
Sprockets, Gears, Ratchets
#11 303686 Beveled Gear 14 Tooth Splined
#20 303685 Beveled Gear 15 Tooth Splined
#26 E 395 Ratchet Clutch Plate
#49 302826 Sprocket 8 Tooth 1” Bore
Gathering Chain, Slides
#34 309087 Chain Slide (Fits either Right or Left Side)
#35 302225 Chain Slide Plate
#46 302320 Long Gathering Chain
