New Idea 324, 325, Picker LH Short Gathering Chain Parts

In stock

Aftermarket New Idea 324 & 325 vintage double row corn picker left-hand short gathering chain right drive parts are being remanufactured by the Amish to maintain these vintage corn pickers within the Amish communities for harvesting.

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on "Please Select" again.

Additional shipping may be required for large items or large orders.

Read more about available parts and shipping below the drop-down boxes >

New Idea 324, 325, Picker LH Short Gathering Chain Parts
New Idea 324, 325, Picker LH Short Gathering Chain Parts


It would be data-prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum $19.95 flat base rate on all items regardless of the size. This is to cover the cost of processing, pack, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

Since parts ship directly from an Amish owned business without computers, please expect some orders to take up to two weeks for the order to reach the Amish shop, have shipping verified, additional shipping collected, before it will ship.

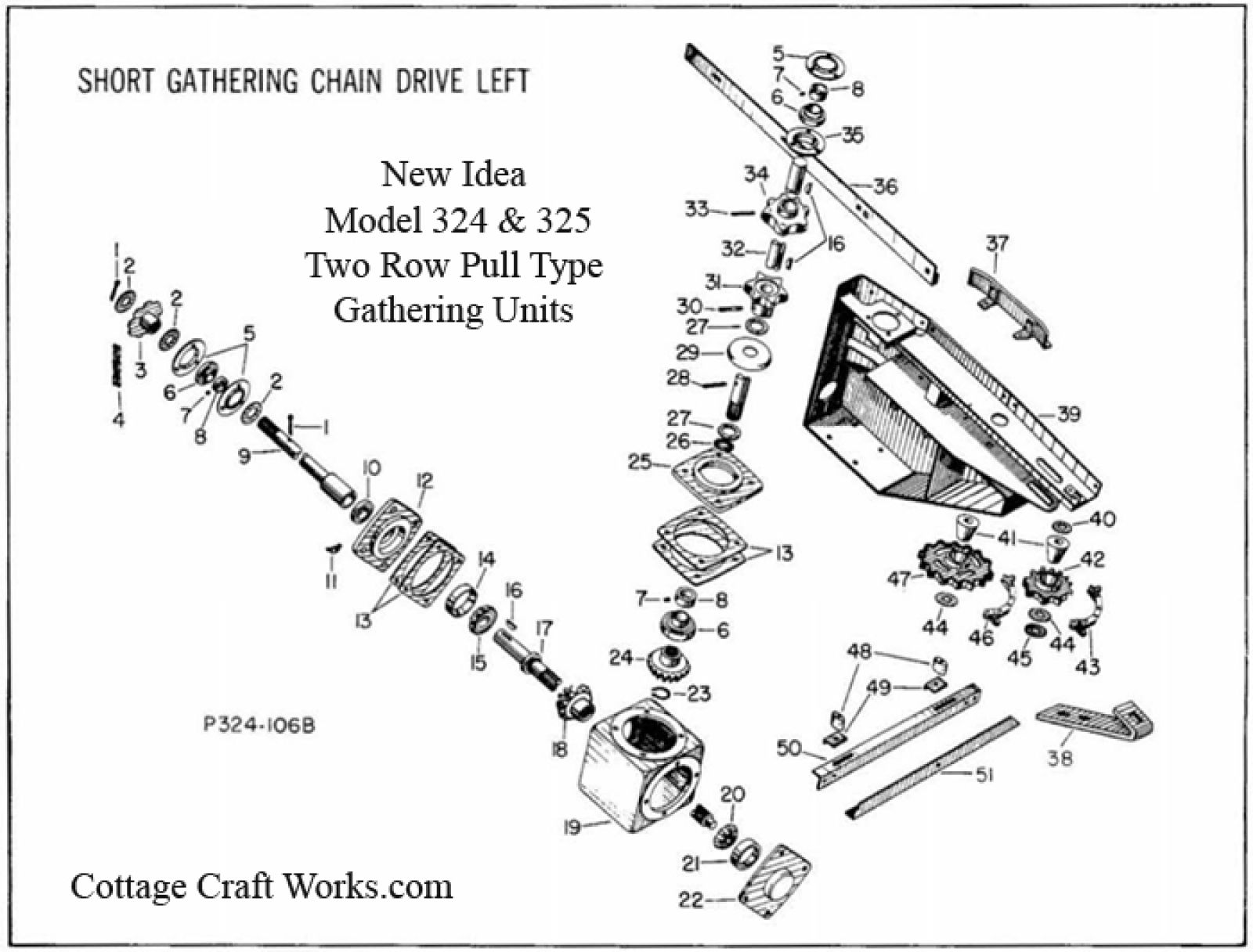

Available Parts

#5 K 2579 Bearing Housing Flangette

#6 K 2752 Bearing 1” Bore

#10 K 4652 Grease Seal 1” I.D. x 1-11/16” O.D. x ¼” Thick

#14 K 4659 Bearing Cup Tapered Roller

#15 K 4660 Bearing 1” Bore

#17 302298 Lower Drive Shaft 1” dia. x 7-5/8”

#18 303686 Bevel Gear 14 Tooth Splined

#20 K 3840 Bearing Cone 1” Bore

#21 K 3839 Bearing Cup Tapered 1-25/32” O.D.

#24 303685 Beveled Gear 15 Tooth Splined

#31 304584 Sprocket 6 Tooth 1” Bore Keywayed

#34 305346 Sprocket 7 Tooth 1” Bore Keywayed

#37 305332 Short Chain Gathering Slide LH

#41 300172 Idler Cone

#42 304879 Sprocket 11 Tooth

#43 305347 Upper Short Gathering Chain

#47 304585 Sprocket 14 Tooth

#48 300041 Chain Slide
