New Idea 324, 325 Left Snapping Unit Gearbox

Aftermarket New Idea 324 & 325 vintage double row corn picker left snapping gearbox parts are being remanufactured by the Amish to maintain these vintage corn pickers within the Amish communities for harvesting.

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on "Please Select" again.

Additional shipping may be required for large items or large orders.

Read more about available parts and shipping below the drop-down boxes >

SKU NI324-325LSUGB

Customizable Options:

Description / New Idea 324, 325 Left Snapping Unit Gearbox

It would be data-prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum $19.95 flat base rate on all items regardless of the size. This is to cover the cost of processing, packing, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

Prices are subject to change without notice.

Since parts ship directly from an Amish-owned business without computers, please expect some orders to take up to two weeks for the order to reach the Amish shop, have shipping verified, and additional shipping collected, before they will ship.

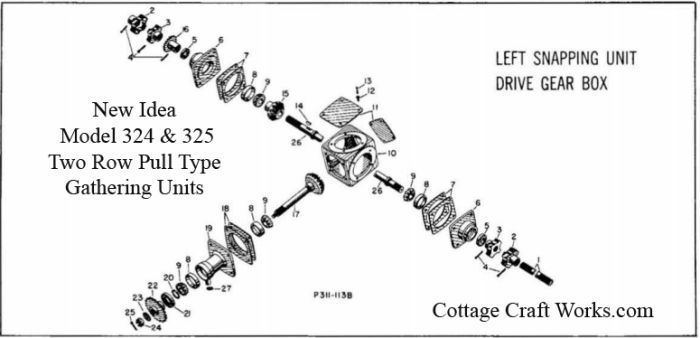

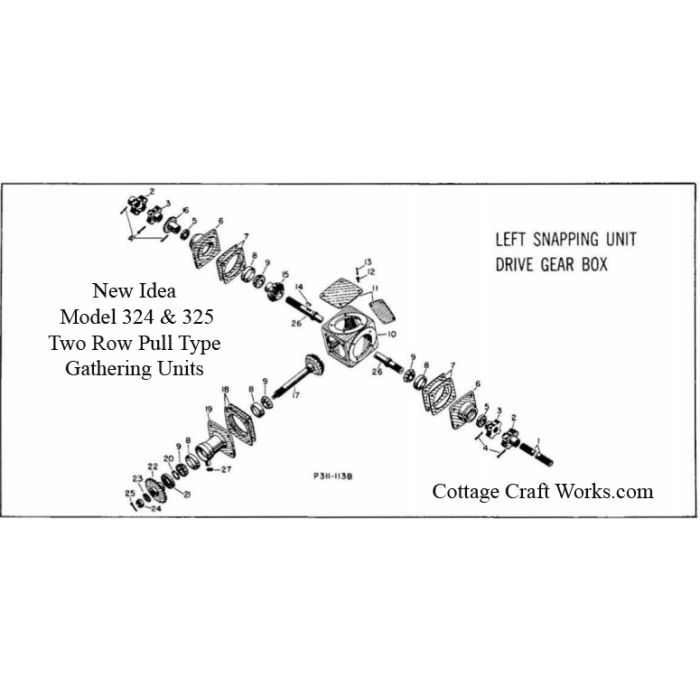

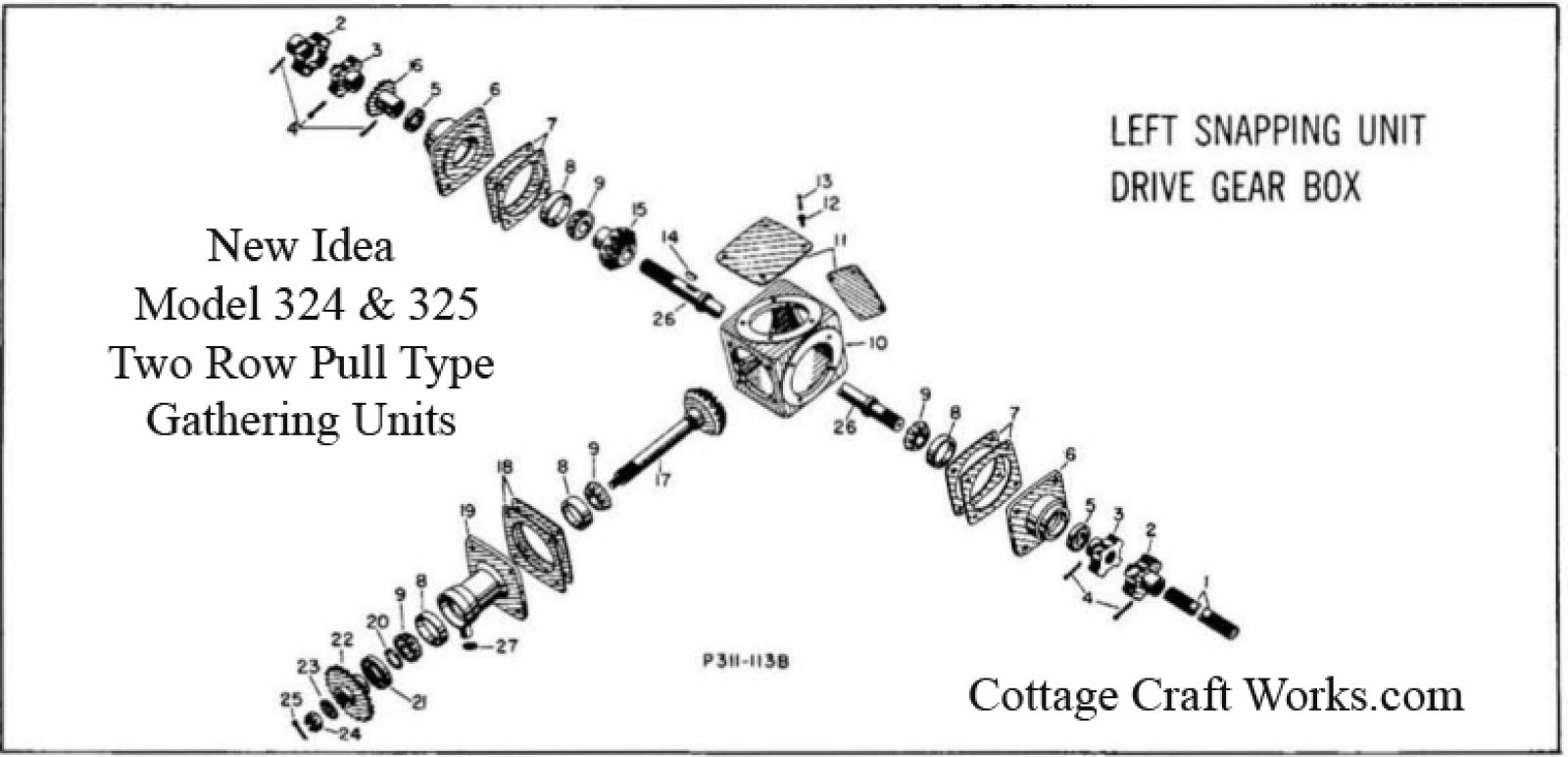

Available Parts

#1 302135 Floating Coupling Shaft 1-1/4” dia. x 27-17/64” L Splined (Wide Row)

#1 302480 Floating Coupling Shaft 1-1/4” dia. x 34-17/64” L Splined (Narrow Row)

#2 301576 1-1/4” Female Flexible Half Coupling

#3 301535 1-1/4” Male Flexible Half Coupling

#5 K 5010 Oil Seal 1-1/4” I.D. x 1-3/4” O.D. x 3/8” Thick

#15 302145 Bevel Gear 15 Tooth 1-1/4” Bore

#17 302146 Bevel Gear 20 Tooth Output Shaft

#21 012851 Oil Seal 1-3/4” I.D. x 2-4/8” O.D. x 5/8” Thick

#26 302141 Input Shaft 1-1/4” dia. x 15-7/16 Long Splined

Shipping Estimator

Estimate Shipping Calculator

Note : * Required Field(s) in the drop-down box options above must be selected to obtain a shipping estimate. Alaska-Hawaii customers contact us. International Customers other than Canada, please use a US Forwarding Agent like MYUS.COM
