New Idea 324, 325 Corn Picker Left Snapping Unit

Aftermarket New Idea 324 & 325 vintage double row corn picker left snapping unit parts are being remanufactured by the Amish to maintain these vintage corn pickers within the Amish communities for harvesting.

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on "Please Select" again.

Additional shipping may be required for large items or large orders.

Read more about available parts and shipping below the drop-down boxes >

SKU NI324-325LSU

Customizable Options:

  $0.00

Description / New Idea 324, 325 Corn Picker Left Snapping Unit

It would be data-prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum $19.95 flat base rate on all items regardless of the size. This is to cover the cost of processing, packing, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

Prices are subject to change without notice.

Since parts ship directly from an Amish-owned business without computers, please expect some orders to take up to two weeks for the order to reach the Amish shop, have shipping verified, additional shipping collected, before it will ship.

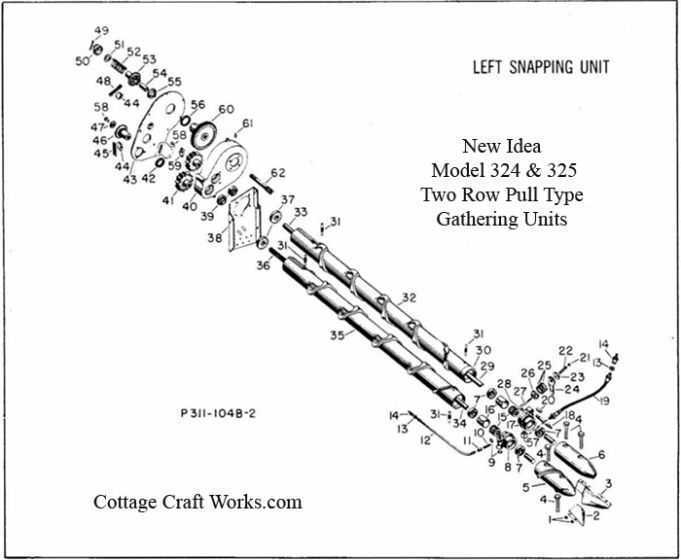

Available Parts

#2 302295 Entry Guide, Inner

#3 302296 Entry Guide, Outer LH

#8 302256 Bearing Housing

#15 K 4650 Roller Bearing 1” I.D. x 1-1/2” O.D. x 1-7/16” Long

#16 K 4651 Split Sleeve for Roller Bearing 1-1/2” I.D. x 1-11/16” O.D. x 1-1/2”

#17 305803 Bearing Housing LH

#29 725203 Stub Shaft 1” O.D. x 12” Long

#31 K 1647 Drive Pin 5/16” x 2-1/2”

#32 308269 Snapping Roll Upper Left

#33 302255 Snapping Roll Short 1-1/4” x 8-9/16”

#34 725204 Stub Shaft Short 1” O.D X 10-3/4” Long

#35 308270 Snapping Roll Lower Left

#36 302254 Snapping Roll Long 1-1/4” x 10-3/16” Splined

#39 010830 Ball Bearing 1-1/4” dia.

#42 K 4661 Seal 1-1/4” I.D. x 1-3/4 O.D.  x ¼” Thick

#44 300041 Chain Slide

#56 010055 Seal 3-1/4” O.D. x ¼” Thick

#55 E 395 Ratchet Plate
