New Idea 324, 325 Corn Picker First Elevator
Aftermarket New Idea 324 & 325 vintage double-row corn picker first-elevator parts. The Amish are remanufacturing parts to maintain these vintage corn pickers for use within their communities.
Priced a la carte, using the drop-down boxes. Select the parts needed, and the prices will incrementally add for each part(s) selected. To select multiple items in the same drop-down, add one to the cart, then select continue shopping to add more. To deselect, click on "Please Select" again.
Additional shipping charges may apply to large items or orders.
Read more about available parts and shipping below the drop-down boxes >
Description / New Idea 324, 325 Corn Picker First Elevator
It would be data-prohibitive to list each part with shipping. Therefore, shipping & handling are based on an average purchase of a few parts. We charge a minimum $19.95 flat base rate for all items, regardless of size. This covers the cost of processing, packing, drop-ship, and actual shipping charges.
Additional shipping charges may apply to larger orders. We will send you an invoice if extra shipping is needed.
Note: For husking parts and ear forwarders on the 324 and 325 Corn Picker, Click Here for the 326-327 Husking Unit Parts. Many assume they have a 324-325 unit, which was only the gathering unit. The 326-327 husking unit was then added.
Prices are subject to change without notice.
Since parts ship directly from an Amish-owned business without computers, please expect some orders to take up to two weeks to reach the Amish shop, have shipping verified, and collect any additional shipping charges before they ship.

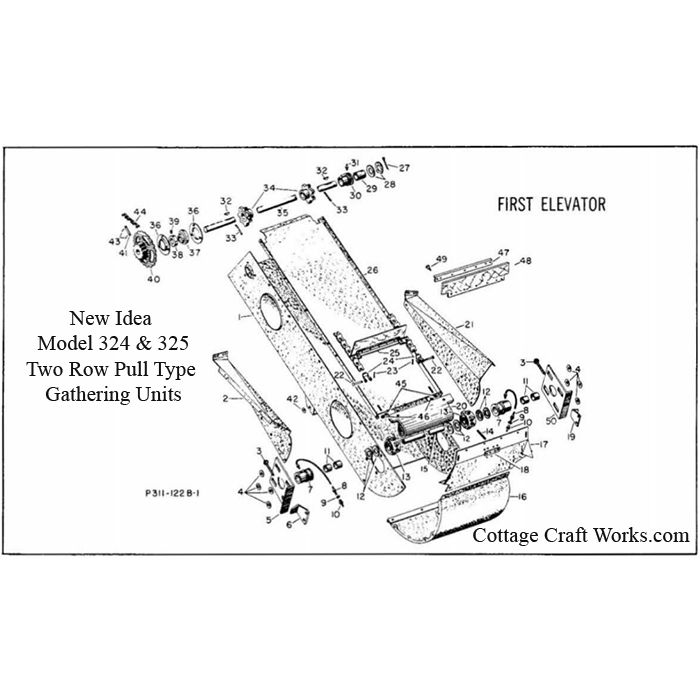

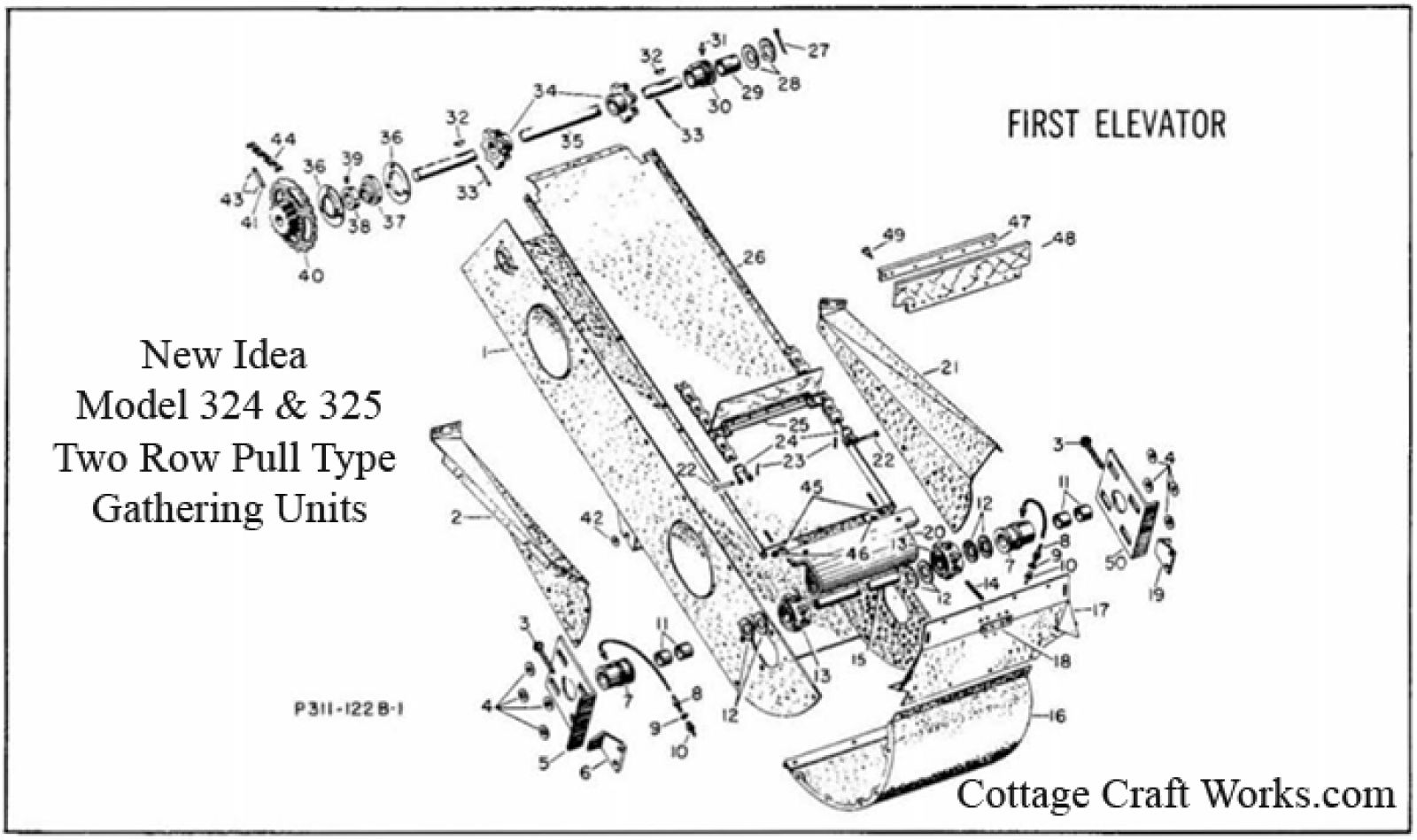

Available Parts
#7 302435 Bearing First Elevator, Replaces 302434
#16 302491 First Elevator Boot (Narrow Row)
#11 010068 Bushing 1-13/64” O.D. x 1-1/6” O.D. x 1” Long
#13 305810 Sprocket 7 Tooth Idler 1-1/16” Bore
#20 305588 Shaft Wrapper (324 Wide Row)
#20 305590 Shaft Wrapper (325 Narrow Row)
#25 305795 Complete First Elevator Chain (324 Wide Row)
#25 305798 First Elevator Flight (Wide Row)
#25 305799 First Elevator Flight (Narrow Row)
#25 305800 First Elevator Chain Complete (Narrow Row)
#29 K 3314 Bushing phenolic, 1-1/32” I.D. x 1-5/32” O.D. x 2-1/16” Long
#30 301564 Bearing 1-1/32” Bore, Replaces 301563
#34 300999 Sprocket, 1” Bore Keywayed
#36 K 2579 Bearing Flangette
#37 K 2752 Bearing 1” Bore
To identify a New Idea 324 (wide row) or 325 (narrow row) corn picker, measure the distance between the center of the snapping rolls on the gathering unit: 324 models are designed for 36–44" rows (usually set at 40"), while 325 models are for 28–36" rows (usually 30" or 32"). The 325 generally has narrower, closer snoots.
