New Idea 324, 325 Corn Picker Axle, Frame Parts

In stock

Aftermarket New Idea 324 & 325 vintage double-row corn picker axle and frame parts. Parts are being remanufactured by the Amish to maintain these vintage corn pickers within the Amish communities for harvesting.

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on "Please Select" again.

Additional shipping may be required for large items or large orders.

Read more about available parts and shipping below the drop-down boxes >

New Idea 324, 325 Corn Picker Axle, Frame Parts
New Idea 324, 325 Corn Picker Axle, Frame Parts New Idea 324, 325 Corn Picker Axle, Frame Parts


It would be data-prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum $19.95 flat base rate on all items regardless of the size. This is to cover the cost of processing, packing, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

Since parts ship directly from an Amish-owned business without computers, please expect some orders to take up to two weeks for the order to reach the Amish shop, have shipping verified, and additional shipping collected, before they will ship.

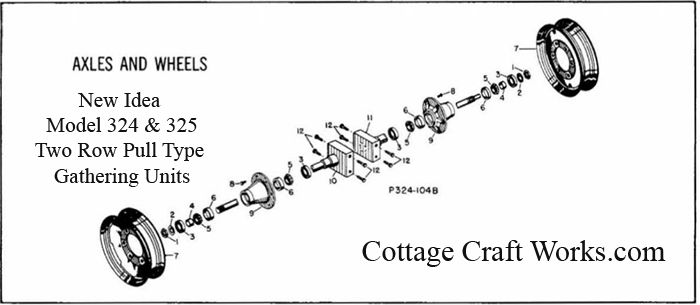

Axle Parts Available

#3 K 3365 Oil Seal, 1-13/16” I.D. x 2-9/16” O.D. x ½” Thick

#4 200839 Stub Axle Spacer

#5 K 4935 Bearing Cone 1-1/2” I.D.

#6 K 4936 Axle Bearing Cup 2-9/16”

#10 305358 Stub Axle, Left 9-5/8” Long, 324 Wide Row

#10 305363 Stub Axle, Left 12-5/8” Long, 325 Narrow Row

#11 305355 Stub Axle, RH (Less Block)

Frame Parts Available

#16 303639 Pivot LH
