New Idea 323 Corn Picker Wagon Elevator Parts

In stock

Aftermarket wagon elevator drive for single-row vintage New Idea #323 Corn Picker. Parts are being remanufactured by an Amish company supplying Amish communities still using these pickers for harvesting.

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on "Please Select" again.

Additional shipping may be required for large items or large orders.

Read more about available parts and shipping below the drop-down boxes >

New Idea 323 Corn Picker Wagon Elevator Parts
New Idea 323 Corn Picker Wagon Elevator Parts


It would be data-prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum $14.50 flat base rate on all items regardless of the size. This is to cover the cost of processing, packing, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

Prices are subject to change without notice.

Since parts ship directly from an Amish-owned business without computers, please expect some orders to take up to two weeks for the order to reach the Amish shop, have shipping verified, and additional shipping collected, before they will ship.

Wagon Elevator Drive Available Parts

#19 K 2579 Bearing Flangette 3-3/4” O.D.

#22 301579 Support Assembly

#28 65 PM Sliding Clutch

#35 02057 PMA Throwout Lever Assembly

#32 305303 Sprocket, 14 Tooth, Replaces 301586

#42 K 3131 Spring Extension

#45 301604 Ratchet for Clutch

#46 150 PM Pawl

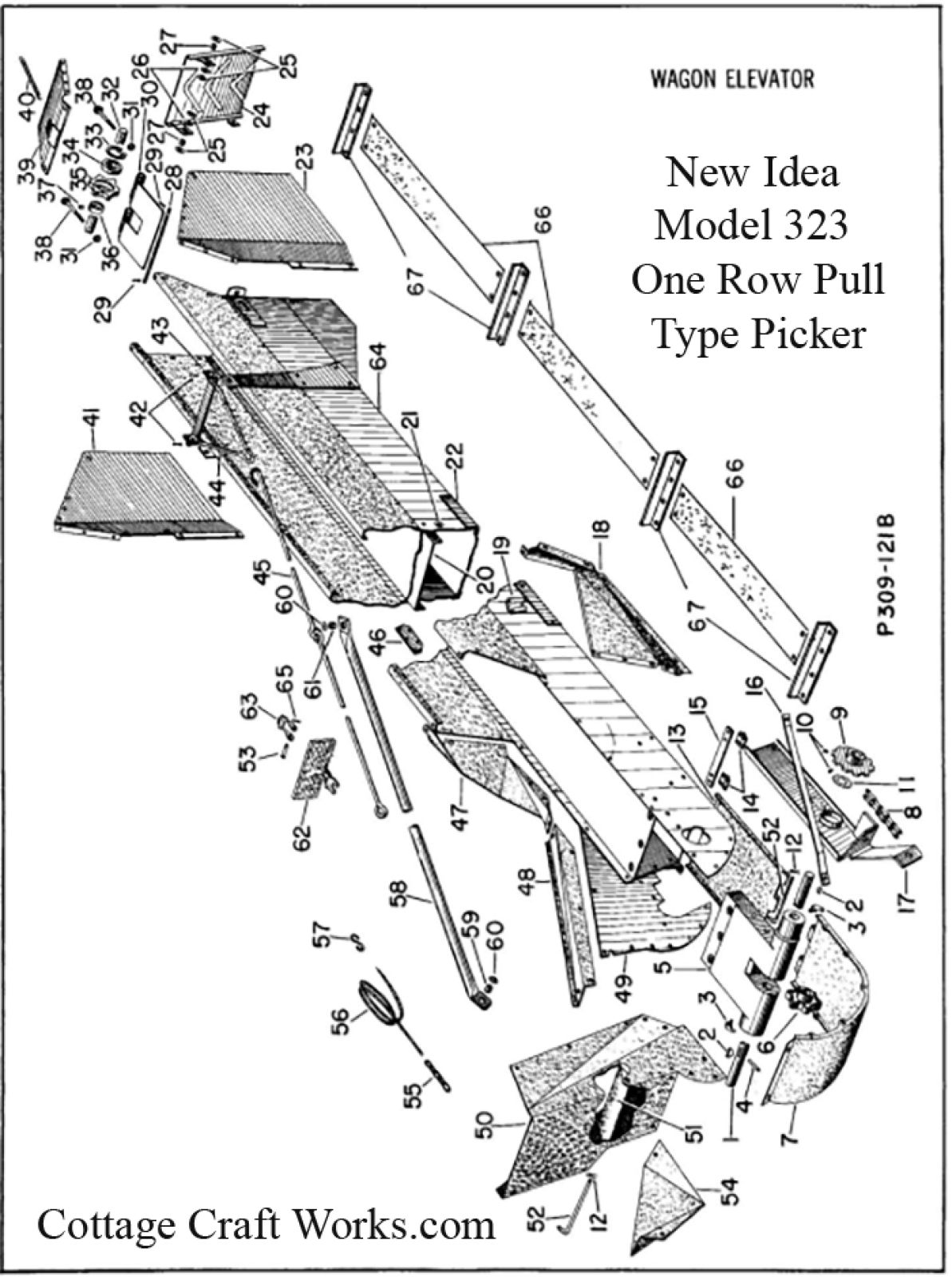

Wagon Elevator Available Parts

#1 301745 Elevator Drive Shaft, 1” Dia.

#5 302052 Lower Bearing Housing

#6 302051 Sprocket 6 Tooth 1” I.D.

#7 301742 Wagon Elevator Boot

#13 301743 Wagon Elevator Door

#16 301708 Elevator Support Brace

#17 301705 Outer Elevator Support

#23 300669 LH Elevator Hood

#24 301718 Corn Deflector

#35 303881 Sprocket, 6 Tooth Idler (Used with New Bearing)

#39 301716 Hood Bracket

#40 010544 Spring Extension

#41 300668 RH Elevator Hood

#47 301746 Hopper Assembly

#51 301722 Elevator Hopper Door

#52 301723 Hopper Door Hinge Pin ¼” Dia.

#54 301725 Shelled Corn Chute

#62 301947 Rubber Paddle Only

#62 301948 Wagon Elevator Flight w/Attach Link and rubber paddle.

#62 301950 Complete Wagon Elevator Chain
