New Idea 323 Corn Picker Snapping Roll Parts
Aftermarket snapping roll replacement parts for single row vintage New Idea #323 Corn Picker. Parts are being remanufactured by an Amish company supplying Amish communities still using these pickers for harvesting.
Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on "Please Select" again.
Additional shipping may be required for large items or large orders.
Read more about available parts and shipping below the drop-down boxes >
Description / New Idea 323 Corn Picker Snapping Roll Parts
It would be data-prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum $19.95 flat base rate on all items regardless of the size. This is to cover the cost of processing, packing, drop-ship, and actual shipping charges.
Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.
Prices are subject to change without notice.
Since parts ship directly from an Amish-owned business without computers, please expect some orders to take up to two weeks for the order to reach the Amish shop, have shipping verified, additional shipping collected, before it will ship.

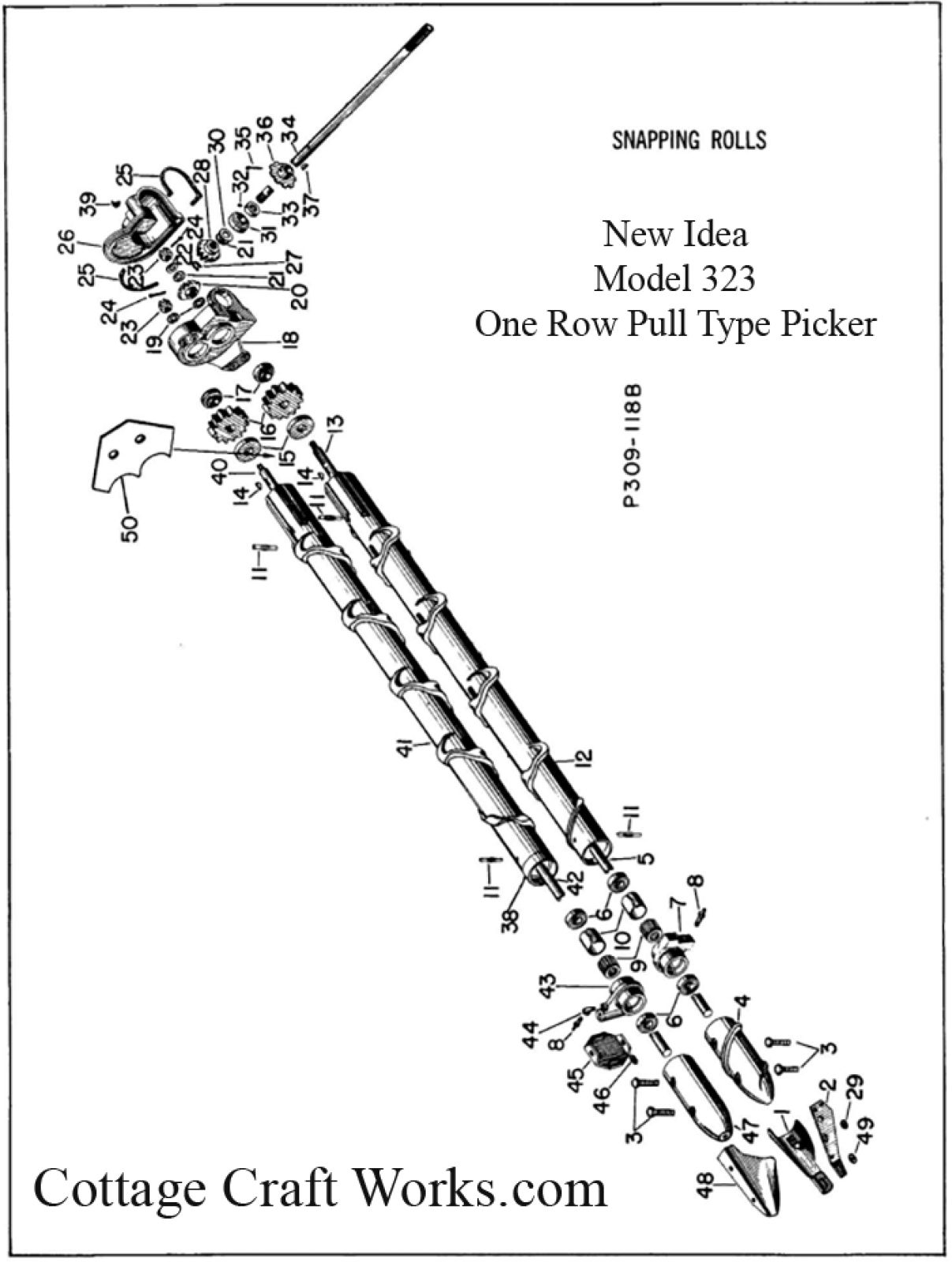

Available Parts
#1 301513 Entry Guide
#2 1136P Entry Guide Bracket
#5 725204 Lower Trunnion (Snapper) Shaft, outer, 1” O.D. x 10-3/4” Long
#6 K 4652 Grease Seal, ¼” wide.
#7 301501 Bearing Housing, inner
#9 K 4650 Roller Bearing 1” I.D. x 1-1/2” O.D. x 1-7/16”
#10 K 4651 Split Outer Sleeve, 1-1/2” x 1-1/2”
#11 K 1647 Drive Pin 5/16 x 2-1/2”
#12 308282 Snapping Roll inner with trunnions, replaces 30057
308282 Rebuilt Snapping Roll inner with trunnions, replaces 30057
#17 010830 Ball Bearing 1-1/4”
#20 301498 20 Tooth Bevel Gear Splined
#28 301578 Bevel Gear 19 Tooth Splined
#31 K 2751 Ball Bearing 1-1/4” I.D.
#34 301575 Cross Shaft 1-1/4” Día 36 29/32 long
#36 302859 Sprocket, 8 tooth for No. 2050
#41 308283 Snapping Roll Outer with trunnions, replaces 30056
308283 Rebuilt Snapping Roll Outer with trunnions, replaces 30056
#42 725203 Lower Trunnion (Snapper) Shaft, outer, 1” O.D. x 12” Long
#43 301502 Bearing Housing, outer
#48 301515 Entry Guide
