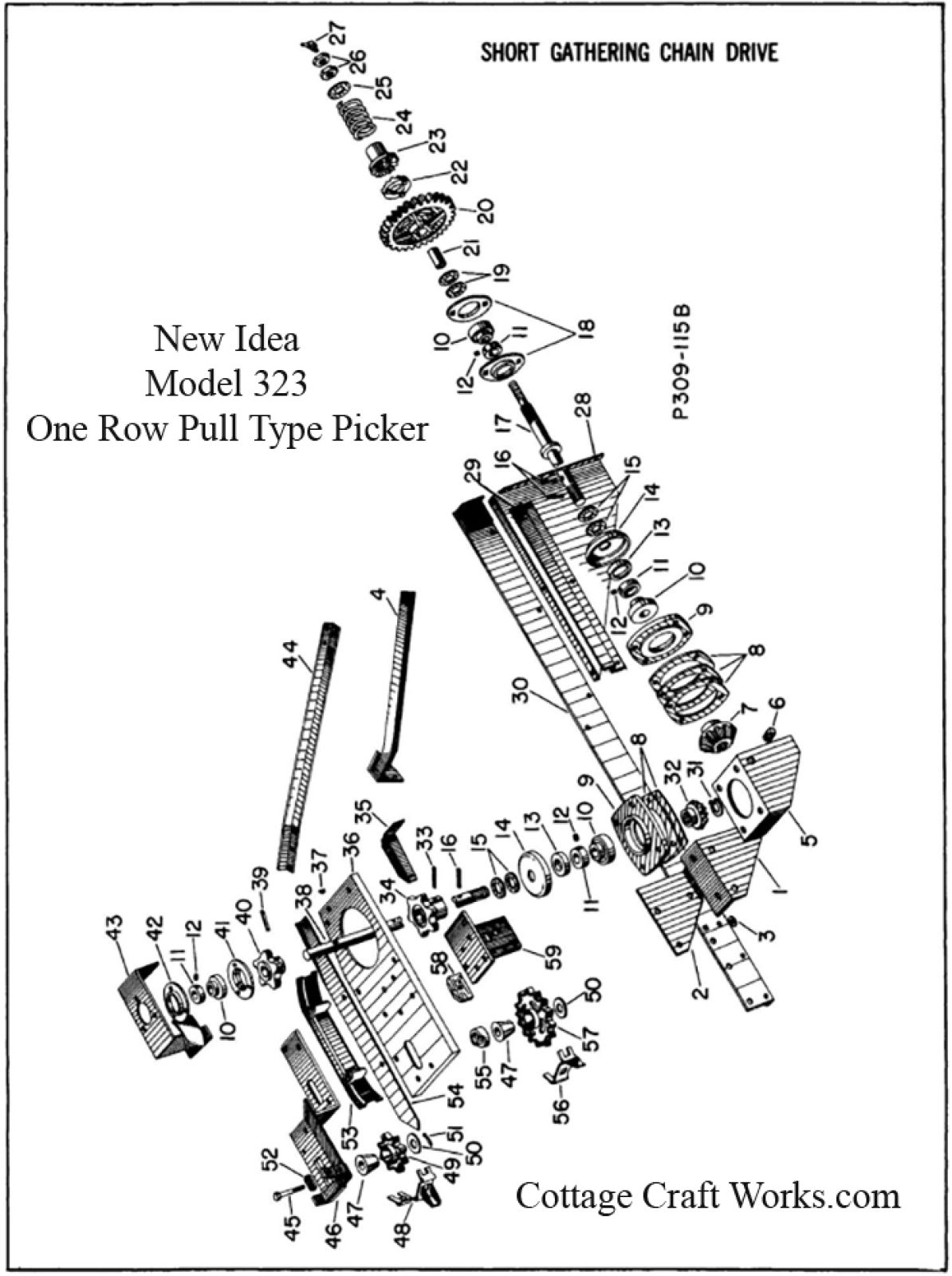

New Idea 323 Corn Picker Short Gathering Chain Drive

Aftermarket short gathering chain drive parts for single row vintage New Idea #323 Corn Picker. Parts are being remanufactured by an Amish company supplying Amish communities still using these pickers for harvesting.

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on "Please Select" again.

Additional shipping may be required for large items or large orders.

Read more about available parts and shipping below the drop-down boxes >

SKU NI323SGCD

Customizable Options:

  $0.00

Description / New Idea 323 Corn Picker Short Gathering Chain Drive

It would be data-prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum $19.95 flat base rate on all items regardless of the size. This is to cover the cost of processing, packing, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

Prices are subject to change without notice.

Since parts ship directly from an Amish-owned business without computers, please expect some orders to take up to two weeks for the order to reach the Amish shop, have shipping verified, additional shipping collected, before it will ship.

Available Parts

#7 303685 Bevel Gear 15 Tooth, splined

#10 K 2752 Ball Bearing 1” I.D., 2-1/8” O.D.

#18 K4668 Flangette Bearing Holders

#20 301490 Spur Gear 31 Tooth 1” I.D. Replaces 301489

#22 E 395 Ratchet Clutch Plate

#32 303686 Bevel Gear 14 Tooth, splined

#34 E 64 Drive Sprocket for lower gathering chain 6 tooth

#35 301510 Stripper for lower gear gathering chain

#40 300115 Five Tooth Sprocket 1” bore, keyway

#42 K 2579 Bearing Flangette 3-3/4” O.D.

#47 300172 Idler Cone 11/16” Bore

#48 300171 Upper Short Gathering Chain

#49 302826 Idler Sprocket 8 Tooth

#52 305905 Sprocket Eccentric Clamp

#54 301511 Upper Short Gathering Chain Slide

#56 302293 Lower Short Gathering Chain

#57 34 PM Sprocket, 14 Tooth, Idler
