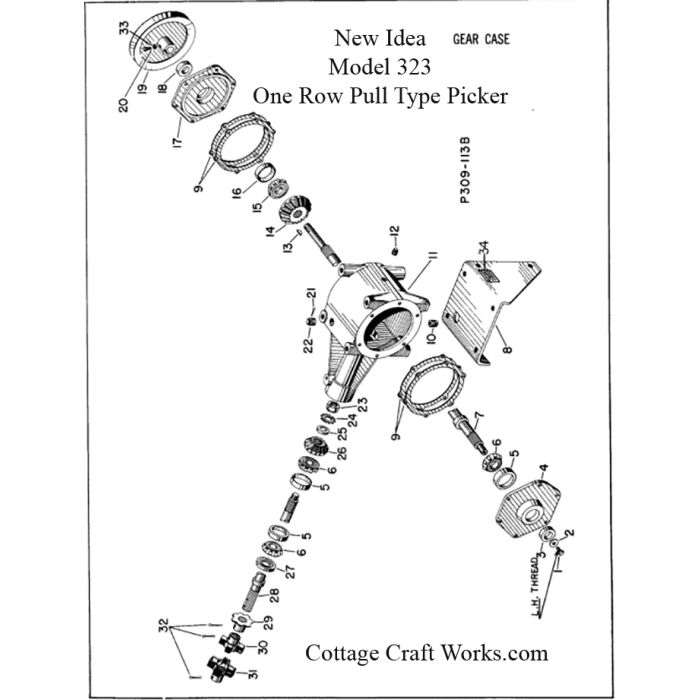

New Idea 323 Corn Picker Gear Case
Aftermarket gear case parts for single-row vintage New Idea #323 Corn Picker. Parts are being remanufactured by an Amish company supplying Amish communities still using these pickers for harvesting.
Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on "Please Select" again.
Additional shipping may be required for large items or large orders.
Read more about available parts and shipping below the drop-down boxes >
Description / New Idea 323 Corn Picker Gear Case
It would be data-prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum $12.00 flat base rate on all items regardless of the size. This is to cover the cost of processing, packing, drop-ship, and actual shipping charges.
Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.
Prices are subject to change without notice.
Since parts ship directly from an Amish-owned business without computers, please expect some orders to take up to two weeks for the order to reach the Amish shop, have shipping verified, and additional shipping collected, before they ship.
#3 K 5010 Oil Seal 1-1/4” I.D., 1-3/4” O.D., 3/8” Thick
#5 K 3548 Bearing Cup, 2-21/64” O.D.
#6 K 3549 Bearing Cone, 1-1/4” I.D.
#15 K 2066 Bearing Cone, 1” I.D.
#16 K 1618 Bearing Cup, 2-1/2” O.D.
#27 K 4583 Oil Seal 1-11/16” I.D., 2-5/8” O.D., ½” Thick
#29 301536 Sprocket 7 Tooth 1-1/4” Splined for #2050 Chain
#30 301535 Male Half Flexible Coupling 1-1/4” Splined
#31 301576 Female Flexible Coupling, 1-1/4” I.D. Splined
