New Idea 323 Corn Picker First Elevator Parts

In stock

Aftermarket first elevator parts for single row vintage New Idea #323 Corn Picker. Parts are being remanufactured by an Amish company supplying Amish communities still using these pickers for harvesting.

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on the "Please Select" again.

Additional shipping may be required for large items or large orders.

Read more about available parts and shipping below the drop-down boxes >


New Idea 323 Corn Picker First Elevator Parts
New Idea 323 Corn Picker First Elevator Parts New Idea 323 Corn Picker First Elevator Parts


It would be data-prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum $12.00 flat base rate on all items regardless of the size. This is to cover the cost of processing, packing, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

Prices are subject to change without notice.

Since parts ship directly from an Amish-owned business without computers, please expect some orders to take up to two weeks for the order to reach the Amish shop, have shipping verified, additional shipping collected, before it will ship.

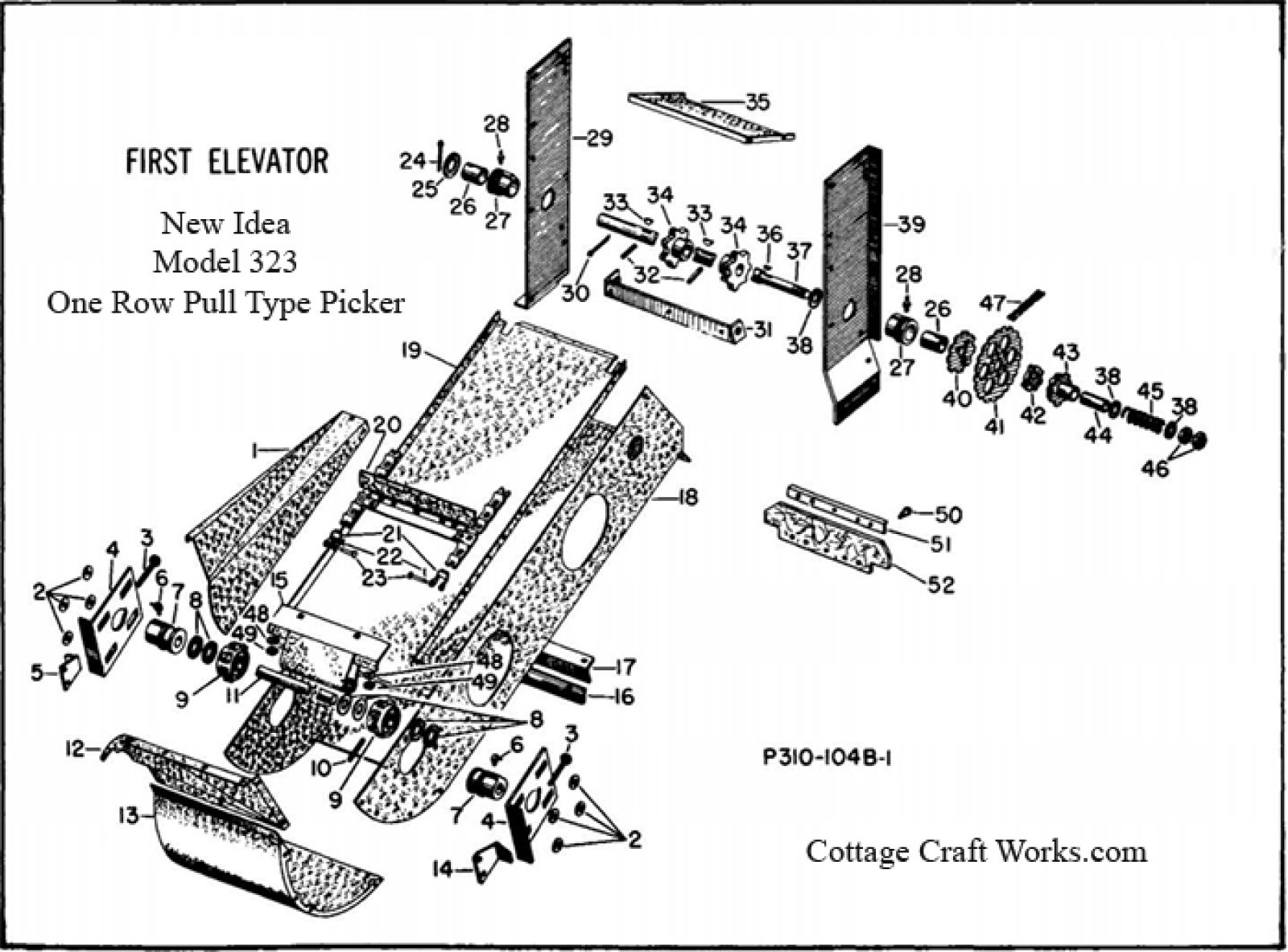

Available Parts

#7 E 124 Bearing 1-1/16” Bore

#9 305810 Sprocket 7 Tooth 1-1/16” Bore

#12 301680 Boot Section, Upper

#13 301555 First Elevator Boot Section

#15 305586 Shaft Wrapper Assembly

#20 305805 First Elevator Flight Assembly

#20 305806 First Elevator Chain Complete Web Assembly with chains and elevator flights.

#26 K 3314 Bushing, Phenolic 1-5/32” O.D. x 1-1/32” I.D x 2-1/16” Long

#27 301564 Bearing with bushing, replaces 301563

#34 300999 Sprocket 7 Tooth, 1” Bore

#42 E395 Ratchet Plate

#43 301567 Sprocket, 7 Tooth 3/4" Bore Bushing Replaces 301566

#44 K5011 Bushing 25/32" I.D. x 57/64" O.D. x 1-1/4" Long.
