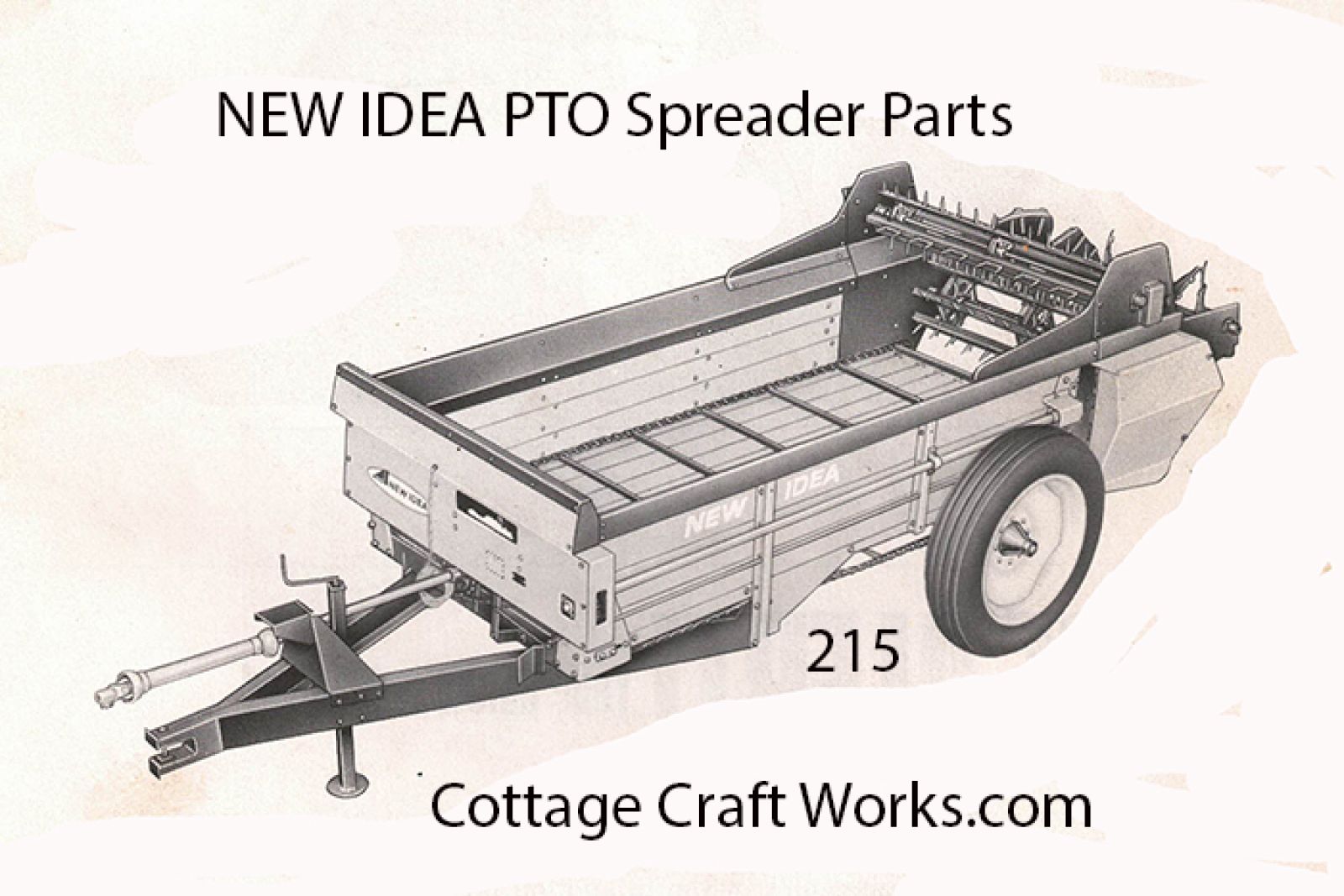

New Idea 210-218 PTO Manure Spreader Parts
New Idea PTO Manure Spreader Parts
Most Random requested parts for New Idea manure spreader models 210-218. The PTO models and the ground-driven models that we list extensively use some of the same parts, but the main drive and sprockets parts are made heavier to take the torque from the PTO drive.
Most of these parts are for the #215 spreaders but do interchange with other models. The spreader models that will fit are noted at the end of the part numbers. If you need a particular part that we don’t list, still contact us as we usually are able to locate it either new or used. The part numbers listed below should be the original manufacturer's part numbers.
Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on "Please Select" again.
Additional shipping for large orders and long boxes will be likely.
Priced per each part.
Read more below >
Description / New Idea 210-218 PTO Manure Spreader Parts
It would be data-prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few small parts. We do charge a minimum of $14.50 flat base rate on all items regardless of the size. This is to cover the cost of processing, packing, drop-ship, and actual shipping charges.
Additional shipping will most likely be needed for larger orders or long boxes for shafts and cylinder bars. The box kit will require truck freight of several hundred dollars. We will let you know if additional shipping will be needed. If you checkout using PayPal, we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.
Since parts ship directly from an Amish-owned business without computers, please expect some orders to take up to two weeks for the order to reach the Amish shop, have shipping verified, additional shipping collected, before it will ship.
Available Parts
115-SR1 Widespread Sprocket 1-39/64” Bore (#2050 Chain) #200
117-SR 40 Tooth Sprocket – 1¼” Bore – 3/16” Key #200
200043 End Collar 1-39/64” I.D. 2-1/4” O.D. ¾” long #215
200072 Cylinder Disc #207
200166 Ratchet Pawl #215
201202 5 Tooth Sprocket – 1¼” Bore – ¼” Key #210
202704 Main Drive PTO Shaft (105-7/8” long) #215
202798 Gearbox Main Shaft #215
202808 Steel Ratchet Wheel #215
202815 Conveyor Shaft – splined (1-1/4 x 62” long) #215
202815 Conveyor Shaft – with key (1-1/4 x 62” long) #215
202878 Cylinder Head #215
202879 Lower Cylinder Bar 1-1/2” x 1-1/2” x 51-3/4” L #215
202880 Lower Cylinder Bar 1-1/2” x 1-1/2” x 51-3/4” L #215
202881 Lower Cylinder Bar 1-1/2” x 1-1/2” x 51-3/4” L #215
202897 Distributer Shaft (1-39/64 x 59-1/4” long) #215
202898 Widespread Sprocket 9 Tooth Sprocket 1-39/64” Bore (#2060 Chain) #215
202899 Distributer Bearing Complete #215
202901 Clutch Fork #215
203371 Main Cylinder Shaft (1-1/4 x 70-3/8” long) #215
203715 5 Tooth Sprocket Keywayed – 1-1/4 Bore – ¼” Key for 67XH or D667J Chain #215
