New Idea 206 Spreader Conveyor Feed Parts

In stock

Feed shaft and conveyor parts for ground-driven New Idea No. 206 Manure Spreaders. Available parts include feed shaft bearing, feed pawl spring, sprockets, feed arm support assembly, and tightener bracket assembly.

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on the "Please Select" again.

Read more below >

New Idea 206 Spreader Feed Shaft & Conveyor Parts
New Idea 206 Spreader Feed Shaft & Conveyor Parts


It would be data prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum of $14.50 flat base rate on all items regardless of the size. This is to cover the cost to process, pack, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

Since parts ship directly from an Amish-owned business without computers, please expect some orders to take up to two weeks for the order to reach the Amish shop, have shipping verified, additional shipping collected, before it will ship.

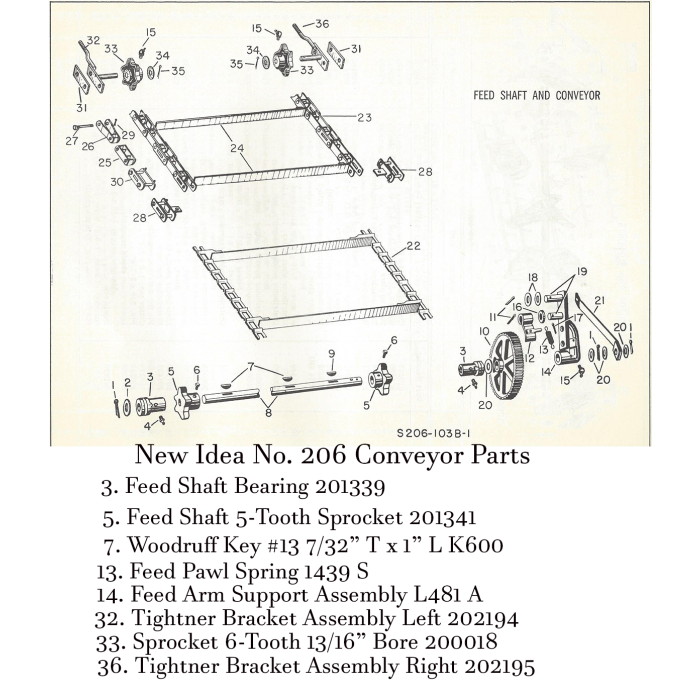

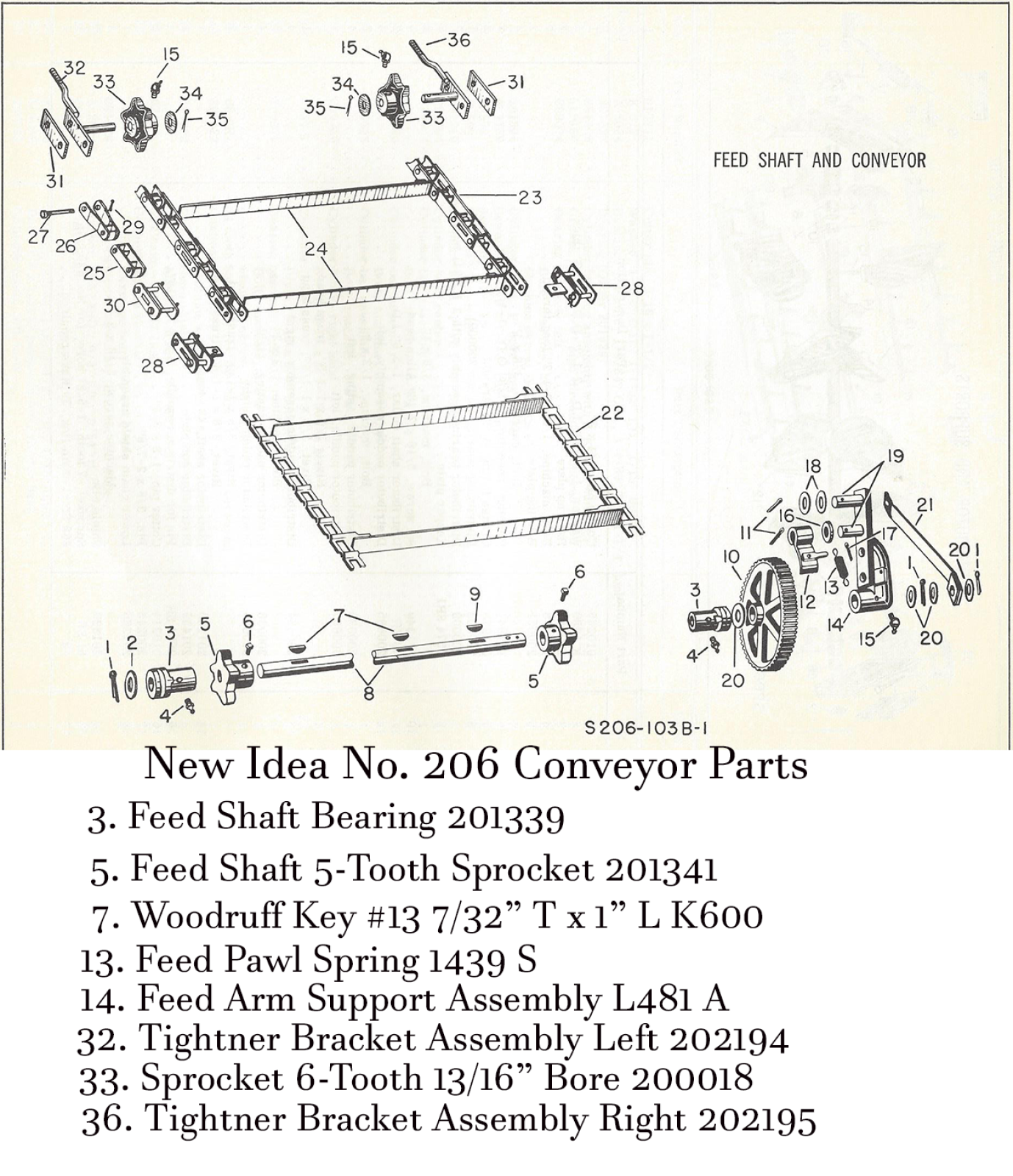

Available New Idea No. 206 spreader feed shaft and conveyor parts based on original part numbers

3. Feed shaft bearing 20139

5. Feed shaft 5-tooth sprocket 201341

7. Woodruff key #13 7-32” tall x 1” Long K-600

10. Sprocket 72 Tooth 1-1/16" Bore L383

12. Feed Pawl Assembly 311 SA

13. Feed pawl spring 1439-S

14. Feed arm support assembly L481-A

32. Tightener bracket assembly left 202194

33. Sprocket 6-tooth 13/16” bore 200018

36. Tightener bracket assembly, right 202195

New Idea manure spreaders have been the standard manure spreader in Amish communities for generations and the Amish have continued to rebuild these old-time favorites. All parts are brand new USA Amish made since 1970.

Cottage Craft Works provides these hard-to-find replacement parts for those who want to restore and display or use these vintage farm machine implements of yesteryear. We carry many other replacement parts for the New Idea ground-driven spreaders for models, 8, 10, 10A, 12, 14, 17, 18, and 206.

 Click Here to see all of our 206 spreader parts.

 Click Here to see all of our available parts for different New Idea spreader models.
