New Idea 14 Spreader Upper Cylinder Parts
Upper Cylinder parts for vintage New Idea No. 14 Manure Spreaders. Available parts include cylinder head, cylinder bars, sprockets, bearings, chain, and keys
Priced a la carte, using the drop-down boxes. Select the parts needed, and the prices will incrementally add for each part selected. To select multiple items in the same drop-down, add one to the cart, then select continue shopping to add more. To deselect, click on the "Please Select" again.
Additional Shipping may be required.
Read more below >
Description / New Idea 14 Spreader Upper Cylinder Parts
It would be data-prohibitive to list each part with shipping. Therefore, shipping & handling are based on an average purchase of a few parts. We charge a minimum $14.50 flat base rate for all items, regardless of size. This covers the cost to process, pack, and drop-ship, as well as the actual shipping charges. Additional shipping charges may apply to larger orders. We will send you an invoice if needed.
Since parts ship directly from an Amish-owned business without computers, please expect some orders to take up to two weeks to reach the Amish shop, have shipping verified, and collect any additional shipping charges before they ship.

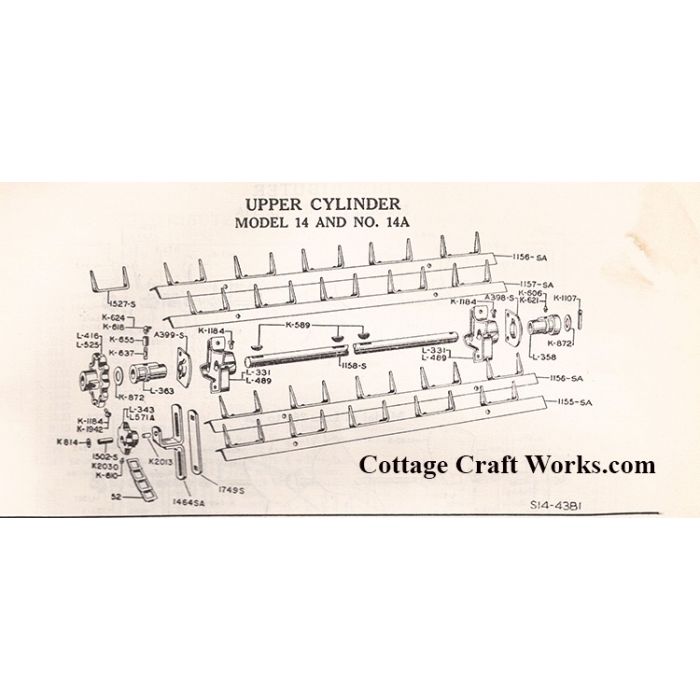

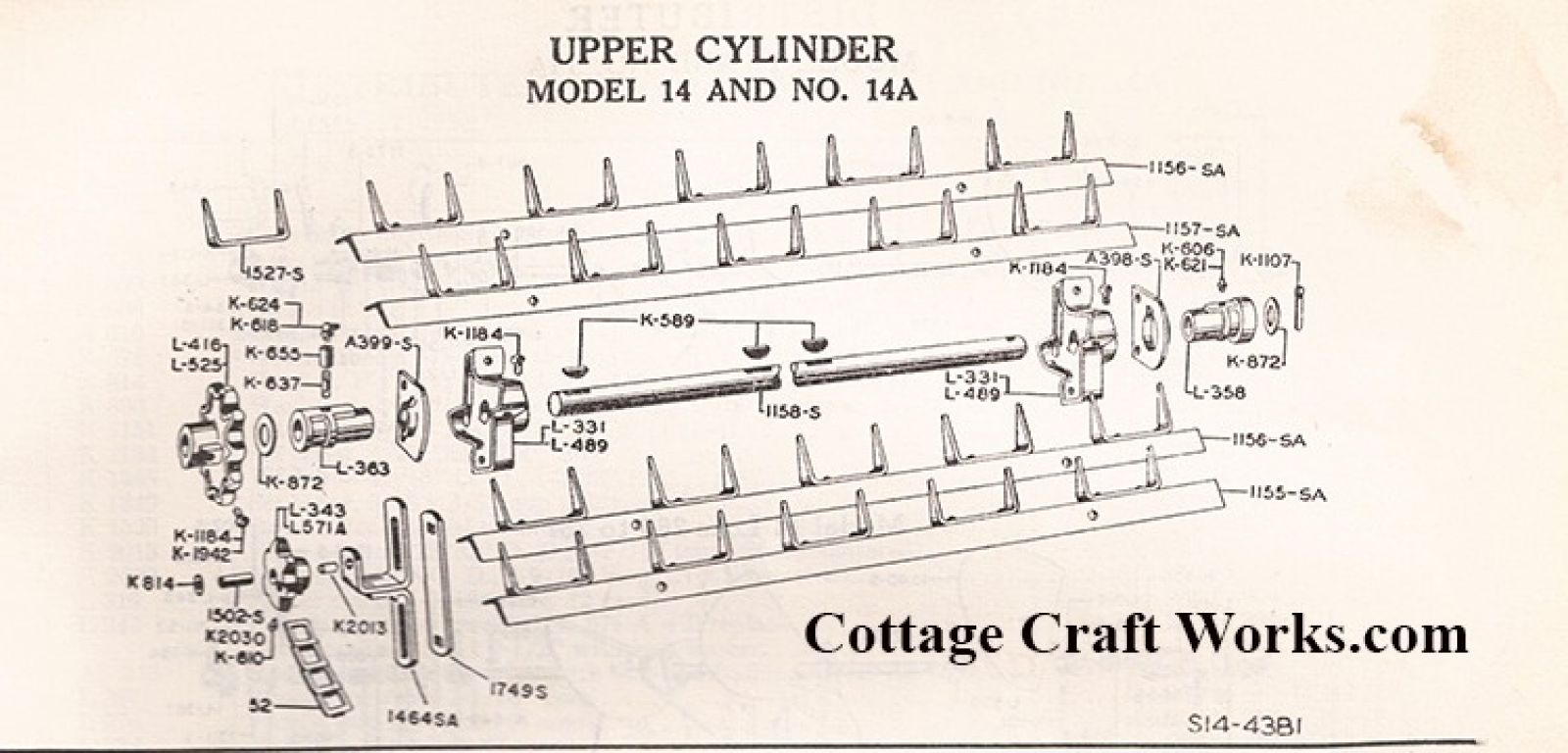

Available New Idea No. 14, Upper Cylinder parts based on original part numbers
*Denotes Special Order Item that may take 3-4 weeks.
Page 1
*A398 S Bearing Plate, Right 3/16” x 4” Flat, 4” L (special order)
*A399 S Bearing Plate, Left 3/16” x 4” Flat, 4” L (special order)
*1155-1/2 S Cylinder Bar w/teeth 1-1/4” x 1-1/4” x 42” L Angle (special order)
*1156-1/2 S Cylinder Bar w/teeth 1-1/4” x 1-1/4” x 42” L Angle (special order)
*1157-1/2 S Cylinder Bar w/teeth 1-1/4” x 1-1/4” x 42” L Angle (special order)
1158 S-NI3024 Shaft 1” x 49-7/8” L
*1464-1/2 S Chain Tightener Complete w/sprocket (special order)
1527 S-NI3009 Cylinder Bar Tooth w/rivets
‘A’ Machine Bolt 3/8” x 2-1/2” Long w/lock washer
‘B’ Machine Bolt 3/8” x 1” Long w/lock washer
‘C’ Rivets 5/16” x ¾” Long Oval Head
Page 2
52 Steel Chain Complete 41 Links
K 589-NI3014 No. 13 Woodruff Key 3/16” x 1” Long
K 606-M800 Grease Fitting 1/8” Pipe Thread, Straight
K 610-M822 Grease Fitting 5/16” Drive Type
K 618-M803 Grease Fitting 1/8” Pipe Thread 90 Degree
*K 872 Washer 1-3/4” O.D., 1-1/32” I.D. 16 gauge (special order)
K 1107 Spring Cotter 5/16” Dia., 1-1/4” L
K 1184 Set Screw ½” Dia., ¾” L
L 358-NI3018 Bearing, Right 1” Bore
L 363-NI3019 Bearing, Left 1” Bore
*L 489 Cylinder Head 1” Bore, use K589 Key
L 525-NI3021 10 Tooth Sprocket 1” Bore, use K589 Key
New Idea manure spreaders have been the standard manure spreader in Amish communities for generations, and the Amish have continued to rebuild these old-time favorites. All parts are brand new, USA Amish-made since 1970.
Cottage Craft Works provides hard-to-find replacement parts for those restoring, displaying, or using vintage farm implements. We carry many other replacement parts for the New Idea ground-driven spreaders for models 8, 10, 10A, 12, 14, 17, 18, and 206.
