New Idea 14, 14A Spreader Main Cylinder Parts

Main cylinder parts for vintage New Idea No. 14 and 14A Manure Spreaders. Available parts include the shaft and complete lower cylinder bars.

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to cart, and then select continue shopping to add more parts. To deselect click on the "Please Select" again.

Additional Shipping may be required.

Read more below >

SKU EZNI14MCP

Customizable Options:

  $0.00

Description / New Idea 14, 14A Spreader Main Cylinder Parts

It would be data-prohibitive to list each part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum $20 flat base rate on all items regardless of the size. This is to cover the cost to process, pack, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

Since parts ship directly from an Amish-owned business without computers, please expect some orders to take up to two weeks to reach the Amish shop, have shipping verified, and additional shipping collected, before they will ship.

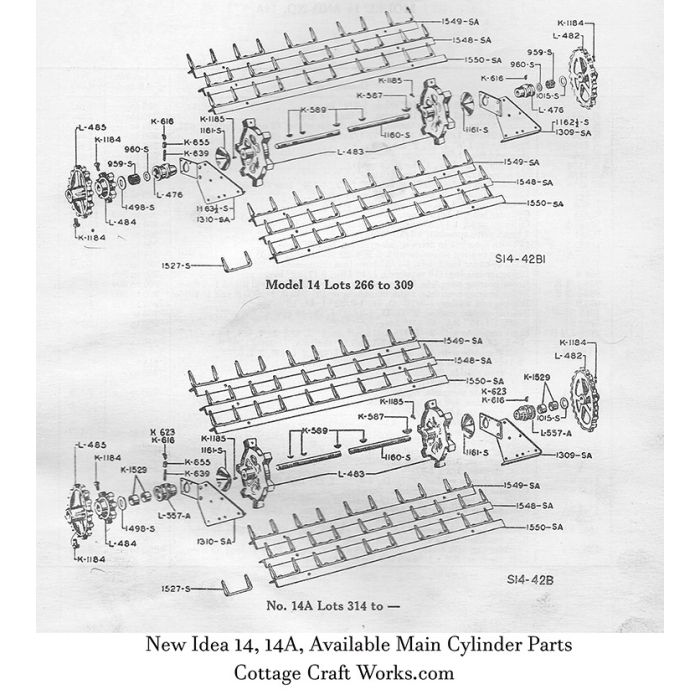

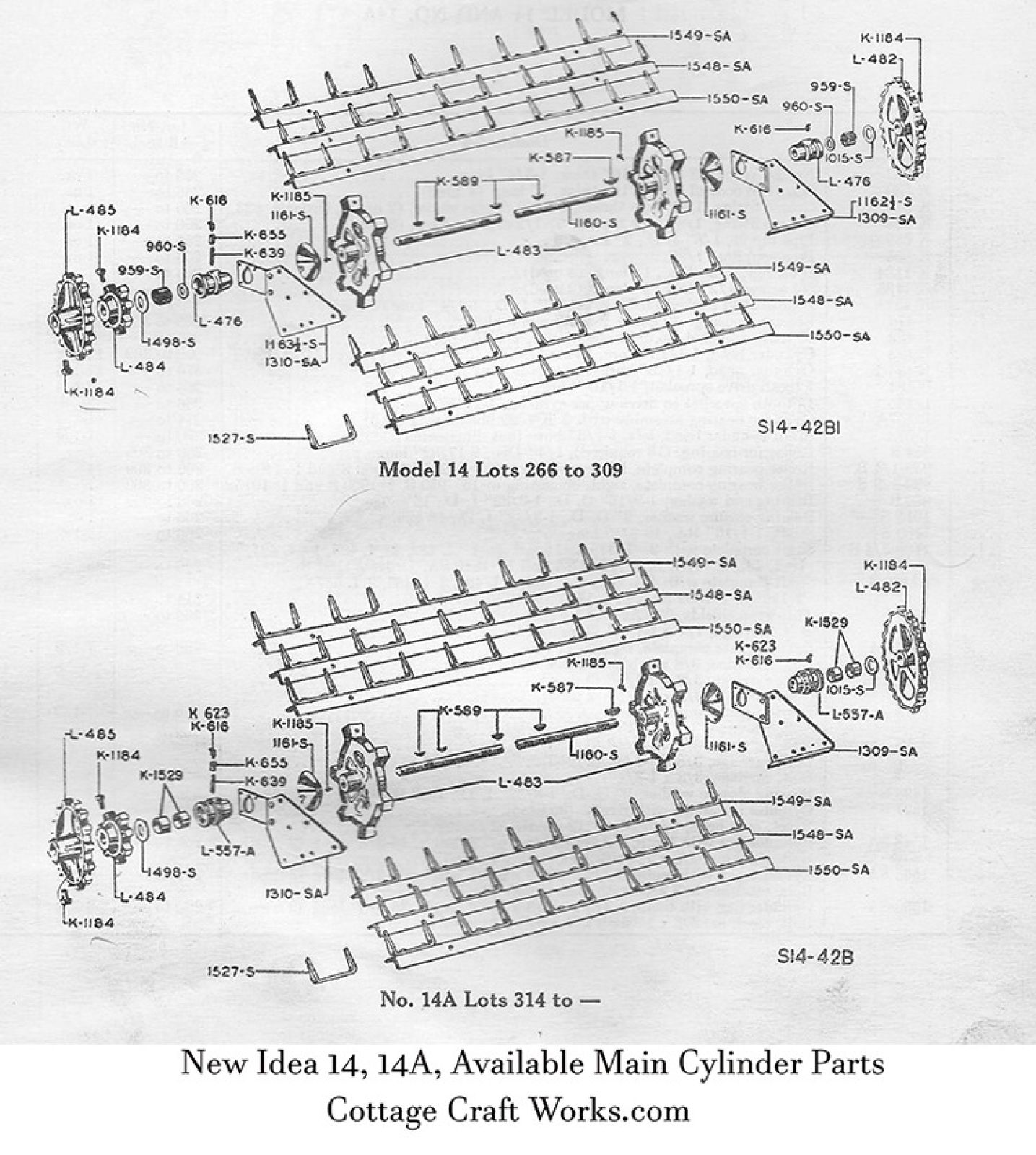

Available New Idea No. 14, 14A Main Cylinder parts based on original part numbers

*Denotes Special Order Item that may take 3-4 weeks.

Page 1

1527 S-NI 3009 Cylinder Bar Tooth w/rivets

1548-1/2 S-NI3010 Cylinder Bar w/teeth 1-3/8” x 1-3/8” x 36-3/4” L

1549-1/2 S-NI3011 Cylinder Bar w/teeth 1-3/8” x 1-3/8” x 36-3/4” L

1550-1/2 S-NI3012 Cylinder Bar w/teeth 1-3/8” x 1-3/8” x 36-3/4” L

‘A’ Machine Bolt 3/8” x 1” w/lock washer

‘B’ Rivet 5/16” x ¾” oval head

Page 2

K 587-NI3012 No. 26 Woodruff Key 3/16” x 1-3/4” L

K 589-NI3014 No. 13 Woodruff Key 3/16” x 1” L

K 1184 Set Screw ½” Dia., 3/4” L

K 1185 Set Screw ½” Dia., 1” L

Page 3

L 482-NI3009 20 Tooth Sprocket drives distributer 1-1/6” Bore use K587 Key

L 483-NI3000 Cylinder Head 1/16” Bore use K589 Key

L 484 7 Tooth Drive Sprocket 1-1/6” Bore use K589 Key

L 485 15 Tooth Sprocket drives upper cylinder 1-1/16” Bore use K589 Key

960 S Bearing End Washer 1-9/16” O.D. x 1-3/32” I.D. 16 gauge

1015 S Bearing Closure Washer 2” O.D. 1-3/32” I.D. 18 gauge

1160 S-NI3005 Shaft 1-1/16” x 50” L use K587 and K589 Keys

1161-S-NI3006 Anti Wrap Shield 6” Dia.

*1309-1/2 S Bearing Plate Complete, Right

*1310-1/2 S Bearing Plate Complete, Left

*1498 S Bearing Closure (spacer) Washer 2” O.D., 1-3/32” I.D. 1/8” Thick

*Denotes Special Order Item that may take 3-4 weeks.

Click Here to see all of our 14 spreader parts.

Click Here to see all of our available parts for different New Idea spreader models.
