New Idea 10-8 Spreader Conveyor Parts

In stock
SKU
NIConveyor
$0.00

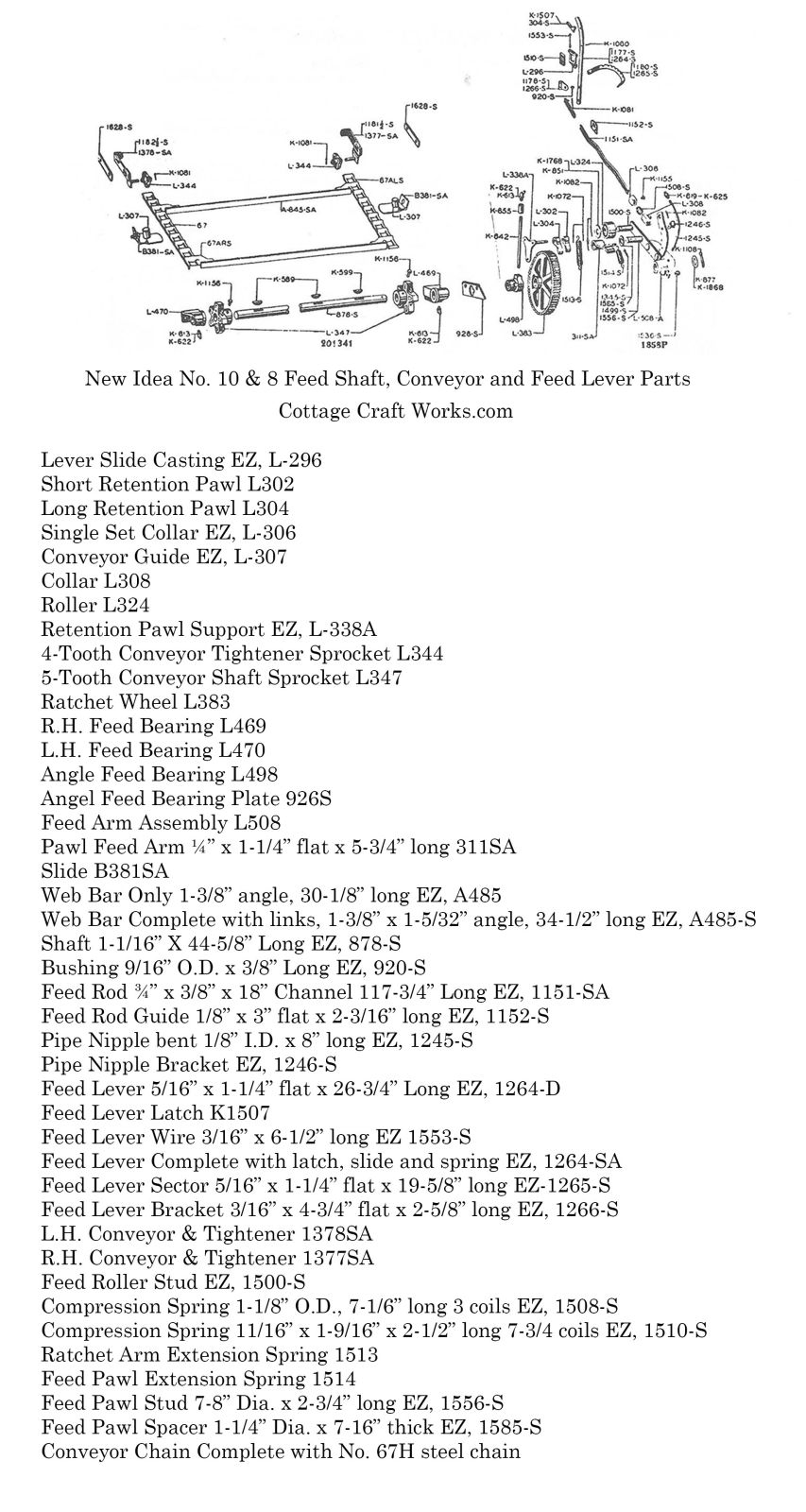

Replacement New Idea Spreader Feed Shaft, Conveyor & Lever Parts for vintage New Idea #10, and #8 Manure Spreaders. The parts diagram is for the New Idea #10, but most parts were interchangeable unless noted specifically to one model.

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on the "Please Select" again.

Read more below >

New Idea Spreader 8-10 Feed Shaft, Conveyor and Feed Lever Parts
New Idea Spreader 8-10 Feed Shaft, Conveyor and Feed Lever Parts R.H. Conveyor & Tightener 1377SA 4-Tooth Conveyor Tightener Sprocket L344 Angle Feed Bearing L498 Slide B381SA R.H. Feed Bearing L469 5-Tooth Conveyor Shaft Sprocket L347 Plate 926S Rachet Wheel L383 Long Retention Pawl L304 New Idea Spreader Feed Pawl Spring 1514 Ratchet Arm Spring 1513 Pawl Feed Arm 311SA Roller Arm Bearing L324 17.	Feed Arm Assembly L508 Collar L308 New Idea Spreader Conveyor Feed Parts New Idea Conveyor Lever Latch K1507

Details

It would be data prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum $14.50 flat base rate on all items regardless of the size. This is to cover the cost to process, pack, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

Since parts ship directly from an Amish-owned business without computers, please expect some orders to take up to two weeks for the order to reach the Amish shop, have shipping verified, additional shipping collected, before it will ship.

Available New Idea No. 10-10A Conveyor & Feed Lever parts based on original part numbers.

Lever Slide Casting EZ, L-296

 Short Retention Pawl L302

 Long Retention Pawl L304

 Single Set Collar EZ, L-306

 Conveyor Guide EZ, L-307

 Collar L308

 Roller L324

 Retention Pawl Support EZ, L-338A

 4-Tooth Conveyor Tightener Sprocket L344

 5-Tooth Conveyor Shaft Sprocket L347

 Ratchet Wheel L383

 R.H. Feed Bearing L469

 L.H. Feed Bearing L470

 Angle Feed Bearing L498

 Angel Feed Bearing Plate 926S

 Feed Arm Assembly L508

 PAWL Feed Arm ¼” x 1-1/4” flat x 5-3/4” long 311SA

 Slide B381SA

 Web Bar Only 1-3/8” angle, 30-1/8” Wide EZ, A485

 Web Bar Complete with links, 1-3/8” x 1-5/32” angle, #8 36-1/4” Wide and #10 34-1/4" Wide EZ, A485-S

 Shaft 1-1/16” X 44-5/8” Long EZ, 878-S

 Bushing 9/16” O.D. x 3/8” Long EZ, 920-S

 Feed Rod ¾” x 3/8” x 18” Channel 117-3/4” Long EZ, 1151-SA

 Feed Rod Guide 1/8” x 3” flat x 2-3/16” long EZ, 1152-S

 Pipe Nipple bent 1/8” I.D. x 8” long EZ, 1245-S

 Pipe Nipple Bracket EZ, 1246-S

 Feed Lever 5/16” x 1-1/4” flat x 26-3/4” Long EZ, 1264-D

 Feed Lever Latch K1507

 Feed Lever Wire 3/16” x 6-1/2” long EZ 1553-S

 Feed Lever Complete with latch, slide, and spring EZ, 1264-SA

 Feed Lever Sector 5/16” x 1-1/4” flat x 19-5/8” long EZ-1265-S

 Feed Lever Bracket 3/16” x 4-3/4” flat x 2-5/8” long EZ, 1266-S

 L.H. Conveyor & Tightener 1378SA

 R.H. Conveyor & Tightener 1377SA

 Feed Roller Stud EZ, 1500-S

 Compression Spring 1-1/8” O.D., 7-1/6” long 3 coils EZ, 1508-S

 Compression Spring 11/16” x 1-9/16” x 2-1/2” long 7-3/4 coils EZ, 1510-S

 Ratchet Arm Extension Spring 1513

 Feed Pawl Extension Spring 1514

 Feed Pawl Stud 7-8” Dia. x 2-3/4” long EZ, 1556-S

 Feed Pawl Spacer 1-1/4” Dia. x 7-16” thick EZ, 1585-S

 Conveyor Chain Complete with No. 67H steel chain, available in 34-1/4", 36-1/4", and 38-1/2 wide.

 Our Amish companies have been making replacement parts since 1950 for what many consider antique or junk farm machinery today.  In the late 1800s and early 1900s, just about every farm used the same farm equipment providing ample outlets for replacement parts.  As most farmers modernized through the 1900s the Amish still depended on the horse-drawn equipment as many still do today.

Since this equipment is no longer being manufactured and dealers are no longer stocking parts it becomes difficult to keep this old vintage farm machinery operational. Both Amish and vintage farm machinery implement enthusiast scour junkyards, farms, and tree lines in search of these long-abandoned implements for restoration.

Cottage Craft Works.com travels deep into the back roads to find Amish companies who are still making the replacement parts to maintain and restore this old-time horse-drawn farm machinery.
