New Holland 824 Corn Head Parts
Aftermarket Parts NH 824 Corn Harvesting Head. New Parts are being manufactured by an Amish company located in PA. For years the New Holland brand has been the favorite of the PA Amish communities.
Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on "Please Select" again.
Additional Shipping may be required.
Read more about available parts and shipping below the drop-down boxes >
Description / New Holland 824 Corn Head Parts
New Holland® is a Registered Trademark of CNH Industrial America LLC which does not manufacture or endorse these parts.
It would be data-prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum of $14.50 flat base rate on all items regardless of the size. This is to cover the cost of processing, packing, drop-ship, and actual shipping charges.
Additional shipping may be required for larger orders including truck freight. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.
Prices are subject to change without notice.
Please select one part per page. Add it to the cart and then return for more parts on the same page.
Please expect 1-4 weeks for the parts to ship. The Amish shops do not use computers or more modern communication, so orders take a bit longer to receive, package and ship. We are not able to maintain an electronic inventory of parts either as the shops also sell to Amish machine shops across the country. Occasionally new parts will need to be made before the order can be shipped.

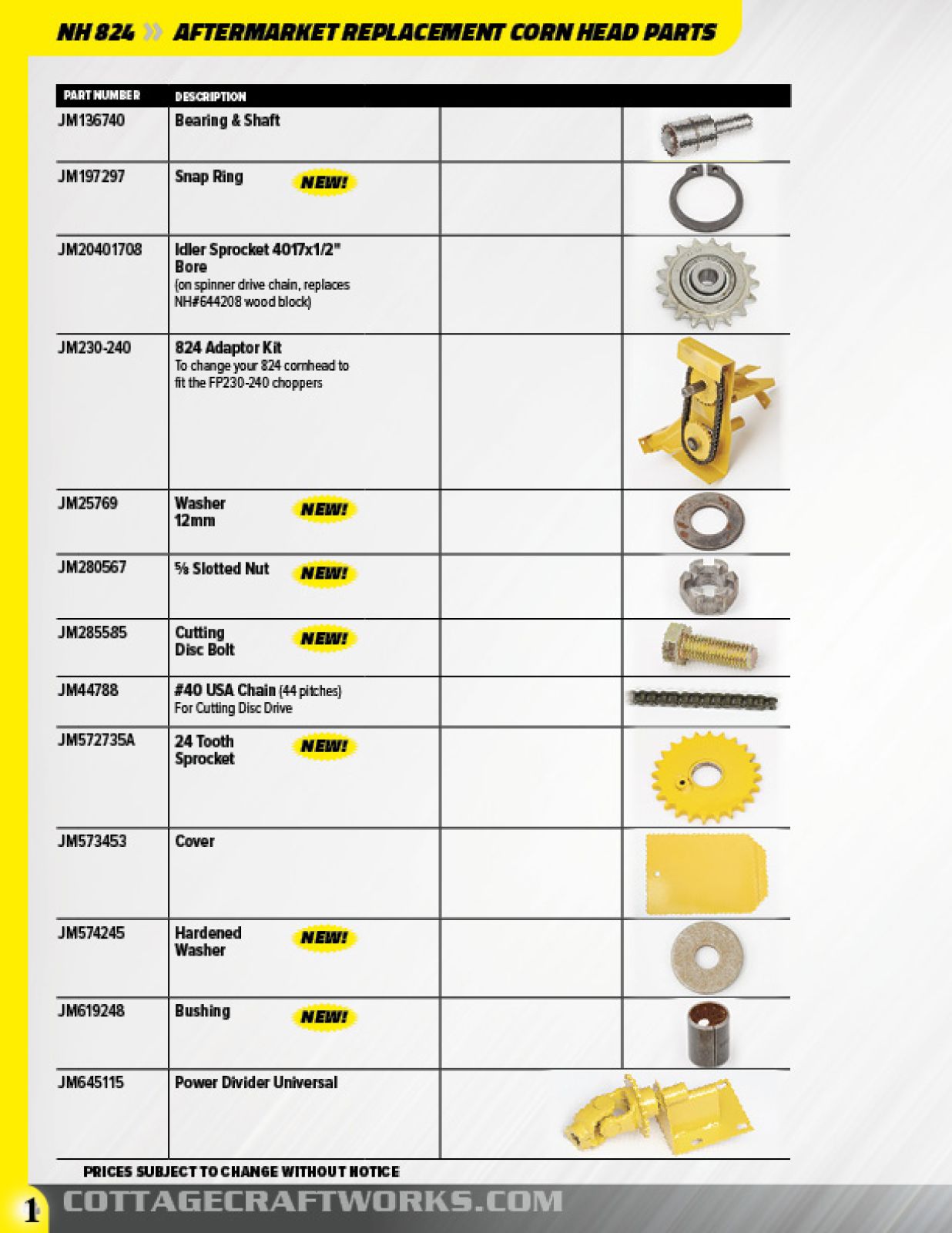

Page 1
JM136740 Bearing & Shaft
JM197297 Snap Ring
JM20401708 Idler Sprocket 4017x1/2" Bore (on spinner drive chain, replaces NH#644208 wood block)
JM230-240 824 Adaptor Kit To change your 824 corn head to fit the FP230-240 choppers
JM25769 Washer 12mm
JM280567 ⅝ Slotted Nut
JM285585 Cutting Disc Bolt
JM44788 #40 USA Chain (44 pitches) For Cutting Disc Drive
JM572735A 24 Tooth Sprocket
JM573453 Cover
JM574245 Hardened Washer
JM619248 Bushing
JM645115 Power Divider Universal
Page 2
JM645120 Yoke & Sprocket Weld Assembly
JM645124 Divider Weld Assembly (email for pricing)
JM645848 RH 824 Corn Head Bracket (To fit 890, 892, 900)
JM645870 #40 USA Chain (93 pitches)
JM645962 LH 824 Corn Head Bracket (718, 782, 790)
JM645963 RH 824 Corn Head Bracket (718, 782, 790)
JM681678 Bracket Assembly
JM646010 LH 824 Corn Head Bracket (890,892, 900)
JM687165 Cover Shield for JM646010 (Not Pictured
JM646361 RH Bracket
JM646362 LH Bracket
JM646418 Bracket & Bushing Assembly
Pg 3 NH 824 Row Crop Gathering Assembly Outside Rows. See the Diagram for corresponding item numbers.
(RH & LH are the same for except items with stars )
#1 JM644591 GATHERING CHAIN – CA620, 64 Total Pitches, Comes with Connector Link
#1a JM620A LOWER CHAIN CONNECTOR LINK [ NOT PICTURED ]
#1b JMCA620 CONNECTOR LINK WITH EAR [ NOT PICTURED ]
#2 JM646525 WEAR STRIP – R.H. 21.8" Long, Comes with Bolts *
#2a JM646524 WEAR STRIP – L.H. 21.8" Long, Comes with Bolts *
#3 JM646360 WEAR STRIP – 8.75" Long, Comes with Bolts
#4 JM680729 CHAIN GUIDE – Comes with Bolts
#5 JM644201 IDLER SPROCKET ASSEMBLY – 10 Tooth, Includes Ref. 6, 7
6 JM66553 3 BALL BEARING – 203KRR2
#7 JM12084 SNAP RING
#8 JM87365 WASHER – 5/8
#9 JM138728 CAP – .28" Deep, (60mm) Diameter
#10 JM645145 SPACER
#11 JM644515 CAP – .78" Deep, 23/4" Diameter
#12 JM645433 WASHER – 2 Straight Sides, 11/2" Diameter
#13 JM234567 WASHER – 2 Straight Sides, 21/4" Diameter
#14 JM280119 CAP SCREW– Hex Head, GR. 5, 5/8" x 31/2", with Lock Washer and Hex Nut
#15 JM645266 IDLER BRACKET AND ROD ASSEMBLY – with 1 pc. 5/8 Jam Nut and 1pc. 5/8 Hex Nut
#16 JM645212 SPACER WELD ASSEMBLY – (Used) (email for availability
#17 JM685291 SPRING
#18 JM645365 OUTER SHOE WELD ASSEMBLY – (Used)
#19 JM644102 SPROCKET ASSEMBLY – 11 Tooth, Includes Ref. 20
#20 JM644202 BUSHING
#21 JM856146 SHAFT – 9.81" Long, R.H. *
#21a JM856144 SHAFT – 9.25" Long, L.H. *
#22 JM26096 WASHER – 2.5" O.D. .187" Thick
#23 JM701519 SEAL – 2" O.D
#24 JM218230 BEARING CUP AND CONE ASSEMBLY – LM67048 Timken Brg., LM67010 Race
#25 JM618966 SPECIAL STEPPED WASHER
#26 JM644474 SPACER – .75" Long
#27 JM36723T BEARING CUP – LM67010 Timken
#28 JM48198 BEARING CONE AND SEAL – (LM67000LA-901AI) Timken
#29 JM644100 SPROCKET – 11 Tooth, Splined I.D.
#30 JM36313 SNAP RING
#31 JM33212 WASHER – .036" – (0.9mm) 11/4 I.D.
#31a JM708756 WASHER – .010" – (.25mm) 11/4 I.D.
#32 JM287370 DISC HOLDER WELD ASSEMBLY
#33 JM86633666 CUT-OFF DISC
#33a JM87263 PLOW BOLT – 3/8" x 11/4"
#33b JM88682 CARRIAGE BOLT – Gr. 5, 3/8" x 1"
#33c JM80680 LOCKWASHER – 3/8"
#33d JM84944 HEX NUT – 3/8"
#34 JM692300 HARDENED WASHER – 0.25" Thick x 2" O.D.
#35 JM88551 CAP SCREW – Hex Head, Gr. 5, 1/2" x 13/4"
#36 JM579925 PLATE
#37 JM146258 WASHER – 13/4" O.D., .060" Thick, 11/4 I.D
#38 JM645618 DIVIDER DRIVE SPROCKET – 22 Tooth
#38a JM25283 SQUARE KEY – 1/4" x 7/8"
#39 JM64053 HARDENED WASHER – 11/2" O.D., .160" Thick
#40 JM87446 SLOTTED NUT – 5/8" UNF
#40a JM87395 COTTER PIN – 1/8" x 11/4"
#41 JM685133 LOWER GATHERING CHAIN – CA620, 48 Total Pitches, Comes with Conn. Link
#42 JM138741 IDLER SPROCKET (email for price)
#43 JM26382 WASHER – 1.09" O.D., .060 Thick
#44 JM678422 ADJUSTING ROD WELD ASSEMBLY
#45 JM42973 RETAINING RING
#46 JM224245 WASHER
#47 JM686730 ADJUSTER
#48 JM686389 STRIPPER WELD ASSEMBLY LH *
#48 JM686388 STRIPPER WELD ASSEMBLY RH *
#49 JM675355 SHIELD WELD ASSEMBLY
#51 JM646903 SUPPORT WELD ASSEMBLY 32.50
Page 4 NH 824 Row Crop Gathering Assembly Center Row. See Diagram for corresponding item numbers.
#1 JM640148 GATHERING CHAIN – CA620, 58 Total Pitches, Comes with Conn. Link
#2 JM646523 WEAR STRIP – Comes with Bolts
#3 JM645222 SHOE WELD ASSEMBLY – R.H. (Used) *
#3a JM645218 SHOE WELD ASSEMBLY – L.H. (Used) *
#4 JM645215 IDLER BRACKET AND ROD WELD ASSEMBLY
#5 JM644201 IDLER SPROCKET ASSEMBLY – 10 Tooth, Includes Ref. 6, 7
#6 JM66553 BALL BEARING – 203KRR2
#7 JM12084 SNAP RING
#8 JM87365 WASHER – 5/8
#9 JM138728 CAP – .28" Deep, (60mm) Diameter
#10 JM645145 SPACER
#11 JM644515 CAP – .78" Deep, 23/4" Diameter
#12 JM645433 WASHER – 2 Straight Sides, 11/2" Diameter
#13 JM234567 WASHER – 2 Straight Sides, 21/4" Diameter
#14 JM280119 CAP SCREW– Hex Head, GR. 5, 5/8" x 31/2", with Lock Washer and Hex Nut
#15 JM678687 SPACER WELD ASSEMBLY (Used)
#16 JM195640 WASHER
#17 JM685291 SPRING
#18 JM644199 SPROCKET WELD ASSEMBLY – 9 Tooth and 18 Tooth
#19 JM132709 BEARING CUP – L44610 Timken
#20 JM132710 BEARING CONE – L44643 Timken
#21 JM701519 OIL SEAL
#22 JM605170 BEARING CUP – LM11710 Timken
#23 JM605171 BEARING CONE – LM11749 Timken
#24 JM13400 WASHER – .25" Thick
#25 JM644595 SHAFT – 61/4" Long
#26 JM618086 WASHER – 1.3" O.D., .25" Thick
#27 JM87670 CAP SCREW – Hex Head, Gr. 5, 1/2" x 11/4"
#28 JM644465 HUB
#28a JM80768 WOODRUFF KEY – #15, 1/4" x 1"
#29 JM645614 SPRING WASHER
#30 JM678424 WASHER
#31 JM9827767 FRICTION DISC
#32 JM644466 SPROCKET – 22 Tooth
#33 JM639328 LOCKWASHER
#34 JM698154 LOCKNUT – 13/4" – 18
#35 JM856145 SHAFT – 9" Long
#36 JM44914 SPACER – 1" Long
#37 JM146258 WASHER – 1.75" O.D. 0.06" Thick x 11/4" I.D.
#38 JM644469 CAP – .59" Deep, 31/8" O.D. (email for availability)
#39 JM618966 SPECIAL STEP WASHER
#41 JM48198 BEARING CONE & SEAL – LM67000 LA-90241 Timken
#42 JM36723T LM67010 TIMKEN RACE
#43 JM86633666 CUT-OFF DISC
#44 JM579925 CLEAN OFF PLATE (Used)
#45 JM287370 DISC HOLDER WELD ASSEMBLY
#46 JM692300 HARDENED WASHER – ASN 738416 JM574245
#47 JM88551 1/2 x 13/4 Gr. 5 HH Bolt – ASN 738416 JM285585
#48 JM33212 WASHER – 0.036" Thick x 11/4" I.D.
#48a JM708756 WASHER – 0.010" Thick x 11/4" I.D
#49 JM36313 SNAP RING
#50 JM688398 RETAINER WASHER
Page 5 New Holland 824 Row Crop Main Drive
#1 JM572735 SPROCKET WELD ASSEMBLY – 20 Tooth
#1a JM572734 SPROCKET WELD ASSEMBLY – 26 Tooth
#1b JM52736 SPROCKET WELD ASSEMBLY – 30 Tooth
#1c JM611785 SPROCKET WELD ASSEMBLY – 34 Tooth
#2 JM46520 SHEAR BOLT WITH LOCKNUT – Pkg. of 10
#3 JM572421 SHEAR HUB WELD ASSEMBLY
#4 JM572894 WASHER – 2" O.D., .075" Thick, 15/16" I.D.
#5 JM214539 WASHER – 13/4" O.D., .020" Thick, 15/16" I.D.
#6 JM146258 WASHER – 1 3/4" O.D., .060" Thick, 11/4" I.D
#7 JM80754 COTTER PIN – 3/16" x 11/2"
#8 JM763338 HEX SHAFT – 373/4" Long (Replaces JM644893) – Uses 1/4" Cotter Pin
#9 JM578189 FLANGETTE
#10 JM121602 BALL BEARING – Hex Bore
#11 JM644895 SPACER – 3.56" Long
#12 JM719563 BEVEL GEAR – 15 Tooth, Hex Bore
#13 JM691097 BEARING HOUSING ASSEMBLY – Includes Red. 10 and 21 (Used)
#14 JM644474 SPACER – .75" Long
#15 JM572891 SPACER – .937" Long
#17 JM782447 GEAR – 20 Tooth, Hex Bore
#18 JM782446 GEAR – 20 Tooth, Splined Bore
#19 JM644894 SHAFT – 163/4" Long
#21 JM45882 2 BALL BEARING – SA206-18FP7, with Locking Collar
#22 JM691100 BEARING HOUSING ASSEMBLY – Includes Ref. 23 (Used)
#23 JM38766 BALL BEARING – SA206-20FP7 , 11/4", with Locking Collar
#25 JM43048 FLANGETTE
#26 JM719565 BEVEL GEAR – 15 Tooth, Splined Bore
#27 JM244638 RETAINING RING
#28 JM33212 WASHER – 1.75" – 0.036" Thick, 11/4" I.D.
#29 JM618966 SPECIAL STEPPED WASHER
#30 JM48198 BEARING CONE AND SEAL – LM67000 LA-902A1 Timken
#31 JM36723T BEARING CUP – LM67010 Timken
#32 JM644973 SPACER – .906" Long
#34 JM644470 SHAFT – 7.31" Long
#35 JM218230 BEARING CUP AND CONE ASSEMBLY – LM67048-LM67010 Timken
#36 JM707374 BEARING RING (Old Style)
#36A JM774773 BEARING RING (New Style)
#37 JM9623892 7-TOOTH SPLINE SPROCKET (New Style)
#37A JM694005 7-TOOTH SPLINE SPROCKET (Old Style) (email us for price)
#38 JM707373 PLASTIC COLLAR – Only Used on Old Style
#39 JM64053 HARDENED WASHER
#40 JM87446 SLOTTED NUT – 5/8" UNF
#40a JM87395 COTTER PIN – 1/8" x 11/4" – Also Fits Center Shafts
#41 JM685461 COVER – 31/8" O.D.
#42 JM690503 SEAL – 1.877" O.D., Only Used on New Style
#42A JM616414 OIL SEAL
#43 JM644107 SPROCKET – 7 Tooth
#43a JM47471 HALF MOON WOODRUFF KEY – #15, 1/4" x 1" (LOWER KEY NOT PICTURED)
#44 JM685462 SPACER – 1.75" Long
#45 JM644974 SPACER – .562" Long
#46 JM644463 SHAFT – 101/8" Long
#47 JM88980 NIPPLE – 1/8" x 43/4"
#48 JM124160 NIPPLE – 1/8" x 21/2"
#53 JM572893 SPACER – 3/8" Long
Page 6
JM646455 Deflector Weld Assembly
JM646549 Shield Weld Assembly
JM646602 Angle Fits on the Nose
JM646615 RH Point (Nose)
JM646614 LH Point (Nose)
JM646755 Throat Plate Support
JM646756 LH Throat Plate (For 718-782-790)
JM646757 LH Throat Plate (890,892,900 Adapting Bundle)
JM646795 RH Angle
JM646796 RH Throat Plate (718,782,790 Adapting Bundle
JM646797 RH Throat Plate (890,892,900 Adapting Bundle)
JM646903 Support Weld Assembly
JM646904 LH Fender
JM646905 RH Fender
Page 7
JM646942 Shield
JM646966 Shield
JM680728 LH Angle
JM8067 Complete Set of 824 Wear Strips Includes: 2 pc. JM646360, 2 pc. JM646523, 1 pc. JM646524, 1 pc. JM646525, 4 pc. JM680729 Extra hardened to outlast a set of chain!
