New Holland 782 & 790 Harvester Parts

New Holland® is a Registered Trademark of CNH Industrial America LLC which does not manufacture or endorse these parts.

It would be data-prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum of $14.50 flat base rate on all items regardless of the size. This is to cover the cost of processing, packing, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders including truck freight. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

Prices are subject to change without notice.

Please select one part per page.  Add it to the cart and then return for more parts on the same page.

Please expect 1-4 weeks for the parts to ship. The Amish shops do not use computers or more modern communication, so orders take a bit longer to receive, package, and ship. We are not able to maintain an electronic inventory of parts either as the shops also sell to Amish machine shops across the country. Occasionally new parts will need to be made before the order can be shipped.

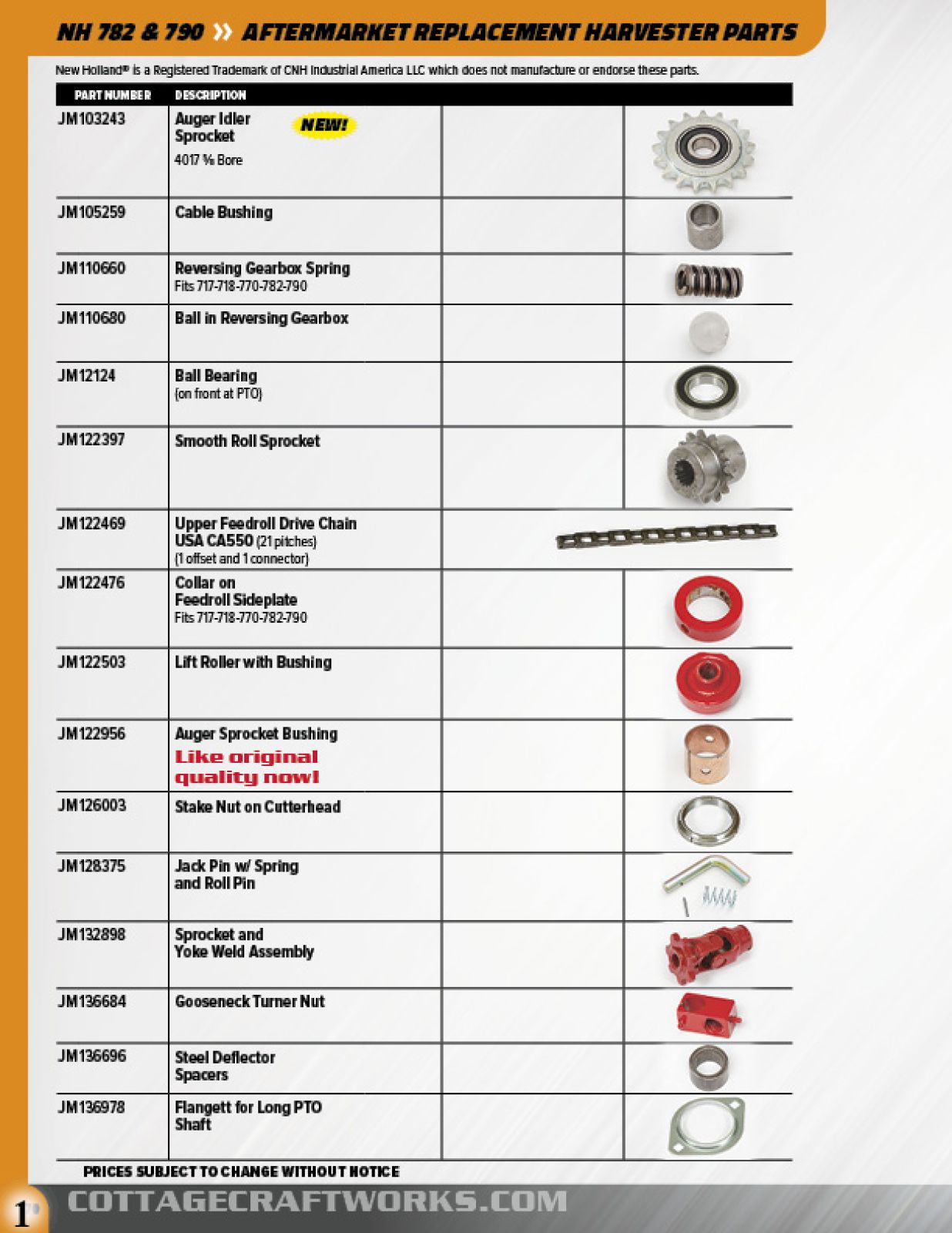

Page 1

JM103243 Auger Idler Sprocket 4017 ⅝ Bore

JM105259 Cable Bushing

JM110660 Reversing Gearbox Spring Fits 717-718-770-782-790

JM110680 Ball in Reversing Gearbox

JM12124 Ball Bearing (on front at PTO)

JM122397 Smooth Roll Sprocket

JM122469 Upper Feedroll Drive Chain USA CA550 (21 pitches) (1 offset and 1 connector

JM122476 Collar on Feedroll Sideplate Fits 717-718-770-782-790

JM122503 Lift Roller with Bushing

JM122956 Auger Sprocket Bushing Like original quality now!

JM126003 Stake Nut on Cutterhead

JM128375 Jack Pin w/ Spring and Roll Pin

JM132898 Sprocket and Yoke Weld Assembly

JM136908 Cross Bearing Kit fits JM132898 Yoke above

JM136684 Gooseneck Turner Nut

JM136696 Steel Deflector Spacers

JM136978 Flangett for Long PTO Shaft

JM122521 Head Attachment Bracket (no photo)

Page 2

JM137930 30 Tooth Length of Cut Sprocket Bottom Front Feedroll Sprocket

JM13911 Lift Roller Spacer

JM143479 718-782 Shear Bar Washer (Also fits S717 ASN 179757) (Is same as 718 Knife Bolt Washer

JM179470 Shear Bar Adjuster Nut

JM179965 Sprocket Assembly on Auger (with bushing)

JM183999 Shear Bar Cone Washer On Adjuster Nut

JM189392 782 Transition Used on all 782 choppers and 790 BSN 759354

JM196287 Snap Ring on Angle Gearbox

JM213565 Hub on Center on Long Shaft

JM216850 Idler Sprocket 5017 x ½ bore For Long Reversing Gearbox Chain

JM218983 Needle Bearing

JM224895 New Gearbox Reverser Motor Bigger and Heavier

JM226196 Cutterhead PTO Pin

Page 3

JM229542 USA #50 Chain, Long Reversing Gearbox Chain (112 pitches)

JM243157 782 Cutterhead Female PTO

JM244245 Snap Ring on Shear Pin Yoke

JM245743 Shield and Bearing Support on Auger Bearing

JM253168 Spline Hub and Bushing

JM253768 USA #40 Auger Chain (140 pitches)

JM254146 Side Plate Center Bushing

JM254297 Cutterhead Plastic Collar (fits 782 or 790) 717-718

JM26558 Washer in Shear Pin Yoke

JM272688 Override Bearing on 790 Angle Gear Box

JM280656 Special Fan Paddle Bolt with nut, flat, and lock washer (1 pc.)

JM280700 Set of 6 bolts

JM280732 Gr. 8 FT⅝ x 1½ Bolt (fits 790 knife)

JM28110 Insulator Rope Guide

JM28114 U Bolt for Gooseneck Insulator

JM28256 Hub Bushing

Page 4

JM285836 Spindle (for 782-790) (Also fits 890-892)

JM32809 Spring on Hitch

JM35664 782 Stone Holder Cap

JM36312 Needle Bearing

JM36314 Lower Feedroll Drive Chain USA #50 (44 pitches)

JM36622 Feedroll Side Plate Washer Fits 717-718-770-782-790

JM37185 Snap Ring At front PTO yoke

JM37857 Oil Seal Uses 2 pc. per reversing gearbox

JM43048 3 Hole 1¼ Bearing Flange on Auger

JM46520 Shear Pin (for cutterhead and auger) (10/pk)

JM46047 Shear Pin (used on 790 Choppers after serial #812592)

JM467820 Limit Switch

JM46826 Cutterhead Yoke Bushing

JM574171 Aftermarket Replacement Bushing on Feedroll Side Plates

JM575988 Spring Blower Belt Tension Spring

JM578727 782, 790 Auger Uses JM38766 Bearing Insert (see below*)

*JM38766 Bearing Insert - FYH SA206-20FP9 or FP7

JM48965 Nylon Bushing on Lift Roll (no picture)

Page 5

JM578738 782 or 790 Auger Housing only (not like original) Weld onto your auger ends.

JM578743 Front Auger Sheet

JM578790 Cutterhead Bottom (Weld in) 782-790

JM578806 Yoke with Shear Pin Plate For JM46520 Shear Pin For 782 and on 790 BSN 812591

JM9619690 Yoke for JM46047 Shear Pin ASN 812592

JM578801 782-790 Auger Lid

JM578826 Blower Front Panel with Bearing Holder

JM579364 C 60 Belt for Reversing Gearbox (2 pieces)

JM58118 Shear Pin (for feedrolls)

JM602641 J-Bolt on Lid

JM602996 Deflector Switch 3 Prong

JM621425 782 Cutterhead Male PTO with Shear Pin Setup Also fits 790 BSN 812591

JM627384 Sprocket Weld Assembly (on non-metal alert)

JM627387 Shaft Weld Assembly – 26 Tooth Sprocket

Page 6

JM638297 782 Knife, Spiral, Double Edged

JM640091 782 1000RPM Belt (Blower)

JM646056 Bushing for Gooseneck Hold Down

JM66460 Idler Pulley

JM66553 Bearing on Transmission Idler Pulley

JM677563 790 Female Plug - Harvester End

JM762836 790 Male Plug - Control Box End

JM682360 Power Rocker Switch Fits 790 - 900

JM682361 Feedroll Rocker Switch Fits 790 - 900

JM686539 Upper Rear Feedroll

JM700411 Feedroll Cable Pulley Bushing Fits 718-782-790

JM700493 Wire Cable for Feedroll

JM700905 Clutch in Reversing Gearbox Fits 782-790 Only

JM700914 Feedroll Tension Spring

JM701316 782 or 790 Smooth Roll Scraper

JM701317 782 or 790 Scraper Support

JM701519 Oil Seal on Gear Box

Page 7

JM702034 Triple Length of Cut Sprocket

JM702743 Lever Latch

JM702847 Cutterhead Lid

JM703244 Shaft for Head Drive

JM703727 Bracket on Long PTO

JM703728 13 ⁄8 PTO Shaft

JM703784 Bushing in Shear Pin Yoke

JM704580 782 Knife Block (used)

JM710450 Guard at Cutterhead PTO (782 or 790)

JM710984 Sprocket Weld Assembly (with 2pc. JM36951 bushing)

JM713229 Yoke Weld Assembly (for metal alert and non-metal alert units)

JM713551 782 Stone Holder

JM715782 782 540 RPM Belt

JM716163 Cutterhead Sprocket

Page 8

JM716164 Auger Idler Bracket

JM764785 782 or 790 Smooth Roll Always order 2 pc. JM9013 Bearing Insert (see below*)

*JM9013 FYH Bearing Insert - SA206-18FP9
Used on (1⅛ bore) 782-790-890-892
smooth rolls and bottom front feedrolls and
drivers on original models

JM768235 790 Stone Holder

JM768236 790 Stone Holder Cap

JM768242 Long Stone Holder Pipe

JM782790 New Style Drive Line Kit for Upper Feedrolls on 782 & 790 Harvesters for Non-metal and Metalalert mfg. with 12 Series Universal Yokes. Includes a threaded shaft behind the large sprocket with a shear pin. Does not include Slotted 3/4" nut JM88886

JM78279010 Hydraulic Tongue Swing Kit for NH 782 & 790 Harvesters Includes all hoses Like the original!

JM784239 RH Crop Guide with Bolts

JM784240 LH Crop Guide with Bolts

JM784247 RH Feedroll Side Plate (with our bushings) Our bushings are now built like the original

M784248 LH Feedroll Side Plate (with our bushings) Our bushings are now built like the original

JM784540 Cutterhead Yoke at Magnet

JM784651 790 Spiral Knife (single edge)

Page 9

JM784964 Sharpener Rail

JM786144 Sharpener Handle

JM786489 Electric Magnet

JM784652 790 Knife Block (used)

JM791531 Auger Lid Hinges

JM796623 790 1000RPM Belt (Blower)

JM796624 790 540RPM Belt (Blower)

JM798096 782 or 790 Blower Band

JM80138243 Gooseneck Turner Nut Pin

JM80700464 Bottom Front Feedroll

JM8076 790 Operator Manual

JM8077 790 Tandem Kit Per Side without Wheels It only fits on LH side if you use a 2 row corn head.

JM8078RH R.H. Torsion Axle for 790

JM8078LH L.H. Torsion Axle for 790

Page 10

JM8079 790 Support Pole for Gooseneck

JM850079 Inner Reversing Gear Box Shaft

JM850735 Outer Reversing Gear Box Shaft

JM86515794 Electric Deflector Motor Bracket w/ Hardware

JM851709 790 Shear Bar Adjuster Rod

JM851797 Short Stone Holder Pipe

JM853905 782-790 Rear Blower Sheet

JM857262 782 & 790 Star

JM857264 Fan Shaft Weld Assembly (782 or 790)

JM857758 782 or 790 Fan Paddle - Set of 3 (cupped for much better blowing)

JM86509454 790 Shearbar Bolt 1/2 x 31/4" Gr.8 bolt and 1/2" Lock Washer and Washer

JM86516721 Spout Switch 6 Prong

JM86528652 Gr. 8 Washer on Knife Bolt (fits all harvesters)

Page 11

JM86620779 Steel Spout Deflector

JM86621454 Clean Out Cover

JM86636511 Wing Nut on Lids

JM859331 790 Cutterhead Female PTO

JM86518367 Electric Deflector Motor

JM86558574 Sharpener Slip Disk

JM86593050 Yoke & Gear 35 Series

JM86622143 Steel Spout Deflector Spring

JM86622174 Bracket

JM86635853 Blower Band J Bolt

JM86641949 790 Knife Baffle

JM86979736 Drive Line Spacer

JM88246 Gr. 8 FT ⅝ x 1¼ Bolt (fits 782 knife)

JM88849 782 Shear Bar Bolt ½ x 3 Gr.8 Ft. (Also fits S717 ASN 179757)

JM9610799 782 or 790 Shear Bar Original OEM with aftermarket replacement price!

JM9616873 Cone Washer

Page 12

JM9617912 Plate for Feedroll Cable Fits 718-782-790

JM9616874 Cone Washer

JM9619688 790 Cutterhead Male PTO with Shear Pin Setup (Only ASN 812592)

JM9619871 790 Sharpening Stone (same as 900) Comes packaged with 4 O-Rings

JM9619931 782 Sharpening Stone (same as 892) Comes packaged with 2 O-Rings

JM9623519 Pin on 790-FP230-240 and 900 ASN 751185

JM9804623 Actuator on 790 Only

JM9824963 Transition with Flat Top Between serial numbers 759355 - 967211

JM86591668 Transition with Flat Top ASN 967212 This plate has a different hole pattern

JM9827836 Kicker Bracket on Sharpener

NH 782-790 Angle Gear Box

JM473231 NH137547 Seal

JM25520 NH86900365 Race

JM60349 NH67527 Bearing

JM603011 NH67526 Race

JM473313 NH196286 Seal

JMLM501349 NH86652015 Bearing

JMLM501310 NH67371 Race

JM473227 NH272545 Seal

JM25580 NH13540 Bearing

JM3782 NH ASSY86537517

782-790 Reversing Gear Box

JM12485 NH 701519 Seal

JM67010 NH36723 Race

JM67048 NH36726 Bearing

JM12334 NH37857 Seal

JMV2016 NH36312 Bearing

JMJH1818 NH218983 Bearing
