New Holland 717 & 718 Harvester Parts

Aftermarket replacement parts for New Holland 717 & 718 Forage/Chopper Harvester

New Parts are being manufactured by an Amish company located in PA. For years the New Holland brand has been the favorite of the PA Amish communities.

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on the "Please Select" again.

Additional Shipping may be required.

Read more about available parts and shipping below the drop-down boxes >

SKU NHHP

Customizable Options:

  $0.00

Description / New Holland 717 & 718 Harvester Parts

New Holland® is a Registered Trademark of CNH Industrial America LLC which does not manufacture or endorse these parts.

It would be data-prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum of $14.50 flat base rate on all items regardless of the size. This is to cover the cost of processing, packing, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders including truck freight. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

Prices are subject to change without notice.

Please select one part per page.  Add it to the cart and then return for more parts on the same page.

Please expect 1-4 weeks for the parts to ship. The Amish shops do not use computers or more modern communication, so orders take a bit longer to receive, package, and ship. We are not able to maintain an electronic inventory of parts either as the shops also sell to Amish machine shops across the country. Occasionally new parts will need to be made before the order can be shipped.

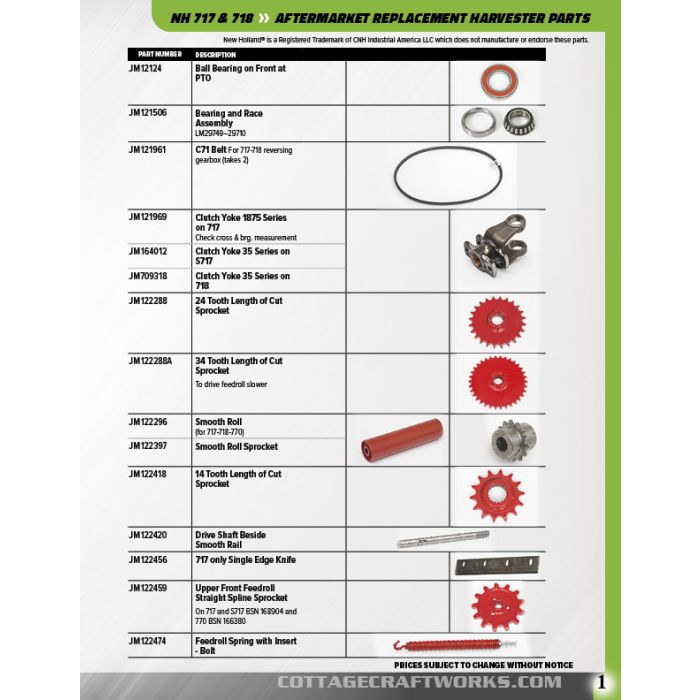

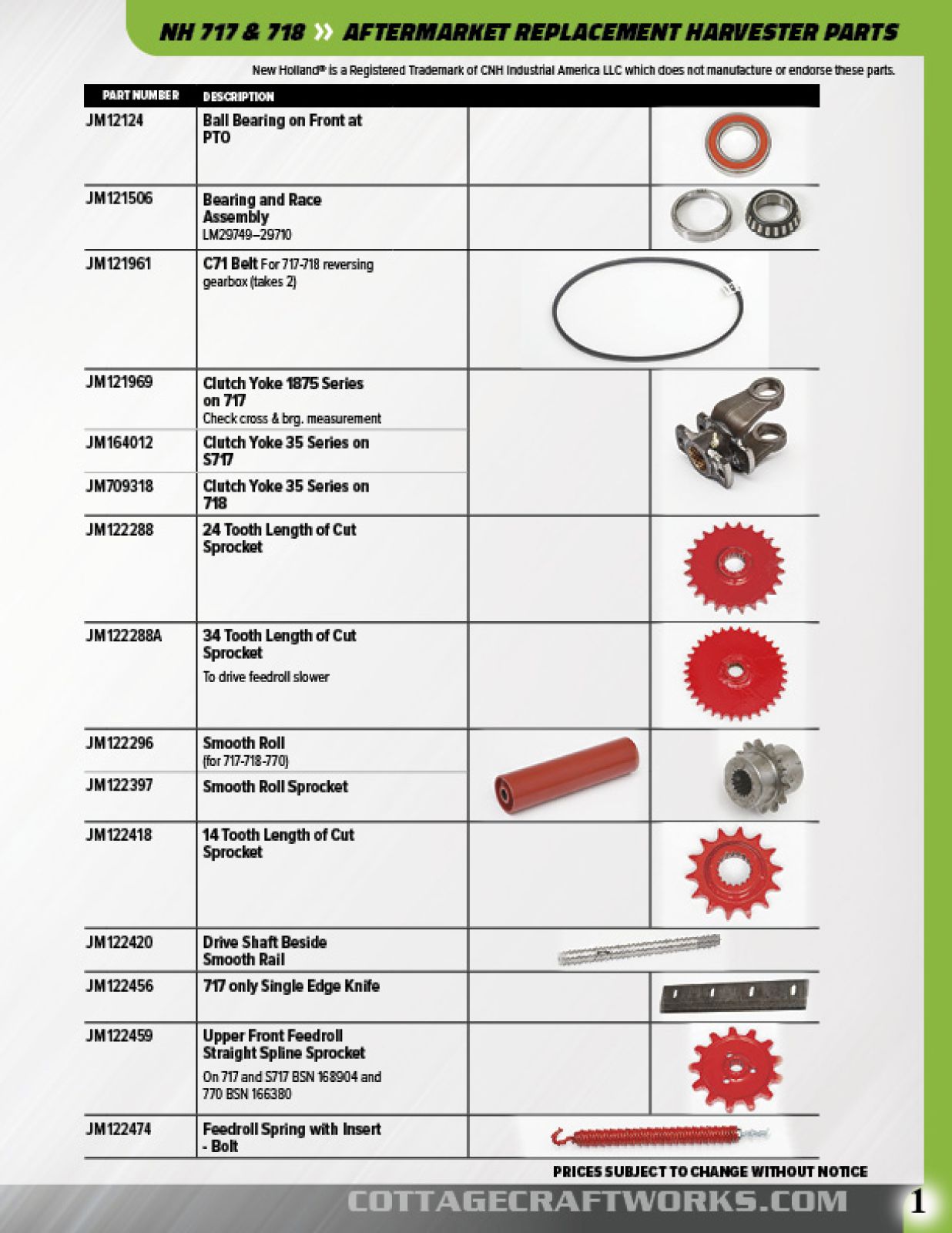

Page 1

JM12124 Ball Bearing on Front at PTO

JM121506 Bearing and Race Assembly LM29749–29710

JM121961 C71 Belt For 717-718 reversing gearbox (takes 2)

JM121969 Clutch Yoke 1875 Series on 717 Check cross & brg. Measurement

JM164012 Clutch Yoke 35 Series on S717

JM709318 Clutch Yoke 35 Series on 718

JM122288 24 Tooth Length of Cut Sprocket

JM122288A 34 Tooth Length of Cut Sprocket To drive feedroll slower

JM122296 Smooth Roll (for 717-718-770)

JM122397 Smooth Roll Sprocket

JM122418 14 Tooth Length of Cut Sprocket

JM122420 Drive Shaft Beside Smooth Rail

JM122456 717 only Single Edge Knife

JM122459 Upper Front Feedroll Straight Spline Sprocket On 717 and S717 BSN 168904 and 770 BSN 166380

JM122474 Feedroll Spring with Insert – Bolt

Page 2

JM122506 Spring Nut Fits JM122474

JM122510 Bottom Front Feedroll Shaft

JM122522 4" Wide 717 only Sharpener Shield

JM122718 Slip Disc (No Spline) (#M970–1700)

JM126219 Thrower Paddle on Cutterhead

JM126760 718 Slip Disc Bushing

JM128840 Gear with Shaft

JM131354 Gearbox Chain Guide

JM131356 Scraper With Notch (for 717 and S717 before serial #179756) 116.51

JM131491 Spacer on Slip Clutch

JM131867 Large Adjustable Nut For shear bar. Fits Older Chopper.

JM131907 Shear Bar Bolt (3¾" long) Used on 717 ASN 4300 and 717S BSN 179756

JM131976 717 Scraper Support Plate

JM131998 Scraper Bolt on 717 and S717 BSN 17

JM132898 Sprocket and Yoke Weld Assembly

Page 3

JM137930 30 Tooth Length of Cut Sprocket Bottom front feedroll sprocket

JM137931 17-32 Tooth Sprocket Table DR

JM143479 9/16 Knife Bolt Washer

JM165354 Front 35's Yoke (on the main shaft) Leave us the yoke width measurement in the comment box at checkout.

JM165384 1¼ PTO Shaft (Long)

JM166300 Oil Seal on Wheel

JM179462 Smooth Roll Scraper (for 718-770 also for S717 after serial #179757)

JM 179469 Shear Bar Hold Down

JM179470 Shear Bar Adjuster Nut

JM179483 Sharpening Stone (round wheel, same as 890)

JM179923 770 Smooth Roll Drive Sprocket

JM183999 Shear Bar Cone Washer On adjuster nut

JM214419 770 Cutterhead Sprocket

JM216973 Knives, Double Edged, Hard faced

JM225925 Upper Front Feed roll Taper Spline Sprocket On S717 ASN 168905, and 718-782-790, and 770 ASN 166381

Page 4

JM234569 718 Override Clutch Snap Ring

JM237519 717-718-770 Shear Bar

JM8070 Shear Bar Bolts:  ½ x 3¼" and ½ x 2" Fine Thread Bolt

JM241375 Smooth Roll Shaft (for 717-718-770) Fits into JM122296 Smooth Roll

JM249845 718 Cutterhead Drive Washer

JM253110 718 only Sharpener Shield

JM253162 717-718 Blower Band

JM253187 Support at Transition

JM253434 Pin 717-718 Tongue

JM254297 Cutterhead Plastic Collar Fits 718, 782, 790, 717

JM254411 Upper Feedroll Universal with Shaft with Shear Pin Kit Bolts to straight gear with shear pin kit saves the universal joints! Uses JM58118 Shear Pin (see below*)

*JM58118 Shear Pin (for feedroll) (10/pk.)

JM257102 1⅜ PTO Shaft

JM261798 Slip Disc (With Spline)

JM285333 Angle Behind Feedroll

Page 5

JM285333 Angle Behind Feedroll

JM286527 718 Feedroll Spring

JM35116 Knife Bolt, 9 ⁄16" x 1¼", Gr. 8, F.T.

JM35664 Stone Holder Cap

JM36725T Race LM11910 Timken Race

JM46442 Long Stone Holder Pipe

JM46443 Short Stone Holder Pipe

JM46789 Dog Pin

JM46826 717 Cutterhead Yoke Bushing

JM46889 717-718 Sprocket Bearing Needle

JM56704 Bushing

JM574171 Aftermarket Replacement Bushing on Feedroll Side Plates

JM122604 Sharpener Handle

JM611447 Upper Rear Feedroll Fits all 717-718-770 3

JM67372 Bearing LM11900 LA with Seal Goes on part #JM128840 shaft

JM688048 Gooseneck Hold Down on 790 BSN 759354 on 900 BSN 781114

JM717-718 Table DR Chain Includes 1 offset and 1 conn link

JM718556 Cutterhead Yoke 35 Series

Page 6

JM718556 Cutterhead Yoke 35 Series

JM80223439 Sharpener Kicker

JM80303 717 Weld On Pc. ASN 4300 and some 5712 Fits large adj. nut 13167

JM80304 717, 782, & 770 Weld On Pc. Fits adj. nut 17470

JM81305 Shear Bar Holder Welded to Chopper Frame

JM8071 Steel Goosenecks for 717, 718, 782, 790, 890, 892, 900 - They all fit the same. This gooseneck has no adjustment.

JM8072 770 Fan Paddles - Set of 3

JM86558574 Sharpener Slip Disc

JM86629486 Dog On Cutterhead Drive

JM87847 Scraper Bolt without Hole 718-770-S.717 ASN. 179757

JM88417 ½ x 4¼ G.R. 8 Machined Used BSN 4299 on 717

JM88849 Shear Bar Bolt ½ x 3 Gr. 8 ft. Bolt and Washer. S717 ASN179757

JM88852 718 Shear Bar Bolt (½ x 3¼ ft. Gr. 8)

Page 7

JM9617868 Spring

JM9619931 Sharpening Stone (same as 892 and 782) Comes packaged with two O-Rings

JM49658 717-718 Gear Box Chain (Not Pictured)

NH 717 Reversing Gear Box

JMB2012 NH168109 Needle Bearing

JM82016 NH36312 Needle Bearing

12334 NH37857 Seal

JM202820 NH126987 Needle Bearing

JM8208 NH46889 Needle Bearing

JM12330 NH36310 Seal

JM47143 NH126986 Seal

NH717 Angle Gear Box

JM471192 NH28246 Seal

JM48510 NH48976 Race

JMLM48548 NH48977 Bearing

JM67048 NH36726 Bearing

JM67010 NH36723 Race

Joint Assembly for Head Drive

JMLM67000 NH481198 Bearing

JM67010 NH36723 Race

JM67048 NH36726 Bearing

JM11900LA NH67372 Bearing

JM11910 NH36725

718 Angle Gear Box

JM471192 NH28246 Seal

JMM86610 NHCODW4616A

JMM86649 NHCODW4621A Bearing

JM2788 NH41480 Bearing

JM2735X NH50515 Race
