New Holland 55 Hay Rake Parts
Aftermarket Parts NH 55 Hay Rake. New Parts are being manufactured by an Amish company located in PA. For years the New Holland brand has been the favorite of the PA Amish communities.
Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on "Please Select" again.
Additional Shipping may be required.
Read more about available parts and shipping below the drop-down boxes >
Description / New Holland 55 Hay Rake Parts
For New Holland 56, 256, 258, and 260 Hay Rake Parts Click Here
New Holland® is a Registered Trademark of CNH Industrial America LLC which does not manufacture or endorse these parts.
It would be data-prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum of $14.50 flat base rate on all items regardless of the size. This is to cover the cost of processing, packing, drop-ship, and actual shipping charges.
Additional shipping may be required for larger orders including truck freight. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.
Please expect 1-4 weeks for the parts to ship. The Amish shops do not use computers or more modern communication, so orders take a bit longer to receive, package and ship. We are not able to maintain an electronic inventory of parts either as the shops also sell to Amish machine shops across the country. Occasionally new parts will need to be made before the order can be shipped.
Prices are subject to change without notice.
Please select one part per page. Add it to the cart and then return for more parts on the same page.

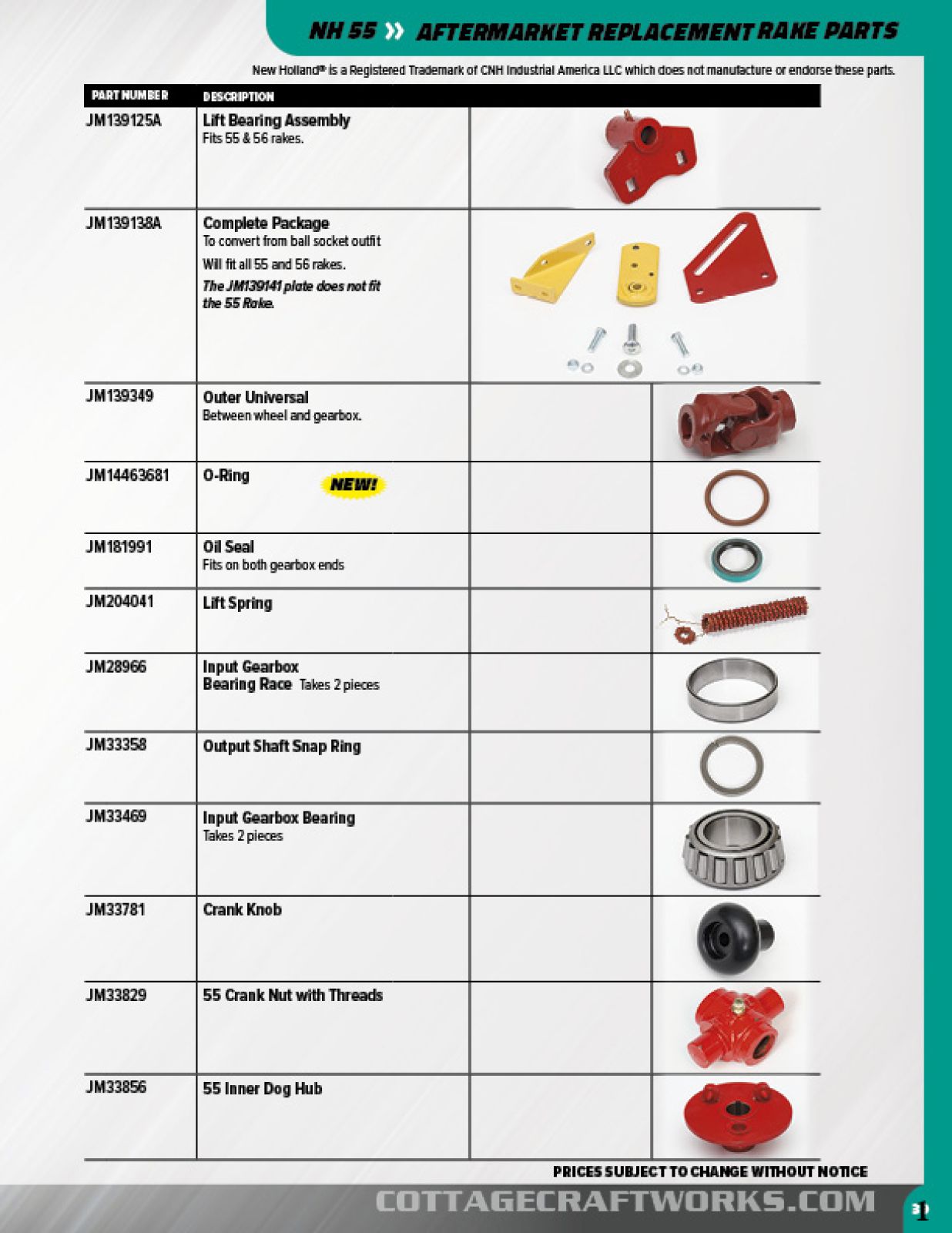

Page 1
JM139125A Lift Bearing Assembly Fits 55 & 56 rakes.Â
JM139349 Outer Universal Between wheel and gearboxÂ
JM14463681 O-RingÂ
JM181991 Oil Seal Fits on both gearbox endsÂ
JM204041 Lift SpringÂ
JM28966 Input Gearbox Bearing Race (need 2 of these)Â
JM33358 Output Shaft Snap RingÂ
JM33469 Input Gearbox Bearing (need 2 0f these)Â
JM33781 Crank KnobÂ
JM33829 55 Crank Nut with ThreadsÂ
JM33856 55 Inner Dog HubÂ
Page 2
JM33915 Tine Bar Snap RingÂ
JM33943 55 Crank BearingÂ
JM33967 55 Rake Bar (You should expect additional shipping to be between $100- $200 because of the length.)
JM33967A Bar End OnlyÂ
JM33968 Dust Shield on BarÂ
JM33975 Star Hub Dust Shield on GearboxÂ
JM33979 55 Dog Subs to 820921Â
JM34019 C742 Dog SpringÂ
JM34032 Bearing Mounting BSN 34890 For Old Style 55 Rake BarsÂ
JM34033 Gearbox Input ShaftÂ
JM34039 Input Shaft Snap RingÂ
JM34046 Clutch YokeÂ
JM34040 Upper Gearbox Needle Bearing
JM34041 Outer Gearbox Ball BearingÂ
Page 3
JM34048 Clutch Fork Â
JM34057 Wheel Shaft 73" LongÂ
JM34058 Clutch LeverÂ
JM34065 55 Outside Reel RH SpindleÂ
JM34067 Gearbox Output ShaftÂ
JM34080 55 Star HubÂ
JM36139 Lift Arm Weld AssemblyÂ
JM39271 BallÂ
JM39361 55 Gearbox Yoke Â
JM46988 Axle Bushing in Bearing HousingÂ
JM46991 Right Axle Housing Bearing with BushingÂ
JM46992 Left Axle Housing Bearing with BushingÂ
JM48191 Hub Cap on GearboxÂ
Page 4
JM48329 Link Block LiftÂ
JM55 Bar EndÂ
JM677847 Telescoping ShaftÂ
JM80765 ¼ x 1⅛ Woodruff Key
JM84913 ¼ x 1½ Woodruff KeyÂ
JM86523991 Rake Bar Bearing Kit on 55Â Â
JM86637501 ¼ x 2¾ Woodruff KeyÂ
JM86837316 Dog PinÂ
JM86900802 Clutch SpringÂ
JM8073 Ball Joint fits 55 & 56 rakes only (not pictured)
JM8074 Connector Plate fits 55 & 56 rakes only (not pictured)
Tine Parts not Pictured
JM64562 Steel Tooth Tines .262 wire size. Takes 90 for the 55 rake
JM 792493 Steel Rake Tooth Clip
JM280744 Carriage Bolt and Flange Nut
