New Holland 450, 455 Sickle Mower Parts
Aftermarket replacement parts for vintage New Holland 450 and 455 sickle mowers. This Cottage Craft Works listing combines a broad group of commonly used 450/455-compatible mower parts with a separate Page 4 of specialized 450/455 head parts. Use the illustrated page number and part number to identify the item you need, then select the matching option on the product page.
Parts are being manufactured by an Amish company located in PA. For years, the New Holland brand has been a favorite among PA Amish communities. Â These parts are being manufactured to keep the existing units running and to convert them to independent gasoline motor drives for Amish use.
Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. Select multiple items in the same drop-down, then select one to add to the cart, then select continue shopping to add more items. To deselect, click on "Please Select" again.
Additional Shipping may be required.
Read more about available parts and shipping below the drop-down boxes >
Description / New Holland 450, 455 Sickle Mower Parts
New Holland® is a Registered Trademark of CNH Industrial America LLC, which does not manufacture or endorse these parts.
It would be data-prohibitive to list each individual part with shipping. Therefore, shipping & handling are based on an average purchase of a few parts. We charge a minimum flat base rate of $14.50 for all items, regardless of size. This covers the cost of processing, packing, drop-ship, and actual shipping charges.
Additional shipping charges may apply to larger orders, including truck freight. We will send you an additional shipping invoice if needed. Invoices not paid within 15 days are subject to a 10% restocking and handling fee.
Please expect 1-4 weeks for the parts to ship. The Amish shops do not use computers or modern communication methods, so orders may take a bit longer to receive, package, and ship. We are also unable to maintain an electronic inventory of parts, as the shops sell to Amish machine shops across the country. Occasionally, new parts will need to be made before the order can be shipped.
Prices are subject to change without notice.
Please select one part per page. Add it to the cart, then return to the same page to add more parts.
Parts by Cottage Craft Works Page

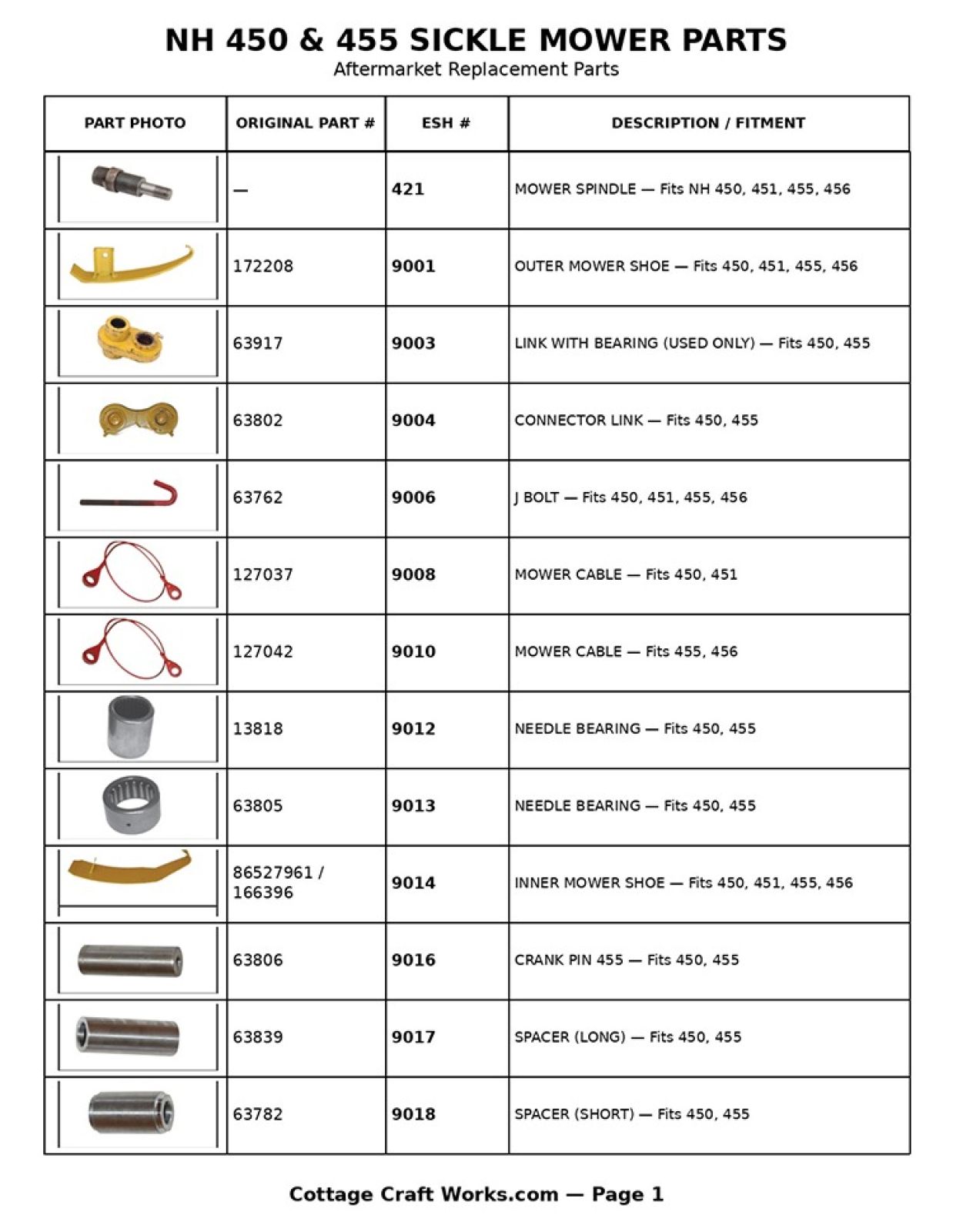

Page 1 — Main 450/455 Mower Parts
421 — MOWER SPINDLE — Fits NH 450, 451, 455, 456
172208 — ESH # 9001 — OUTER MOWER SHOE — Fits 450, 451, 455, 456
63917 — ESH # 9003 — LINK WITH BEARING (USED ONLY) — Fits 450, 455
63802 — ESH # 9004 — CONNECTOR LINK — Fits 450, 455
63762 — ESH # 9006 — J BOLT — Fits 450, 451, 455, 456
127037 — ESH # 9008 — MOWER CABLE — Fits 450, 451
127042 — ESH # 9010 — MOWER CABLE — Fits 455, 456
13818 — ESH # 9012 — NEEDLE BEARING — Fits 450, 455
63805 — ESH # 9013 — NEEDLE BEARING — Fits 450, 455
86527961 / 166396 — ESH # 9014 — INNER MOWER SHOE — Fits 450, 451, 455, 456
63806 — ESH # 9016 — CRANK PIN 455 — Fits 450, 455
63839 — ESH # 9017 — SPACER (LONG) — Fits 450, 455
63782 — ESH # 9018 — SPACER (SHORT) — Fits 450, 455
Page 2 — Cutter Bar, Swath & Dividing Board Parts
143600 — ESH # 9021 — DRIVE PLATE 455 — Fits 450, 455
127033 — ESH # 9022 — MOWER PIVOT (F BRACKET) — Fits 450, 451, 455, 456
63867 — ESH # 9023 — SWATH BOARD — Fits 450, 451, 455, 456
63905 — ESH # 9024 — CLAMP — Fits 450, 451, 455, 456
143615 — ESH # 9025 — CLAMP — Fits 450, 451, 455, 456
143617 — ESH # 9026 — GRASS ROD — Fits 450, 451, 455, 456
143616 — ESH # 9027 — GRASS ROD (SHORT) — Fits 450, 451, 455, 456
86622662 — ESH # 9028 — HOLD DOWN SHIM — Fits mowers & haybines
SPECIAL — ESH # 9028A — 1/8-INCH SHIM — Fits mowers & haybines
63753 — ESH # 9032 — HAY GUIDE — Fits 450, 451, 455, 456
63871 — ESH # 9033 — HAY GUIDE BENT — Fits 450, 451, 455, 456
38391 — ESH # 9036 — DIVIDING BOARD SPRING — Fits 450, 451, 455, 456
ESH # 9037 — COMPLETE DIVIDING BOARD — Fits 450, 451, 455, 456
Page 3 — Drive, Bar & Shield Parts
86052 — ESH # 9039 — BEARING WITH SEAL — Fits 450, 451, 455, 456
63804 — ESH # 9041 — V BELT 3127 — Fits 450, 451, 455, 456
ESH # 9046 — EQUIPMENT JACK
64161 — ESH # 9047 — CABLE IDLER — Fits 450, 451, 455, 456
258452 — ESH # 9048 — 9-FT MOWER BAR — Fits 450, 451, 455, 456 ( will need to ship by truck freight )
172204 — ESH # 9049 — SHIELD — Fits 450, 451, 455, 456
65804 — ESH # 9050 — SHIELD — Fits 450, 451, 455, 456
258454 — ESH # 9056 — 7-FT MOWER BAR — Fits 450, 451, 455, 456 ( expect shipping to be around $100)
63778 — ESH # 9064 — DUST SHIELD, 7/8-INCH HOLE — Supplier catalog identifies this as a 455 mower dust shield; verify exact application before ordering
Page 4 — Specialized 450/455 Head Parts
Keep these specialized parts on their own Cottage Craft Works page so they can remain available without mixing supplier ordering for the common 450/455 service parts.
JM32431 — 455 DUST SHIELD — 3/8-INCH HOLE
JM63797 — 455 DUST SHIELD — 5/8-INCH HOLE
JM63798 — CRANKSHAFT — With 455 pin; 8 splines — Always count splines before ordering
JM63841 — OLD STYLE 455 KNIFE HEAD BUSHING WITH TAPER
JM8035 — TRIPLE GUARD
