New Holland 402 Hay Crimper Parts
Aftermarket replacement parts for New Holland 402 Hay Crimper.
Parts are being manufactured by an Amish company located in PA. For years the New Holland brand has been the favorite of the PA Amish communities.
Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on "Please Select" again.
Additional Shipping may be required.
Read more about available parts and shipping below the drop-down boxes >
Description / New Holland 402 Hay Crimper Parts
New Holland® is a Registered Trademark of CNH Industrial America LLC which does not manufacture or endorse these parts.
It would be data-prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum of $14.50 flat base rate on all items regardless of the size. This is to cover the cost of processing, packing, drop-ship, and actual shipping charges.
Additional shipping may be required for larger orders including truck freight. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.
Please expect 1-4 weeks for the parts to ship. The Amish shops do not use computers or more modern communication, so orders take a bit longer to receive, package, and ship. We are not able to maintain an electronic inventory of parts either as the shops also sell to Amish machine shops across the country. Occasionally new parts will need to be made before the order can be shipped.
Prices are subject to change without notice.
Please select one part per page. Add it to the cart and then return for more parts on the same page.

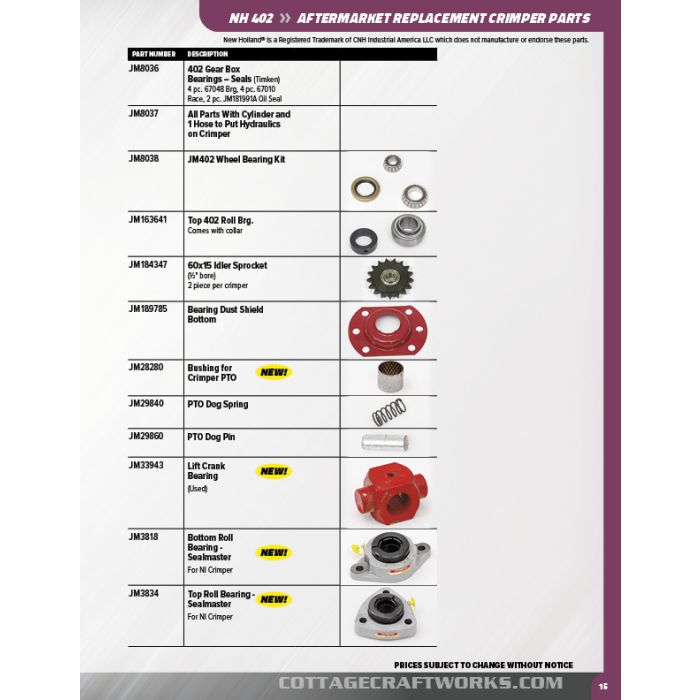

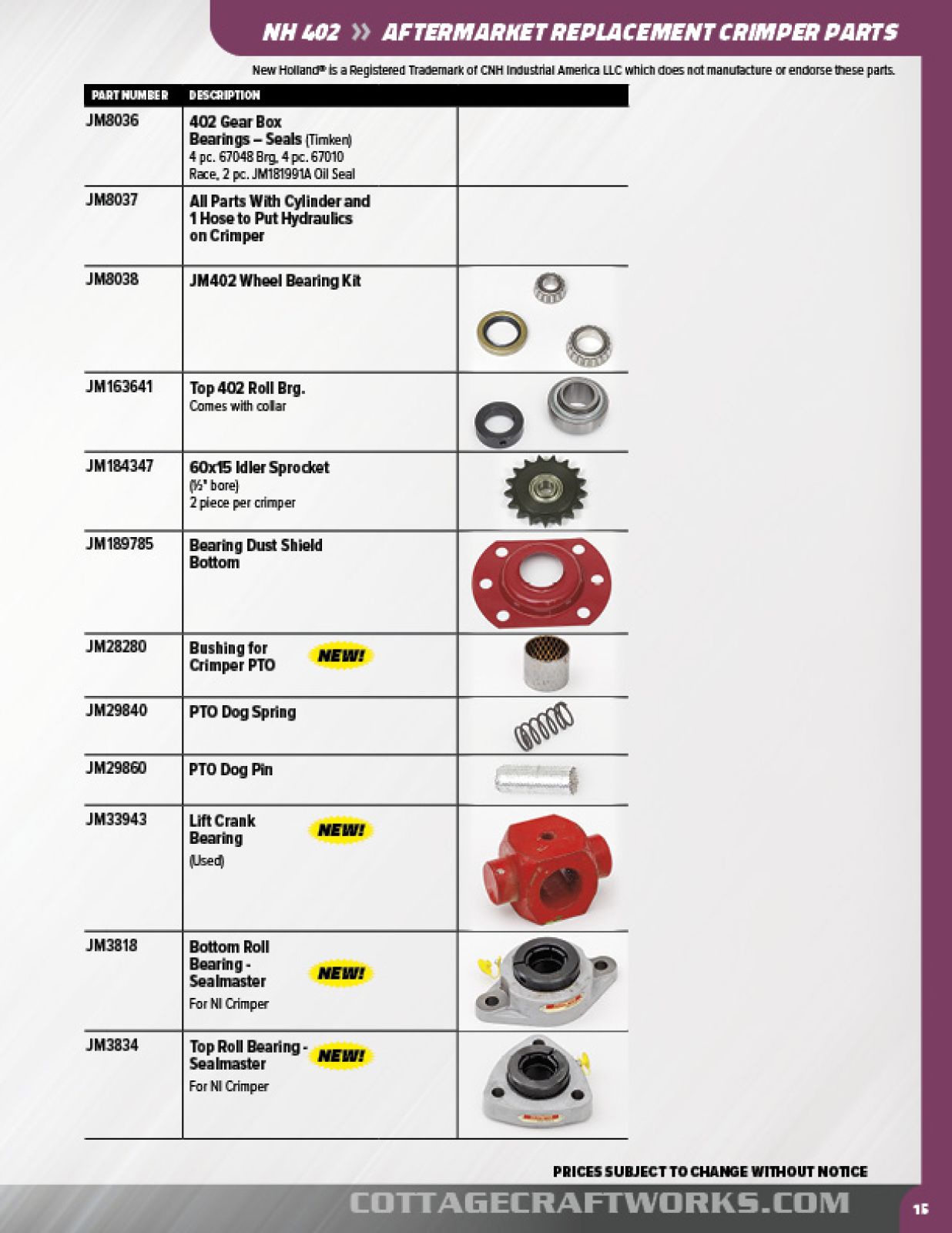

Page 15
JM8036 402 Gear Box Bearings – Seals (Timken) 4 pc. 67048, Brg 4 pc.67010 Race, 2 pc. JM181991A Oil Seal
JM8037 All Parts With Cylinder and 1 Hose to Put Hydraulics on Crimper
JM8038 JM402 Wheel Bearing Kit
JM163641 Top 402 Roll Brg. Comes with collar
JM184347 60x15 Idler Sprocket (½" bore) 2 piece
JM189785 Bearing Dust Shield Bottom
JM2820 Bushing for Crimper PTO
JM29840 PTO Dog Spring
JM29860 PTO Dog Pin
JM33943 Lift Crank Bearing (Used)
JM3818 Bottom Roll Bearing
JM3834 Top Roll Bearing
Page 16
JM46520 Shear Pin (10 per pack)
JM56482 Roll Adjustment Block (threaded)
JM63586 402 Crimper Shaft (Gearbox to shear pin hub)
JM50969 402 Crimper Input Shaft (not pictured)
JM65790 Drive Hub with Shear Pin Hole
JM65792 85 Pitch #60 USA Chain to Drive Rolls
JM65812 402 Crimper Rolls
JM65931 Top Drive Sprocket with Shear Pin Hole
JM66480 Top and Bottom Roll Sprocket 60x24 Tooth with Special Hub
JM80120 Side Wheel Only
JM80121 Hub Only
JM80122 Spindle Only
Page 17
JM80123 Teeth Only
JM80124 Top Crimper Roll Bearing Holder
JM86575514 Bottom 402 Roll Brg. Comes with collar (Also fits 401 Crimper Roll Top and Bottom)
JM86620027 Bearing Flange (bottom) 4 piece
JM86633054 Bearing Dust Shield (top) 2 pieces (Old number was 216912)
JM86635012 Bearing Flange (top) 4 piece (Old number was 48222)
JM52212 PTO Dog Yoke on 402
JM8039 Side Wheel Kit for NH, NI Crimpers
JM8040 used lift crank (used item)
