Professional Air-Powered Router for Amish & Commercial Woodworking Shops

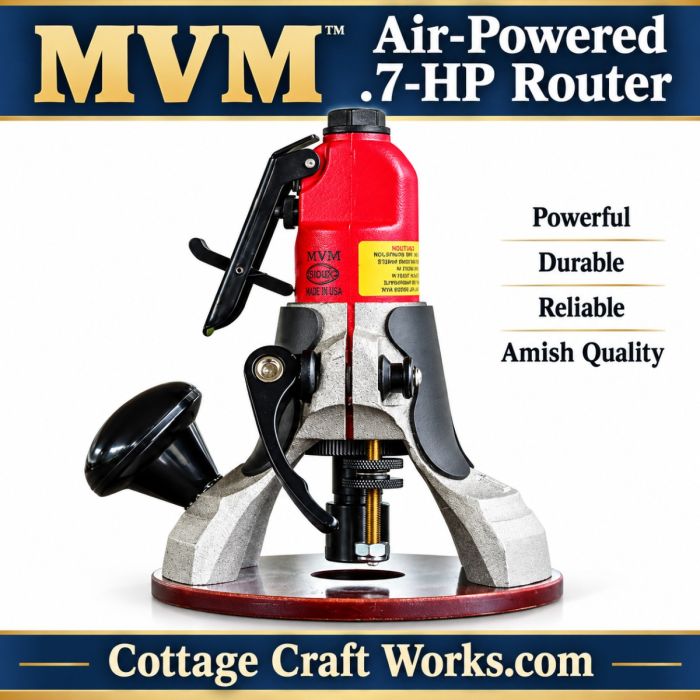

The MVM Air-Powered 0.7-HP Router combines the familiar operation of a woodworking router with the durability and simplicity of pneumatic power.

For years, factories, automotive body shops and production facilities have relied on pneumatic hand tools for demanding day-to-day use. The same basic advantages make an air-powered woodworking router especially useful in cabinet shops, furniture shops, off-grid workshops and other production environments already equipped with adequate compressed air.

MVM describes its Sioux-powered pneumatic router as a router of choice for serious craftspeople, noting its use in shops throughout the Midwest and its reputation for ease of handling and day-after-day durability.

Popular in Amish Cabinet & Woodworking Shops

Air-powered routers are particularly well suited to Amish woodworking and cabinet shops where compressed-air systems provide power for shop equipment without requiring conventional electric hand tools.

Instead of an electric motor and power cord, the router operates from the shop's compressed-air system.

But you don't have to operate an Amish or completely off-grid shop to benefit from pneumatic woodworking tools.

For a commercial cabinet, furniture or woodworking shop that already operates a sufficiently large air compressor, an air-powered router provides another option for routing operations without adding another electric motor to the workstation.

Designed for Everyday Woodworking

The manufacturer-designed router base incorporates several features intended for regular shop use.

Bottom Exhaust & Insulated Comfort Grip

The manufacturer specifies a bottom exhaust and comfort grip designed to insulate the operator from the cool temperatures normally associated with pneumatic tools.

This is particularly useful on a handheld pneumatic tool where expanding compressed air can make conventional metal surfaces uncomfortable during extended operation.

Microfine Depth Adjustment

The cam-action lever releases the motor, while a microfine depth-adjustment stop provides precise router-depth control.

That gives the operator the fine adjustment expected from a woodworking router rather than simply adapting a general-purpose pneumatic grinder to accept a router bit.

Uses Standard 1/4" Router Bits

The MVM-Sioux uses a 1/4-inch collet, allowing it to perform the woodworking operations associated with standard 1/4-inch-shank router bits.

The manufacturer's literature specifically states that the router performs virtually every task associated with 1/4-inch-shank router bits.

Accepts Standard Template Guides

The router is also designed to accept industry-standard template guides, making it useful for repetitive cabinet and woodworking operations performed with patterns or templates.

Flat, Smooth Router Base

MVM specifies its router sub-base as super-flat and super-smooth, providing a consistent surface for moving the router across the workpiece.

Why Choose an Air-Powered Wood Router?

Pneumatic tools have a long history in commercial manufacturing, automotive body shops and industrial environments.

For woodworking, an air-powered router can be especially attractive where:

• The shop already operates a large compressed-air system.
• Conventional electric hand tools are undesirable or unavailable.
• The shop operates partially or completely off-grid.
• Pneumatic tools are already the standard shop power system.
• A compact, lightweight router is preferred for repetitive routing work.
• The user wants a woodworking router specifically designed around a pneumatic motor.

This makes the MVM router particularly relevant for Amish furniture makers, cabinetmakers and other traditional or off-grid woodworking operations, while remaining useful to conventional woodworking shops equipped with adequate compressed air.

Air Compressor Requirements

An air-powered router is only as useful as the compressed-air system supplying it.

Cottage Craft Works recommends a compressor capable of maintaining at least 20 CFM at 90 PSI for operating this router.

Keep in mind that compressor tank size and advertised peak output are not the same as sustained airflow.

If the router will be used continuously or alongside other pneumatic equipment, the compressor and air-delivery system must have sufficient capacity for the combined demand.

The manufacturer literature lists airflow consumption for the MVM-SIOUX configuration at 26 CFM.

For a production shop, compressor sizing should therefore take into account continuous airflow requirements, other tools operating simultaneously, air-line size, pressure loss and duty cycle.

Specifications

* Specification verification recommended: The supplied MVM manufacturer sheet identifies the MVM-SIOUX motor as 1 HP, while the current Cottage Craft Works product information identifies this router as 0.7 HP. Confirm the motor currently supplied before publishing a different horsepower rating.

Key Features

25,000 RPM Router Speed — High operating speed for common woodworking routing operations.

Lightweight 2.4-lb. Design — Helps make the router easier to handle during repetitive work.

1/4" Collet — Designed for commonly available 1/4-inch-shank woodworking router bits.

5" Base — Provides a broad support surface around the cutting area.

Microfine Depth Control — Cam-action motor release and fine depth adjustment provide controlled setup.

Bottom Exhaust — Manufacturer-designed exhaust configuration for pneumatic operation.

Insulated Comfort Grip — Helps isolate the user's hand from the cold normally associated with compressed-air tools.

Standard Template Guide Compatibility — Allows use with common woodworking templates and guides.

Pneumatic Power — Well suited to Amish, off-grid and compressed-air-equipped woodworking shops.

Important Operating & Safety Information

This is a high-speed professional woodworking tool operating at approximately 25,000 RPM. Always follow the router, router-bit and compressed-air system manufacturer's operating and safety instructions.

Wear appropriate eye and hearing protection and use suitable respiratory or dust-control protection for the material being routed. Disconnect the compressed-air supply before changing router bits, making adjustments or servicing the tool.

Always verify that the router bit is suitable for the router's collet size and operating speed.

The compressed-air supply, regulator, hose and fittings must be appropriately sized and rated for the application. Never exceed the manufacturer's specified operating limits.

This router requires substantial sustained airflow. Verify compressor capacity before ordering.
