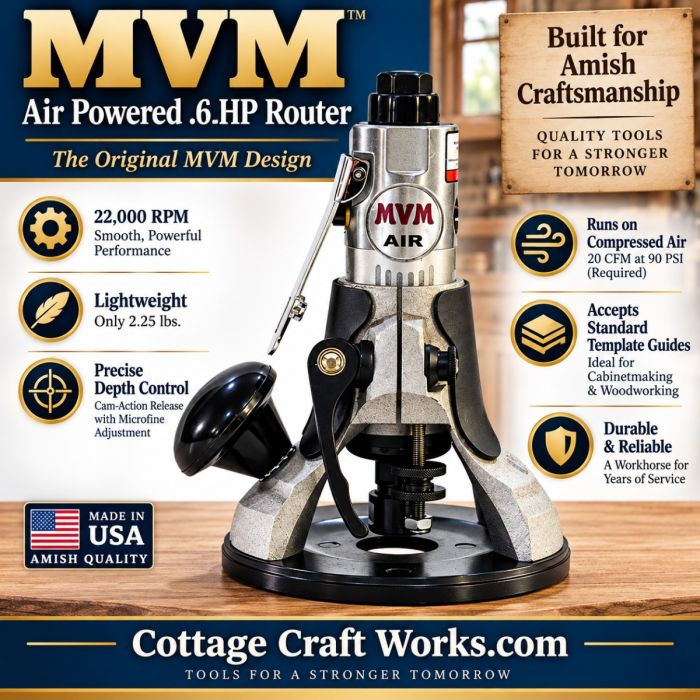

MVM Air-Powered 0.6-HP Pneumatic Router
Comfortable, economical, and precise—the original MVM pneumatic woodworking router.
The MVM-0 Air-Powered 0.6-HP Router is the original MVM design, a lightweight pneumatic router that has provided hundreds of hours of service for first-time and experienced router users. Powered by an air-driven motor, it suits Amish woodworking shops, off-grid cabinet and furniture shops, commercial woodworking operations, and shops where electric arcing tools are restricted.
The MVM-0 operates at 22,000 RPM, uses standard 1/4" shank router bits, weighs only 2.25 lbs., and features a 5" base with microfine depth control.
Requires a compressor capable of maintaining at least 20 CFM at 90 PSI.
USA Amish Product
Description / MVM Air-Powered 0.6-HP Pneumatic Router
MVM-0 Air-Powered Router — The Original MVM Pneumatic Router
Comfortable, economical and precise.
The MVM-0 0.6-HP Air-Powered Router is the original MVM pneumatic router design. The manufacturer describes this model as a workhorse that has provided hundreds of hours of satisfaction to first-time router users.
Instead of relying on a conventional electric router motor, the MVM-0 operates from compressed air. This makes it particularly useful in Amish cabinet and furniture shops, off-grid woodworking operations and commercial shops already equipped with a suitable compressed-air system.
Pneumatic hand tools have been used for decades in factories, automotive body shops and other commercial environments. The same basic approach can be applied to woodworking, providing a compact air-powered alternative to conventional electric hand routers.
Popular for Amish & Off-Grid Woodworking
Compressed air is commonly used to power equipment in Amish woodworking shops where conventional electric hand tools may not be used.
The MVM-0 gives these shops a purpose-built pneumatic woodworking router for cabinetmaking, furniture building, pattern routing and other routing operations.
You don't have to operate an Amish shop to take advantage of it.
A conventional woodworking or commercial cabinet shop with sufficient compressed-air capacity can also use the MVM-0 in place of an electric router for appropriate applications.
It can be especially useful where:
- Compressed air is already available throughout the shop
- Pneumatic tools are preferred over electric hand tools
- The shop operates partially or completely off-grid
- Electric arcing tools are restricted
- A compact, lightweight router is desirable
- Repetitive routing makes ease of handling important
Lightweight 2.25-Lb. Router
At approximately 2.25 lbs., the MVM-0 is exceptionally lightweight compared with many conventional woodworking routers.
This can be an important advantage during repetitive handheld routing where the operator must continually guide and reposition the router.
The lightweight design is paired with a 5" diameter router base, providing a broad support area while keeping the overall tool compact.
22,000 RPM Pneumatic Power
The MVM-0 operates at approximately 22,000 RPM and uses a standard 1/4" collet.
The manufacturer states that the router is designed to be used with one- or two-handed operation, and its literature specifies a combination of a cam-action motor release and microfine adjustment system for setting router depth.
This makes the MVM-0 a true woodworking-router configuration rather than simply a general-purpose pneumatic motor being used freehand.
Microfine Router Depth Adjustment
Accurate router depth is important for woodworking operations such as grooves, recesses, decorative profiles and pattern work.
The MVM-0 incorporates a cam-action lever that loosens/releases the motor, allowing the operator to position the motor within the router base.
A microfine adjustment stop provides precise depth control once the desired position is approached.
This provides both quick adjustment and fine control when setting up the router for a particular cut.
Top Exhaust & Insulated Comfort Grip
One important difference between this MVM-0 and the higher-powered MVM-Sioux router is the exhaust configuration.
The MVM-0 uses top exhaust.
According to the manufacturer's sheet, the router also incorporates a comfort grip that insulates against the cool temperatures normally associated with pneumatic tools.
Compressed air expands as it passes through a pneumatic motor, which can make air tools noticeably cold during operation. The insulated grip helps separate the operator's hand from that cold surface.
Ultra-Flat, Smooth Router Base
The router base is the surface that rides across the material, so its condition can directly affect how smoothly the router moves over a workpiece.
MVM describes the MVM-0 as having an ultra-flat, smooth-gliding sub-base.
A smooth base is especially useful for cabinet and furniture work where the router needs to travel consistently over finished or prepared surfaces.
Accepts Industry-Standard Template Guides
Pattern and template routing are common operations in furniture and cabinet shops.
According to the manufacturer's information, the MVM-0 base accepts industry-standard template guides.
That expands the usefulness of the router for repetitive woodworking operations where a template is used to reproduce the same cut or shape.
Precision-Machined Pneumatic Motor
The manufacturer's literature states that its motors are precisely machined with high-quality components. It also identifies the motor manufacturing source as Taiwan.
For the Cottage Craft Works product, the MVM-0 is supplied as a pneumatic woodworking-router assembly for use in Amish, off-grid and conventional compressed-air woodworking shops.
Compressor Requirements — Important Before Ordering
Unlike an electric router, a pneumatic router requires a compressor capable of continuously supplying sufficient air volume.
The MVM-0 is rated at:
20 CFM
Cottage Craft Works recommends a compressor capable of maintaining at least 20 CFM at 90 PSI.
This is an important distinction when selecting a compressor.
A compressor's tank size alone does not determine whether it can adequately operate the router. The compressor must be able to deliver the required airflow at the required operating pressure.
For a shop where other pneumatic equipment may operate at the same time, the compressor system should be sized for the combined air demand.
Air-line diameter, hose length, fittings, regulators and pressure drop can also affect the amount of air actually reaching the router.
For continuous production use, adequate compressor capacity is particularly important.
MVM-0 Specifications
| Specification | MVM-0 |
|---|---|
| Model | MVM-0 |
| Power Source | Compressed Air / Pneumatic |
| Horsepower | 0.6 HP |
| Speed | 22,000 RPM |
| Air Consumption | 20 CFM |
| Recommended Air Supply | Minimum 20 CFM maintained at 90 PSI |
| Collet | 1/4" |
| Base Diameter | 5" |
| Weight | 2.25 lbs. |
| Exhaust | Top Exhaust |
| Depth Adjustment | Cam-action release with microfine adjustment |
| Template Guides | Accepts industry-standard template guides |
| Operation | One- or two-handed |
| Primary Use | Woodworking / Cabinetmaking |
| Product Classification | USA Amish Product |
The 22,000 RPM, 20 CFM, 1/4" collet, 5" base, 0.6 HP and 2.25-lb. specifications agree with the MVM-0 manufacturer's table on the attached sheet.
MVM-0 Key Features
0.6-HP Pneumatic Power — Air-powered alternative to a conventional electric woodworking router.
22,000 RPM — High-speed operation for common routing applications.
20 CFM Air Consumption — Designed for shops with an appropriately sized compressed-air supply.
Lightweight 2.25-Lb. Design — Reduces the amount of tool weight the operator must maneuver during handheld routing.
1/4" Collet — Uses commonly available 1/4"-shank woodworking router bits.
5" Router Base — Broad support surface for handheld routing.
Microfine Depth Adjustment — Allows controlled router-depth setup.
Top Exhaust — Directs pneumatic motor exhaust from the top of the tool.
Insulated Comfort Grip — Helps isolate the operator from the cold normally associated with pneumatic tools.
Template-Guide Compatible — Accepts industry-standard template guides.
One- or Two-Handed Operation — Designed for versatile handling.
MVM-0 vs. MVM-Sioux Air Router
| Feature | MVM-0 | MVM-Sioux |
|---|---|---|
| Horsepower | 0.6 HP | 0.7 HP* |
| Speed | 22,000 RPM | 25,000 RPM |
| Air Consumption | 20 CFM | 26 CFM |
| Collet | 1/4" | 1/4" |
| Base Diameter | 5" | 5" |
| Weight | 2.25 lbs. | 2.4 lbs. |
| Exhaust | Top | Bottom |
| Best Positioning | Economical/lightweight | Higher-output model |
Choose the MVM-0 when you want the lighter, more economical original MVM pneumatic router and the lower 20-CFM air requirement better matches your compressor.
Consider the MVM-Sioux when the additional speed/output is important and your compressor has sufficient capacity for its greater air demand.
*The MVM-Sioux horsepower should remain based on the specification of the actual unit Cottage Craft Works currently sells; the older manufacturer sheet we reviewed lists a different horsepower figure.
Important Safety Information
The MVM-0 is a high-speed woodworking tool operating at approximately 22,000 RPM.
Always follow the router, router-bit, and compressed-air equipment manufacturers' operating and safety instructions.
Use appropriate:
- Eye protection
- Hearing protection
- Dust collection or respiratory protection appropriate for the material
- Secure work holding
- Properly rated pneumatic hoses and fittings
Disconnect the air supply before changing bits, making adjustments, clearing obstructions, or servicing the router.
Verify that every router bit is appropriate for the 1/4" collet and intended operating speed before use.
Never exceed the tool manufacturer's specified pressure or operating limits.
Woodworking operations can produce airborne dust. Some wood dust and coatings may present health hazards; use appropriate dust collection and personal protective equipment for the material being worked.
