Model 1200 Wagon Running Gear Kit

In stock

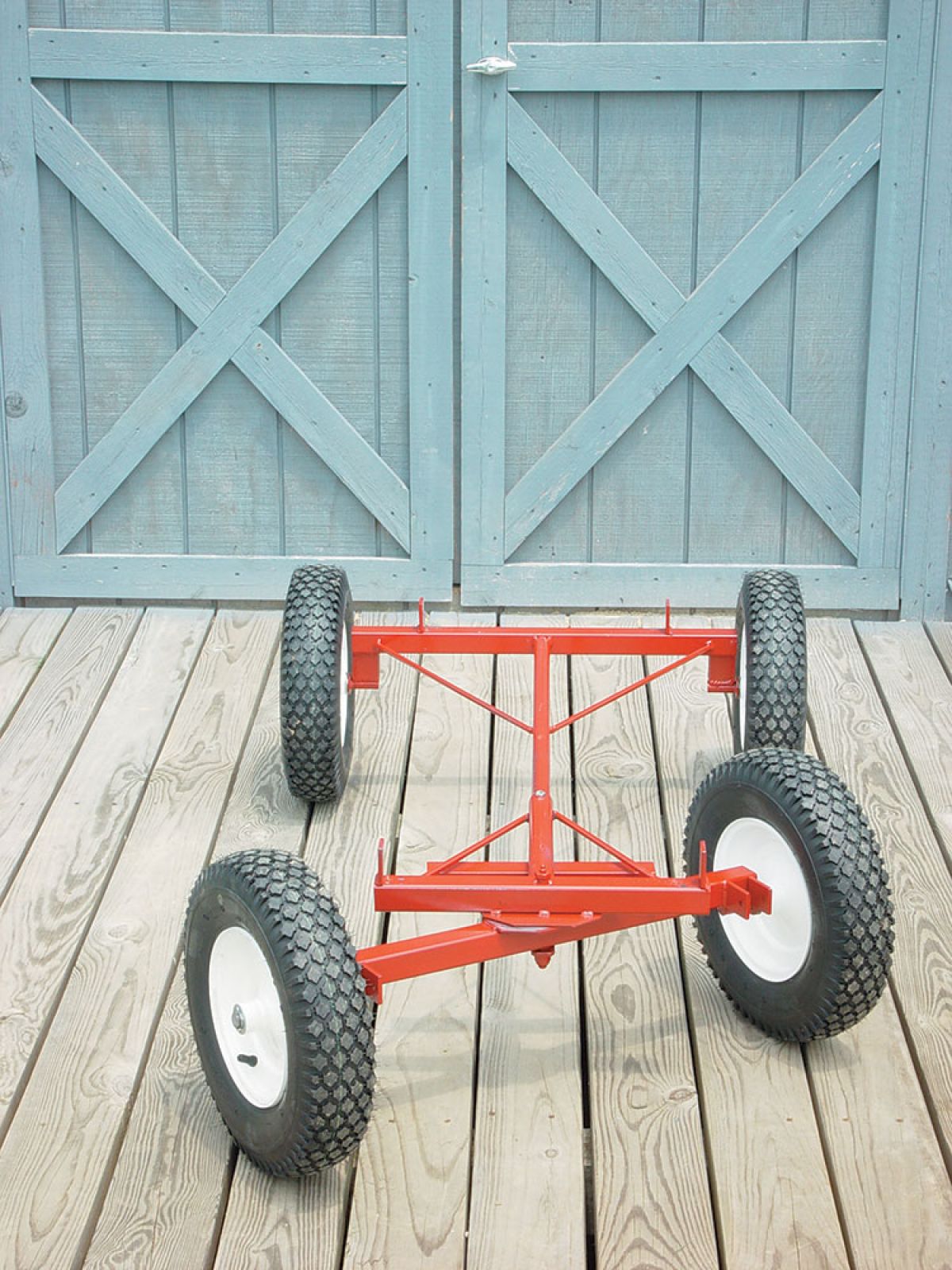

Now in black color instead of red pictured.

Wagon running gear, 1200 lb. capacity with 16" wheels. Use for hobby farm wagon, pony cart, and more.

Available with several wheel options.

This versatile running gear can be used on all types of wagons and pony carts. Perfect for a hit-n-miss ice cream wagon to building a miniature covered wagon.

G1110 Complete Wagon Running Gear Kit features standard large 16" x 400-8 Pneumatic Tires Load Capacity 1200 lbs. You may select the optional, flat-free solid rubber tires using the drop-down boxes.

Read more below >

Model 1200 Wagon Running Gear Kit
Model 1200 Wagon Running Gear Kit Model 1200 Wagon Running Gear Kit Side View Model 1200 Wagon Running Gear Kit Model 1200 Wagon Running Gear Kit Optional Shaft Model 1200 Wagon Running Gear Kit Model 1200 Wagon Running Gear Kit Model 1200 Pony Wagon Model 1200 Wagon Running Gear Pony Cart Model 1200 Gear Pony Wagon Model 1200 Wagon Running Gear Kit


Expect shipping to take 2-4 weeks.

Wheel options will add to the base price of the wagon gear equipped with standard air tires.

An option of automobile style (AS) steering (fixed axle with tie rods to turn the wheels) or fifth wheel (FW) steering where the complete axle and wheels turn on a kingpin (pictured). Weight 62 lbs. It Comes painted red.

This is the running gear used to build the 35" X 60" pony cart shown in the picture or build your own garden wagon design.

The overall length is approximately 45" from the front to the back wheelbase. (The wheels extend past the actual frame front and back about 1/2 of the wheel size)

Optional 12" extender bar available, which extends the length of the wagon frame 12"

The wheel width measures 34-1/2" wide to the outside and 25-1/2" inside the wheels, (frame width not including spindles) using the standard air rubber tires for narrow barn doors. The axle shafts are 3/4" in diameter x 4" long.

The welded brackets for the main beam supports are 16" wide. The frame is made with 1-1/2" x 1/8" square tubing. The two sections connect with 3/4" tubing. The load weight and pulling strength are then supported by the main beams.

Priced without a tongue. Add tongue options using the drop-down boxes. Select a tractor or hand pull tongue to use on the automobile style steering or single miniature pony shaft or miniature team set with neck yoke and doubletree to use on the fifth wheel. Miniature shafts are made for up to a 40" pony and will only fit the automobile style steering option (AS) option. Additional shipping may be required for the goat or pony shaft.

You will need to supply a wooden tongue for the team set. If you select the fifth wheel (FW) model for a miniature team you will also need to select the miniature team set & FW adapter that will span across the front axle.

Please note: the single miniature pony shaft PS-350 will be made collapsible (bolt together at the doubletree) for UPS shipping. It is only available for the (AS) automobile steering wagon that uses tie rods connected to the wheels leading into a single center tongue connection. The PS-350 Shaft measures approximately 71" long, (50" to the doubletree) 22" wide at the doubletree, and 17" wide at the shaft ends with the wagon connector tapering down to 2" wide on the back end.

Pony Shaft designated (AS) is for Automobile Steer and (FW) is for Fifth Wheel.

We can also do a larger breed shaft in a kit with the pipe cut ready to weld and paint. This shaft will measure approximately 91" X 24" and also requires the (AS) automobile steering option. Please email us for the shipping cost.

Shafts for fifth-wheel steering, (pictured) will need to be sent by truck freight. Please email for the shipping cost.

The double miniature team set includes the doubletree and neck yoke. The tongue will need to be made from wood (you supply). If you select fifth-wheel steering, you will also need the miniature team set & FW adapter to add your own tongue to span the width of the axle.

We also offer a goat shaft in the (AS) automobile steer option only.

Make selections using the drop-down boxes.

Recommend purchasing Optional Rear Band Brakes if to be used as a pony cart. (See pictures)
Purchase this wagon gear and complete hardware kit to build the CCW Pony Cart Pictured in all green Click Here for More Information.
We also offer full-sized steel spoke roller bearing wheel farm wagon gears. Click Here for more information.
