John Deere Vintage 640, 660 Hay Rake Parts
Aftermarket replacement parts for vintage John Deere hay rakes, including rake gearbox bearings and seals, rake-bar bearings and seals, shafts, retaining hardware, and related repair parts. Reported applications on this catalog page include John Deere 640 and 660 rakes.
Review the parts below, then use the product drop-down menu to select the part needed. To order another part from the same menu, add the first selection to the cart, choose Continue Shopping, and return to the menu.
Additional shipping charges may apply to orders exceeding the $14.50 base shipping rate. Parts ship directly from an Amish-owned business that does not use computers. Please allow approximately 1–2 weeks for shipping.
Description / John Deere Vintage 640, 660 Hay Rake Parts
Keep older John Deere hay rakes working with hard-to-find aftermarket replacement parts. This selection covers the John Deere Rake Parts catalog page beginning with ESH # JD 6500. Available components include a rake gearbox bearing kit, bearings with races, seals, a rake-bar bearing kit, dust cover, shaft, nut, retaining ring and rake dog.
Reported applications shown in the supplier catalog include John Deere 640 and 660 rake gearbox and rake-bar components. Always compare the original part number and application information with the original equipment parts manual before ordering.
Shipping and handling starts with a $14.50 base rate covering processing, packing, drop shipping, and typical shipping costs for a small parts order. Larger or heavier orders may require an additional shipping invoice.
Fitment & Ordering Information
Part numbers and reported applications are taken from the supplier catalog. Cottage Craft Works does not guarantee fit for every application. Verify the original part number, John Deere model, serial-number range where applicable, dimensions and configuration before ordering. Returned parts are subject to the applicable Cottage Craft Works restocking policy.
John Deere® is a registered trademark of Deere & Company. These aftermarket parts are not represented as being manufactured or endorsed by Deere & Company.

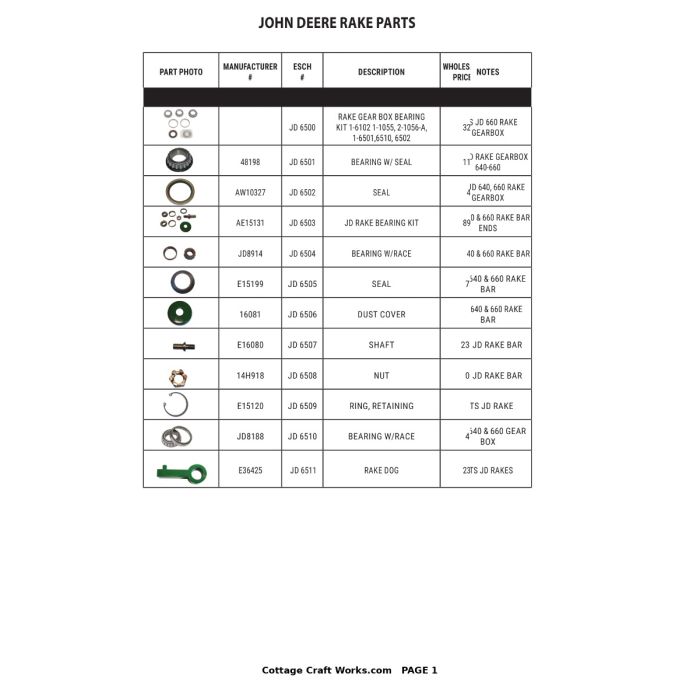

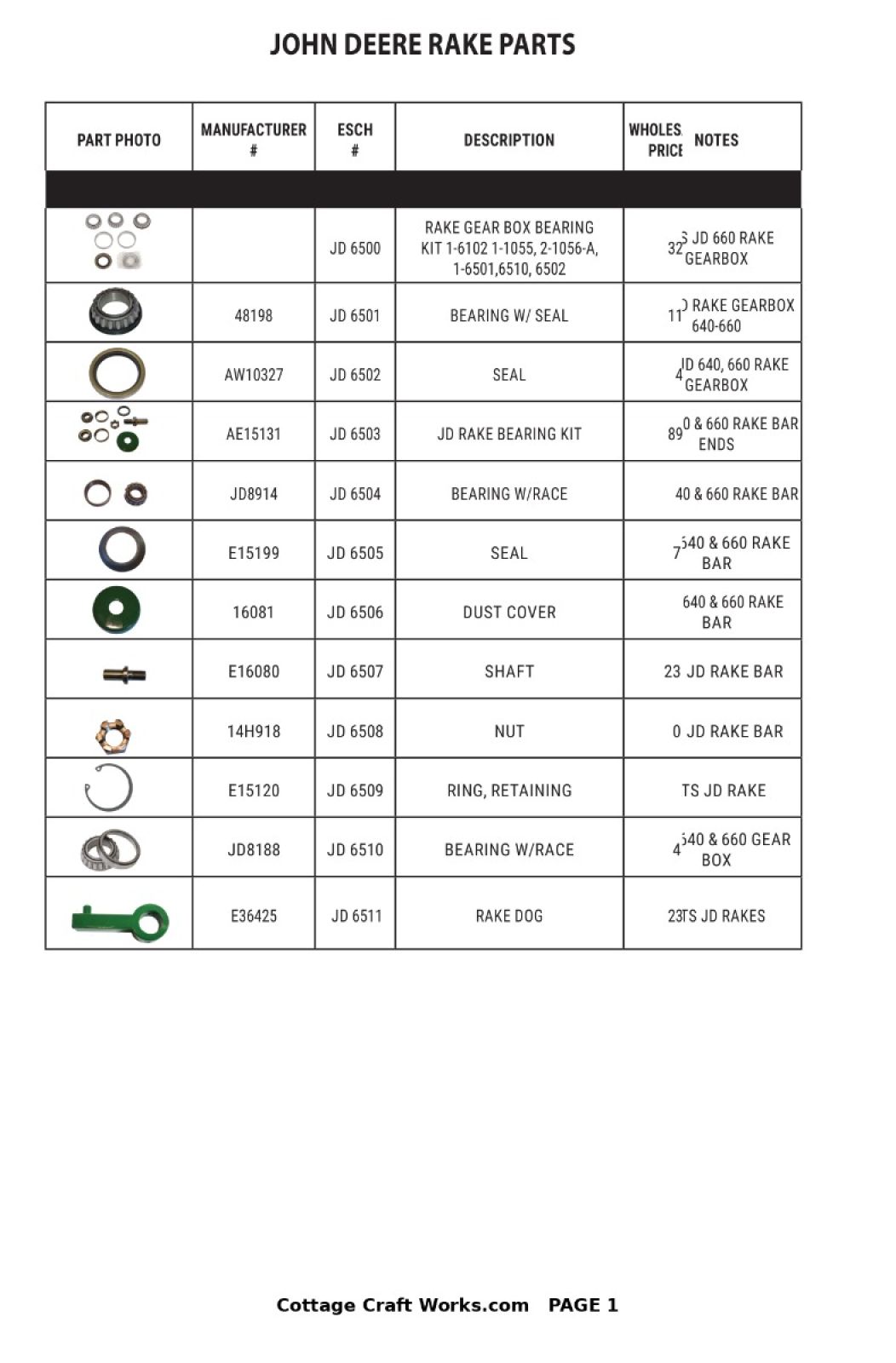

Available John Deere Rake Parts — Page 1
ESH # JD 6500 — RAKE GEAR BOX BEARING KIT 1-6102 1-1055, 2-1056-A, 1-6501, 6510, 6502 — FITS JD 660 RAKE GEARBOX
48198 — ESH # JD 6501 — BEARING W/ SEAL — FITS JD RAKE GEARBOX 640-660
AW10327 — ESH # JD 6502 — SEAL — FITS JD 640, 660 RAKE GEARBOX
AE15131 — ESH # JD 6503 — JD RAKE BEARING KIT — FITS 640 & 660 RAKE BAR ENDS
JD8914 — ESH # JD 6504 — BEARING W/RACE — FITS 640 & 660 RAKE BAR
E15199 — ESH # JD 6505 — SEAL — FITS 640 & 660 RAKE BAR
16081 — ESH # JD 6506 — DUST COVER — FITS 640 & 660 RAKE BAR
E16080 — ESH # JD 6507 — SHAFT — FITS JD RAKE BAR
14H918 — ESH # JD 6508 — NUT — FITS JD RAKE BAR
E15120 — ESH # JD 6509 — RING, RETAINING — FITS JD RAKE
JD8188 — ESH # JD 6510 — BEARING W/RACE — FITS 640 & 660 GEAR BOX
E36425 — ESH # JD 6511 — RAKE DOG — FITS JD RAKES
