J.D. Vintage Square Baler Parts

Aftermarket replacement parts for John Deere vintage square balers models 24T, 247, 336, 337, 348

Parts are being manufactured by an Amish company.

Priced a la carte, review parts by page number below, then using the page number drop-down boxes, select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on "Please Select" again.

Additional Shipping may be required for orders costing more than the $14.50 base rate.

Read more about available parts and shipping below the drop-down boxes >

SKU FEJDBP

Customizable Options:

  $0.00

Description / J.D. Vintage Square Baler Parts

John Deere® is a Registered Trademark of the John Deere Company, which does not manufacture or endorse these parts.

Since parts ship directly from an Amish-owned business without computers you should expect shipping to normally take 1-2 weeks to ship. However, those parts listed with * (Not Stocked) may take 3-6 weeks as they are not routinely stocked at our Amish distributor and will need to be shipped from a larger distribution shop. Not Stocked items will not be available to purchase in the drop-down boxes. Drop us an email with the parts needed and your zip code for pricing.

It would be data-prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum of $14.50 flat base rate on all items regardless of the size. This is to cover the cost of processing, packing, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal, we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

With the part numbers, we have listed below the models that reportedly fit. We do not guarantee that parts will fit all models listed since these are from listings provided to us. You should always verify the original parts manual for your model. A 25% restocking fee will apply to returned parts.

Note: The Amish use horse-drawn farm equipment converted with gasoline motors in the place of a tractor. The below references for motor mounts pertain to those types of conversions.

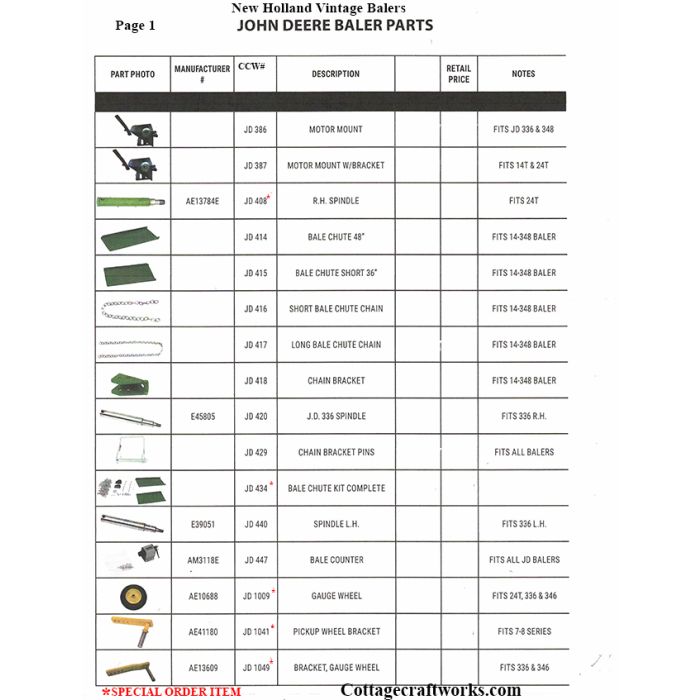

Page 1

                                          JD-386 Motor Mount 336, 348

                                          JD-387 Motor Mount 247-147

  *AE1378E JD408 RH Spindle 24T (Not Stocked Special Order)

                                          JD 414 Bale Chute-48” 14-348

                                          JD 415 Bale Chute Short 36” 14-348

                                          JD 416 Short Bale Chute Chain 14-348

                                          JD 417 Long Bale Chute Chain 14-348

                                          JD 418 Chain Bracket 14-438

E45805 JD 420 J.D. 336 RH Spindle 336

                                           JD 429 Chain Bracket Pins

                                          *JD 434 Bale Chute Kit Complete (Not Stocked Special Order)

E39051 JD 440 Spindle LH 336

*AM3118*E JD 447 Bale Counter (All JD Balers) (Not Stocked Special Order)

AE10688 JD 1009 Guage Wheel 24T, 336, 346

AE41180 JD 1041 Pickup Wheel Bracket 7-8 Series

*AE13609 JD 1049 Bracket, Gauge Wheel 336, 346 (Not Stocked Special Order)

Page 2

E155566 JD 4074 Plunger Bushing 336-338

E4448 JD 4078 JD Hay Wedge 24-348

JD8680 JD 4080 Plunger Roller 336-348

E18913 JD 4087 Stationary Knife 24T

E14573 JD 4088 JD Plunger Knife 24T

*E42276 JD 4097 Rail RH Side 336-348 (Not Stocked Special Order)

*E44835JD 4106 Angle Rail 336-348 (Not Stocked Special Order)

AE12520E JD 4114 Plunger Pin 24T, 14T

E50098 JD 4132 JD Dog Spring (All JD Balers)

E50091 JD 4132A Spring Clip (All JD Balers)

*AE23900 JD 4136 Crank (Bale Tension) (Not Stocked Special Order)

*AE14543 JD 4137 24T Bridge (Not Stocked Special Order)

*19H2275 JD 4137-A Bolt (Bridge) 24T (Not Stocked Special Order)

*AE23806 JD 4138 Crank (Pickup Drive) 336 (Not Stocked Special Order)

*E42165 JD 4141 JD Rail, 32” 336 (Not Stocked Special Order)

Page 3

E41833 BRT 1006 JD 336 Super Sweep Pickup Twine 336-348

2765E BRT1007 JD 14T Standard Tine 14T, 24T

*E41839 JD 1069 JD SS Pickup Guard 327, 337, 338, 348 (Not Stocked Special Order)

*E64581 JD 1069A JD Pickup Guard 327, 337, 338, 348 (Not Stocked Special Order)

AE28843 JD 1070 JD 1” Hex Bearing (Pickup)

JD9420 JD 1070A 1-1/4 Hex Bearing

BD14049 JD 1072 JD PU Guard 24T, 14T

AE11579 JD 1110 Bearing New Style JD Pickup (Replace Rivet Style w/nut)

               *JD 1117 Guage Wheel JD 7 & 9 Series (Not Stocked Special Order)

E41454 JD 3053 Bearing JD Stuffer 336-348

AE29876 JD 3098 Hex Bearing 7/8 336-348

JD 9421 JD 4009 Crank Bearing Arm

JD 8646 JD 4010 JD Plunger Bearing 336T-348

E42088 JD 4065 JD Plunger Knife (Large) 336-348

E39069 JD 4066 Plunger Pin JD 327, 328, 336, 337, 338

*E17777 JD 4027 JD Stationary Knife 336-348 (Not Stocked Special Order)

Page 4

AE39974 JD 5066 Knife Arm, (Complete with knife and Roller)

*E61191 JD 5066A Bushing JD Knife Arm (Not Stocked Special Order)

          *JD 5066B Knife Arm (Knife arm without roller) (Not Stocked Special Order)

AE13632E JD 5067 Knotter Brake 24T

AE48700 JD 5068 JD Bill Hook (Fits All JD Balers)

E43727 JD 5069 JD Pinion Bill Hook (Fits All JD Balers)

E44026 JD 5070 Pinion (Fits All JD Balers)

AE 38658 JD 5074 Brake Assembly 327, 328, 336, 337, 338

                 *JD 5081 Needle, Yoke 347, 348 (Not Stocked Special Order)

E61164 JD 5106 Knife (Twine) (Fits JD Knife Arm)

19M7640 JD 5106A Cap Screw, 5 12 (Fits JD Twine Knife)

 AE25363 JD 5108 Tucker Finger Shaft 336 ,346

 JD 5108A JD Tucker Finger Update Kit 336, 346

AE14509A JD 5109 JD Tucker Finger Shaft 24T

                  *JD 5109A JD Tucker Finger Update Kit 24T, 224 (Not Stocked Special Order)

E15517 JD 5110 Pin

Page 5

E16072 JD 4142 Shim, .06 336, 337, 348

E16073 JD 4143 Shim, .03 336, 337, 348

E21274 JD 4147 Angle Restricter (Fits Most JD Balers)

*1111221 JD 4158 Cotter Pin (Fits JD Plunger) (Not Stocked Special Order)

E14573 FH311771 JD 4161 Wear Block 336, 346, 328, 348

E15459 JD 4170 Wear Pad 24T

*E19709 E6390 FH 304063 JD 4173 Handl 336 and Later (Not Stocked Special Order)

BP14627 JD4175 Restricter Plate 147

AE24042 JD 5030 JD Needle Yoke 336, 346, 327, 337, 328, 338, 24T

AE12488E JD 5032 Needle Yoke 24T

AE36262 JD 5034 Needle JD 336, 346, 327, 337, 328, 338, 24T

E78684 JD 5040 Twine Finger Spring JD 336, 337

E64235 JD 5050 JD Wiper (Fits JD Knife Arm)

*19M6614 JD 5050A Cap Screw, 6 12 (Fits JD Wiper) (Not Stocked Special Order)

AE1006E JD 5052 Needle Yoke 14T

AM293A JD 5058 Needle 14T

Page 6

E42023 JD 5111 Eye Bolt

          *JD5116 Knotter Shaft 348 (Not Stocked Special Order)

            JD 5119 JD Finger W/Mount 348

            JD 5120 JD Update, Rod Only

            JD 5121 JD Update Rod End

            JD 5122 S Hook

           *JD 5123 JD Shaft Mount (Not Stocked Special Order)

           *JD 5126 Shaft (Knotter) 336 (Not Stocked Special Order)

           *JD 5127 JD Tucker Finger Shaft 327, 337, 347 (Not Stocked Special Order)

           *JD 5127A Update Kit 327, 337, 347 (Not Stocked Special Order)

E14739 JD 5128 Link Needle Lift 24T

*AE39977 JD 5133 Gear 336, 346, 24T, 327, 337, 347 (Not Stocked Special Order)

*FH312371 JD 5134 Gear 328, 338, 348 (Not Stocked Special Order)

*E37426 FH312219 JD 5143 Spacer (Needle Frame) 336, 327, 337, 338 (Not Stocked Special Order)

*AE406643 JD 5152 Sheild Side Cover 336, 346 (Not Stocked Special Order)

Page 7

*F42519 JD 5153 Sheild Knotter Cover 336, 346 (Not Stocked Special Order)

BP13931 JD 7012 JD Shear Pin (Made in USA) 336, 24T, 14T

BP 14125 JD 7013 JD Shear Pin 348











































































































John Deere® is a Registered Trademark of the John Deere Company, which does not manufacture or endorse these parts.

Since parts ship directly from an Amish-owned business without computers you should expect shipping to normally take 1-2 weeks to ship. However, those parts listed with * (Not Stocked) may take 3-6 weeks as they are not routinely stocked at our Amish distributor and will need to be shipped from a larger distribution shop. Not Stocked items will not be available to purchase in the drop-down boxes. Drop us an email with the parts needed and your zip code for pricing.

It would be data prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum of $14.50 flat base rate on all items regardless of the size. This is to cover the cost of processing, pack, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal, we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

With the part numbers we have listed below the models that reportedly fit. We do not guarantee that parts will fit all models listed since these are from listings provided to us. You should always verify with the original parts manual for your model. A 25% restocking fee will apply to returned parts.

Note: The Amish use horse drawn farm equipment converted with gasoline motors in the place of a tractor. The below references for motor mounts pertain to those types of conversions.

Page 1

                                          JD-386 Motor Mount 336, 348 $317.65-349.41

                                          JD-387 Motor Mount 247-147 335.-368.50

  *AE1378E JD408 RH Spindle 24T (Not Stocked Special Order)

                                          JD 414 Bale Chute-48” 14-348 152.73-175.63

                                          JD 415 Bale Chute Short 36” 14-348 129.61-149.05

                                          JD 416 Short Bale Chute Chain 14-348 4.88-8.05

                                          JD 417 Long Bale Chute Chain 14-348 7.78-12.83

                                          JD 418 Chain Bracket 14-438 14.98-24.71

E45805 JD 420 J.D. 336 RH Spindle 336 72.81-98.29

                                           JD 429 Chain Bracket Pins 1.06-2.12

                                          *JD 434 Bale Chute Kit Complete (Not Stocked Special Order)

E39051 JD 440 Spindle LH 336 54.49-73.56

*AM3118*E JD 447 Bale Counter (All JD Balers) (Not Stocked Special Order)

AE10688 JD 1009 Guage Wheel 24T, 336, 346 15.50-25.57

AE41180 JD 1041 Pickup Wheel Bracket 7-8 Series

*AE13609 JD 1049 Bracket, Gauge Wheel 336, 346 (Not Stocked Special Order)

Page 2

E155566 JD 4074 Plunger Bushing 336-338 15.44-25.47

E4448 JD 4078 JD Hay Wedge 24-348 29.09-47.99

JD8680 JD 4080 Plunger Roller 336-348 31.03-51.19

E18913 JD 4087 Stationary Knife 24T 87.73-118.43

E14573 JD 4088 JD Plunger Knife 24T 87.32-117.88

*E42276 JD 4097 Rail RH Side 336-348 (Not Stocked Special Order)

*E44835JD 4106 Angle Rail 336-348 (Not Stocked Special Orde

AE12520E JD 4114 Plunger Pin 24T, 14T 34.70-57.25

E50098 JD 4132 JD Dog Spring (All JD Balers) 6.76-11.15

E50091 JD 4132A Spring Clip (All JD Balers) 4.50-7.42

*AE23900 JD 4136 Crank (Bale Tension) (Not Stocked Special Order)

*AE14543 JD 4137 24T Bridge (Not Stocked Special Order)

*19H2275 JD 4137-A Bolt (Bridge) 24T (Not Stocked Special Order)

*AE23806 JD 4138 Crank (Pickup Drive) 336 (Not Stocked Special Order)

*E42165 JD 4141 JD Rail, 32” 336 (Not Stocked Special Order)

Page 3

E41833 BRT 1006 JD 336 Super Sweep Pickup Twine 336-348 3.44-5.67

2765E BRT1007 JD 14T Standard Tine 14T, 24T- 4.56-7.52

*E41839 JD 1069 JD SS Pickup Guard 327, 337, 338, 348 (Not Stocked Special Order)

*E64581 JD 1069A JD Pickup Guard 327, 337, 338, 348 (Not Stocked Special Order)

AE28843 JD 1070 JD 1” Hex Bearing (Pickup) 15.50-25.57

JD9420 JD 1070A 1-1/4 Hex Bearing 20.46-33.75

BD14049 JD 1072 JD PU Guard 24T, 14T 32.49-53.60

AE11579 JD 1110 Bearing New Style JD Pickup (Replace Rivet Style w/nut) 20.78-34.28

               *JD 1117 Guage Wheel JD 7 & 9 Series (Not Stocked Special Order)

E41454 JD 3053 Bearing JD Stuffer 336-348 20.78-34.28

AE29876 JD 3098 Hex Bearing 7/8 336-348 11.23-18.52

JD 9421 JD 4009 Crank Bearing Arm 29.66-48.93

JD 8646 JD 4010 JD Plunger Bearing 336T-348 11.63-19.18

E42088 JD 4065 JD Plunger Knife (Large) 336-348 89.97-103.45

E39069 JD 4066 Plunger Pin JD 327, 328, 336, 337, 338 29.26-48.27

E17777 JD 4027 JD Stationary Knife 336-348

Page 4

AE39974 JD 5066 Knife Arm, (Complete with knife and Roller) 138.00-158.70

*E61191 JD 5066A Bushing JD Knife Arm (Not Stocked Special Order)

          *JD 5066B Knife Arm (Knife arm without roller) (Not Stocked Special Order)

AE13632E JD 5067 Knotter Brake 24T 17.04-28.11

AE48700 JD 5068 JD Bill Hook (Fits All JD Balers) 88.99-102.33

E43727 JD 5069 JD Pinion Bill Hook (Fits All JD Balers) 48.50-80.00

E44026 JD 5070 Pinion (Fits All JD Balers) 57.81-78.04

AE 38658 JD 5074 Brake Assembly 327, 328, 336, 337, 338 17.04-28.11

                 *JD 5081 Needle, Yoke 347, 348 (Not Stocked Special Order)

E61164 JD 5106 Knife (Twine) (Fits JD Knife Arm) 11.12-18.34

19M7640 JD 5106A Cap Screw, 5 12 (Fits JD Twine Knife) .20-.40

 AE25363 JD 5108 Tucker Finger Shaft 336 ,346 76.32-103.00

 JD 5108A JD Tucker Finger Update Kit 336, 346 190.39-218.94

AE14509A JD 5109 JD Tucker Finger Shaft 24T 69.70-94.09

                  *JD 5109A JD Tucker Finger Update Kit 24T, 224 (Not Stocked Special Order)

E15517 JD 5110 Pin 19.97-32.95

Page 5

E16072 JD 4142 Shim, .06 336, 337, 348 3.06-6.12

E16073 JD 4143 Shim, .03 336, 337, 348 3.74-7.48

E21274 JD 4147 Angle Restricter (Fits Most JD Balers) 11.88-19.60

*1111221 JD 4158 Cotter Pin (Fits JD Plunger) (Not Stocked Special Order)

E14573 FH311771 JD 4161 Wear Block 336, 346, 328, 348 40.84-67.38

E15459 JD 4170 Wear Pad 24T 34.58-57.00

*E19709 E6390 FH 304063 JD 4173 Handl 336 and Later (Not Stocked Special Order)

BP14627 JD4175 Restricter Plate 147 30.63-50.53

AE24042 JD 5030 JD Needle Yoke 336, 346, 327, 337, 328, 338, 24T 314.16-345.57

AE12488E JD 5032 Needle Yoke 24T 320.70

AE36262 JD 5034 Needle JD 336, 346, 327, 337, 328, 338, 24T 107.94-124.13

E78684 JD 5040 Twine Finger Spring JD 336, 337 8.71-14.37

E64235 JD 5050 JD Wiper (Fits JD Knife Arm) 3.94-6.50

*19M6614 JD 5050A Cap Screw, 6 12 (Fits JD Wiper) (Not Stocked Special Order)

AE1006E JD 5052 Needle Yoke 14T 312.41-343.65

AM293A JD 5058 Needle 14T 130.76-150.37



Page 6

E42023 JD 5111 Eye Bolt 16.69-27.53

          *JD5116 Knotter Shaft 348 (Not Stocked Special Order)

            JD 5119 JD Finger W/Mount 348 46.82-77.25

            JD 5120 JD Update, Rod Only 11.21-18.49

            JD 5121 JD Update Rod End 10.43-17.20

            JD 5122 S Hook 1.55-2.55

           *JD 5123 JD Shaft Mount (Not Stocked Special Order)

           *JD 5126 Shaft (Knotter) 336 (Not Stocked Special Order)

           *JD 5127 JD Tucker Finger Shaft 327, 337, 347 (Not Stocked Special Order)

           *JD 5127A Update Kit 327, 337, 347 (Not Stocked Special Order)

E14739 JD 5128 Link Needle Lift 24T 30.86-50.91

*AE39977 JD 5133 Gear 336, 346, 24T, 327, 337, 347 (Not Stocked Special Order)

*FH312371 JD 5134 Gear 328, 338, 348 (Not Stocked Special Order)

E37426 FH312219 JD 5143 Spacer (Needle Frame) 336, 327, 337, 338

*AE406643 JD 5152 Sheild Side Cover 336, 346 (Not Stocked Special Order)

Page 7

*F42519 JD 5153 Sheild Knotter Cover 336, 346 (Not Stocked Special Order)

BP13931 JD 7012 JD Shear Pin (Made in USA) 336, 24T, 14T 1.16-2.32

BP 14125 JD 7013 JD Shear Pin 348 6.00-9.90

























































































John Deere® is a Registered Trademark of the John Deere Company, which does not manufacture or endorse these parts.

Since parts ship directly from an Amish-owned business without computers you should expect shipping to normally take 1-2 weeks to ship. However, those parts listed with * (Not Stocked) may take 3-6 weeks as they are not routinely stocked at our Amish distributor and will need to be shipped from a larger distribution shop. Not Stocked items will not be available to purchase in the drop-down boxes. Drop us an email with the parts needed and your zip code for pricing.

It would be data prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum of $14.50 flat base rate on all items regardless of the size. This is to cover the cost of processing, pack, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal, we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

With the part numbers we have listed below the models that reportedly fit. We do not guarantee that parts will fit all models listed since these are from listings provided to us. You should always verify with the original parts manual for your model. A 25% restocking fee will apply to returned parts.

Note: The Amish use horse drawn farm equipment converted with gasoline motors in the place of a tractor. The below references for motor mounts pertain to those types of conversions.

Page 1

                                          JD-386 Motor Mount 336, 348 $317.65-349.41

                                          JD-387 Motor Mount 247-147 335.-368.50

  *AE1378E JD408 RH Spindle 24T (Not Stocked Special Order)

                                          JD 414 Bale Chute-48” 14-348 152.73-175.63

                                          JD 415 Bale Chute Short 36” 14-348 129.61-149.05

                                          JD 416 Short Bale Chute Chain 14-348 4.88-8.05

                                          JD 417 Long Bale Chute Chain 14-348 7.78-12.83

                                          JD 418 Chain Bracket 14-438 14.98-24.71

E45805 JD 420 J.D. 336 RH Spindle 336 72.81-98.29

                                           JD 429 Chain Bracket Pins 1.06-2.12

                                          *JD 434 Bale Chute Kit Complete (Not Stocked Special Order)

E39051 JD 440 Spindle LH 336 54.49-73.56

*AM3118*E JD 447 Bale Counter (All JD Balers) (Not Stocked Special Order)

AE10688 JD 1009 Guage Wheel 24T, 336, 346 15.50-25.57

AE41180 JD 1041 Pickup Wheel Bracket 7-8 Series

*AE13609 JD 1049 Bracket, Gauge Wheel 336, 346 (Not Stocked Special Order)

Page 2

E155566 JD 4074 Plunger Bushing 336-338 15.44-25.47

E4448 JD 4078 JD Hay Wedge 24-348 29.09-47.99

JD8680 JD 4080 Plunger Roller 336-348 31.03-51.19

E18913 JD 4087 Stationary Knife 24T 87.73-118.43

E14573 JD 4088 JD Plunger Knife 24T 87.32-117.88

*E42276 JD 4097 Rail RH Side 336-348 (Not Stocked Special Order)

*E44835JD 4106 Angle Rail 336-348 (Not Stocked Special Orde

AE12520E JD 4114 Plunger Pin 24T, 14T 34.70-57.25

E50098 JD 4132 JD Dog Spring (All JD Balers) 6.76-11.15

E50091 JD 4132A Spring Clip (All JD Balers) 4.50-7.42

*AE23900 JD 4136 Crank (Bale Tension) (Not Stocked Special Order)

*AE14543 JD 4137 24T Bridge (Not Stocked Special Order)

*19H2275 JD 4137-A Bolt (Bridge) 24T (Not Stocked Special Order)

*AE23806 JD 4138 Crank (Pickup Drive) 336 (Not Stocked Special Order)

*E42165 JD 4141 JD Rail, 32” 336 (Not Stocked Special Order)

Page 3

E41833 BRT 1006 JD 336 Super Sweep Pickup Twine 336-348 3.44-5.67

2765E BRT1007 JD 14T Standard Tine 14T, 24T- 4.56-7.52

*E41839 JD 1069 JD SS Pickup Guard 327, 337, 338, 348 (Not Stocked Special Order)

*E64581 JD 1069A JD Pickup Guard 327, 337, 338, 348 (Not Stocked Special Order)

AE28843 JD 1070 JD 1” Hex Bearing (Pickup) 15.50-25.57

JD9420 JD 1070A 1-1/4 Hex Bearing 20.46-33.75

BD14049 JD 1072 JD PU Guard 24T, 14T 32.49-53.60

AE11579 JD 1110 Bearing New Style JD Pickup (Replace Rivet Style w/nut) 20.78-34.28

               *JD 1117 Guage Wheel JD 7 & 9 Series (Not Stocked Special Order)

E41454 JD 3053 Bearing JD Stuffer 336-348 20.78-34.28

AE29876 JD 3098 Hex Bearing 7/8 336-348 11.23-18.52

JD 9421 JD 4009 Crank Bearing Arm 29.66-48.93

JD 8646 JD 4010 JD Plunger Bearing 336T-348 11.63-19.18

E42088 JD 4065 JD Plunger Knife (Large) 336-348 89.97-103.45

E39069 JD 4066 Plunger Pin JD 327, 328, 336, 337, 338 29.26-48.27

E17777 JD 4027 JD Stationary Knife 336-348

Page 4

AE39974 JD 5066 Knife Arm, (Complete with knife and Roller) 138.00-158.70

*E61191 JD 5066A Bushing JD Knife Arm (Not Stocked Special Order)

          *JD 5066B Knife Arm (Knife arm without roller) (Not Stocked Special Order)

AE13632E JD 5067 Knotter Brake 24T 17.04-28.11

AE48700 JD 5068 JD Bill Hook (Fits All JD Balers) 88.99-102.33

E43727 JD 5069 JD Pinion Bill Hook (Fits All JD Balers) 48.50-80.00

E44026 JD 5070 Pinion (Fits All JD Balers) 57.81-78.04

AE 38658 JD 5074 Brake Assembly 327, 328, 336, 337, 338 17.04-28.11

                 *JD 5081 Needle, Yoke 347, 348 (Not Stocked Special Order)

E61164 JD 5106 Knife (Twine) (Fits JD Knife Arm) 11.12-18.34

19M7640 JD 5106A Cap Screw, 5 12 (Fits JD Twine Knife) .20-.40

 AE25363 JD 5108 Tucker Finger Shaft 336 ,346 76.32-103.00

 JD 5108A JD Tucker Finger Update Kit 336, 346 190.39-218.94

AE14509A JD 5109 JD Tucker Finger Shaft 24T 69.70-94.09

                  *JD 5109A JD Tucker Finger Update Kit 24T, 224 (Not Stocked Special Order)

E15517 JD 5110 Pin 19.97-32.95

Page 5

E16072 JD 4142 Shim, .06 336, 337, 348 3.06-6.12

E16073 JD 4143 Shim, .03 336, 337, 348 3.74-7.48

E21274 JD 4147 Angle Restricter (Fits Most JD Balers) 11.88-19.60

*1111221 JD 4158 Cotter Pin (Fits JD Plunger) (Not Stocked Special Order)

E14573 FH311771 JD 4161 Wear Block 336, 346, 328, 348 40.84-67.38

E15459 JD 4170 Wear Pad 24T 34.58-57.00

*E19709 E6390 FH 304063 JD 4173 Handl 336 and Later (Not Stocked Special Order)

BP14627 JD4175 Restricter Plate 147 30.63-50.53

AE24042 JD 5030 JD Needle Yoke 336, 346, 327, 337, 328, 338, 24T 314.16-345.57

AE12488E JD 5032 Needle Yoke 24T 320.70

AE36262 JD 5034 Needle JD 336, 346, 327, 337, 328, 338, 24T 107.94-124.13

E78684 JD 5040 Twine Finger Spring JD 336, 337 8.71-14.37

E64235 JD 5050 JD Wiper (Fits JD Knife Arm) 3.94-6.50

*19M6614 JD 5050A Cap Screw, 6 12 (Fits JD Wiper) (Not Stocked Special Order)

AE1006E JD 5052 Needle Yoke 14T 312.41-343.65

AM293A JD 5058 Needle 14T 130.76-150.37



Page 6

E42023 JD 5111 Eye Bolt 16.69-27.53

          *JD5116 Knotter Shaft 348 (Not Stocked Special Order)

            JD 5119 JD Finger W/Mount 348 46.82-77.25

            JD 5120 JD Update, Rod Only 11.21-18.49

            JD 5121 JD Update Rod End 10.43-17.20

            JD 5122 S Hook 1.55-2.55

           *JD 5123 JD Shaft Mount (Not Stocked Special Order)

           *JD 5126 Shaft (Knotter) 336 (Not Stocked Special Order)

           *JD 5127 JD Tucker Finger Shaft 327, 337, 347 (Not Stocked Special Order)

           *JD 5127A Update Kit 327, 337, 347 (Not Stocked Special Order)

E14739 JD 5128 Link Needle Lift 24T 30.86-50.91

*AE39977 JD 5133 Gear 336, 346, 24T, 327, 337, 347 (Not Stocked Special Order)

*FH312371 JD 5134 Gear 328, 338, 348 (Not Stocked Special Order)

E37426 FH312219 JD 5143 Spacer (Needle Frame) 336, 327, 337, 338

*AE406643 JD 5152 Sheild Side Cover 336, 346 (Not Stocked Special Order)

Page 7

*F42519 JD 5153 Sheild Knotter Cover 336, 346 (Not Stocked Special Order)

BP13931 JD 7012 JD Shear Pin (Made in USA) 336, 24T, 14T 1.16-2.32

BP 14125 JD 7013 JD Shear Pin 348 6.00-9.90











































































































John Deere® is a Registered Trademark of the John Deere Company, which does not manufacture or endorse these parts.

Since parts ship directly from an Amish-owned business without computers you should expect shipping to normally take 1-2 weeks to ship. However, those parts listed with * (Not Stocked) may take 3-6 weeks as they are not routinely stocked at our Amish distributor and will need to be shipped from a larger distribution shop. Not Stocked items will not be available to purchase in the drop-down boxes. Drop us an email with the parts needed and your zip code for pricing.

It would be data prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum of $14.50 flat base rate on all items regardless of the size. This is to cover the cost of processing, pack, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal, we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

With the part numbers we have listed below the models that reportedly fit. We do not guarantee that parts will fit all models listed since these are from listings provided to us. You should always verify with the original parts manual for your model. A 25% restocking fee will apply to returned parts.

Note: The Amish use horse drawn farm equipment converted with gasoline motors in the place of a tractor. The below references for motor mounts pertain to those types of conversions.

Page 1

                                          JD-386 Motor Mount 336, 348 $317.65-349.41

                                          JD-387 Motor Mount 247-147 335.-368.50

  *AE1378E JD408 RH Spindle 24T (Not Stocked Special Order)

                                          JD 414 Bale Chute-48” 14-348 152.73-175.63

                                          JD 415 Bale Chute Short 36” 14-348 129.61-149.05

                                          JD 416 Short Bale Chute Chain 14-348 4.88-8.05

                                          JD 417 Long Bale Chute Chain 14-348 7.78-12.83

                                          JD 418 Chain Bracket 14-438 14.98-24.71

E45805 JD 420 J.D. 336 RH Spindle 336 72.81-98.29

                                           JD 429 Chain Bracket Pins 1.06-2.12

                                          *JD 434 Bale Chute Kit Complete (Not Stocked Special Order)

E39051 JD 440 Spindle LH 336 54.49-73.56

*AM3118*E JD 447 Bale Counter (All JD Balers) (Not Stocked Special Order)

AE10688 JD 1009 Guage Wheel 24T, 336, 346 15.50-25.57

AE41180 JD 1041 Pickup Wheel Bracket 7-8 Series

*AE13609 JD 1049 Bracket, Gauge Wheel 336, 346 (Not Stocked Special Order)

Page 2

E155566 JD 4074 Plunger Bushing 336-338 15.44-25.47

E4448 JD 4078 JD Hay Wedge 24-348 29.09-47.99

JD8680 JD 4080 Plunger Roller 336-348 31.03-51.19

E18913 JD 4087 Stationary Knife 24T 87.73-118.43

E14573 JD 4088 JD Plunger Knife 24T 87.32-117.88

*E42276 JD 4097 Rail RH Side 336-348 (Not Stocked Special Order)

*E44835JD 4106 Angle Rail 336-348 (Not Stocked Special Orde

AE12520E JD 4114 Plunger Pin 24T, 14T 34.70-57.25

E50098 JD 4132 JD Dog Spring (All JD Balers) 6.76-11.15

E50091 JD 4132A Spring Clip (All JD Balers) 4.50-7.42

*AE23900 JD 4136 Crank (Bale Tension) (Not Stocked Special Order)

*AE14543 JD 4137 24T Bridge (Not Stocked Special Order)

*19H2275 JD 4137-A Bolt (Bridge) 24T (Not Stocked Special Order)

*AE23806 JD 4138 Crank (Pickup Drive) 336 (Not Stocked Special Order)

*E42165 JD 4141 JD Rail, 32” 336 (Not Stocked Special Order)

Page 3

E41833 BRT 1006 JD 336 Super Sweep Pickup Twine 336-348 3.44-5.67

2765E BRT1007 JD 14T Standard Tine 14T, 24T- 4.56-7.52

*E41839 JD 1069 JD SS Pickup Guard 327, 337, 338, 348 (Not Stocked Special Order)

*E64581 JD 1069A JD Pickup Guard 327, 337, 338, 348 (Not Stocked Special Order)

AE28843 JD 1070 JD 1” Hex Bearing (Pickup) 15.50-25.57

JD9420 JD 1070A 1-1/4 Hex Bearing 20.46-33.75

BD14049 JD 1072 JD PU Guard 24T, 14T 32.49-53.60

AE11579 JD 1110 Bearing New Style JD Pickup (Replace Rivet Style w/nut) 20.78-34.28

               *JD 1117 Guage Wheel JD 7 & 9 Series (Not Stocked Special Order)

E41454 JD 3053 Bearing JD Stuffer 336-348 20.78-34.28

AE29876 JD 3098 Hex Bearing 7/8 336-348 11.23-18.52

JD 9421 JD 4009 Crank Bearing Arm 29.66-48.93

JD 8646 JD 4010 JD Plunger Bearing 336T-348 11.63-19.18

E42088 JD 4065 JD Plunger Knife (Large) 336-348 89.97-103.45

E39069 JD 4066 Plunger Pin JD 327, 328, 336, 337, 338 29.26-48.27

E17777 JD 4027 JD Stationary Knife 336-348

Page 4

AE39974 JD 5066 Knife Arm, (Complete with knife and Roller) 138.00-158.70

*E61191 JD 5066A Bushing JD Knife Arm (Not Stocked Special Order)

          *JD 5066B Knife Arm (Knife arm without roller) (Not Stocked Special Order)

AE13632E JD 5067 Knotter Brake 24T 17.04-28.11

AE48700 JD 5068 JD Bill Hook (Fits All JD Balers) 88.99-102.33

E43727 JD 5069 JD Pinion Bill Hook (Fits All JD Balers) 48.50-80.00

E44026 JD 5070 Pinion (Fits All JD Balers) 57.81-78.04

AE 38658 JD 5074 Brake Assembly 327, 328, 336, 337, 338 17.04-28.11

                 *JD 5081 Needle, Yoke 347, 348 (Not Stocked Special Order)

E61164 JD 5106 Knife (Twine) (Fits JD Knife Arm) 11.12-18.34

19M7640 JD 5106A Cap Screw, 5 12 (Fits JD Twine Knife) .20-.40

 AE25363 JD 5108 Tucker Finger Shaft 336 ,346 76.32-103.00

 JD 5108A JD Tucker Finger Update Kit 336, 346 190.39-218.94

AE14509A JD 5109 JD Tucker Finger Shaft 24T 69.70-94.09

                  *JD 5109A JD Tucker Finger Update Kit 24T, 224 (Not Stocked Special Order)

E15517 JD 5110 Pin 19.97-32.95

Page 5

E16072 JD 4142 Shim, .06 336, 337, 348 3.06-6.12

E16073 JD 4143 Shim, .03 336, 337, 348 3.74-7.48

E21274 JD 4147 Angle Restricter (Fits Most JD Balers) 11.88-19.60

*1111221 JD 4158 Cotter Pin (Fits JD Plunger) (Not Stocked Special Order)

E14573 FH311771 JD 4161 Wear Block 336, 346, 328, 348 40.84-67.38

E15459 JD 4170 Wear Pad 24T 34.58-57.00

*E19709 E6390 FH 304063 JD 4173 Handl 336 and Later (Not Stocked Special Order)

BP14627 JD4175 Restricter Plate 147 30.63-50.53

AE24042 JD 5030 JD Needle Yoke 336, 346, 327, 337, 328, 338, 24T 314.16-345.57

AE12488E JD 5032 Needle Yoke 24T 320.70

AE36262 JD 5034 Needle JD 336, 346, 327, 337, 328, 338, 24T 107.94-124.13

E78684 JD 5040 Twine Finger Spring JD 336, 337 8.71-14.37

E64235 JD 5050 JD Wiper (Fits JD Knife Arm) 3.94-6.50

*19M6614 JD 5050A Cap Screw, 6 12 (Fits JD Wiper) (Not Stocked Special Order)

AE1006E JD 5052 Needle Yoke 14T 312.41-343.65

AM293A JD 5058 Needle 14T 130.76-150.37



Page 6

E42023 JD 5111 Eye Bolt 16.69-27.53

          *JD5116 Knotter Shaft 348 (Not Stocked Special Order)

            JD 5119 JD Finger W/Mount 348 46.82-77.25

            JD 5120 JD Update, Rod Only 11.21-18.49

            JD 5121 JD Update Rod End 10.43-17.20

            JD 5122 S Hook 1.55-2.55

           *JD 5123 JD Shaft Mount (Not Stocked Special Order)

           *JD 5126 Shaft (Knotter) 336 (Not Stocked Special Order)

           *JD 5127 JD Tucker Finger Shaft 327, 337, 347 (Not Stocked Special Order)

           *JD 5127A Update Kit 327, 337, 347 (Not Stocked Special Order)

E14739 JD 5128 Link Needle Lift 24T 30.86-50.91

*AE39977 JD 5133 Gear 336, 346, 24T, 327, 337, 347 (Not Stocked Special Order)

*FH312371 JD 5134 Gear 328, 338, 348 (Not Stocked Special Order)

E37426 FH312219 JD 5143 Spacer (Needle Frame) 336, 327, 337, 338

*AE406643 JD 5152 Sheild Side Cover 336, 346 (Not Stocked Special Order)

Page 7

*F42519 JD 5153 Sheild Knotter Cover 336, 346 (Not Stocked Special Order)

BP13931 JD 7012 JD Shear Pin (Made in USA) 336, 24T, 14T 1.16-2.32

BP 14125 JD 7013 JD Shear Pin 348 6.00-9.90































































































John Deere® is a Registered Trademark of the John Deere Company, which does not manufacture or endorse these parts.

Since parts ship directly from an Amish-owned business without computers you should expect shipping to normally take 1-2 weeks to ship. However, those parts listed with * (Not Stocked) may take 3-6 weeks as they are not routinely stocked at our Amish distributor and will need to be shipped from a larger distribution shop. Not Stocked items will not be available to purchase in the drop-down boxes. Drop us an email with the parts needed and your zip code for pricing.

It would be data prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum of $14.50 flat base rate on all items regardless of the size. This is to cover the cost of processing, pack, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal, we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

With the part numbers we have listed below the models that reportedly fit. We do not guarantee that parts will fit all models listed since these are from listings provided to us. You should always verify with the original parts manual for your model. A 25% restocking fee will apply to returned parts.

Note: The Amish use horse drawn farm equipment converted with gasoline motors in the place of a tractor. The below references for motor mounts pertain to those types of conversions.

Page 1

                                          JD-386 Motor Mount 336, 348 $317.65-349.41

                                          JD-387 Motor Mount 247-147 335.-368.50

  *AE1378E JD408 RH Spindle 24T (Not Stocked Special Order)

                                          JD 414 Bale Chute-48” 14-348 152.73-175.63

                                          JD 415 Bale Chute Short 36” 14-348 129.61-149.05

                                          JD 416 Short Bale Chute Chain 14-348 4.88-8.05

                                          JD 417 Long Bale Chute Chain 14-348 7.78-12.83

                                          JD 418 Chain Bracket 14-438 14.98-24.71

E45805 JD 420 J.D. 336 RH Spindle 336 72.81-98.29

                                           JD 429 Chain Bracket Pins 1.06-2.12

                                          *JD 434 Bale Chute Kit Complete (Not Stocked Special Order)

E39051 JD 440 Spindle LH 336 54.49-73.56

*AM3118*E JD 447 Bale Counter (All JD Balers) (Not Stocked Special Order)

AE10688 JD 1009 Guage Wheel 24T, 336, 346 15.50-25.57

AE41180 JD 1041 Pickup Wheel Bracket 7-8 Series

*AE13609 JD 1049 Bracket, Gauge Wheel 336, 346 (Not Stocked Special Order)

Page 2

E155566 JD 4074 Plunger Bushing 336-338 15.44-25.47

E4448 JD 4078 JD Hay Wedge 24-348 29.09-47.99

JD8680 JD 4080 Plunger Roller 336-348 31.03-51.19

E18913 JD 4087 Stationary Knife 24T 87.73-118.43

E14573 JD 4088 JD Plunger Knife 24T 87.32-117.88

*E42276 JD 4097 Rail RH Side 336-348 (Not Stocked Special Order)

*E44835JD 4106 Angle Rail 336-348 (Not Stocked Special Orde

AE12520E JD 4114 Plunger Pin 24T, 14T 34.70-57.25

E50098 JD 4132 JD Dog Spring (All JD Balers) 6.76-11.15

E50091 JD 4132A Spring Clip (All JD Balers) 4.50-7.42

*AE23900 JD 4136 Crank (Bale Tension) (Not Stocked Special Order)

*AE14543 JD 4137 24T Bridge (Not Stocked Special Order)

*19H2275 JD 4137-A Bolt (Bridge) 24T (Not Stocked Special Order)

*AE23806 JD 4138 Crank (Pickup Drive) 336 (Not Stocked Special Order)

*E42165 JD 4141 JD Rail, 32” 336 (Not Stocked Special Order)

Page 3

E41833 BRT 1006 JD 336 Super Sweep Pickup Twine 336-348 3.44-5.67

2765E BRT1007 JD 14T Standard Tine 14T, 24T- 4.56-7.52

*E41839 JD 1069 JD SS Pickup Guard 327, 337, 338, 348 (Not Stocked Special Order)

*E64581 JD 1069A JD Pickup Guard 327, 337, 338, 348 (Not Stocked Special Order)

AE28843 JD 1070 JD 1” Hex Bearing (Pickup) 15.50-25.57

JD9420 JD 1070A 1-1/4 Hex Bearing 20.46-33.75

BD14049 JD 1072 JD PU Guard 24T, 14T 32.49-53.60

AE11579 JD 1110 Bearing New Style JD Pickup (Replace Rivet Style w/nut) 20.78-34.28

               *JD 1117 Guage Wheel JD 7 & 9 Series (Not Stocked Special Order)

E41454 JD 3053 Bearing JD Stuffer 336-348 20.78-34.28

AE29876 JD 3098 Hex Bearing 7/8 336-348 11.23-18.52

JD 9421 JD 4009 Crank Bearing Arm 29.66-48.93

JD 8646 JD 4010 JD Plunger Bearing 336T-348 11.63-19.18

E42088 JD 4065 JD Plunger Knife (Large) 336-348 89.97-103.45

E39069 JD 4066 Plunger Pin JD 327, 328, 336, 337, 338 29.26-48.27

E17777 JD 4027 JD Stationary Knife 336-348

Page 4

AE39974 JD 5066 Knife Arm, (Complete with knife and Roller) 138.00-158.70

*E61191 JD 5066A Bushing JD Knife Arm (Not Stocked Special Order)

          *JD 5066B Knife Arm (Knife arm without roller) (Not Stocked Special Order)

AE13632E JD 5067 Knotter Brake 24T 17.04-28.11

AE48700 JD 5068 JD Bill Hook (Fits All JD Balers) 88.99-102.33

E43727 JD 5069 JD Pinion Bill Hook (Fits All JD Balers) 48.50-80.00

E44026 JD 5070 Pinion (Fits All JD Balers) 57.81-78.04

AE 38658 JD 5074 Brake Assembly 327, 328, 336, 337, 338 17.04-28.11

                 *JD 5081 Needle, Yoke 347, 348 (Not Stocked Special Order)

E61164 JD 5106 Knife (Twine) (Fits JD Knife Arm) 11.12-18.34

19M7640 JD 5106A Cap Screw, 5 12 (Fits JD Twine Knife) .20-.40

 AE25363 JD 5108 Tucker Finger Shaft 336 ,346 76.32-103.00

 JD 5108A JD Tucker Finger Update Kit 336, 346 190.39-218.94

AE14509A JD 5109 JD Tucker Finger Shaft 24T 69.70-94.09

                  *JD 5109A JD Tucker Finger Update Kit 24T, 224 (Not Stocked Special Order)

E15517 JD 5110 Pin 19.97-32.95

Page 5

E16072 JD 4142 Shim, .06 336, 337, 348 3.06-6.12

E16073 JD 4143 Shim, .03 336, 337, 348 3.74-7.48

E21274 JD 4147 Angle Restricter (Fits Most JD Balers) 11.88-19.60

*1111221 JD 4158 Cotter Pin (Fits JD Plunger) (Not Stocked Special Order)

E14573 FH311771 JD 4161 Wear Block 336, 346, 328, 348 40.84-67.38

E15459 JD 4170 Wear Pad 24T 34.58-57.00

*E19709 E6390 FH 304063 JD 4173 Handl 336 and Later (Not Stocked Special Order)

BP14627 JD4175 Restricter Plate 147 30.63-50.53

AE24042 JD 5030 JD Needle Yoke 336, 346, 327, 337, 328, 338, 24T 314.16-345.57

AE12488E JD 5032 Needle Yoke 24T 320.70

AE36262 JD 5034 Needle JD 336, 346, 327, 337, 328, 338, 24T 107.94-124.13

E78684 JD 5040 Twine Finger Spring JD 336, 337 8.71-14.37

E64235 JD 5050 JD Wiper (Fits JD Knife Arm) 3.94-6.50

*19M6614 JD 5050A Cap Screw, 6 12 (Fits JD Wiper) (Not Stocked Special Order)

AE1006E JD 5052 Needle Yoke 14T 312.41-343.65

AM293A JD 5058 Needle 14T 130.76-150.37



Page 6

E42023 JD 5111 Eye Bolt 16.69-27.53

          *JD5116 Knotter Shaft 348 (Not Stocked Special Order)

            JD 5119 JD Finger W/Mount 348 46.82-77.25

            JD 5120 JD Update, Rod Only 11.21-18.49

            JD 5121 JD Update Rod End 10.43-17.20

            JD 5122 S Hook 1.55-2.55

           *JD 5123 JD Shaft Mount (Not Stocked Special Order)

           *JD 5126 Shaft (Knotter) 336 (Not Stocked Special Order)

           *JD 5127 JD Tucker Finger Shaft 327, 337, 347 (Not Stocked Special Order)

           *JD 5127A Update Kit 327, 337, 347 (Not Stocked Special Order)

E14739 JD 5128 Link Needle Lift 24T 30.86-50.91

*AE39977 JD 5133 Gear 336, 346, 24T, 327, 337, 347 (Not Stocked Special Order)

*FH312371 JD 5134 Gear 328, 338, 348 (Not Stocked Special Order)

E37426 FH312219 JD 5143 Spacer (Needle Frame) 336, 327, 337, 338

*AE406643 JD 5152 Sheild Side Cover 336, 346 (Not Stocked Special Order)

Page 7

*F42519 JD 5153 Sheild Knotter Cover 336, 346 (Not Stocked Special Order)

BP13931 JD 7012 JD Shear Pin (Made in USA) 336, 24T, 14T 1.16-2.32

BP 14125 JD 7013 JD Shear Pin 348 6.00-9.90























































































John Deere® is a Registered Trademark of the John Deere Company, which does not manufacture or endorse these parts.

Since parts ship directly from an Amish-owned business without computers you should expect shipping to normally take 1-2 weeks to ship. However, those parts listed with * (Not Stocked) may take 3-6 weeks as they are not routinely stocked at our Amish distributor and will need to be shipped from a larger distribution shop. Not Stocked items will not be available to purchase in the drop-down boxes. Drop us an email with the parts needed and your zip code for pricing.

It would be data prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum of $14.50 flat base rate on all items regardless of the size. This is to cover the cost of processing, pack, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal, we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

With the part numbers we have listed below the models that reportedly fit. We do not guarantee that parts will fit all models listed since these are from listings provided to us. You should always verify with the original parts manual for your model. A 25% restocking fee will apply to returned parts.

Note: The Amish use horse drawn farm equipment converted with gasoline motors in the place of a tractor. The below references for motor mounts pertain to those types of conversions.

Page 1

                                          JD-386 Motor Mount 336, 348 $317.65-349.41

                                          JD-387 Motor Mount 247-147 335.-368.50

  *AE1378E JD408 RH Spindle 24T (Not Stocked Special Order)

                                          JD 414 Bale Chute-48” 14-348 152.73-175.63

                                          JD 415 Bale Chute Short 36” 14-348 129.61-149.05

                                          JD 416 Short Bale Chute Chain 14-348 4.88-8.05

                                          JD 417 Long Bale Chute Chain 14-348 7.78-12.83

                                          JD 418 Chain Bracket 14-438 14.98-24.71

E45805 JD 420 J.D. 336 RH Spindle 336 72.81-98.29

                                           JD 429 Chain Bracket Pins 1.06-2.12

                                          *JD 434 Bale Chute Kit Complete (Not Stocked Special Order)

E39051 JD 440 Spindle LH 336 54.49-73.56

*AM3118*E JD 447 Bale Counter (All JD Balers) (Not Stocked Special Order)

AE10688 JD 1009 Guage Wheel 24T, 336, 346 15.50-25.57

AE41180 JD 1041 Pickup Wheel Bracket 7-8 Series

*AE13609 JD 1049 Bracket, Gauge Wheel 336, 346 (Not Stocked Special Order)

Page 2

E155566 JD 4074 Plunger Bushing 336-338 15.44-25.47

E4448 JD 4078 JD Hay Wedge 24-348 29.09-47.99

JD8680 JD 4080 Plunger Roller 336-348 31.03-51.19

E18913 JD 4087 Stationary Knife 24T 87.73-118.43

E14573 JD 4088 JD Plunger Knife 24T 87.32-117.88

*E42276 JD 4097 Rail RH Side 336-348 (Not Stocked Special Order)

*E44835JD 4106 Angle Rail 336-348 (Not Stocked Special Orde

AE12520E JD 4114 Plunger Pin 24T, 14T 34.70-57.25

E50098 JD 4132 JD Dog Spring (All JD Balers) 6.76-11.15

E50091 JD 4132A Spring Clip (All JD Balers) 4.50-7.42

*AE23900 JD 4136 Crank (Bale Tension) (Not Stocked Special Order)

*AE14543 JD 4137 24T Bridge (Not Stocked Special Order)

*19H2275 JD 4137-A Bolt (Bridge) 24T (Not Stocked Special Order)

*AE23806 JD 4138 Crank (Pickup Drive) 336 (Not Stocked Special Order)

*E42165 JD 4141 JD Rail, 32” 336 (Not Stocked Special Order)

Page 3

E41833 BRT 1006 JD 336 Super Sweep Pickup Twine 336-348 3.44-5.67

2765E BRT1007 JD 14T Standard Tine 14T, 24T- 4.56-7.52

*E41839 JD 1069 JD SS Pickup Guard 327, 337, 338, 348 (Not Stocked Special Order)

*E64581 JD 1069A JD Pickup Guard 327, 337, 338, 348 (Not Stocked Special Order)

AE28843 JD 1070 JD 1” Hex Bearing (Pickup) 15.50-25.57

JD9420 JD 1070A 1-1/4 Hex Bearing 20.46-33.75

BD14049 JD 1072 JD PU Guard 24T, 14T 32.49-53.60

AE11579 JD 1110 Bearing New Style JD Pickup (Replace Rivet Style w/nut) 20.78-34.28

               *JD 1117 Guage Wheel JD 7 & 9 Series (Not Stocked Special Order)

E41454 JD 3053 Bearing JD Stuffer 336-348 20.78-34.28

AE29876 JD 3098 Hex Bearing 7/8 336-348 11.23-18.52

JD 9421 JD 4009 Crank Bearing Arm 29.66-48.93

JD 8646 JD 4010 JD Plunger Bearing 336T-348 11.63-19.18

E42088 JD 4065 JD Plunger Knife (Large) 336-348 89.97-103.45

E39069 JD 4066 Plunger Pin JD 327, 328, 336, 337, 338 29.26-48.27

E17777 JD 4027 JD Stationary Knife 336-348

Page 4

AE39974 JD 5066 Knife Arm, (Complete with knife and Roller) 138.00-158.70

*E61191 JD 5066A Bushing JD Knife Arm (Not Stocked Special Order)

          *JD 5066B Knife Arm (Knife arm without roller) (Not Stocked Special Order)

AE13632E JD 5067 Knotter Brake 24T 17.04-28.11

AE48700 JD 5068 JD Bill Hook (Fits All JD Balers) 88.99-102.33

E43727 JD 5069 JD Pinion Bill Hook (Fits All JD Balers) 48.50-80.00

E44026 JD 5070 Pinion (Fits All JD Balers) 57.81-78.04

AE 38658 JD 5074 Brake Assembly 327, 328, 336, 337, 338 17.04-28.11

                 *JD 5081 Needle, Yoke 347, 348 (Not Stocked Special Order)

E61164 JD 5106 Knife (Twine) (Fits JD Knife Arm) 11.12-18.34

19M7640 JD 5106A Cap Screw, 5 12 (Fits JD Twine Knife) .20-.40

 AE25363 JD 5108 Tucker Finger Shaft 336 ,346 76.32-103.00

 JD 5108A JD Tucker Finger Update Kit 336, 346 190.39-218.94

AE14509A JD 5109 JD Tucker Finger Shaft 24T 69.70-94.09

                  *JD 5109A JD Tucker Finger Update Kit 24T, 224 (Not Stocked Special Order)

E15517 JD 5110 Pin 19.97-32.95

Page 5

E16072 JD 4142 Shim, .06 336, 337, 348 3.06-6.12

E16073 JD 4143 Shim, .03 336, 337, 348 3.74-7.48

E21274 JD 4147 Angle Restricter (Fits Most JD Balers) 11.88-19.60

*1111221 JD 4158 Cotter Pin (Fits JD Plunger) (Not Stocked Special Order)

E14573 FH311771 JD 4161 Wear Block 336, 346, 328, 348 40.84-67.38

E15459 JD 4170 Wear Pad 24T 34.58-57.00

*E19709 E6390 FH 304063 JD 4173 Handl 336 and Later (Not Stocked Special Order)

BP14627 JD4175 Restricter Plate 147 30.63-50.53

AE24042 JD 5030 JD Needle Yoke 336, 346, 327, 337, 328, 338, 24T 314.16-345.57

AE12488E JD 5032 Needle Yoke 24T 320.70

AE36262 JD 5034 Needle JD 336, 346, 327, 337, 328, 338, 24T 107.94-124.13

E78684 JD 5040 Twine Finger Spring JD 336, 337 8.71-14.37

E64235 JD 5050 JD Wiper (Fits JD Knife Arm) 3.94-6.50

*19M6614 JD 5050A Cap Screw, 6 12 (Fits JD Wiper) (Not Stocked Special Order)

AE1006E JD 5052 Needle Yoke 14T 312.41-343.65

AM293A JD 5058 Needle 14T 130.76-150.37



Page 6

E42023 JD 5111 Eye Bolt 16.69-27.53

          *JD5116 Knotter Shaft 348 (Not Stocked Special Order)

            JD 5119 JD Finger W/Mount 348 46.82-77.25

            JD 5120 JD Update, Rod Only 11.21-18.49

            JD 5121 JD Update Rod End 10.43-17.20

            JD 5122 S Hook 1.55-2.55

           *JD 5123 JD Shaft Mount (Not Stocked Special Order)

           *JD 5126 Shaft (Knotter) 336 (Not Stocked Special Order)

           *JD 5127 JD Tucker Finger Shaft 327, 337, 347 (Not Stocked Special Order)

           *JD 5127A Update Kit 327, 337, 347 (Not Stocked Special Order)

E14739 JD 5128 Link Needle Lift 24T 30.86-50.91

*AE39977 JD 5133 Gear 336, 346, 24T, 327, 337, 347 (Not Stocked Special Order)

*FH312371 JD 5134 Gear 328, 338, 348 (Not Stocked Special Order)

E37426 FH312219 JD 5143 Spacer (Needle Frame) 336, 327, 337, 338

*AE406643 JD 5152 Sheild Side Cover 336, 346 (Not Stocked Special Order)

Page 7

*F42519 JD 5153 Sheild Knotter Cover 336, 346 (Not Stocked Special Order)

BP13931 JD 7012 JD Shear Pin (Made in USA) 336, 24T, 14T 1.16-2.32

BP 14125 JD 7013 JD Shear Pin 348 6.00-9.90

































































John Deere® is a Registered Trademark of the John Deere Company, which does not manufacture or endorse these parts.

Since parts ship directly from an Amish-owned business without computers you should expect shipping to normally take 1-2 weeks to ship. However, those parts listed with * (Not Stocked) may take 3-6 weeks as they are not routinely stocked at our Amish distributor and will need to be shipped from a larger distribution shop. Not Stocked items will not be available to purchase in the drop-down boxes. Drop us an email with the parts needed and your zip code for pricing.

It would be data prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum of $14.50 flat base rate on all items regardless of the size. This is to cover the cost of processing, pack, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal, we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

With the part numbers we have listed below the models that reportedly fit. We do not guarantee that parts will fit all models listed since these are from listings provided to us. You should always verify with the original parts manual for your model. A 25% restocking fee will apply to returned parts.

Note: The Amish use horse drawn farm equipment converted with gasoline motors in the place of a tractor. The below references for motor mounts pertain to those types of conversions.

Page 1

                                          JD-386 Motor Mount 336, 348 $317.65-349.41

                                          JD-387 Motor Mount 247-147 335.-368.50

  *AE1378E JD408 RH Spindle 24T (Not Stocked Special Order)

                                          JD 414 Bale Chute-48” 14-348 152.73-175.63

                                          JD 415 Bale Chute Short 36” 14-348 129.61-149.05

                                          JD 416 Short Bale Chute Chain 14-348 4.88-8.05

                                          JD 417 Long Bale Chute Chain 14-348 7.78-12.83

                                          JD 418 Chain Bracket 14-438 14.98-24.71

E45805 JD 420 J.D. 336 RH Spindle 336 72.81-98.29

                                           JD 429 Chain Bracket Pins 1.06-2.12

                                          *JD 434 Bale Chute Kit Complete (Not Stocked Special Order)

E39051 JD 440 Spindle LH 336 54.49-73.56

*AM3118*E JD 447 Bale Counter (All JD Balers) (Not Stocked Special Order)

AE10688 JD 1009 Guage Wheel 24T, 336, 346 15.50-25.57

AE41180 JD 1041 Pickup Wheel Bracket 7-8 Series

*AE13609 JD 1049 Bracket, Gauge Wheel 336, 346 (Not Stocked Special Order)

Page 2

E155566 JD 4074 Plunger Bushing 336-338 15.44-25.47

E4448 JD 4078 JD Hay Wedge 24-348 29.09-47.99

JD8680 JD 4080 Plunger Roller 336-348 31.03-51.19

E18913 JD 4087 Stationary Knife 24T 87.73-118.43

E14573 JD 4088 JD Plunger Knife 24T 87.32-117.88

*E42276 JD 4097 Rail RH Side 336-348 (Not Stocked Special Order)

*E44835JD 4106 Angle Rail 336-348 (Not Stocked Special Orde

AE12520E JD 4114 Plunger Pin 24T, 14T 34.70-57.25

E50098 JD 4132 JD Dog Spring (All JD Balers) 6.76-11.15

E50091 JD 4132A Spring Clip (All JD Balers) 4.50-7.42

*AE23900 JD 4136 Crank (Bale Tension) (Not Stocked Special Order)

*AE14543 JD 4137 24T Bridge (Not Stocked Special Order)

*19H2275 JD 4137-A Bolt (Bridge) 24T (Not Stocked Special Order)

*AE23806 JD 4138 Crank (Pickup Drive) 336 (Not Stocked Special Order)

*E42165 JD 4141 JD Rail, 32” 336 (Not Stocked Special Order)

Page 3

E41833 BRT 1006 JD 336 Super Sweep Pickup Twine 336-348 3.44-5.67

2765E BRT1007 JD 14T Standard Tine 14T, 24T- 4.56-7.52

*E41839 JD 1069 JD SS Pickup Guard 327, 337, 338, 348 (Not Stocked Special Order)

*E64581 JD 1069A JD Pickup Guard 327, 337, 338, 348 (Not Stocked Special Order)

AE28843 JD 1070 JD 1” Hex Bearing (Pickup) 15.50-25.57

JD9420 JD 1070A 1-1/4 Hex Bearing 20.46-33.75

BD14049 JD 1072 JD PU Guard 24T, 14T 32.49-53.60

AE11579 JD 1110 Bearing New Style JD Pickup (Replace Rivet Style w/nut) 20.78-34.28

               *JD 1117 Guage Wheel JD 7 & 9 Series (Not Stocked Special Order)

E41454 JD 3053 Bearing JD Stuffer 336-348 20.78-34.28

AE29876 JD 3098 Hex Bearing 7/8 336-348 11.23-18.52

JD 9421 JD 4009 Crank Bearing Arm 29.66-48.93

JD 8646 JD 4010 JD Plunger Bearing 336T-348 11.63-19.18

E42088 JD 4065 JD Plunger Knife (Large) 336-348 89.97-103.45

E39069 JD 4066 Plunger Pin JD 327, 328, 336, 337, 338 29.26-48.27

E17777 JD 4027 JD Stationary Knife 336-348

Page 4

AE39974 JD 5066 Knife Arm, (Complete with knife and Roller) 138.00-158.70

*E61191 JD 5066A Bushing JD Knife Arm (Not Stocked Special Order)

          *JD 5066B Knife Arm (Knife arm without roller) (Not Stocked Special Order)

AE13632E JD 5067 Knotter Brake 24T 17.04-28.11

AE48700 JD 5068 JD Bill Hook (Fits All JD Balers) 88.99-102.33

E43727 JD 5069 JD Pinion Bill Hook (Fits All JD Balers) 48.50-80.00

E44026 JD 5070 Pinion (Fits All JD Balers) 57.81-78.04

AE 38658 JD 5074 Brake Assembly 327, 328, 336, 337, 338 17.04-28.11

                 *JD 5081 Needle, Yoke 347, 348 (Not Stocked Special Order)

E61164 JD 5106 Knife (Twine) (Fits JD Knife Arm) 11.12-18.34

19M7640 JD 5106A Cap Screw, 5 12 (Fits JD Twine Knife) .20-.40

 AE25363 JD 5108 Tucker Finger Shaft 336 ,346 76.32-103.00

 JD 5108A JD Tucker Finger Update Kit 336, 346 190.39-218.94

AE14509A JD 5109 JD Tucker Finger Shaft 24T 69.70-94.09

                  *JD 5109A JD Tucker Finger Update Kit 24T, 224 (Not Stocked Special Order)

E15517 JD 5110 Pin 19.97-32.95

Page 5

E16072 JD 4142 Shim, .06 336, 337, 348 3.06-6.12

E16073 JD 4143 Shim, .03 336, 337, 348 3.74-7.48

E21274 JD 4147 Angle Restricter (Fits Most JD Balers) 11.88-19.60

*1111221 JD 4158 Cotter Pin (Fits JD Plunger) (Not Stocked Special Order)

E14573 FH311771 JD 4161 Wear Block 336, 346, 328, 348 40.84-67.38

E15459 JD 4170 Wear Pad 24T 34.58-57.00

*E19709 E6390 FH 304063 JD 4173 Handl 336 and Later (Not Stocked Special Order)

BP14627 JD4175 Restricter Plate 147 30.63-50.53

AE24042 JD 5030 JD Needle Yoke 336, 346, 327, 337, 328, 338, 24T 314.16-345.57

AE12488E JD 5032 Needle Yoke 24T 320.70

AE36262 JD 5034 Needle JD 336, 346, 327, 337, 328, 338, 24T 107.94-124.13

E78684 JD 5040 Twine Finger Spring JD 336, 337 8.71-14.37

E64235 JD 5050 JD Wiper (Fits JD Knife Arm) 3.94-6.50

*19M6614 JD 5050A Cap Screw, 6 12 (Fits JD Wiper) (Not Stocked Special Order)

AE1006E JD 5052 Needle Yoke 14T 312.41-343.65

AM293A JD 5058 Needle 14T 130.76-150.37



Page 6

E42023 JD 5111 Eye Bolt 16.69-27.53

          *JD5116 Knotter Shaft 348 (Not Stocked Special Order)

            JD 5119 JD Finger W/Mount 348 46.82-77.25

            JD 5120 JD Update, Rod Only 11.21-18.49

            JD 5121 JD Update Rod End 10.43-17.20

            JD 5122 S Hook 1.55-2.55

           *JD 5123 JD Shaft Mount (Not Stocked Special Order)

           *JD 5126 Shaft (Knotter) 336 (Not Stocked Special Order)

           *JD 5127 JD Tucker Finger Shaft 327, 337, 347 (Not Stocked Special Order)

           *JD 5127A Update Kit 327, 337, 347 (Not Stocked Special Order)

E14739 JD 5128 Link Needle Lift 24T 30.86-50.91

*AE39977 JD 5133 Gear 336, 346, 24T, 327, 337, 347 (Not Stocked Special Order)

*FH312371 JD 5134 Gear 328, 338, 348 (Not Stocked Special Order)

E37426 FH312219 JD 5143 Spacer (Needle Frame) 336, 327, 337, 338

*AE406643 JD 5152 Sheild Side Cover 336, 346 (Not Stocked Special Order)

Page 7

*F42519 JD 5153 Sheild Knotter Cover 336, 346 (Not Stocked Special Order)

BP13931 JD 7012 JD Shear Pin (Made in USA) 336, 24T, 14T 1.16-2.32

BP 14125 JD 7013 JD Shear Pin 348 6.00-9.90





















































































































Shipping Estimator

Estimate Shipping Calculator

Note : * Required Field(s) in the drop-down box options above must be selected to obtain a shipping estimate. Alaska-Hawaii customers contact us. International Customers other than Canada, please use a US Forwarding Agent like MYUS.COM

File(s)

File(s)

There are no file attachments for this product.
Write Your Own Review
You're reviewing: J.D. Vintage Square Baler Parts
loader
Loading...

check-circle You submitted your review for moderation.

mgctlbxN$MZP mgctlbxV$5.3.7 mgctlbxL$C mgctlbxP$magento 2
