J.D. 300 Husker, Hydraulics, Wheels, Gearbox, Drives
Aftermarket Replacement Parts for John Deere 300 Series Corn Picker and 40 Series Corn Head Husker. Hydraulics, Wheels, Gearbox, Drives (Pages 5-8)
These quality aftermarket parts for the John Deere 300 Series Picker and 40 Series Corn Head Husker are manufactured by an Amish company in Pennsylvania. The John Deere 300 remains one of the fastest, simplest pull-type huskers available.
Parts are priced a la carte using the drop-down menus.
- Select the parts you need, and prices will update automatically.
- To order more than one item from the same menu, add the first to your cart, then choose Continue Shopping to return and add more.
- To clear a selection, click on Please Select again.
Additional shipping charges may apply.
See details about available parts and shipping below the drop-down boxes. You should expect Items requiring truck freight will likely start a $200 and up, depending on size and destination. Extra-long or heavy packages that will ship UPS may run up to $200.
Read more below >
Description / J.D. 300 Husker, Hydraulics, Wheels, Gearbox, Drives
Click Here to view all of our other J.D. 300 Series available parts.
Shipping & Ordering Information
John Deere® is a registered trademark of Deere & Company, Moline, Illinois. Deere & Company does not manufacture, endorse, or affiliate with these parts.
Because of the wide range of parts available, it’s not practical to list individual shipping costs. Shipping and handling are based on an average purchase of a few parts. A minimum $19.95 flat base rate applies to all orders—this covers processing, packing, drop-ship coordination, and postage.
Larger or heavier orders may require additional shipping or truck freight. If extra charges are needed, you’ll receive a secure payment link via email before shipment.
Please allow 1–4 weeks for delivery. Amish workshops do not use computers or modern communication methods, so orders take additional time to process, build (if needed), and ship.
Inventory is not maintained electronically, as these shops also supply other Amish machine shops nationwide. Occasionally, new parts may need to be fabricated before shipping.
We do not take phone orders or maintain a parts desk lookup system.
If you can’t find a specific part, please email us for assistance.
Returns & Pricing
- Prices are subject to change without notice.
- Returned parts or orders with unpaid additional shipping are subject to a 25% restocking fee.
How to Order by Page
Use the drop-down options by page number to view parts and prices.
- Choose one part per page and select the desired quantity.
- Click Add to Cart.
- Return to other pages to continue adding parts.

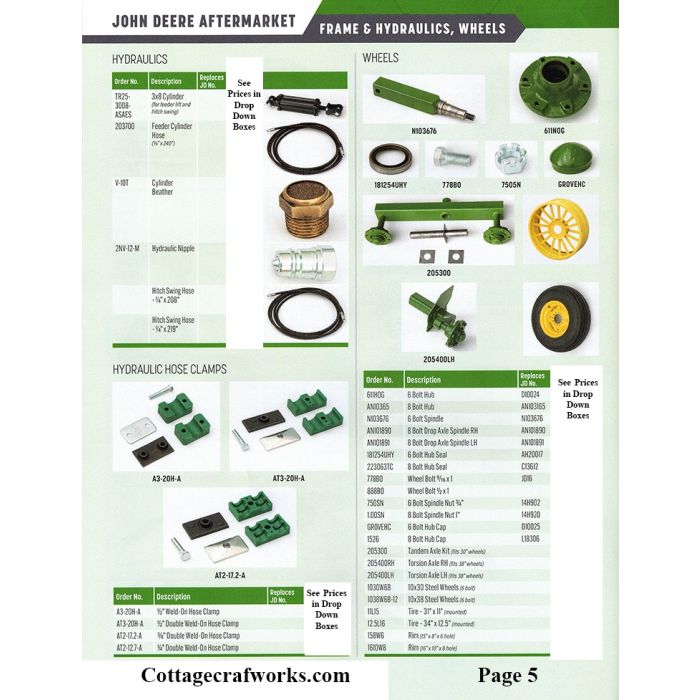

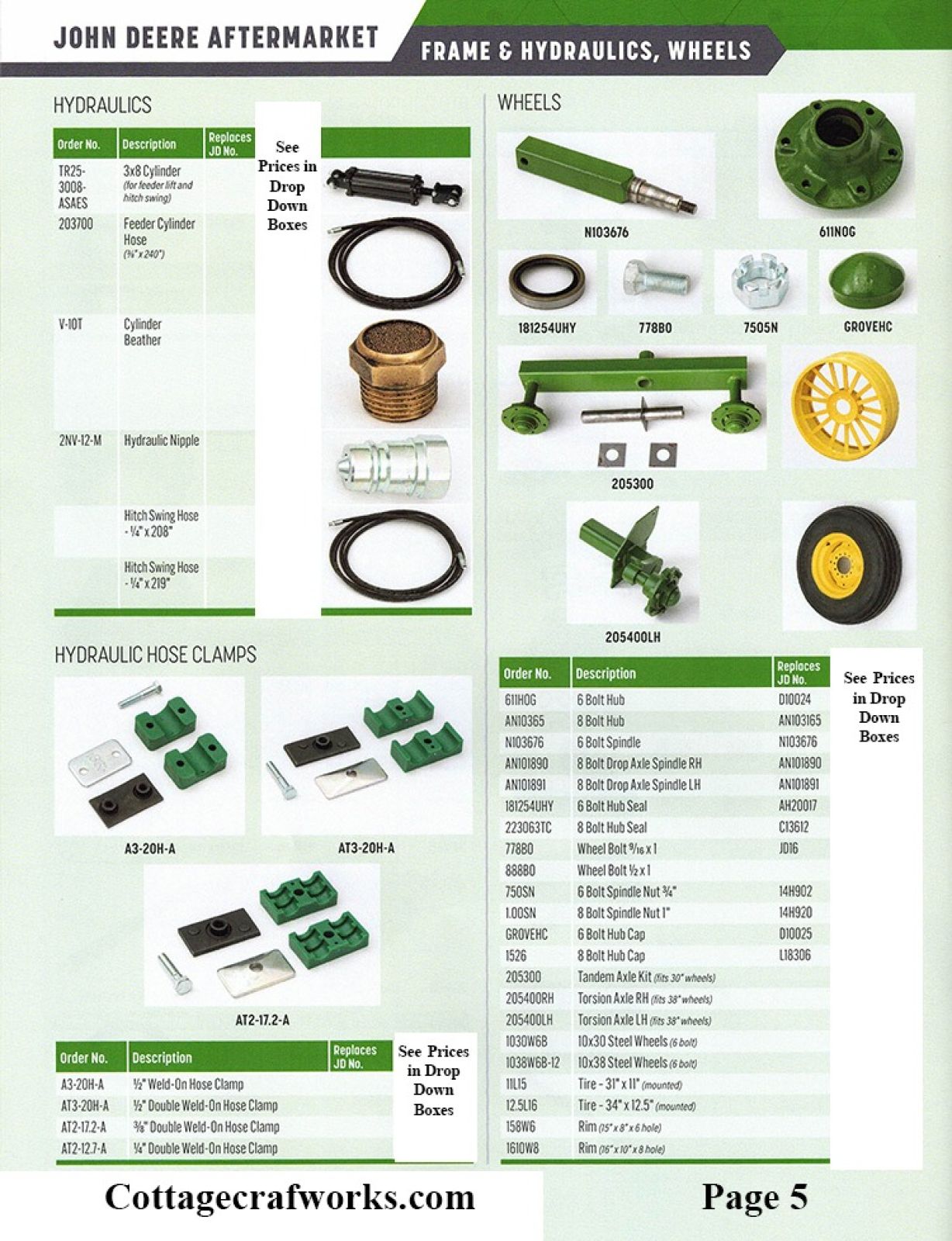

TR25-3008-ASAES 3” x 8” Cylinder (for feeder lift and hitch swing)
203700 Feeder Cylinder Hose (3/8” x 240”)
V-101 Cylinder Breather
2NV-12M Hydraulic Nipple Connector
Hitch Swing Hose (1/4” x 208”)
Hitch Swing Hose (1/4” x 219”)
Hydraulic Hose Clamps
A3-20H-A ½” Weld-On Hose Clamp
AT3-20H-A ½” Double Weld-On Hose Clamp
AT2-17.2-A 3/8” Double Weld-On Hose Clamp
AT2-12.7-A ¼” Double Weld-On Hose Clamp
Wheels & Axle
611H0G-D10024 6 Bolt Hub
AN10365-AN103165 8 Bolt Hub
N103676 6 Bolt Spindle
AN101890 8 Bolt Drop Axle RH
AN191891 8 Bolt Drop Axle LH
181254UHY-AH20017 6 Bolt Hub Seal
223063TC-C13612 8 Bolt Hub Seal
77880-JD16 Wheel Bolt 9/16 x 1”
888B0 Wheel Bolt 1/2” x 1”
750SN-14H902 6 Bolt Spindle Nut ¾”
1.00SN-14H920 8 Bolt Spindle Nut 1”
GOVEHC-D10025 6 Bolt Hub Cap
1526-L18306 8 Bolt Hub Cap
205300 Tandem Axle Kit (fits 30” wheels) (requires shipping via truck freight $200+)
205400RH Torsion Axle RH (fits 38” wheels)
205400LH Torsion Axle LH (fits 38” wheels)
1030W6B 10 x 30 Steel Wheels (6-bolt) (requires shipping via truck freight $200+)
1038W6B-12 10 x 38” Steel Wheels (6-bolt) (requires shipping via truck freight $200+)
11L15 Tire-31” x 11” (mounted) (border line UPS or LTL shipping $100-$200+)
12.5L16 Tire-34” x 12.5” (mounted) (border line UPS or LTL shipping $100- $200+)
158W6 Rim (15” x 8” x 6 hole)
1610W8 Rim (16” x 10” x 8 hole)

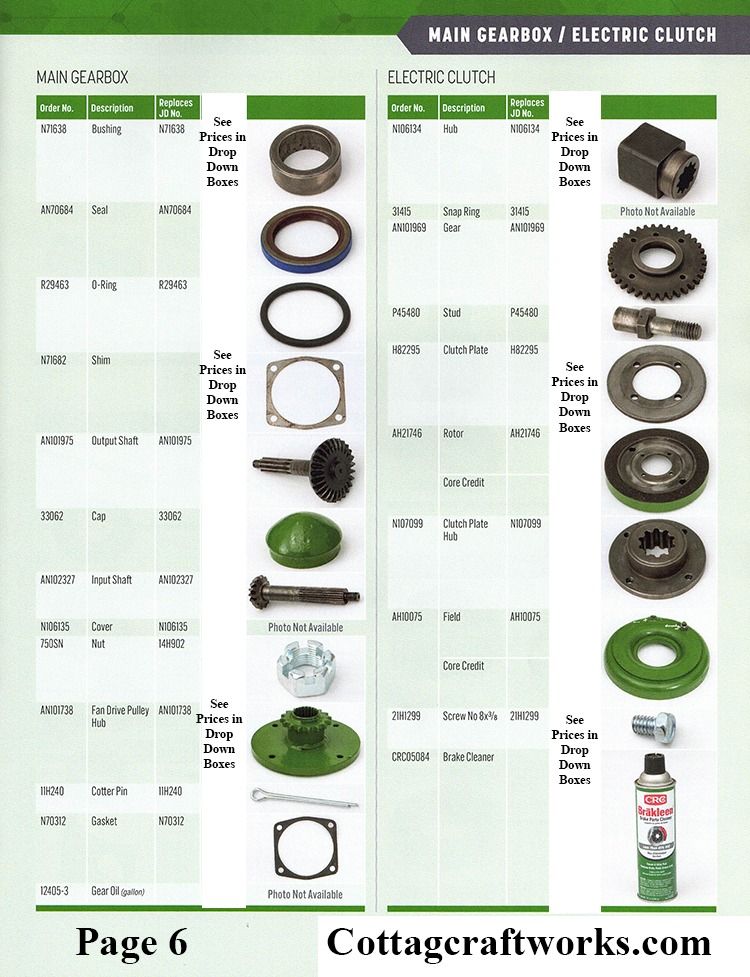

Main Gearbox/Electric Clutch Page 6
N71638 Bushing
AN70684 Seal
R29463 O-Ring
N71682 Shim
AN101975 Output Shaft
33062 Cap
AN102327 Input Shaft
N106135 Cover
750SN-14H902 Nut
AN1011738 Fan Drive Pulley Hub
11H240 Cotter Pin
N70312 Gasket
12405-3 Gear Old (we do not ship) Purchase locally 1-Gallon
N106134 Hub
31415 Snap Ring
AN101969 Gear
P45480 Stud
H82295 Clutch Plate
AH21746 Rotor
N107099 Clutch Plate Hub
AH10075 Field
21H1299 Screw 8 x 3/8”
CRC05084 Brake Cleaner (we do not ship, purchase locally)

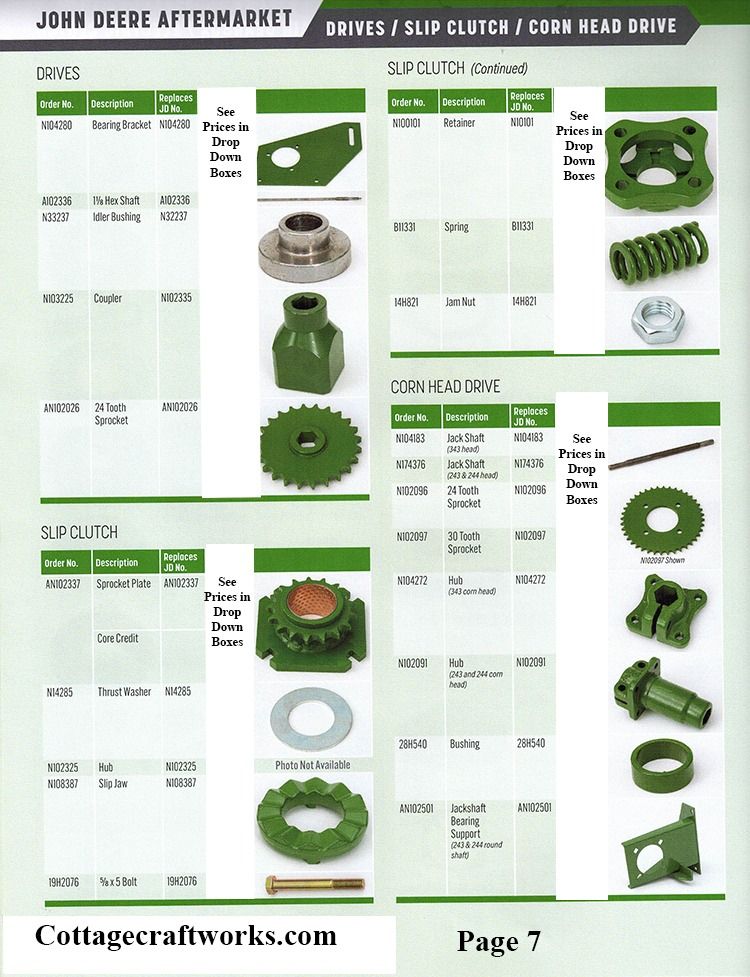

Drives/Slip Clutch/Corn Head Drive Page 7
Drives
N104280 Bearing Bracket
A102336 1-1/8 Hex Shaft
N33237 Idler Bushing
N103225 Coupler
AN102026 24 Tooth Sprocket
Slip Clutch
AN102337 Sprocket Plate
N14285 Thrust Washer
N102325 Hub
N108387 Slip Jaw
19H2076 5/8 x 5 Bolt
N100101 Retainer
B1133 Spring
14H821 Jam Nut
Corn Head Drive
N104183 Jack Shaft (343 corn head)
N174376 Jack Shaft (243 & 244 head
N102096 24 Tooth Sprocket
N102097 30 Tooth Sprocket
N104272 Hub (343 corn head)
N102091 Hub (243 & 244 corn head)
28H540 Bushing
AN102501 Jackshaft Bearing Support (243 & 244 round shaft)

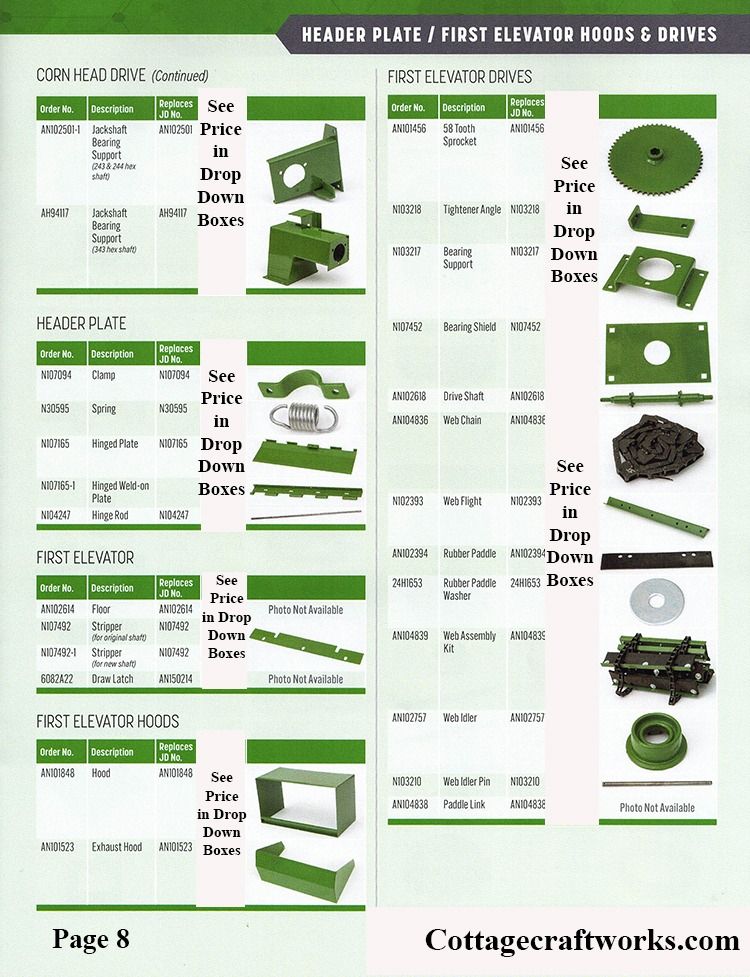

Header Plat/First Elevator Hoods & Drives Page 8
Corn Head Drive (Continued)
AN102501-1 Jackshaft Bearing Support (243 & 244 hex shaft)
AH94117 Jackshaft Bearing Support (343 hex shaft)
Header Plate
N107094 Clamp
N30595 Spring
N107165 Hinged Plate
N107165-1 Hinged Weld-On Plate
N104247 Hinge Rod
First Elevator
AN102614 Floor
N107492 Stripper (for original shaft)
N107492-1 Stripper (for new shaft)
6082A22-AN150214 Draw Latch
First Elevator Hoods
AN101848 Hood
AN101523 Exhaust Hood
First Elevator Drives
AN101456 58 Tooth Sprocket
N103218 Tightener Angle
N13217 Bearing Support
N107452 Bearing Shield
AN102618 Drive Shaft
AN104836 Web Chain
N102393 Web Flight
AN102394 Rubber Paddle
24H1653 Rubber Paddle Washer
AN104839 Web Assembly Kit (requires shipping via truck freight $200+)
AN102757 Web Idler
N103210 Web Idler Pin
AN104838 Paddle Link
