J.D. 300 Husker, Husking Bed, Fan, Brushes, Elevator

Click Here to view all of our other J.D. 300 Series available parts.

Shipping & Ordering Information

John Deere® is a registered trademark of Deere & Company, Moline, Illinois. Deere & Company does not manufacture, endorse, or affiliate with these parts.

Because of the wide range of parts available, it’s not practical to list individual shipping costs. Shipping and handling are based on an average purchase of a few parts. A minimum $19.95 flat base rate applies to all orders—this covers processing, packing, drop-ship coordination, and postage.

Larger or heavier orders may require additional shipping or truck freight. If extra charges are needed, you’ll receive a secure payment link via email before shipment.

Please allow 1–4 weeks for delivery. Amish workshops do not use computers or modern communication methods, so orders take additional time to process, build (if needed), and ship.
Inventory is not maintained electronically, as these shops also supply other Amish machine shops nationwide. Occasionally, new parts may need to be fabricated before shipping.

We do not take phone orders or maintain a parts desk lookup system.
If you can’t find a specific part, please email us for assistance.

Returns & Pricing

• Prices are subject to change without notice.
• Returned parts or orders with unpaid additional shipping are subject to a 25% restocking fee.

How to Order by Page

Use the drop-down options by page number to view parts and prices.

• Choose one part per page and select the desired quantity.
• Click Add to Cart.
• Return to other pages to continue adding parts.

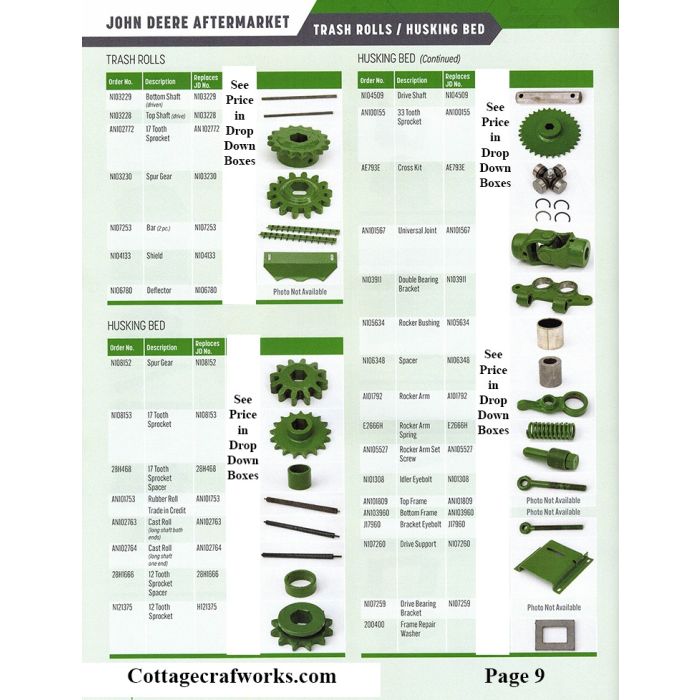

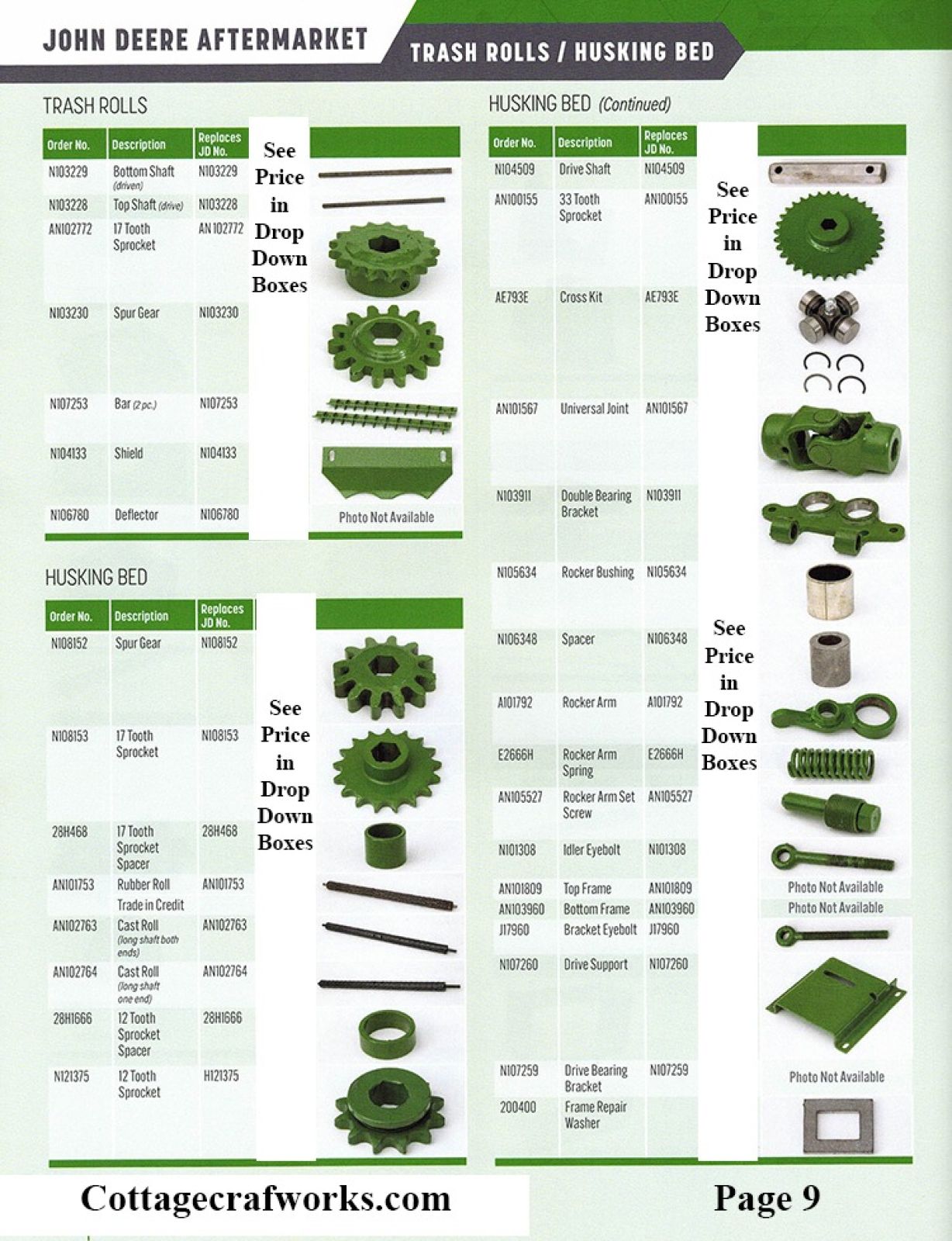

 Trash Rolls Page 9

N103229 Bottom Shaft (driven)

N103228 Top Shaft (drive)

AN102772 17 Tooth Sprocket

N103230 Spur Gear

N107253 Bar (2 pc)

N104133 Shield

N106780 Deflector

Husking Bed

N108152 Spur Gear

N108153 17 Tooth Sprocket

28H468 17 Tooth Sprocket Spacer

AN101753 Rubber Roll

AN102763 Cast Roll (long shaft both ends)

AN102764 Cast Roll (long shaft one end)

28H1666 12 Tooth Sprocket Spacer

N121375-H21375 12 Tooth Sprocket

N104509 Drive Shaft

AN100155 33 Tooth Sprocket

AE793E Cross Kit

AN101567 Universal Joint

N103911 Double Bearing Bracket

N105634 Rocker Bushing

N106348 Spacer

A101792 Rocker Arm

E266H Rocker Arm Spring

AN105527 Rocker Arm Set Screw

N101308 Idler Eyebolt

AN101809 Top Frame

AN103960 Bottom Frame

J17960 Bracket Eyebolt

N107260 Drive Support

N107259 Drive Bearing Bracket

20040 Frame Repair Washer

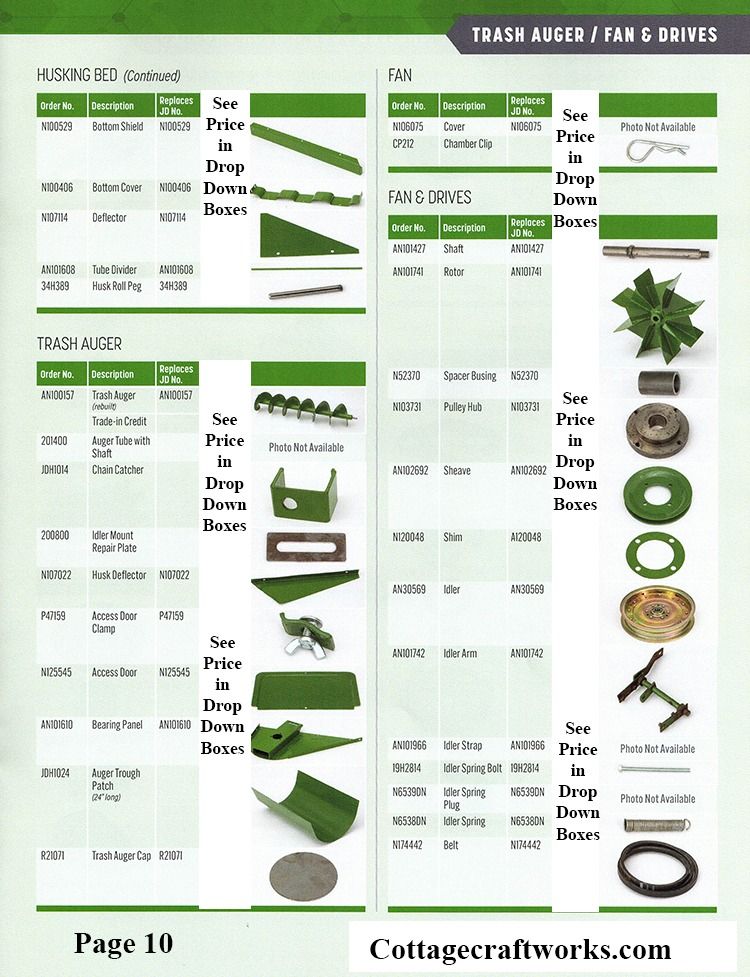

Trash Auger/ Fan & Drives Page 10

Husking Bed Continued from Page 9

N100529 Bottom Shield

N10046 Bottom Cover

N107114 Deflector

AN101608 Tube Divider

34H389 Husking Roll Peg

Trash Auger

AN100157 Trash Auger (rebuilt) (requires shipping via truck freight $200+)

201400 Auger Tube with Shaft

JDH1014 Chain Catcher

200800 Idler Mount Repair Plate

N107022 Husk Deflector

P47159 Access Door Clamp

N125545 Access Door

AN101610 Bearing Panel

JDH1024 Auger Trough Patch (24” long)

R21071 Trash Auger Cap

N106075 Cover

CP212 Chamber Clip

Fan & Drives

AN101427 Shaft

An101741 Rotor

N52370 Spacer Bushing

N103731 Pulley Hub

AN102692 Sheave

N120048 Shim

AN30569 Idler

AN101742 Idler Arm

AN101966 Idler Strap

19H2814 Idler Spring Bolt

N6539DN Idler Spring Plug

N6538DN Idler Spring

N17442 Belt

Shelled Corn & Husk Brushes Page 11

Fan & Drive Parts Continued from Page 10

AP22551 Drive Sheave

N106852 Screen

CP3-52955DW Screen Clip

AN101345 Air Chamber (lower)

AN101951 Air Chamber (upper)

Slip Clutch for Shelled Corn & Husk Brushes

N120872 Slip Clutch Spring

N125229 Slip Clutch Plate

28H473 Spacer Bushing

N120856 Slip Clutch Jaw

N120854 Slip Clutch Washer

N124826 Slip Clutch Bushing

AN122075 Slip Clutch Hub

10H1192 Slip Clutch Bolt

N106194 Slip Clutch Sprocket

Shelled Corn & Husk Brushes

N103321 Bearing Bracket

N103245 Drive Shaft

N104536 5/8” Eye Bolt (for serial #983 or less)

N101308 ½” Eye Bolt (for serial #984 and up)

N171050 Idler Spacer

50BB17H-5/8-AN101473 Idler Sprocket

28H2116 Husk Brush Drive 12-Tooth Sprocket Spacer

AN102744 Husk Brush Holder Set (2 pc.)

AN101437 Husk Brush

AN101334 60 Tooth Sprocket

28H1923 60 Tooth Sprocket Spacer

N108520 Husk Brush Drive Shaft

28H484 Husk Brush Shaft Inside Spacer

AN100271 Shelled Corn Chain (for serial # 983 or less)

AN102762 Shelled Corn Chain (for serial # 984 and over)

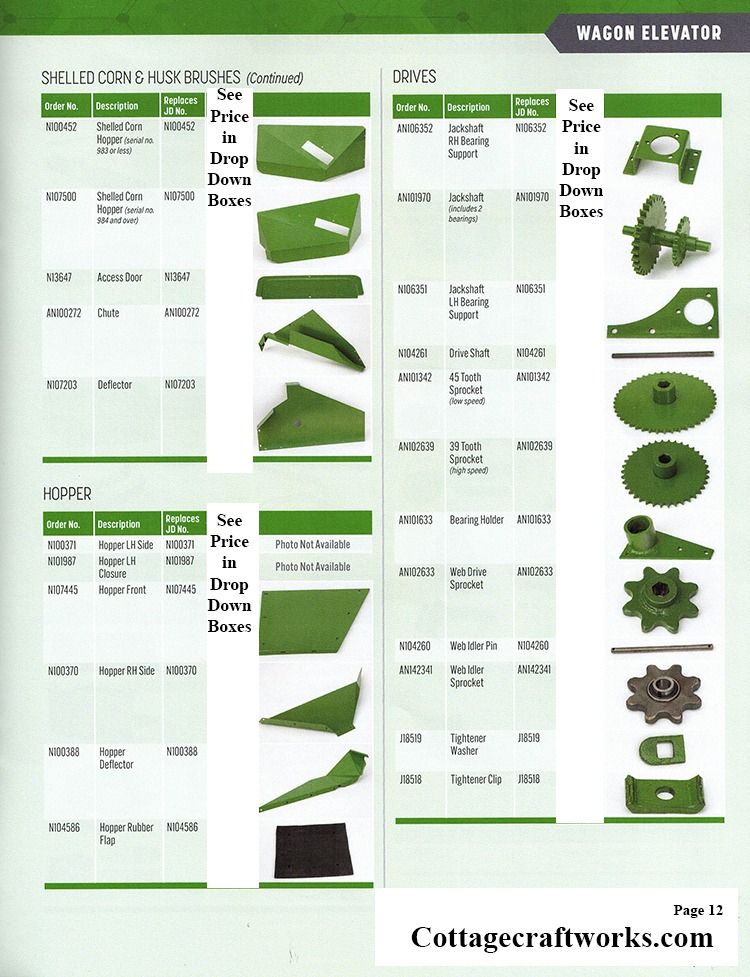

Wagon Elevator Page 12

Shelled Corn & Husk Brushes Continued from Page 11

N100452 Shelled Corn Hopper (for serial # 983 or less)

N107500 Shelled Corn Hopper (for serial # 984 and over)

N13647 Access Door

AN100272 Chute

N107203 Deflector

Hopper

N100371 Hopper LH Side

N101987 Hopper LH Closure

N107445 Hopper Front

N100370 Hopper RH Side

N100388 Hopper Deflector

N104586 Hopper Rubber Flap

Drives

AN106352 Jackshaft RH Bearing Support

AN101970 Jackshaft (includes 2 bearings)

N106351 Jackshaft LH Bearing Support

N104261 Drive Shaft

AN101342 45 Tooth Sprocket (low speed)

AN102639 39 Tooth Sprocket (high speed)

AN101633 Bearing Holder

AN102633 Web Drive Sprocket

N104260 Web Idler Pin

AN142341 Web Idler Sprocket

J18519 Tightener Washer

J18518 Tightener Clip

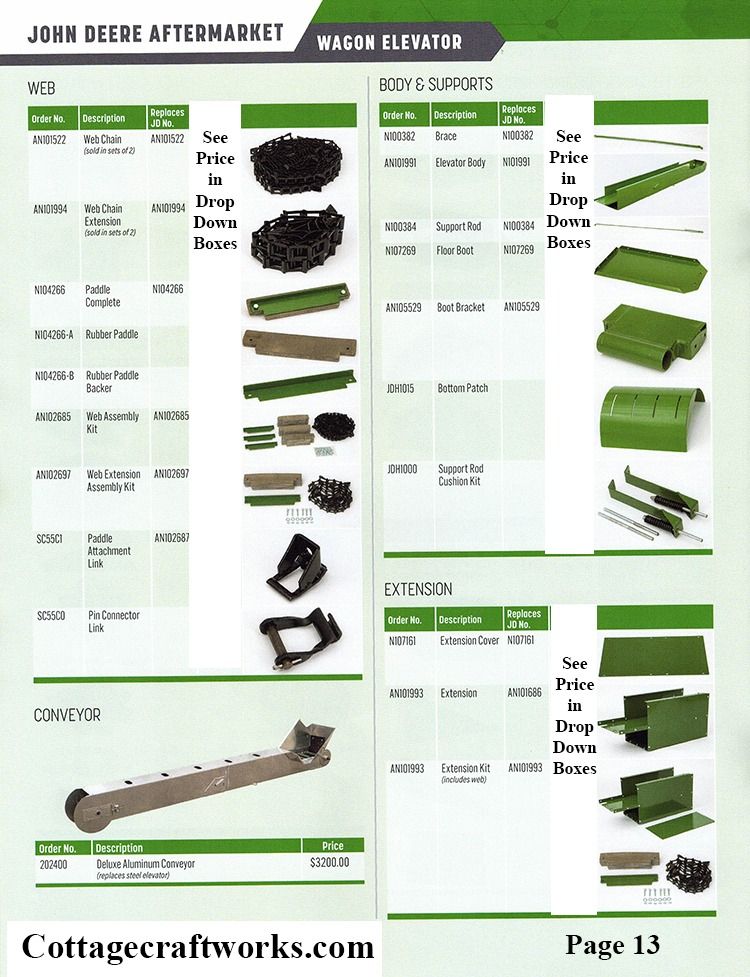

Wagon Elevator Page 13

Web

AN101522 Web Chain (set 2 pc)

AN101994 Web Chain Extension (set 2 pc)

N104266 Paddle Complete

N104266-A Rubber Paddle

N104266-B Rubber Paddle Backer

AN102685 Web Assembly Kit

AN102697 Web Extension Assembly Kit

SC55C1-AN102687 Paddle Attachment Link

SC55C0 Pin Connector Link

Conveyor

202400 Deluxe Aluminum Conveyor (replaces steel elevator) (must ship truck freight or pickup in Kinzers PA area)

Body & Supports

N100382 Brace

AN101991-N101991 Elevator Body (must ship truck freight or pickup in Kinzers PA area)

N100384 Support Rod

N107269 Floor Boot

AN105529 Boot Bracket

JDH1015 Bottom Patch

JDH1000 Support Rod Cushion Kit

Extension

N107161 Extension Cover

AN101933 Extension

AN101993 Extension Kit (includes web)
